Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

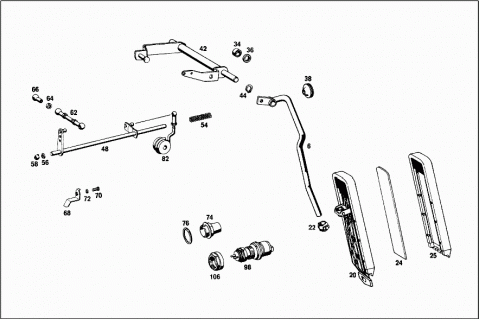

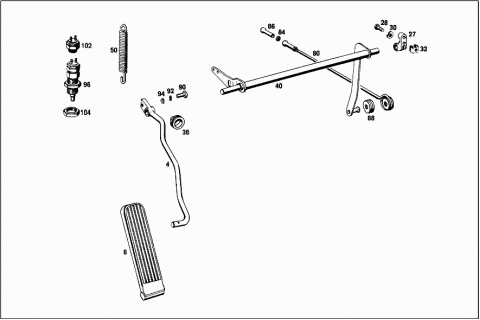

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1103000304 | ACCELERATOR PEDAL |
| 004 | A 1103000304 | ACCELERATOR PEDAL |
| 004 | A 1103000304 | ACCELERATOR PEDAL |
| 006 | A 1083010001 | LEVER |
| 006 | A 1083010001 | LEVER |
| 006 | A 1083010001 | LEVER |
| 008 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 008 | A 1103000002 | PLATE |
| 008 | A 1103000002 | PLATE |
| A 1103010183 | INSERT | |
| Repalced by: A 1103010083 | ||
| A 1103010083 | INSERT | |
| A 1103010083 | INSERT | |
| A 1103010582 | PAD | |
| Repalced by: A 1103000002 | ||
| A 1103000002 | PLATE | |
| A 1103000002 | PLATE | |
| A 1103000002 | PLATE | |
| A 1103010083 | INSERT | |
| A 1103010482 | PAD | |
| A 1153000304 | ACCELERATOR PEDAL | |
| A 1153000404 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1233000204 | ACCELERATOR PEDAL | |
| 020 | A 1233000204 | ACCELERATOR PEDAL |
| 022 | A 1233010022 | JOINT |
| 022 | A 1233010022 | JOINT |
| 022 | A 1233010022 | JOINT |
| 024 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 024 | A 1233000204 | ACCELERATOR PEDAL |
| 025 | A 1163010082 | PAD |
| Repalced by: A 1163010182 | ||
| 025 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 025 | A 1233000204 | ACCELERATOR PEDAL |
| A 1163010182 | PAD | |
| A 1073010040 | BRACKET | |
| Repalced by: A 1249888678 | ||
| A 1249888678 | CLIP | |
| 027 | A 1103010018 | BEARING |
| 028 | N 000933006082 | SCREW |
| N 000933006123 | SCREW | |
| 030 | N 000137006204 | SPRING WASHER |
| 032 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 032 | A 0009902291 | NUT RETAINER |
| 034 | A 1083010053 | SPACER TUBE |
| 036 | A 1143010051 | SPACER RING |
| 036 | A 1143010051 | SPACER RING |
| 038 | A 1839970081 | GROMMET |
| A 1093000020 | SHAFT | |
| A 1083000020 | SHAFT | |
| Repalced by: A 1083000820 | ||
| 040 | A 1083000820 | SHAFT |
| A 1093000520 | SHAFT | |
| 042 | A 1093001220 | SHAFT |
| A 1093001620 | SHAFT | |
| 044 | N 900055012401 | LOCK RING |
| 044 | N 900055012401 | LOCK RING |
| A 1093000720 | SHAFT | |
| Repalced by: A 1093001320 | ||
| A 1093001320 | SHAFT | |
| BETWEEN FIRE WALL AND ENGINE | ||
| 048 | A 1093001520 | SHAFT |
| BETWEEN FIRE WALL AND ENGINE | ||
| 050 | A 1169930610 | SPRING |
| 054 | A 1169935001 | SPRING |
| 056 | A 1093010051 | SPACER RING |
| 056 | A 1093010051 | SPACER RING |
| 058 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| A 1263010485 | RUBBER BUFFER | |
| A 1163010150 | BUSHING | |
| A 1163010150 | BUSHING | |
| A 1093000015 | ROD | |
| A 1093000215 | ROD | |
| A 1093000415 | ROD | |
| 062 | A 1093000615 | ROD |
| A 1093000815 | ROD | |
| 064 | N 000934005008 | NUT |
| 064 | N 000934005008 | NUT |
| 066 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 066 | A 0009918922 | BALL SOCKET |
| 066 | A 0009918922 | BALL SOCKET |
| 068 | A 1093011020 | LEVER |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 070 | N 000933005036 | SCREW |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 072 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 072 | N 000433005304 | WASHER |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 074 | A 1153010241 | STOP |
| 074 | A 1153010241 | STOP |
| 076 | A 1159970640 | SEAL RING |
| 076 | A 1159970640 | SEAL RING |
| A 0009870415 | PLUG | |
| A 1123000815 | ROD | |
| 080 | A 1113001215 | ROD |
| A 1003000115 | ROD | |
| A 1093000115 | ROD | |
| 082 | A 1093000315 | ROD |
| 084 | N 000934005008 | NUT |
| 086 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 086 | A 0009918922 | BALL SOCKET |
| 088 | A 1213010097 | BOOT |
| 090 | N 000933009016 | SCREW |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| 092 | N 000137008204 | SPRING WASHER |
| 094 | N 000125008407 | WASHER |
| 096 | A 1123000241 | STOP |
| 096 | A 1123000241 | STOP |
| A 1093000041 | STOP | |
| 098 | A 1153000241 | STOP |
| 098 | A 1153000241 | STOP |
| 098 | A 1153000241 | STOP |
| A 0005452706 | SWITCH | |
| 102 | A 0005451706 | SWITCH |
| KICK-DOWN | ||
| 102 | A 0005451706 | SWITCH |
| KICK-DOWN | ||
| 104 | A 1129900151 | NUT |
| 104 | A 1129900151 | NUT |
| 104 | A 1129900151 | NUT |
| 106 | A 1153040151 | NUT |
| 106 | A 1153040151 | NUT |
| 106 | A 1153040151 | NUT |
| A 0003040040 | BRACKET | |
