Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

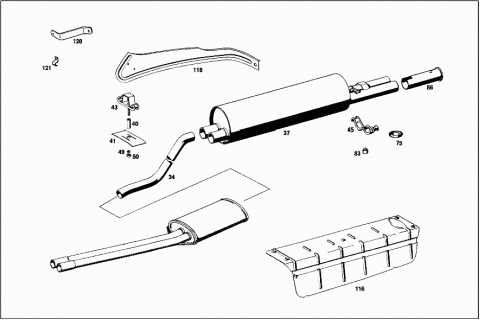

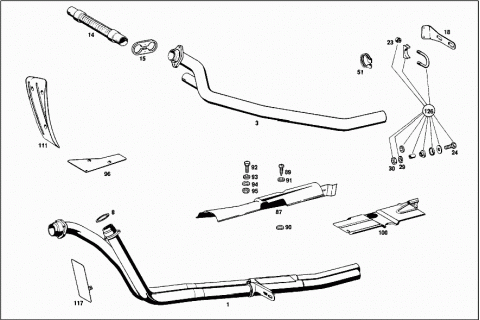

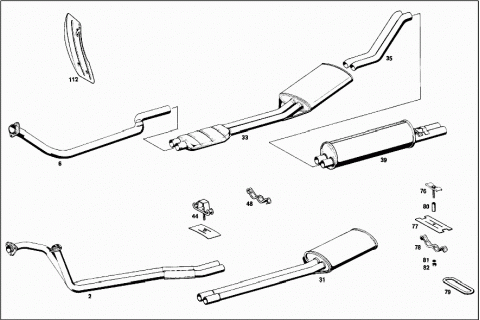

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1124901010 | EXHAUST PIPE |
| FRONT | ||
| 002 | A 1084902120 | EXHAUST PIPE |
| FRONT | ||
| 003 | A 1094900019 | EXHAUST PIPE |
| FRONT LEFT | ||
| A 1094901019 | EXHAUST PIPE | |
| FRONT LEFT | ||
| A 1094900119 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| A 1094901119 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| 006 | A 1094900419 | EXHAUST PIPE |
| FRONT LEFT | ||
| A 1094900519 | EXHAUST PIPE | |
| Repalced by: A 1094900020 | ||
| A 1094900020 | EXHAUST PIPE | |
| FRONT RIGHT | ||
| 008 | N 915035000012 | SEAL RING |
| N 915035000023 | SEAL RING | |
| N 006912008020 | SCREW | |
| N 000931008217 | SCREW | |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| 014 | A 0004921059 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE CONNECTION | ||
| 015 | A 1104920040 | CLAMP |
| EXHAUST PIPE CONNECTION | ||
| N 000931008182 | SCREW | |
| EXHAUST PIPE CONNECTION | ||
| N 000125008407 | WASHER | |
| EXHAUST PIPE CONNECTION | ||
| N 000127008203 | LOCK WASHER | |
| EXHAUST PIPE CONNECTION | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| EXHAUST PIPE CONNECTION | ||
| 018 | A 1084920319 | BRACKET |
| A 1084920026 | CLAMPING PIECE | |
| A 1104920126 | CLAMPING PIECE | |
| A 1104920027 | CLAMPING BRACKET | |
| 023 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 023 | A 0009903250 | NUT |
| 024 | N 000931008244 | SCREW |
| A 1089900340 | WASHER | |
| N 000440009103 | WASHER | |
| A 1211550181 | RUBBER RING | |
| A 1084920053 | SPACER TUBE | |
| 029 | N 000127008203 | LOCK WASHER |
| 030 | N 000934008013 | NUT |
| 031 | A 1094900115 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| A 1234920027 | CLAMPING BRACKET | |
| N 002093016100 | DISC SPRING | |
| A 1094900315 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL | ||
| 033 | A 1094900215 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| 034 | A 1124920904 | REAR EXHAUST PIPE |
| A 1094920204 | REAR EXHAUST PIPE | |
| 035 | A 1094920604 | REAR EXHAUST PIPE |
| 037 | A 1124913401 | MUFFLER |
| A 1094911901 | MUFFLER | |
| A 1094911401 | MUFFLER | |
| 039 | A 1094910401 | MUFFLER |
| A 1094911001 | MUFFLER | |
| 040 | A 0004920053 | SPACER TUBE |
| 041 | A 0004920183 | INSULATION |
| Repalced by: A 0004920983 | ||
| 041 | A 0004920983 | INSULATION |
| A 0004920383 | INSULATION | |
| Repalced by: A 0004921083 | ||
| A 0004921083 | INSULATION | |
| A 0004920583 | INSULATION | |
| Repalced by: A 0004921183 | ||
| A 0004921183 | INSULATION | |
| 043 | A 1094900143 | BRACKET |
| A 0004920343 | CLAMP | |
| 044 | A 0004920943 | CLAMP |
| 045 | A 0004920043 | CLAMP |
| A 1094900043 | BRACKET | |
| A 1094900443 | BRACKET | |
| 048 | A 0004920843 | CLAMP |
| 049 | N 000127008203 | LOCK WASHER |
| 050 | N 000934008013 | NUT |
| 051 | A 1124921140 | CLAMP |
| Repalced by: A 1124900341 | ||
| 051 | A 1124900341 | CLAMP |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000125008407 | WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000127008203 | LOCK WASHER | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 071555053502 | CLAMP | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000933010035 | SCREW | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| N 000127010202 | LOCK WASHER | |
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| A 1074900041 | CLAMP | |
| N 000931008241 | SCREW | |
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| N 000125008407 | WASHER | |
| N 000125008418 | WASHER | |
| N 000127008203 | LOCK WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 000934008013 | NUT | |
| A 1094900243 | BRACKET | |
| TOP CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094920343 | CLAMP | |
| BOTTOM CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920153 | SPACER TUBE | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920183 | INSULATION | |
| Repalced by: A 0004920983 | ||
| A 0004920983 | INSULATION | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1134920082 | DAMPING PAD | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094900343 | BRACKET | |
| TOP CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094920543 | CLAMP | |
| BOTTOM CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920053 | SPACER TUBE | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 0004920453 | SPACER TUBE | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1094920082 | DAMPING PAD | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| A 1095860149 | REPAIR KIT | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| N 000934008013 | NUT | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| N 000127008203 | LOCK WASHER | |
| CENTRAL EXHAUST PIPE SUSPENSION IN TUNNEL | ||
| 075 | A 1074920082 | DAMPING PAD |
| 076 | A 1094900343 | BRACKET |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 077 | A 0004920483 | INSULATION |
| Repalced by: A 0004921683 | ||
| 077 | A 0004921683 | INSULATION |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 078 | A 1094920543 | CLAMP |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 079 | A 1094920082 | DAMPING PAD |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 080 | A 0004920053 | SPACER TUBE |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 081 | N 000127008203 | LOCK WASHER |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 082 | N 000934008013 | NUT |
| CENTRAL EXHAUST PIPE SUSPENSION TO BRIDGE BELOW FRONT SEAT | ||
| 083 | A 1129870140 | RUBBER BUFFER |
| 086 | A 1134920214 | END PIECE |
| A 1234920714 | END PIECE | |
| 087 | A 1094900030 | PROTECTIVE PLATE |
| 087 | A 1094900030 | PROTECTIVE PLATE |
| A 1094900130 | PROTECTIVE PLATE | |
| 089 | N 007976006203 | SHEET METAL SCREW |
| 090 | N 000137006204 | SPRING WASHER |
| 091 | A 0009873841 | RUBBER RING |
| 092 | A 1204200227 | SCREW |
| 093 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 093 | N 009021006208 | WASHER |
| SCREENING PLATE BELOW FRONT SEAT | ||
| 094 | N 000137006204 | SPRING WASHER |
| SCREENING PLATE BELOW FRONT SEAT | ||
| 095 | N 000934006007 | NUT |
| SCREENING PLATE BELOW FRONT SEAT | ||
| A 1084900030 | PROTECTIVE PLATE | |
| AT FRONT FLOOR | ||
| 096 | A 1084920430 | PROTECTIVE PLATE |
| AT FRONT FLOOR | ||
| 096 | A 1084920430 | PROTECTIVE PLATE |
| AT FRONT FLOOR | ||
| N 000087006125 | SCREW | |
| A 0009902036 | SCREW | |
| A 0009902036 | SCREW | |
| 100 | A 1094921030 | PROTECTIVE PLATE |
| BELOW FRONT SEATS | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 1204200227 | SCREW | |
| A 0009873841 | RUBBER RING | |
| N 000137006204 | SPRING WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 111 | A 1124900830 | PROTECTIVE PLATE |
| Repalced by: A 1094920530 | ||
| 111 | A 1094920530 | PROTECTIVE PLATE |
| BELOW FIRE WALL | ||
| 112 | A 1094920530 | PROTECTIVE PLATE |
| BELOW FIRE WALL | ||
| 112 | A 1094920530 | PROTECTIVE PLATE |
| BELOW FIRE WALL | ||
| N 000087006125 | SCREW | |
| A 0009902036 | SCREW | |
| A 0009902036 | SCREW | |
| 116 | A 1084920330 | PROTECTIVE PLATE |
| AT TRUNK | ||
| A 0009902036 | SCREW | |
| 117 | A 1124900530 | PROTECTIVE PLATE |
| STARTING MOTOR | ||
| A 1124900730 | PROTECTIVE PLATE | |
| Repalced by: A 1114920430 | ||
| 118 | A 1114920430 | PROTECTIVE PLATE |
| DIAPHRAGM | ||
| 118 | A 1114920430 | PROTECTIVE PLATE |
| DIAPHRAGM | ||
| A 1124920619 | BRACKET | |
| COVER PLATE TO TRANSMISSION | ||
| 120 | A 1094920119 | BRACKET |
| COVER PLATE TO TRANSMISSION | ||
| 121 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 121 | A 1109950401 | CLAMP |
| COVER PLATE TO TRANSMISSION | ||
| N 000933006026 | SCREW | |
| COVER PLATE TO TRANSMISSION | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| COVER PLATE TO TRANSMISSION | ||
| N 912004006102 | LOCK WASHER | |
| COVER PLATE TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| COVER PLATE TO TRANSMISSION | ||
| 126 | A 1084900037 | REPAIR KIT |
| EXHAUST PIPE SUSPENSION | ||
| A 1264900337 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1095860049 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
| A 1115860049 | REPAIR KIT | |
| EXHAUST PIPE SUSPENSION | ||
