Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

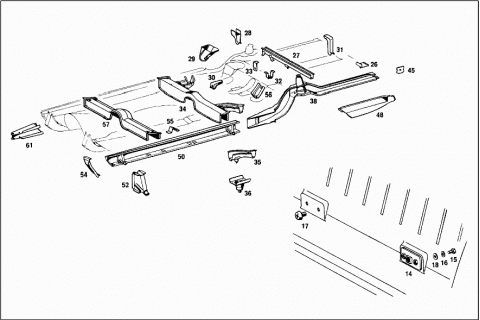

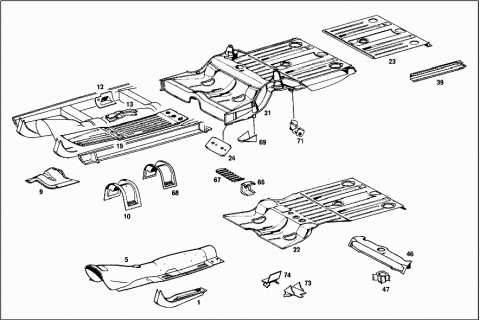

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE

#	Kodas	Pavadinimas
001	A 1106100713	SIDE MEMBER
	Repalced by: A 1086100113
	A 1086100113	SIDE MEMBER
		FRONT, LEFT CONNECTION PIECE
	A 1106100813	SIDE MEMBER
		FRONT, RIGHT CONNECTION PIECE
	A 1106160466	TUNNEL
	Repalced by: A 1096160166
	A 1106160566	TUNNEL
	Repalced by: A 1096160166
005	A 1096160166	TUNNEL
	A 1096160266	TUNNEL
	Repalced by: A 1096160366
	A 1086160066	TUNNEL
	A 1096160366	TUNNEL
	A 1096160566	TUNNEL
		REAR PART
009	A 1106100254	BRIDGE
		BELOW FRONT SEATS
	A 1086100054	BRIDGE
	Repalced by: A 1086100154
	A 1086100154	BRIDGE
		BELOW FRONT SEATS
010	A 1106100352	TAKE-UP DEVICE
		PROPELLER SHAFT CENTER BEARING, IN TUNNEL, CENTER
010	A 1106100352	TAKE-UP DEVICE
		PROPELLER SHAFT CENTER BEARING, IN TUNNEL, CENTER
	A 1106160220	MOUNTING
	Repalced by: A 1086100053
012	A 1086100053	MOUNTING
		HAND BRAKE INTERMEDIATE LEVER
013	A 1106160128	GUIDE
		HAND BRAKE INTERMEDIATE LEVER
	A 1106100311	PLATE
	Repalced by: A 1269840125
	A 1269840125	THREADED CHUCK
	Repalced by: A 1269840025
	A 1269840025	THREADED CHUCK
		SAFETY BELT
014	A 1106100211	PLATE
		FRONT SEAT SAFETY BELT
015	N 000933006103	SCREW
	Repalced by: N 304017006018
015	N 304017006018	SCREW
016	A 0009841755	WASHER
017	A 0009901322	SCREW
018	A 0009873841	RUBBER RING
019	A 1106160767	FLOOR
	Repalced by: A 1086160167
	A 1086160167	FLOOR
		LEFT
	A 1106160867	FLOOR
		RIGHT
021	A 1096100061	FLOOR
		TAIL, REAR
	A 1106160062	FLOOR
	Repalced by: A 1106160462
022	A 1106160462	FLOOR
		REAR
023	A 1106160162	FLOOR
		REAR SEMI-FINISHED
	A 1086100153	MOUNTING
		LEFT
024	A 1086100253	MOUNTING
		RIGHT
024	A 1086100253	MOUNTING
		RIGHT AND LEFT
	A 1106100025	REINFORCEMENT
	Repalced by: A 1106100725
026	A 1106100725	REINFORCEMENT
	A 1106100016	CROSS MEMBER
	Repalced by: A 1106100216
027	A 1106100216	CROSS MEMBER
028	A 1106120324	BRACKET
		FRONT
029	A 1106100131	CONSOLE
030	A 1104271041	BRACKET
		BRAKE CABLE
031	A 1106160022	BRACKET
		REAR
032	A 1104200686	BRACKET
033	A 1104280340	BRACKET
034	A 1106100114	CROSS MEMBER
		BELOW REAR SEAT BENCH
035	A 1106100127	DIAGONAL GIRDER
		LEFT
	A 1106100227	DIAGONAL GIRDER
		RIGHT
036	A 1103500633	BELL HUB
	A 1106101310	SIDE MEMBER
	Repalced by: A 1106101510
	A 1106101110	SIDE MEMBER
	Repalced by: A 1106101510
038	A 1106101510	SIDE MEMBER
	Repalced by: A 1096100061
	A 1096100110	SIDE MEMBER
	Repalced by: A 1096100061
039	A 1106110321	TUBE
		REAR LEFT SEMI-FINISHED
	A 1106101410	SIDE MEMBER
	Repalced by: A 1106101610
	A 1106101210	SIDE MEMBER
	Repalced by: A 1106101610
	A 1106101610	SIDE MEMBER
	Repalced by: A 1096100061
	A 1096100210	SIDE MEMBER
	Repalced by: A 1096100061
	A 1106110821	TUBE
		REAR RIGHT SEMI-FINISHED
	A 1096110221	TUBE
		REAR RIGHT SEMI-FINISHED
045	A 1106100311	PLATE
	Repalced by: A 1269840125
045	A 1269840125	THREADED CHUCK
	Repalced by: A 1269840025
045	A 1269840025	THREADED CHUCK
	A 1106100117	CROSS MEMBER
	Repalced by: A 1106100217
046	A 1106100217	CROSS MEMBER
		ABOVE REAR AXLE
047	A 1106100158	CUP
048	A 1106110140	END PIECE
		LEFT
	A 1106110640	END PIECE
		RIGHT
	A 1086110240	END PIECE
		RIGHT
050	A 1106100309	SUPPORT
		OUTSIDE LEFT
	A 1106100409	SUPPORT
		OUTSIDE RIGHT
	A 1116108052	TAKE-UP DEVICE
	Repalced by: A 1106100052
052	A 1106100052	TAKE-UP DEVICE
		FRONT LIFTING JACK
	A 1116108152	TAKE-UP DEVICE
	Repalced by: A 1106100452
	A 1106100452	TAKE-UP DEVICE
		REAR LIFTING JACK
054	A 1106110340	END PIECE
		LEFT
	A 1106110440	END PIECE
		RIGHT
055	A 1106160631	CONSOLE
		FRONT SEAT
056	A 1084200186	BRACKET
		BRAKE POWER REGULATOR
057	A 1106100220	CROSS MEMBER
		BELOW FRONT SEATS
057	A 1106100220	CROSS MEMBER
		BELOW FRONT SEATS
	A 1086100020	CROSS MEMBER
		BELOW FRONT SEATS
	A 1096100020	CROSS MEMBER
		BELOW FRONT SEATS
	A 0019895985	ADHESIVE TAPE
		TO SEAL WELDING SEAM AT REAR FLOOR AND TRUNK FLOOR
061	A 1086110027	MOUNTING
	A 1086100553	MOUNTING
	A 1096100053	MOUNTING
	Repalced by: A 1096100153
	A 1096100153	MOUNTING
	A 1096100353	MOUNTING
		LEFT
	A 1106110411	PLATE
	Repalced by: A 1082420140
066	A 1126110120	SIDE MEMBER
		LEFT INTERMEDIATE PIECE
	A 1126110220	SIDE MEMBER
		RIGHT INTERMEDIATE PIECE
067	A 1126160167	FLOOR
		LEFT INTERMEDIATE PIECE
	A 1126160267	FLOOR
		RIGHT INTERMEDIATE PIECE
068	A 1096100052	TAKE-UP DEVICE
		FOR PROPELLER SHAFT CENTER BEARING
069	A 1126110126	WEB
		LEFT
	A 1126110226	WEB
		RIGHT
	A 1126100553	MOUNTING
	Repalced by: A 1126100753
071	A 1126100753	MOUNTING
		LEFT
	A 1126100653	MOUNTING
	Repalced by: A 1126100853
	A 1126100853	MOUNTING
		RIGHT
073	A 1096100536	BRACKET
		EXHAUST PIPE SUSPENSION, LEFT
074	A 1096100236	BRACKET
		EXHAUST PIPE SUSPENSION, RIGHT
	A 1096100636	BRACKET
		EXHAUST PIPE TO BRIDGE BELOW FRONT SEATS
