Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

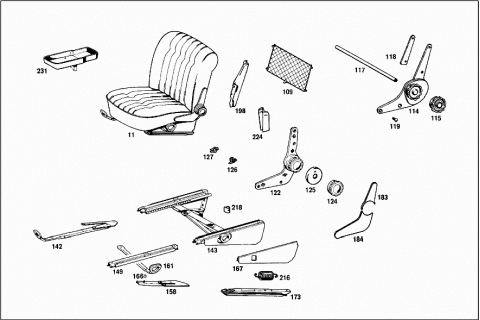

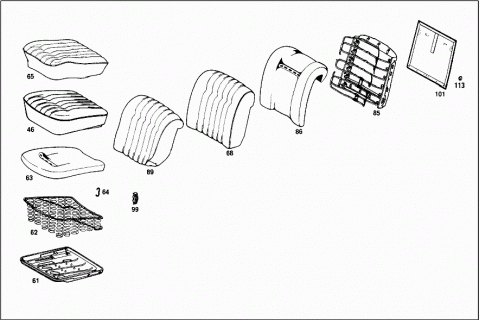

Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1099100101 | FRONT SEAT | |
| Repalced by: A 1099109301 | ||
| A 1099109301 | FRONT SEAT | |
| VELOURS LEFT | ||
| A 1099100201 | FRONT SEAT | |
| Repalced by: A 1099109401 | ||
| A 1099109401 | FRONT SEAT | |
| VELOURS RIGHT | ||
| A 1099100709 | FRONT SEAT | |
| VELOURS LEFT | ||
| A 1099100809 | FRONT SEAT | |
| VELOURS RIGHT | ||
| A 1099100312 | FRONT SEAT | |
| VELOURS LEFT | ||
| A 1099100412 | FRONT SEAT | |
| VELOURS RIGHT | ||
| A 1099109509 | FRONT SEAT | |
| VELOURS LEFT | ||
| A 1099109609 | FRONT SEAT | |
| VELOURS RIGHT | ||
| 011 | A 1099107712 | FRONT SEAT |
| VELOURS LEFT | ||
| A 1099107812 | FRONT SEAT | |
| VELOURS RIGHT | ||
| A 1099100501 | FRONT SEAT | |
| Repalced by: A 1099109701 | ||
| A 1099109701 | FRONT SEAT | |
| LEATHER LEFT | ||
| A 1099109801 | FRONT SEAT | |
| LEATHER RIGHT | ||
| A 1099101709 | FRONT SEAT | |
| LEATHER LEFT | ||
| A 1099101809 | FRONT SEAT | |
| LEATHER RIGHT | ||
| A 1099101112 | FRONT SEAT | |
| LEATHER LEFT | ||
| A 1099101212 | FRONT SEAT | |
| LEATHER RIGHT | ||
| A 1099105712 | FRONT SEAT | |
| LEATHER LEFT | ||
| A 1099105812 | FRONT SEAT | |
| LEATHER RIGHT | ||
| A 1099106712 | FRONT SEAT | |
| LEATHER LEFT | ||
| A 1099108912 | FRONT SEAT | |
| WITH HEIGHT ADJUSTMENT, LESS ARMREST, LEFT | ||
| A 1099106812 | FRONT SEAT | |
| LEATHER RIGHT | ||
| A 1099109412 | FRONT SEAT | |
| WITH HEIGHT ADJUSTMENT, WITH SEAT CONTACT SWITCH, RIGHT | ||
| A 1099100901 | FRONT SEAT | |
| CORD LEFT | ||
| A 1099101001 | FRONT SEAT | |
| CORD RIGHT | ||
| A 1099107901 | FRONT SEAT | |
| Repalced by: A 1099100109 | ||
| A 1099108001 | FRONT SEAT | |
| Repalced by: A 1099100209 | ||
| A 1099100109 | FRONT SEAT | |
| CORD LEFT | ||
| A 1099100209 | FRONT SEAT | |
| CORD RIGHT | ||
| A 1099102109 | FRONT SEAT | |
| CORD LEFT | ||
| A 1099102209 | FRONT SEAT | |
| CORD RIGHT | ||
| A 1099101301 | FRONT SEAT | |
| TARTAN, LEFT | ||
| A 1099101401 | FRONT SEAT | |
| TARTAN RIGHT | ||
| A 1099108301 | FRONT SEAT | |
| Repalced by: A 1099100309 | ||
| A 1099108401 | FRONT SEAT | |
| Repalced by: A 1099100409 | ||
| A 1099100309 | FRONT SEAT | |
| TARTAN LEFT | ||
| A 1099100409 | FRONT SEAT | |
| TARTAN RIGHT | ||
| A 1099102509 | FRONT SEAT | |
| TARTAN LEFT | ||
| A 1099102609 | FRONT SEAT | |
| TARTAN RIGHT | ||
| A 1099101512 | FRONT SEAT | |
| TARTAN LEFT | ||
| A 1099101612 | FRONT SEAT | |
| TARTAN RIGHT | ||
| A 1099106112 | FRONT SEAT | |
| TARTAN LEFT | ||
| A 1099106212 | FRONT SEAT | |
| TARTAN RIGHT | ||
| A 1099100030 | SEAT CUSHION | |
| VELOURS | ||
| 046 | A 1099101630 | SEAT CUSHION |
| VELOURS | ||
| A 1099100130 | SEAT CUSHION | |
| LEATHER | ||
| A 1099101430 | SEAT CUSHION | |
| LEATHER | ||
| A 1099101930 | SEAT CUSHION | |
| WITH SEAT CONTACT SWITCH, RIGHT | ||
| A 1099100230 | SEAT CUSHION | |
| CORD | ||
| A 1099100430 | SEAT CUSHION | |
| CORD | ||
| A 1099100330 | SEAT CUSHION | |
| TARTAN | ||
| A 1099100530 | SEAT CUSHION | |
| TARTAN | ||
| A 1109140714 | PAD | |
| Repalced by: A 1159141080 | ||
| A 1159141080 | PAD | |
| LEATHER, CORD, AND TARTAN | ||
| A 1099100346 | COVER | |
| LEATHER | ||
| A 1099105146 | COVER | |
| LEATHER | ||
| A 1099100446 | COVER | |
| CORD | ||
| A 1099102246 | COVER | |
| CORD | ||
| A 1099100546 | COVER | |
| TARTAN | ||
| A 1099102346 | COVER | |
| TARTAN | ||
| 061 | A 1109102022 | CUSHION FRAME |
| 062 | A 1089100040 | SPRING CORE |
| A 1099140014 | PAD | |
| VELOURS | ||
| 063 | A 1089141714 | PAD |
| VELOURS | ||
| 064 | A 0009842061 | CLIP |
| A 1099100046 | COVER | |
| 065 | A 1099105546 | COVER |
| A 1099100932 | BACKREST | |
| Repalced by: A 1099101432 | ||
| A 1099101432 | BACKREST | |
| VELOURS | ||
| A 1099102832 | BACKREST | |
| VELOURS | ||
| 068 | A 1099104532 | BACKREST |
| VELOURS | ||
| A 1099100332 | BACKREST | |
| Repalced by: A 1099101732 | ||
| A 1099101732 | BACKREST | |
| LEATHER | ||
| A 1099102932 | BACKREST | |
| LEATHER | ||
| A 1099104032 | BACKREST | |
| LEATHER | ||
| A 1099100432 | BACKREST | |
| Repalced by: A 1099101832 | ||
| A 1099101832 | BACKREST | |
| CORD | ||
| A 1099102432 | BACKREST | |
| CORD | ||
| A 1099103032 | BACKREST | |
| CORD | ||
| A 1099100532 | BACKREST | |
| Repalced by: A 1099101932 | ||
| A 1099101932 | BACKREST | |
| TARTAN | ||
| A 1099102532 | BACKREST | |
| TARTAN | ||
| A 1099103132 | BACKREST | |
| TARTAN | ||
| A 1099100034 | BACKREST FRAME | |
| Repalced by: A 1099101834 | ||
| A 1099101534 | BACKREST FRAME | |
| Repalced by: A 1099101834 | ||
| A 1099101834 | BACKREST FRAME | |
| A 1099100534 | BACKREST FRAME | |
| Repalced by: A 1099102034 | ||
| A 1099101734 | BACKREST FRAME | |
| Repalced by: A 1099102034 | ||
| 085 | A 1099102034 | BACKREST FRAME |
| VELOURS, LEATHER, CORD, AND TARTAN | ||
| A 1099140016 | PAD | |
| VELOURS | ||
| 086 | A 1099143816 | PAD |
| VELOURS | ||
| A 1099140516 | PAD | |
| LEATHER, CORD, AND TARTAN VERSIONS | ||
| A 0009842061 | CLIP | |
| A 1099101247 | COVER | |
| Repalced by: A 1099103047 | ||
| 089 | A 1099103047 | COVER |
| VELOURS | ||
| A 1099107647 | COVER | |
| VELOURS | ||
| A 1099100947 | COVER | |
| Repalced by: A 1099103947 | ||
| A 1099103947 | COVER | |
| LEATHER | ||
| A 1099106347 | COVER | |
| LEATHER | ||
| A 1099101047 | COVER | |
| Repalced by: A 1099104047 | ||
| A 1099104047 | COVER | |
| CORD | ||
| A 1099104647 | COVER | |
| CORD | ||
| A 1099101147 | COVER | |
| Repalced by: A 1099104147 | ||
| A 1099104147 | COVER | |
| TARTAN | ||
| A 1099104747 | COVER | |
| TARTAN | ||
| 099 | A 0039880178 | CLIP |
| A 1099100039 | PANELLING | |
| VELOURS | ||
| 101 | A 1099102039 | PANELLING |
| VELOURS | ||
| A 1099101239 | PANELLING | |
| VELOURS | ||
| A 1099100139 | PANELLING | |
| LEATHER | ||
| A 1099102139 | PANELLING | |
| LEATHER | ||
| A 1099101339 | PANELLING | |
| LEATHER | ||
| A 1099100239 | PANELLING | |
| CORD | ||
| A 1099102239 | PANELLING | |
| CORD | ||
| A 1099100339 | PANELLING | |
| TARTAN | ||
| A 1099102339 | PANELLING | |
| TARTAN | ||
| 109 | A 1098140207 | LUGGAGE NET |
| A 1098140307 | LUGGAGE NET | |
| A 1098140207 | LUGGAGE NET | |
| N 007331004212 | RIVET | |
| N 007981004208 | SHEET METAL SCREW | |
| 113 | A 0009850662 | WASHER |
| A 1109870739 | RUBBER BUFFER | |
| 114 | A 0009104385 | BACKREST ADJUSTER |
| OUTSIDE LEFT | ||
| A 0009104485 | BACKREST ADJUSTER | |
| OUTSIDE RIGHT | ||
| 115 | A 0009180326 | HANDWHEEL |
| A 0009104386 | BACKREST ADJUSTER | |
| INSIDE LEFT | ||
| A 0009104486 | BACKREST ADJUSTER | |
| INSIDE RIGHT | ||
| 117 | A 1089180027 | LINK |
| 118 | A 0009180696 | UNDERLAYER |
| N 000088006108 | SCREW | |
| 119 | A 1129900131 | SCREW |
| A 0009105385 | BACKREST ADJUSTER | |
| OUTSIDE LEFT | ||
| A 0009105486 | BACKREST ADJUSTER | |
| OUTSIDE RIGHT | ||
| A 0009105985 | BACKREST ADJUSTER | |
| Repalced by: A 0009106385 | ||
| 122 | A 0009106385 | BACKREST ADJUSTER |
| OUTSIDE LEFT | ||
| A 0009106085 | BACKREST ADJUSTER | |
| Repalced by: A 0009106485 | ||
| A 0009106485 | BACKREST ADJUSTER | |
| OUTSIDE RIGHT | ||
| 124 | A 0009180426 | HANDWHEEL |
| 125 | A 0009180236 | COVERING |
| 126 | A 0009941260 | LOCK |
| 127 | A 0009941360 | LOCK |
| A 0009105386 | BACKREST ADJUSTER | |
| INSIDE LEFT | ||
| A 0009105486 | BACKREST ADJUSTER | |
| INSIDE RIGHT | ||
| A 0009106186 | BACKREST ADJUSTER | |
| Repalced by: A 0009106586 | ||
| A 0009106586 | BACKREST ADJUSTER | |
| INSIDE LEFT | ||
| A 0009106286 | BACKREST ADJUSTER | |
| Repalced by: A 0009106686 | ||
| A 0009106686 | BACKREST ADJUSTER | |
| INSIDE RIGHT | ||
| A 0009941260 | LOCK | |
| A 0009941360 | LOCK | |
| A 0009180136 | COVERING | |
| A 1089180227 | LINK | |
| Repalced by: A 1119185127 | ||
| A 1119185127 | LINK | |
| A 0009903130 | SCREW | |
| AS REQUIRED | ||
| A 0009902730 | SCREW | |
| AS REQUIRED | ||
| A 0009902930 | SCREW | |
| AS REQUIRED | ||
| A 1089900030 | SCREW | |
| 142 | A 1139100105 | ADJUSTER |
| LEFT | ||
| A 1139100205 | ADJUSTER | |
| RIGHT | ||
| 143 | A 1089100336 | SEAT ADJUSTER |
| Repalced by: A 1089100736 | ||
| A 1089100736 | SEAT ADJUSTER | |
| Repalced by: A 1089100936 | ||
| A 1089100536 | SEAT ADJUSTER | |
| Repalced by: A 1089100936 | ||
| A 1089100536 | SEAT ADJUSTER | |
| LEFT | ||
| A 1089100436 | SEAT ADJUSTER | |
| Repalced by: A 1089100836 | ||
| A 1089100836 | SEAT ADJUSTER | |
| Repalced by: A 1089101036 | ||
| A 1089100636 | SEAT ADJUSTER | |
| Repalced by: A 1089101036 | ||
| A 1089101036 | SEAT ADJUSTER | |
| Repalced by: A 1089101236 | ||
| A 1089101236 | SEAT ADJUSTER | |
| RIGHT | ||
| A 1089190411 | PLATE | |
| STOP TO SLIDING SEAT GUIDE | ||
| N 007985006135 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| 149 | A 1089101305 | SEAT GUIDE |
| TOP LEFT | ||
| A 1089101405 | SEAT GUIDE | |
| TOP RIGHT | ||
| A 0009830284 | LEATHER | |
| INSIDE, VELOURS 130 X 290 MM | ||
| A 0009830186 | IMITATION LEATHER | |
| IMITATION LEATHER, SEAT HEIGHT ADJUSTMENT CONNECTION | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER, SEAT HEIGHT ADJUSTMENT CONNECTION | ||
| A 0009830284 | LEATHER | |
| LEATHER | ||
| A 0009902821 | SCREW | |
| Repalced by: N 914028006100 | ||
| N 914028006100 | COMBINATION BOLT | |
| A 0009908891 | NUT RETAINER | |
| A 1089100114 | BRACKET | |
| Repalced by: A 1169101514 | ||
| A 1089100714 | BRACKET | |
| Repalced by: A 1169101514 | ||
| 158 | A 1169101514 | BRACKET |
| LEFT | ||
| A 1089100214 | BRACKET | |
| Repalced by: A 1169101614 | ||
| A 1089100814 | BRACKET | |
| Repalced by: A 1169101614 | ||
| A 1169101614 | BRACKET | |
| RIGHT | ||
| A 1089100171 | LEVER | |
| Repalced by: A 1089100371 | ||
| 161 | A 1089100371 | LEVER |
| FRONT SEAT HEIGHT ADJUSTMENT, LEFT | ||
| A 1089100271 | LEVER | |
| Repalced by: A 1089100471 | ||
| A 1089100471 | LEVER | |
| FRONT SEAT HEIGHT ADJUSTMENT, RIGHT | ||
| N 000934006007 | NUT | |
| N 912004006102 | LOCK WASHER | |
| A 1089190033 | SPACER TUBE | |
| Repalced by: A 1169190033 | ||
| 166 | A 1169190033 | SPACER TUBE |
| A 0009973181 | GROMMET | |
| 167 | A 1089100118 | COVERING |
| LEFT | ||
| A 1089100218 | COVERING | |
| RIGHT | ||
| A 1099191520 | COVERING | |
| LEFT | ||
| A 1089191620 | COVERING | |
| RIGHT | ||
| A 0009830284 | LEATHER | |
| HEIGHT ADJUSTMENT COVERING LEATHER 160 X 450 MM | ||
| A 0009830186 | IMITATION LEATHER | |
| HEIGHT ADJUSTMENT COVERING IMITATION LEATHER 160 X 450 MM | ||
| A 0019832986 | IMITATION LEATHER | |
| HEIGHT ADJUSTMENT COVERING IMITATION LEATHER 160 X 450 MM | ||
| 173 | A 1089101105 | ADJUSTER |
| Repalced by: A 1089103505 | ||
| A 1089103505 | SEAT GUIDE | |
| Repalced by: A 1169100589 | ||
| A 1169100589 | GUIDE RAIL | |
| OUTSIDE BOTTOM LEFT | ||
| A 1089101205 | ADJUSTER | |
| Repalced by: A 1089103605 | ||
| A 1089103605 | SEAT GUIDE | |
| Repalced by: A 1169100689 | ||
| A 1169100689 | GUIDE RAIL | |
| OUTSIDE BOTTOM RIGHT | ||
| A 1089100905 | ADJUSTER | |
| Repalced by: A 1089103305 | ||
| A 1089103305 | SEAT GUIDE | |
| Repalced by: A 1169100805 | ||
| A 1169100805 | SEAT GUIDE | |
| INSIDE BOTTOM RIGHT | ||
| A 1089101005 | ADJUSTER | |
| Repalced by: A 1089103405 | ||
| A 1089103405 | SEAT GUIDE | |
| Repalced by: A 1169100705 | ||
| A 1169100705 | SEAT GUIDE | |
| INSIDE BOTTOM LEFT | ||
| N 007988006159 | SCREW | |
| A 0009902821 | SCREW | |
| Repalced by: N 914116006400 | ||
| N 914116006400 | SCREW | |
| 183 | A 1089130128 | COVERING |
| Repalced by: A 1159132728 | ||
| 183 | A 1159132728 | COVERING |
| AT LEFT UPPER PART | ||
| A 1089130228 | COVERING | |
| AT RIGHT UPPER PART | ||
| 184 | A 1089130328 | COVERING |
| AT LEFT LOWER PART | ||
| A 1089130428 | COVERING | |
| Repalced by: A 1159133028 | ||
| A 1159133028 | COVERING | |
| AT RIGHT LOWER PART | ||
| A 1089130528 | COVERING | |
| AT LEFT UPPER PART | ||
| A 1089130528 | COVERING | |
| AT LEFT UPPER PART | ||
| A 1089130528 | COVERING | |
| AT LEFT UPPER PART | ||
| A 1089130628 | COVERING | |
| AT RIGHT UPPER PART | ||
| A 1089130628 | COVERING | |
| AT RIGHT UPPER PART | ||
| A 1089130728 | COVERING | |
| Repalced by: A 1149130328 | ||
| A 1149130328 | COVERING | |
| AT LEFT LOWER PART | ||
| A 1089130828 | COVERING | |
| Repalced by: A 1149130428 | ||
| A 1149130428 | COVERING | |
| AT RIGHT LOWER PART | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE | ||
| 198 | A 1099100127 | RAIL |
| BACKREST, HARD FOIL, LEFT | ||
| A 1099100227 | RAIL | |
| BACKREST, HARD FOIL, RIGHT | ||
| A 1099100327 | RAIL | |
| BACKREST, LEATHER, LEFT | ||
| A 1099100427 | RAIL | |
| BACKREST, LEATHER, RIGHT | ||
| A 1099100006 | SEAT CUSHION LESS COVER | |
| VELOURS | ||
| A 1089101406 | SEAT CUSHION LESS COVER | |
| VELOURS | ||
| A 1109102406 | SEAT CUSHION LESS COVER | |
| LEATHER, CORD OR TARTAN | ||
| A 1099100007 | BACKREST | |
| VELOURS | ||
| A 1099101307 | BACKREST | |
| VELOURS | ||
| A 1099101807 | BACKREST | |
| VELOURS | ||
| A 1099100107 | BACKREST | |
| LEATHER | ||
| A 1099101407 | BACKREST | |
| Repalced by: A 1089103107 | ||
| A 1089103107 | BACKREST | |
| LEATHER | ||
| A 1099100207 | BACKREST | |
| Repalced by: A 1099100307 | ||
| A 1099100307 | BACKREST | |
| CORD OR TARTAN | ||
| A 1089103107 | BACKREST | |
| CORD OR TARTAN | ||
| N 000084008145 | SCREW | |
| Repalced by: A 1089900322 | ||
| N 000127008205 | LOCK WASHER | |
| Repalced by: A 1089900322 | ||
| A 1089900322 | SCREW | |
| Repalced by: A 1169900122 | ||
| A 1169900122 | SCREW | |
| Repalced by: A 1409901122 | ||
| A 1409901122 | SCREW | |
| A 1089900422 | SCREW | |
| Repalced by: A 1239901022 | ||
| A 1239901022 | SCREW | |
| Repalced by: A 0009909622 | ||
| A 0009909622 | SCREW | |
| Repalced by: A 0009909822 | ||
| A 0009909822 | SCREW | |
| Repalced by: A 1249900222 | ||
| A 1249900222 | SCREW | |
| Repalced by: A 1409901122 | ||
| A 1409901122 | SCREW | |
| A 0009907091 | NUT RETAINER | |
| 216 | A 1089190337 | SPRING |
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| A 0009909991 | NUT RETAINER | |
| A 0009903822 | SCREW | |
| 218 | A 1089190017 | SPACER |
| N 000931006095 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 0009907191 | NUT RETAINER | |
| A 1089191120 | COVERING | |
| OUTSIDE LEFT | ||
| A 1089191220 | COVERING | |
| OUTSIDE RIGHT | ||
| A 1089191320 | COVERING | |
| Repalced by: A 1089191820 | ||
| 224 | A 1089191820 | COVERING |
| INSIDE, LEFT FRONT SEAT | ||
| A 1089191420 | COVERING | |
| Repalced by: A 1089191720 | ||
| A 1089191720 | COVERING | |
| INSIDE, RIGHT FRONT SEAT | ||
| A 0009830284 | LEATHER | |
| LEATHER | ||
| 120X150 MM | ||
| A 0009830186 | IMITATION LEATHER | |
| IMITATION LEATHER | ||
| 120X150 MM | ||
| A 0019832986 | IMITATION LEATHER | |
| IMITATION LEATHER | ||
| 120X150 MM | ||
| A 0009830284 | LEATHER | |
| 150 X 150 MM | ||
| A 0019832986 | IMITATION LEATHER | |
| 150 X 150 MM | ||
| 231 | A 1098400174 | SHELL |
| A 1088410474 | SHELL | |
| Repalced by: A 1098400674 | ||
| A 1098400674 | SHELL | |
| A 1128400474 | SHELL | |
| Repalced by: A 1088410274 | ||
| A 1088410274 | SHELL | |
| A 1088410574 | SHELL | |
| Repalced by: A 1098400774 | ||
| A 1098400774 | SHELL | |
| A 1108410790 | COVER | |
| Repalced by: A 1088400075 | ||
| A 1088400075 | LINING | |
| A 1088410290 | COVER | |
| Repalced by: A 1088400075 | ||
| A 1088400075 | LINING | |
| TUFTING | ||
| A 1098410290 | COVER | |
| VELOURS | ||
| A 1128400375 | LINING | |
| Repalced by: A 1098410190 | ||
| A 1098410190 | COVER | |
| PLASTIC FOIL | ||
| A 1098410390 | COVER | |
| Repalced by: A 1098400275 | ||
| A 1098400275 | LINING | |
| VELOURS | ||
| A 1128400175 | LINING | |
| LEATHER | ||
| N 007983004261 | SHEET METAL SCREW | |
| N 007983004261 | SHEET METAL SCREW | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
