Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

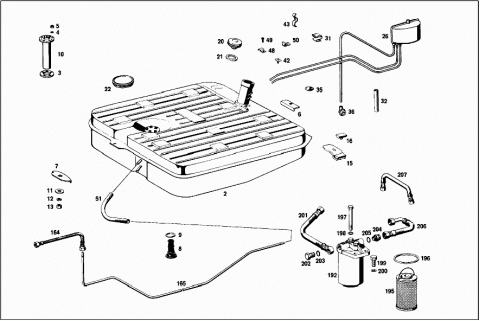

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 1094700301 | FUEL TANK |
| 82 L. | ||
| A 1094700501 | FUEL TANK | |
| 105 L. | ||
| 003 | A 1104710180 | GASKET |
| 004 | N 000137005203 | SPRING WASHER |
| 005 | N 000934005008 | NUT |
| 006 | A 1304710222 | REINFORCEMENT |
| REAR | ||
| 007 | A 1304710122 | REINFORCEMENT |
| FRONT | ||
| 008 | A 1114700686 | FUEL STRAINER |
| 009 | A 1109970145 | SEAL RING |
| 010 | A 1105421204 | GAUGE SENDER UNIT |
| A 1095420004 | GAUGE SENDER UNIT | |
| 011 | A 1089900340 | WASHER |
| FUEL TANK | ||
| 012 | N 000127008203 | LOCK WASHER |
| FUEL TANK | ||
| 013 | N 000934008013 | NUT |
| FUEL TANK | ||
| 015 | A 1124700781 | BRACKET |
| 016 | A 1249870740 | RUBBER BUFFER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO BODY | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO BODY | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BRACKET TO BODY | ||
| A 0009909991 | NUT RETAINER | |
| BRACKET TO BODY | ||
| 020 | A 1244700005 | FILLER CAP |
| 021 | A 1104710280 | GASKET |
| TO 110 470 08 05,100 470 01 05 | ||
| 022 | A 1109870145 | LOCKING CAP |
| A 1154710079 | SEAL RING | |
| TO 000 471 63 30 | ||
| A 1114710168 | TANK | |
| Repalced by: A 1154710268 | ||
| A 1114710268 | TANK | |
| Repalced by: A 1154710268 | ||
| 026 | A 1154710268 | TANK |
| 027 | A 1154711668 | TANK |
| 028 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 028 | A 0009872727 | PLASTIC PIPE |
| A 1234700193 | VALVE | |
| A 1074710042 | FILTER | |
| A 1074710267 | COVER | |
| N 007976004211 | SHEET METAL SCREW | |
| A 0009870044 | EXPANSION PLUG | |
| A 1074700093 | VALVE | |
| Repalced by: A 1234700193 | ||
| 029 | A 1234700193 | VALVE |
| 031 | A 0039888178 | CLIP |
| 032 | A 2014761126 | HOSE |
| FOR RETURN LINE | ||
| 5 MM | ||
| A 1074763726 | HOSE | |
| 90 MM | ||
| N 900269008100 | CLAMP | |
| FUEL HOSE TO RESERVOIR | ||
| N 900269010100 | CLAMP | |
| 035 | A 1119972281 | GROMMET |
| 036 | A 1084710081 | BOOT |
| 036 | A 1084710081 | BOOT |
| 037 | A 1084710081 | BOOT |
| N 916033012100 | CLAMP | |
| N 916002008100 | CLAMP | |
| HOSES TO VENT PIPES AND TO PLASTIC PIPE | ||
| 040 | A 0039888178 | CLIP |
| EXPANSION TANK TO CARDBOARD WALL | ||
| 041 | A 0009881878 | CLIP |
| LINE TO CARDBOARD WALL | ||
| 042 | A 0009903533 | SCREW |
| GARNISH MOULDING VENT PIPE TO FENDER | ||
| 042 | A 0009903533 | SCREW |
| GARNISH MOULDING VENT PIPE TO FENDER | ||
| 043 | A 1109950332 | CLAMP |
| VENT PIPE TO FENDER | ||
| 043 | A 1109950332 | CLAMP |
| VENT PIPE TO FENDER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| VENT PIPE TO FENDER | ||
| N 912004004102 | LOCK WASHER | |
| VENT PIPE TO FENDER | ||
| N 000934004004 | NUT | |
| VENT PIPE TO FENDER | ||
| N 000934004004 | NUT | |
| VENT PIPE TO FENDER | ||
| 048 | N 072571002015 | CLAMP |
| 049 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 049 | N 000000002062 | SCREW |
| 050 | A 0029884678 | CLIP |
| 051 | A 1104760326 | HOSE |
| Repalced by: A 1149971882 | ||
| A 1149971882 | HOSE | |
| 8 MM | ||
| A 0019976990 | LOOM TIE | |
| 052 | A 1144760125 | INTERMEDIATE PIECE |
| 052 | A 1144760125 | INTERMEDIATE PIECE |
| 052 | A 1144760125 | INTERMEDIATE PIECE |
| N 916002012000 | CLAMP | |
| 055 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 055 | A 0009872727 | PLASTIC PIPE |
| FRONT FROM EXPANSION TANK TO ENGINE | ||
| 056 | A 1144710223 | LINE |
| FROM EXPANSION TANK TO ENGINE | ||
| 057 | A 1149971882 | HOSE |
| FROM EXPANSION TANK TO ENGINE | ||
| N 916033012100 | CLAMP | |
| FROM EXPANSION TANK TO ENGINE | ||
| 060 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 060 | A 0009872727 | PLASTIC PIPE |
| REAR FROM EXPANSION TANK TO ENGINE | ||
| 061 | A 1149971882 | HOSE |
| FROM EXPANSION TANK TO ENGINE | ||
| N 916033012100 | CLAMP | |
| FROM EXPANSION TANK TO ENGINE | ||
| 062 | A 1080780041 | BRACKET |
| ON LEFT CYLINDER HEAD | ||
| 063 | A 0029887778 | CLIP |
| PIPE LINE | ||
| 064 | A 0029887178 | CLIP |
| PIPE LINE | ||
| 065 | A 1004760381 | RUBBER PAD |
| Repalced by: A 1104760084 | ||
| 065 | A 1104760084 | DAMPING STRIP |
| PIPE LINE | ||
| A 0009877770 | RUBBER SECTION | |
| PIPE LINE | ||
| 20 MM | ||
| 068 | A 1099950022 | CLAMP |
| PIPE LINE | ||
| A 1109950022 | CLAMP | |
| PIPE LINE | ||
| A 1099950015 | CLAMP | |
| PIPE LINE | ||
| 070 | A 0009950068 | CLAMP |
| PIPE LINE | ||
| N 072571001025 | CLAMP | |
| PIPE LINE | ||
| N 072571002015 | CLAMP | |
| PIPE LINE | ||
| A 1084760040 | CLAMP | |
| PIPE LINE | ||
| N 007976004205 | SHEET METAL SCREW | |
| PIPE LINE | ||
| N 007976006203 | SHEET METAL SCREW | |
| PIPE LINE | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| PIPE LINE | ||
| N 007976005203 | SHEET METAL SCREW | |
| PIPE LINE | ||
| 077 | N 073379008100 | HOSE |
| 20 MM PIPE LINE | ||
| 078 | A 0079975881 | GROMMET |
| PIPE LINE | ||
| N 072571002015 | CLAMP | |
| PIPE LINE | ||
| A 0019974190 | LOOM TIE | |
| PIPE LINE | ||
| N 007976006203 | SHEET METAL SCREW | |
| PIPE LINE | ||
| A 0010913401 | FUEL PUMP | |
| Repalced by: A 0010915201 | ||
| 083 | A 0010914601 | FUEL PUMP |
| Repalced by: A 0010915201 | ||
| A 0010915201 | FUEL PUMP | |
| ELECTRIC | ||
| A 0010915201 | FUEL PUMP | |
| ELECTRIC | ||
| 085 | A 0010917401 | FUEL PUMP |
| ELECTRIC | ||
| A 0010917101 | FUEL PUMP | |
| ELECTRIC | ||
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| A 1164700481 | BRACKET | |
| Repalced by: A 1234700381 | ||
| A 1234700381 | BRACKET | |
| PUMP AND FILTER TO BRACKET | ||
| N 007985005165 | SCREW | |
| PUMP AND FILTER TO BRACKET | ||
| N 912004005100 | LOCK WASHER | |
| PUMP AND FILTER TO BRACKET | ||
| N 000934005008 | NUT | |
| PUMP AND FILTER TO BRACKET | ||
| A 1084780740 | BRACKET | |
| LEFT | ||
| A 1084780840 | BRACKET | |
| RIGHT | ||
| A 1269880011 | BUFFER | |
| N 912004005100 | LOCK WASHER | |
| BRACKET TO BRACKET, LEFT AND RIGHT | ||
| N 000934005008 | NUT | |
| BRACKET TO BRACKET, LEFT AND RIGHT | ||
| A 1149971882 | HOSE | |
| A 1149971882 | HOSE | |
| A 1149971882 | HOSE | |
| A 1149971882 | HOSE | |
| A 0019976990 | LOOM TIE | |
| A 1124761226 | HOSE | |
| 220 MM AT PUMP SUCTION FITTING | ||
| N 916002017100 | CLAMP | |
| A 1089950520 | CLAMP | |
| FUEL HOSE TO BODY FLOOR | ||
| A 0005480242 | CARBON BRUSH | |
| SET = 2 PIECES | ||
| A 0005450197 | SPRING | |
| 088 | A 0009979145 | SEAL RING |
| 089 | A 0049970445 | SEAL RING |
| 090 | A 0009975972 | FITTING |
| 091 | A 0000910710 | VALVE |
| 092 | N 007603018101 | SEAL RING |
| 093 | A 0005860147 | REPAIR KIT |
| 093 | A 0005860147 | REPAIR KIT |
| A 0009941010 | LOCK | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 000934004004 | NUT | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| A 1239971681 | GROMMET | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 006797004132 | TOOTHED WASHER | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 006797005132 | TOOTHED WASHER | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| N 000934005008 | NUT | |
| CABLE TO ELECTRIC FUEL PUMP | ||
| 102 | A 1284780082 | RUBBER RING |
| FLEXIBLE | ||
| A 1004700434 | CLAMP | |
| 103 | A 1084700134 | CLAMP |
| 103 | A 1084700134 | CLAMP |
| A 1004700534 | CLAMP | |
| 105 | A 1084700034 | CLAMP |
| 105 | A 1084700034 | CLAMP |
| A 1084700281 | BRACKET | |
| 108 | A 1144700216 | DAMPER CAGE |
| 109 | A 1094700281 | BRACKET |
| 110 | A 0009972281 | GROMMET |
| 111 | A 1144760053 | SPACER TUBE |
| 112 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 112 | N 009021006208 | WASHER |
| 113 | N 912004006102 | LOCK WASHER |
| 114 | N 000933006130 | SCREW |
| 115 | A 0009972881 | GROMMET |
| 116 | A 1094700381 | BRACKET |
| DAMPER CAGE AND FUEL HOSE TO FRAME FLOOR UNIT | ||
| 117 | N 912004006102 | LOCK WASHER |
| DAMPER CAGE AND FUEL HOSE TO FRAME FLOOR UNIT | ||
| 118 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 118 | N 304032006008 | NUT |
| DAMPER CAGE AND FUEL HOSE TO FRAME FLOOR UNIT | ||
| 119 | A 1089950520 | CLAMP |
| DAMPER CAGE AND FUEL HOSE TO FRAME FLOOR UNIT | ||
| 120 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 120 | N 304017006018 | SCREW |
| 121 | N 912004006102 | LOCK WASHER |
| N 000127005203 | LOCK WASHER | |
| FUEL PUMP TO MOUNTING PLATE | ||
| N 000934005008 | NUT | |
| FUEL PUMP TO MOUNTING PLATE | ||
| 123 | A 1124700033 | REINFORCEMENT |
| 124 | A 0009873841 | RUBBER RING |
| 125 | A 1124700481 | BRACKET |
| LEFT | ||
| A 1084780640 | BRACKET | |
| REAR | ||
| A 1094700081 | BRACKET | |
| LEFT | ||
| 127 | A 1124700581 | BRACKET |
| RIGHT | ||
| A 1084700381 | BRACKET | |
| FRONT | ||
| A 1094700181 | BRACKET | |
| RIGHT | ||
| 129 | A 1084780140 | BRACKET |
| FRONT | ||
| 130 | A 1084780240 | BRACKET |
| REAR | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO REINFORCEMENT PLATE | ||
| N 000934006007 | NUT | |
| BRACKET TO REINFORCEMENT PLATE | ||
| 133 | A 1169880511 | BUFFER |
| 134 | A 1269880011 | BUFFER |
| 134 | A 1269880011 | BUFFER |
| 134 | A 1269880011 | BUFFER |
| 137 | N 000127005203 | LOCK WASHER |
| RUBBER-METAL BUFFER TO BRACKET | ||
| N 912004005100 | LOCK WASHER | |
| N 007985005165 | SCREW | |
| A 1149971882 | HOSE | |
| PUMP TO FILTER | ||
| A 0019976990 | LOOM TIE | |
| 139 | N 000934005008 | NUT |
| RUBBER-METAL BUFFER TO BRACKET | ||
| 140 | N 912004006102 | LOCK WASHER |
| 141 | N 000934006007 | NUT |
| 142 | N 000127005203 | LOCK WASHER |
| FUEL PUMP TO BRACKET | ||
| 143 | N 000934005008 | NUT |
| FUEL PUMP TO BRACKET | ||
| 144 | N 000125005306 | WASHER |
| FUEL PUMP TO BRACKET | ||
| 145 | A 1084700083 | PROTECTIVE PLATE |
| A 1094700083 | PROTECTIVE PLATE | |
| A 1109871444 | EXPANSION PLUG | |
| 147 | N 912004006102 | LOCK WASHER |
| 148 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 148 | N 304032006008 | NUT |
| 149 | A 1085460185 | PROTECTIVE TUBE |
| 150 | A 1124761226 | HOSE |
| 151 | A 1114760926 | HOSE |
| A 1369950037 | CLAMP | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 900269016101 | CLAMP | |
| FUEL HOSE TO FEED LINE | ||
| 155 | A 1094700070 | LINE |
| FEED | ||
| 155 | A 1094700070 | LINE |
| FEED | ||
| A 1094700570 | LINE | |
| FEED | ||
| A 1084700670 | LINE | |
| Repalced by: A 1084761901 | ||
| A 1084761901 | LINE | |
| A 1094700970 | LINE | |
| Repalced by: A 1094761501 | ||
| A 1094761501 | LINE | |
| FEED | ||
| 160 | A 1094761201 | LINE |
| FEED | ||
| A 1094761701 | LINE | |
| FEED | ||
| 161 | A 1094760026 | HOSE |
| 162 | N 915036010204 | HOLLOW SCREW |
| 163 | N 007603014100 | SEAL RING |
| 164 | A 1094760126 | HOSE |
| 165 | A 1094700170 | LINE |
| RETURN | ||
| A 1094700470 | LINE | |
| RETURN | ||
| A 1094700670 | LINE | |
| RETURN | ||
| A 1084700470 | LINE | |
| Repalced by: A 1084761501 | ||
| A 1084761501 | LINE | |
| RETURN | ||
| A 1094700870 | LINE | |
| Repalced by: A 1094761401 | ||
| A 1094761401 | LINE | |
| 171 | A 1094761301 | LINE |
| Repalced by: A 1084761701 | ||
| A 1084761701 | LINE | |
| A 1084761801 | LINE | |
| A 1084762301 | LINE | |
| N 073379008100 | HOSE | |
| 30 MM | ||
| A 1089950520 | CLAMP | |
| N 007976005203 | SHEET METAL SCREW | |
| A 1084762401 | LINE | |
| REAR | ||
| A 1144762026 | HOSE | |
| Repalced by: A 1149971882 | ||
| A 1149971882 | HOSE | |
| 160 MM | ||
| N 916033012100 | CLAMP | |
| A 0019976990 | LOOM TIE | |
| TTO 114 997 18 82 | ||
| A 0019973190 | LOOM TIE | |
| 10 MM | ||
| A 0019974090 | LOOM TIE | |
| 12 MM | ||
| A 0019970390 | LOOM TIE | |
| 17 MM | ||
| 175 | A 1109950022 | CLAMP |
| A 1099950022 | CLAMP | |
| 176 | A 1129950222 | CLAMP |
| 177 | A 1109950015 | CLAMP |
| 178 | A 1539950120 | CLAMP |
| 179 | A 1369950037 | CLAMP |
| A 1809950022 | CLAMP | |
| A 1119950042 | CLAMP | |
| Repalced by: A 1409950222 | ||
| A 1409950222 | CLAMP | |
| A 1123270084 | SHIM | |
| 180 | A 1124760584 | DAMPING STRIP |
| 181 | A 1114760384 | DAMPING STRIP |
| 182 | A 1094760084 | DAMPING STRIP |
| A 1124760184 | DAMPING STRIP | |
| A 1104760084 | DAMPING STRIP | |
| 185 | A 1289970182 | HOSE |
| 20 MM | ||
| 186 | N 073379008100 | HOSE |
| 12 MM | ||
| N 007976005203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| FUEL LINES TO FRONT SUBFRAME AND TO FRAME FLOOR UNIT | ||
| 188 | A 1204200227 | SCREW |
| WITH LOCK PLATE FUEL LINES TO FRONT SUBFRAME AND TO FRAME FLOOR UNIT | ||
| A 0019881078 | CLIP | |
| 189 | A 0009873841 | RUBBER RING |
| 190 | N 912004006102 | LOCK WASHER |
| 191 | N 000934006007 | NUT |
| 192 | A 0014773001 | FUEL FILTER |
| A 0014771001 | FUEL FILTER | |
| 193 | A 0000927101 | FILTER |
| Repalced by: A 0000927601 | ||
| A 0000927601 | FILTER | |
| FUEL LINE | ||
| N 007603014100 | SEAL RING | |
| A 1074700279 | INTERMEDIATE PIECE | |
| A 1074700081 | BRACKET | |
| FROM FUEL PUMP TO FILTER | ||
| 140 MM | ||
| N 916033012100 | CLAMP | |
| 195 | A 0004776415 | FILTER ELEMENT |
| 196 | A 1009970040 | SEAL RING |
| 197 | N 000931008251 | SCREW |
| 198 | A 0019979240 | SEAL RING |
| Repalced by: N 007603008109 | ||
| 198 | N 007603008109 | SEAL RING |
| 199 | N 000933010035 | SCREW |
| 200 | N 000137010201 | SPRING WASHER |
| 201 | A 1094760326 | HOSE |
| A 1094760926 | HOSE | |
| 202 | N 915036010204 | HOLLOW SCREW |
| 203 | N 007603014100 | SEAL RING |
| 204 | N 915013008002 | SCREW FITTING |
| 205 | N 007603014100 | SEAL RING |
| 206 | A 1004761626 | HOSE |
| 207 | A 1094760126 | HOSE |
| A 1284760726 | HOSE | |
| A 1123270084 | SHIM | |
| RETURN LINE AND BRAKE LINE TO FRONT SIDE MEMBER, LEFT | ||
| A 1119950042 | CLAMP | |
| Repalced by: A 1409950222 | ||
| A 1409950222 | CLAMP | |
| RETURN LINE AND BRAKE LINE TO FRONT SIDE MEMBER, LEFT | ||
| N 007976005203 | SHEET METAL SCREW | |
| RETURN LINE AND BRAKE LINE TO FRONT SIDE MEMBER, LEFT | ||
| N 073379008100 | HOSE | |
| FEED LINE TO FRONT SIDE MEMBER | ||
| A 1879950037 | CLAMP | |
| FEED LINE TO FRONT SIDE MEMBER | ||
| N 007976005203 | SHEET METAL SCREW | |
| FEED LINE TO FRONT SIDE MEMBER | ||
| N 073379008100 | HOSE | |
| FEED LINE TO FRONT SIDE MEMBER, BOTTOM AND TOP LEFT; AND RETURN LINE TO FIRE WALL | ||
| A 1089950520 | CLAMP | |
| FEED LINE TO FRONT SIDE MEMBER, BOTTOM AND TOP LEFT; AND RETURN LINE TO FIRE WALL | ||
| N 007976005203 | SHEET METAL SCREW | |
| FEED LINE TO FRONT SIDE MEMBER, BOTTOM AND TOP LEFT; AND RETURN LINE TO FIRE WALL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
