Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

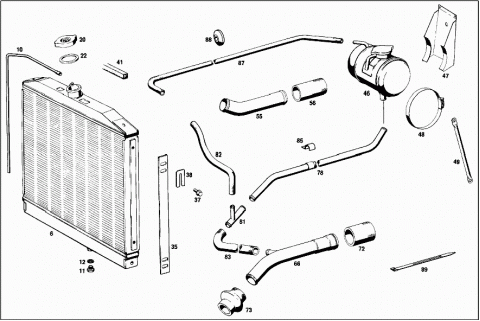

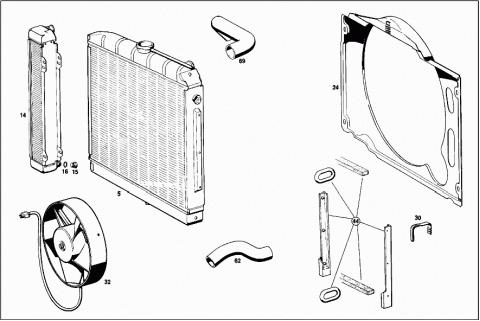

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1095000303 | RADIATOR | |
| Repalced by: A 1095000403 | ||
| A 1095000503 | RADIATOR | |
| A 1085010101 | RADIATOR | |
| Repalced by: A 1085010401 | ||
| A 1085010401 | RADIATOR | |
| Repalced by: A 1085010501 | ||
| A 1085010501 | RADIATOR | |
| 005 | A 1095010201 | RADIATOR |
| Repalced by: A 1095010301 | ||
| 005 | A 1095010301 | RADIATOR |
| A 1095010401 | RADIATOR | |
| Repalced by: A 1095010501 | ||
| A 1095010501 | RADIATOR | |
| A 1095000203 | RADIATOR | |
| Repalced by: A 1095000503 | ||
| 006 | A 1095000503 | RADIATOR |
| WITH OIL HEAT EXCHANGER | ||
| A 1085010001 | RADIATOR | |
| Repalced by: A 1085010501 | ||
| A 1085010501 | RADIATOR | |
| WITH OIL HEAT EXCHANGER | ||
| 008 | A 1095010601 | RADIATOR |
| A 1095010301 | RADIATOR | |
| A 1095010501 | RADIATOR | |
| A 0005010010 | DRAIN PIPE | |
| 010 | A 0079972682 | HOSE |
| 011 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 011 | N 007604014110 | SCREW PLUG |
| 012 | N 007603014405 | SEAL RING |
| A 1081800265 | OIL COOLER | |
| AIR-COOLED | ||
| 013 | A 1001800065 | OIL COOLER |
| AIR-COOLED | ||
| 014 | A 1161800065 | OIL COOLER |
| AIR-COOLED | ||
| A 1161800465 | OIL COOLER | |
| Repalced by: A 1161800065 | ||
| A 1161800065 | OIL COOLER | |
| 015 | N 007604012102 | SCREW PLUG |
| 016 | N 007603012110 | SEAL RING |
| N 000603006047 | SCREW | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| N 000125006407 | WASHER | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| A 0005010315 | RADIATOR CAP | |
| 020 | A 0005011915 | RADIATOR CAP |
| 021 | A 1235010215 | RADIATOR CAP |
| 022 | A 1809970240 | SEAL RING |
| 023 | A 1095000055 | FAN SHROUD |
| 024 | A 1095050455 | FAN SHROUD |
| Repalced by: A 1095050855 | ||
| A 1095050455 | FAN SHROUD | |
| Repalced by: A 1095050855 | ||
| A 1095050855 | FAN SHROUD | |
| 025 | A 0005050172 | NUT |
| 026 | A 0019901840 | WASHER |
| Repalced by: A 1269901440 | ||
| 026 | A 1269901440 | WASHER |
| 027 | N 914006005000 | COMBINATION BOLT |
| 028 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 028 | A 0009871840 | RUBBER BUFFER |
| A 1085050006 | CLAMP | |
| A 1085050206 | CLAMP | |
| 030 | A 1085050106 | CLAMP |
| A 1085050306 | CLAMP | |
| 032 | A 0005004093 | BLOWER |
| A 0005030801 | PROTECTIVE GRILL | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 000125006421 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| PROTECTIVE GRILLE TO BLOWER | ||
| N 000125006421 | WASHER | |
| PROTECTIVE GRILLE TO BLOWER | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE GRILLE TO BLOWER | ||
| 035 | A 1105020030 | DAMPING STRIP |
| 037 | A 0029902801 | SCREW |
| 038 | A 1105040084 | SHIM |
| 041 | A 1089870325 | PLASTIC SECTION |
| 042 | A 1155040082 | RUBBER RING |
| 043 | A 1145000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| 043 | A 1145000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| 044 | A 1085000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| 044 | A 1085000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| 044 | A 1085000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| 046 | A 1095000049 | TANK |
| A 0005010015 | RADIATOR CAP | |
| 047 | A 1095010020 | BRACKET |
| RESERVOIR TO FIRE WALL | ||
| 048 | N 900288125100 | CLAMP |
| RESERVOIR TO FIRE WALL | ||
| 049 | A 1095010120 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO SIDE MEMBER AND TO EXPANSION TANK | ||
| N 000125006407 | WASHER | |
| BRACKET TO SIDE MEMBER AND TO EXPANSION TANK | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER AND TO EXPANSION TANK | ||
| N 000934006007 | NUT | |
| BRACKET TO SIDE MEMBER AND TO EXPANSION TANK | ||
| N 007340004113 | RIVET | |
| BRACKET TO CENTRAL PART,OUTSIDE | ||
| 055 | A 1892033402 | LINE |
| 056 | N 900271038025 | HOSE |
| A 1085010582 | HOSE | |
| FROM THERMOSTAT TO RADIATOR | ||
| A 1085010582 | HOSE | |
| FROM THERMOSTAT TO RADIATOR | ||
| A 1085010782 | HOSE | |
| FROM THERMOSTAT TO RADIATOR | ||
| A 1085010782 | HOSE | |
| FROM THERMOSTAT TO RADIATOR | ||
| 061 | A 1002030482 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 062 | A 1165010682 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| N 916026036000 | CLAMP | |
| Repalced by: A 0069970590 | ||
| A 0069970590 | LOOM TIE | |
| N 916002047100 | CLAMP | |
| N 916026040000 | CLAMP | |
| Repalced by: A 0069974390 | ||
| A 0069974390 | LOOM TIE | |
| N 916001050000 | CLAMP | |
| 066 | A 1892000654 | LINE |
| A 1085010682 | HOSE | |
| FROM WATER PUMP TO RADIATOR | ||
| 068 | A 1002030782 | HOSE |
| FROM WATER PUMP TO RADIATOR | ||
| 069 | A 1165010782 | HOSE |
| FROM WATER PUMP TO RADIATOR | ||
| N 916002047100 | CLAMP | |
| FROM WATER PUMP TO RADIATOR | ||
| N 916001050000 | CLAMP | |
| FROM WATER PUMP TO RADIATOR | ||
| N 916002051100 | CLAMP | |
| FROM WATER PUMP TO RADIATOR | ||
| 072 | N 900271045010 | HOSE |
| 073 | A 3405010282 | HOSE |
| COOLING WATER PIPE TO RADIATOR | ||
| N 900262009000 | LOOM TIE | |
| N 900263009000 | STRAP | |
| 078 | A 1095000372 | LINE |
| A 3049950120 | CLAMP | |
| N 916026036000 | CLAMP | |
| Repalced by: A 0069970590 | ||
| A 0069970590 | LOOM TIE | |
| N 916001050000 | CLAMP | |
| 081 | A 1892000284 | CONNECTOR |
| 082 | N 900271012024 | HOSE |
| N 900269019003 | CLAMP | |
| 083 | N 900271018036 | HOSE |
| WATER PIPE AND CONNECTOR TO RADIATOR AND TO EXPANSION TANK | ||
| N 900262009000 | LOOM TIE | |
| N 900263009000 | STRAP | |
| 085 | A 3049950120 | CLAMP |
| WATER PIPE TO BODY | ||
| N 007976004217 | SHEET METAL SCREW | |
| WATER PIPE TO BODY | ||
| 087 | N 900271008004 | HOSE |
| 950 MM | ||
| A 0019970290 | LOOM TIE | |
| 088 | A 1899870141 | RUBBER RING |
| 089 | A 0019974390 | LOOM TIE |
