Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

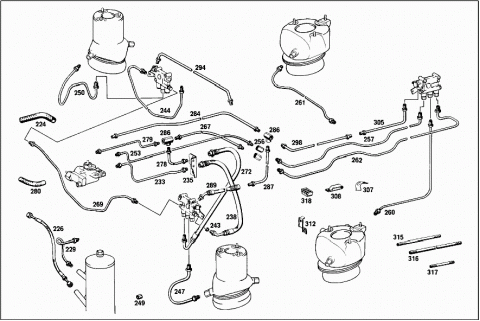

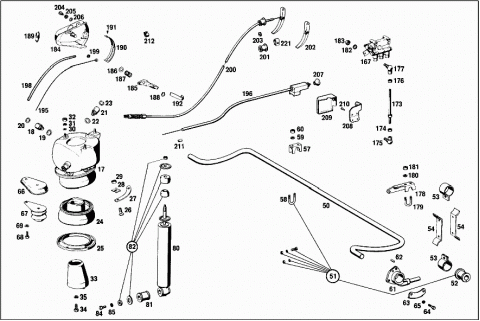

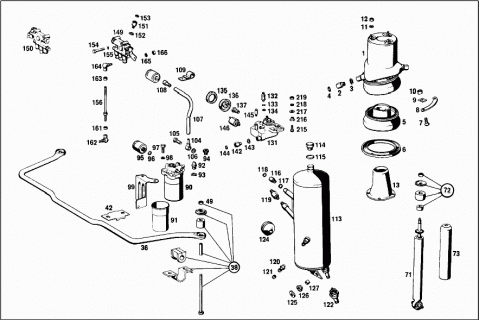

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1123203615 | AIR CELL |
| LEFT | ||
| A 1123203715 | AIR CELL | |
| RIGHT | ||
| 002 | A 1129971572 | FITTING |
| 003 | A 1129970440 | SEAL RING |
| 004 | A 0029978545 | SEAL RING |
| 005 | A 1123200017 | AIR SPRING BELLOWS |
| 006 | A 1123270406 | SPACER |
| 007 | N 000965008043 | SCREW |
| 008 | A 1123270185 | REINFORCEMENT |
| 009 | A 1123270173 | LOCK |
| 010 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 010 | N 304035008001 | NUT |
| 011 | N 912004008102 | LOCK WASHER |
| 012 | N 000934008013 | NUT |
| 013 | A 1123271018 | PISTON |
| N 000966006007 | SCREW | |
| SPRING PISTON TO LOWER CONTROL ARM | ||
| N 912004006102 | LOCK WASHER | |
| SPRING PISTON TO LOWER CONTROL ARM | ||
| N 000934006007 | NUT | |
| SPRING PISTON TO LOWER CONTROL ARM | ||
| 017 | A 1123204215 | AIR CELL |
| LEFT | ||
| A 1123204315 | AIR CELL | |
| RIGHT | ||
| 018 | A 1129971672 | FITTING |
| 019 | A 1129970540 | SEAL RING |
| 020 | A 0029979145 | SEAL RING |
| 021 | A 1129971572 | FITTING |
| 022 | A 1129970440 | SEAL RING |
| 023 | A 0029978545 | SEAL RING |
| 024 | A 1123200021 | AIR SPRING BELLOWS |
| 025 | A 1123280406 | RING |
| 026 | N 000965008043 | SCREW |
| 027 | A 1123280085 | REINFORCEMENT |
| 028 | A 1123270173 | LOCK |
| 029 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 029 | N 304035008001 | NUT |
| 030 | N 000125008407 | WASHER |
| 031 | N 000127008203 | LOCK WASHER |
| 032 | N 000934008013 | NUT |
| 033 | A 1123202218 | PISTON |
| LEFT | ||
| A 1123202318 | PISTON | |
| RIGHT | ||
| 034 | N 000933010016 | SCREW |
| 035 | N 000127010202 | LOCK WASHER |
| 036 | A 1093230465 | TORSION BAR |
| FRONT | ||
| A 1083230465 | TORSION BAR | |
| FRONT | ||
| A 1093230765 | TORSION BAR | |
| FRONT | ||
| 038 | A 1095860032 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| A 1095860132 | REPAIR KIT | |
| TORSION BAR,FRONT | ||
| A 1093230085 | RUBBER MOUNTING | |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| A 1123230285 | RUBBER MOUNTING | |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| A 1113231140 | BRACKET | |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 042 | A 1083230073 | LOCK |
| A 1083200071 | LOCK | |
| A 1119900501 | SCREW | |
| A 1089900601 | SCREW | |
| A 1113230267 | RETAINER | |
| A 1113230044 | RUBBER BUFFER | |
| A 1119911040 | SPACER TUBE | |
| A 1089910240 | SPACER TUBE | |
| 049 | N 913002008004 | NUT |
| 050 | A 1123260965 | TORSION BAR |
| REAR | ||
| A 1093260065 | TORSION BAR | |
| REAR | ||
| 051 | A 1095860232 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 052 | A 1123260281 | RUBBER MOUNTING |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 053 | A 1119950035 | CLAMP |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 054 | A 1123260040 | BRACKET |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| N 000931007001 | SCREW | |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| N 000127007201 | LOCK WASHER | |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| N 000934007005 | NUT | |
| TORSION BAR TO FRAME FLOOR UNIT | ||
| 057 | A 1123260969 | LEVER |
| 058 | A 1123260226 | CLAMP |
| 059 | N 912004006102 | LOCK WASHER |
| 060 | N 000934006007 | NUT |
| 061 | A 1123201843 | BRACKET |
| LEFT | ||
| A 1123201743 | BRACKET | |
| RIGHT | ||
| 062 | N 000007005203 | CYLINDRICAL PIN |
| 063 | A 1123260278 | CONSOLE |
| 064 | N 000933010278 | SCREW |
| 065 | N 000127010202 | LOCK WASHER |
| 066 | A 1093250043 | BRACKET |
| 067 | A 1123201144 | RUBBER BUFFER |
| 068 | N 900161008107 | SCREW |
| 069 | N 000137008204 | SPRING WASHER |
| 071 | A 1093200030 | SHOCK ABSORBER |
| FRONT | ||
| A 1153230767 | RETAINER | |
| Repalced by: A 1233230367 | ||
| A 1233230367 | RETAINER | |
| A 0003231285 | RUBBER MOUNTING | |
| A 1803260168 | RUBBER BUFFER | |
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| 072 | A 1103200056 | REPAIR KIT |
| SHOCK ABSORBER MOUNTING | ||
| 073 | A 1113230138 | DUST CAP |
| N 912004008102 | LOCK WASHER | |
| FRONT SHOCK ABSORBERS TO LOWER CONTROL ARMS | ||
| N 000934008013 | NUT | |
| FRONT SHOCK ABSORBERS TO LOWER CONTROL ARMS | ||
| 080 | A 1093200031 | SHOCK ABSORBER |
| REAR | ||
| A 1153230767 | RETAINER | |
| Repalced by: A 1233230367 | ||
| A 1233230367 | RETAINER | |
| A 1103230585 | RUBBER MOUNTING | |
| A 1103260067 | RETAINER | |
| A 1803260168 | RUBBER BUFFER | |
| A 1109900240 | WASHER | |
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| 081 | A 1103260281 | RUBBER MOUNTING |
| 082 | A 1103200156 | REPAIR KIT |
| SHOCK ABSORBER MOUNTING | ||
| 084 | N 000933010106 | SCREW |
| 085 | N 000127010202 | LOCK WASHER |
| 090 | A 0004311415 | ANTI-FREEZE DEVICE |
| 091 | A 0004317202 | RESERVOIR |
| 092 | A 0009976930 | SCREW PLUG |
| A 0049977945 | SEAL RING | |
| Repalced by: A 0179974148 | ||
| A 0179974148 | SEAL RING | |
| 093 | A 0029971140 | SEAL RING |
| 094 | A 0000715035 | NOZZLE |
| SIZE 100 | ||
| 095 | A 0003270291 | FILTER |
| 096 | A 0049972445 | SEAL RING |
| 097 | N 000933008153 | SCREW |
| 098 | N 000137008204 | SPRING WASHER |
| 099 | A 1094300010 | BRACKET |
| A 1094300110 | BRACKET | |
| N 000087006125 | SCREW | |
| BRACKET TO BATTERY SUPPORT | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO BATTERY SUPPORT | ||
| N 000934006007 | NUT | |
| BRACKET TO BATTERY SUPPORT | ||
| A 0009903321 | SCREW | |
| BRACKET TO COWL | ||
| 104 | A 1093200057 | CONNECTOR |
| 105 | N 915036008202 | HOLLOW SCREW |
| 106 | N 007603012102 | SEAL RING |
| 107 | A 0069972082 | HOSE |
| N 900269016100 | CLAMP | |
| 108 | A 1003270565 | FITTING |
| AIR CLEANER TO BODY | ||
| 109 | A 1009950101 | CLAMP |
| AIR CLEANER TO BODY | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| AIR CLEANER TO BODY | ||
| N 912004006102 | LOCK WASHER | |
| AIR CLEANER TO BODY | ||
| 113 | A 1093200052 | RESERVOIR |
| 114 | A 1129970930 | SCREW PLUG |
| 115 | A 0049970245 | SEAL RING |
| 116 | A 1129971572 | FITTING |
| 117 | A 1129970440 | SEAL RING |
| 118 | A 0029978545 | SEAL RING |
| 119 | A 0003271625 | VALVE |
| A 0029978545 | SEAL RING | |
| 120 | A 1123200658 | VALVE |
| A 0003270625 | VALVE | |
| 121 | N 007757008600 | VALVE CAP |
| A 0029978545 | SEAL RING | |
| FILLING VALVE | ||
| 122 | A 0003281425 | VALVE |
| A 0049970245 | SEAL RING | |
| 124 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 124 | A 3359970081 | GROMMET |
| 125 | A 1201550082 | RETAINER |
| AIR RESERVOIR TO CROSS MEMBER AND TO WHEELHOUSE STRUT | ||
| 126 | A 1123270081 | RUBBER MOUNTING |
| AIR RESERVOIR TO CROSS MEMBER AND TO WHEELHOUSE STRUT | ||
| 127 | A 1129910240 | SPACER TUBE |
| AIR RESERVOIR TO CROSS MEMBER AND TO WHEELHOUSE STRUT | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| AIR RESERVOIR TO CROSS MEMBER AND TO WHEELHOUSE STRUT | ||
| N 000127008203 | LOCK WASHER | |
| AIR RESERVOIR TO CROSS MEMBER AND TO WHEELHOUSE STRUT | ||
| N 000934008013 | NUT | |
| AIR RESERVOIR TO CROSS MEMBER AND TO WHEELHOUSE STRUT | ||
| 131 | A 0003274525 | VALVE |
| 132 | A 0003274225 | VALVE |
| 133 | A 0003270060 | SEAL RING |
| 134 | A 0003270160 | SEAL RING |
| 135 | A 0003270051 | SPACER RING |
| 136 | A 0003270092 | BOOT |
| 137 | A 0003274325 | VALVE |
| Repalced by: A 0003274725 | ||
| A 0003274725 | VALVE | |
| A 0003274725 | VALVE | |
| A 0003270074 | PIN | |
| A 0003270074 | PIN | |
| A 0029978545 | SEAL RING | |
| 142 | A 1129971572 | FITTING |
| 143 | A 1129970440 | SEAL RING |
| 144 | A 0029978545 | SEAL RING |
| 145 | A 0003272625 | VALVE |
| A 0039978245 | SEAL RING | |
| 146 | A 0005456911 | SWITCH |
| A 0029978545 | SEAL RING | |
| N 000933008153 | SCREW | |
| VALVE UNIT TO BRACKET AT WHEELHOUSE PANEL | ||
| N 000137008204 | SPRING WASHER | |
| VALVE UNIT TO BRACKET AT WHEELHOUSE PANEL | ||
| 149 | A 0003271925 | VALVE |
| FRONT LEFT | ||
| 150 | A 0003272025 | VALVE |
| FRONT RIGHT | ||
| 151 | A 1129971572 | FITTING |
| 152 | A 1129970440 | SEAL RING |
| 153 | A 0029978545 | SEAL RING |
| 154 | N 000931008244 | SCREW |
| LEVEL ADJUSTMENT VALVE TO FRONT SUBFRAME | ||
| 155 | N 000137008204 | SPRING WASHER |
| LEVEL ADJUSTMENT VALVE TO FRONT SUBFRAME | ||
| 156 | A 1123201389 | ROD |
| A 1093200489 | ROD | |
| LEFT | ||
| A 1123202089 | ROD | |
| LEFT | ||
| A 1093200589 | ROD | |
| RIGHT | ||
| A 1123202089 | ROD | |
| RIGHT | ||
| A 1123202189 | ROD | |
| RIGHT | ||
| 161 | N 000934006007 | NUT |
| 162 | A 1143280263 | JOINT |
| Repalced by: A 1233280063 | ||
| 162 | A 1233280063 | JOINT |
| R.H. THREAD | ||
| 163 | N 000934006012 | NUT |
| 164 | A 1143280163 | JOINT |
| Repalced by: A 1233280163 | ||
| 164 | A 1233280163 | JOINT |
| L.H. THREAD | ||
| 165 | N 912004006102 | LOCK WASHER |
| 166 | N 000934006007 | NUT |
| 167 | A 0003281025 | VALVE |
| REAR | ||
| A 1129971572 | FITTING | |
| A 1129970440 | SEAL RING | |
| A 0029978545 | SEAL RING | |
| N 000931008217 | SCREW | |
| REAR LEVEL ADJUSTMENT VALVE TO BRACKET AT FRAME FLOOR UNIT | ||
| N 000127008203 | LOCK WASHER | |
| REAR LEVEL ADJUSTMENT VALVE TO BRACKET AT FRAME FLOOR UNIT | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| REAR LEVEL ADJUSTMENT VALVE TO BRACKET AT FRAME FLOOR UNIT | ||
| 173 | A 1123201589 | ROD |
| 174 | N 000934006007 | NUT |
| 175 | A 1143280263 | JOINT |
| Repalced by: A 1233280063 | ||
| 175 | A 1233280063 | JOINT |
| R.H. THREAD | ||
| 176 | N 000934006012 | NUT |
| 177 | A 1143280163 | JOINT |
| Repalced by: A 1233280163 | ||
| 177 | A 1233280163 | JOINT |
| L.H. THREAD | ||
| 178 | A 1123201127 | LEVER |
| 179 | A 1123260226 | CLAMP |
| 180 | N 912004006102 | LOCK WASHER |
| 181 | N 000934006007 | NUT |
| 182 | N 912004006102 | LOCK WASHER |
| 183 | N 000934006007 | NUT |
| 184 | A 1093200183 | HOUSING |
| 185 | A 1093200027 | LEVER |
| 186 | A 1109900940 | WASHER |
| 187 | A 1868880034 | SPRING |
| 188 | N 000471012001 | LOCK RING |
| A 0005459611 | SWITCH | |
| Repalced by: A 0015450211 | ||
| 189 | A 0015450211 | SWITCH |
| HAND BRAKE TELL-TALE LAMP | ||
| 190 | A 1093220038 | WEB |
| WIRE CABLE OPERATION | ||
| 191 | N 007982003206 | SHEET METAL SCREW |
| WIRE CABLE OPERATION | ||
| 192 | A 1118330440 | OPERATING HANDLE |
| WIRE CABLE OPERATION | ||
| N 007976004211 | SHEET METAL SCREW | |
| HOUSING TO PILLAR INTERIOR PLATE | ||
| 195 | A 1093270235 | WIRE CABLE |
| 196 | A 1093201191 | WIRE CABLE |
| A 0009880172 | WIRE SPIRAL | |
| 198 | A 0069979782 | HOSE |
| OVER WIRE CABLE | ||
| N 072601012230 | BULB | |
| 199 | N 006799004001 | LOCK PLATE |
| WIRE CABLE TO LEVER | ||
| 200 | A 1098800059 | ENGINE HOOD RELEASE CABLE |
| . | ||
| 88 NR.150 | ||
| 201 | A 1109971181 | GROMMET |
| . | ||
| 88 NR.151 | ||
| 202 | A 1108870127 | HANDLE |
| . | ||
| 88 NR.152 | ||
| 203 | A 0009971881 | GROMMET |
| AT HOUSING | ||
| 204 | A 1129840231 | SCREW |
| 205 | N 900055006001 | SPRING WASHER |
| 206 | N 000137005203 | SPRING WASHER |
| 207 | A 1158200192 | KNOB |
| A 1158201592 | KNOB | |
| Repalced by: A 1158201792 | ||
| A 1158201792 | KNOB | |
| 208 | A 1093270640 | BRACKET |
| WIRE CABLE | ||
| 209 | A 1093270086 | PROTECTIVE PLATE |
| 210 | N 007976004207 | SHEET METAL SCREW |
| 211 | A 1093270059 | PROTECTIVE CAP |
| 212 | A 1109950001 | CLAMP |
| WIRE CABLES TO HOUSING | ||
| N 000933005037 | SCREW | |
| WIRE CABLES TO HOUSING | ||
| N 000127005203 | LOCK WASHER | |
| WIRE CABLES TO HOUSING | ||
| N 000934005008 | NUT | |
| WIRE CABLES TO HOUSING | ||
| 215 | A 1368310089 | SCREW |
| BOWDEN CABLE TO VALVE UNIT LEVER | ||
| 216 | A 1360720050 | BUSHING |
| BOWDEN CABLE TO VALVE UNIT LEVER | ||
| 217 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 217 | N 000125004319 | WASHER |
| BOWDEN CABLE TO VALVE UNIT LEVER | ||
| 218 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 218 | N 912004004102 | LOCK WASHER |
| BOWDEN CABLE TO VALVE UNIT LEVER | ||
| 219 | N 000934004007 | NUT |
| BOWDEN CABLE TO VALVE UNIT LEVER | ||
| A 0009883378 | CLIP | |
| BOWDEN CABLE TO WHEELHOUSE PANEL | ||
| 221 | A 1109950001 | CLAMP |
| BOWDEN CABLE TO VALVE UNIT BRACKET | ||
| N 000933005037 | SCREW | |
| BOWDEN CABLE TO VALVE UNIT BRACKET | ||
| N 000127005203 | LOCK WASHER | |
| BOWDEN CABLE TO VALVE UNIT BRACKET | ||
| N 000934005008 | NUT | |
| BOWDEN CABLE TO VALVE UNIT BRACKET | ||
| 224 | A 0069972082 | HOSE |
| FROM ANTI-FREEZE DEVICE TO AIR COMPRESSOR | ||
| N 900269016101 | CLAMP | |
| 226 | A 1129971082 | HOSE |
| A 1099971282 | HOSE | |
| A 1099973682 | HOSE | |
| 229 | A 1093200053 | LINE |
| Repalced by: A 1093207453 | ||
| 229 | A 1093207453 | LINE |
| Repalced by: A 1093207753 | ||
| 229 | A 1093207753 | LINE |
| A 1093203153 | LINE | |
| Repalced by: A 1093207453 | ||
| A 1093207453 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| A 1093203753 | LINE | |
| A 1093207753 | LINE | |
| A 1093207753 | LINE | |
| 233 | A 1093200153 | LINE |
| Repalced by: A 1123205753 | ||
| 233 | A 1123205753 | LINE |
| Repalced by: A 1093207753 | ||
| 233 | A 1093207753 | LINE |
| A 1093203253 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| A 1093207853 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| 235 | A 1093200043 | BRACKET |
| A 1093200143 | BRACKET | |
| Repalced by: A 1093200043 | ||
| A 1093200043 | BRACKET | |
| N 007976005203 | SHEET METAL SCREW | |
| BRACKET TO LEFT FRONT SIDE MEMBER | ||
| N 000137006204 | SPRING WASHER | |
| BRACKET TO LEFT FRONT SIDE MEMBER | ||
| 238 | A 1099970182 | HOSE |
| FROM BRACKET TO LEFT FRONT LEVEL ADJUSTMENT VALVE | ||
| A 1099971782 | HOSE | |
| FROM BRACKET AT FRAME TO BRACKET AT FRONT SUBFRAME | ||
| A 1093200243 | BRACKET | |
| AT FRONT SUBFRAME | ||
| A 1093204353 | LINE | |
| Repalced by: A 1093207553 | ||
| A 1093207553 | LINE | |
| FROM BRACKET TO LEFT FRONT LEVEL ADJUSTMENT VALVE | ||
| A 1093206253 | LINE | |
| Repalced by: A 1093207553 | ||
| A 1093207553 | LINE | |
| A 1093207553 | LINE | |
| 243 | A 1129970440 | SEAL RING |
| COMPRESSED AIR HOSE | ||
| 244 | A 1093200553 | LINE |
| Repalced by: A 1093208153 | ||
| 244 | A 1093208153 | LINE |
| Repalced by: A 1003204153 | ||
| 244 | A 1003204153 | LINE |
| A 1093205053 | LINE | |
| Repalced by: A 1093208153 | ||
| A 1093208153 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093205953 | LINE | |
| Repalced by: A 1093208153 | ||
| A 1093208153 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1003204153 | LINE | |
| 247 | A 1093200853 | LINE |
| Repalced by: A 1093207953 | ||
| 247 | A 1093207953 | LINE |
| Repalced by: A 1003204153 | ||
| 247 | A 1003204153 | LINE |
| A 1093204953 | LINE | |
| Repalced by: A 1093207953 | ||
| A 1093207953 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093206553 | LINE | |
| Repalced by: A 1093207953 | ||
| A 1093207953 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| 249 | A 0009978682 | HOSE |
| 18 MM | ||
| 250 | A 1093200953 | LINE |
| Repalced by: A 1093207853 | ||
| 250 | A 1093207853 | LINE |
| Repalced by: A 1003204153 | ||
| 250 | A 1003204153 | LINE |
| 250 | A 1003204153 | LINE |
| A 1093207853 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1003204153 | LINE | |
| 253 | A 1093201153 | LINE |
| Repalced by: A 1093208553 | ||
| 253 | A 1093208553 | LINE |
| A 1093203653 | LINE | |
| Repalced by: A 1093208553 | ||
| A 1093208553 | LINE | |
| A 1093204653 | LINE | |
| Repalced by: A 1093208253 | ||
| A 1093208253 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093208553 | LINE | |
| 256 | A 1129900266 | INTERMEDIATE PIECE |
| A 1129970440 | SEAL RING | |
| 257 | A 1093202153 | LINE |
| A 1093205753 | LINE | |
| Repalced by: A 1093208753 | ||
| A 1093208753 | LINE | |
| A 1093208653 | LINE | |
| Repalced by: A 1093208753 | ||
| A 1093208753 | LINE | |
| 260 | A 1093201653 | LINE |
| Repalced by: A 1093208053 | ||
| 260 | A 1093208053 | LINE |
| Repalced by: A 1003204153 | ||
| 260 | A 1003204153 | LINE |
| 261 | A 1093201753 | LINE |
| 262 | A 1093202253 | LINE |
| FROM REAR LEVEL ADJUSTMENT VALVE TO CONNECTOR | ||
| A 1093205853 | LINE | |
| Repalced by: A 1093208953 | ||
| A 1093208953 | LINE | |
| A 1093208953 | LINE | |
| A 1129900266 | INTERMEDIATE PIECE | |
| A 1129970440 | SEAL RING | |
| A 1093201253 | LINE | |
| Repalced by: A 1093202953 | ||
| 267 | A 1093202953 | LINE |
| Repalced by: A 1093208053 | ||
| 267 | A 1093208053 | LINE |
| Repalced by: A 1003204153 | ||
| 267 | A 1003204153 | LINE |
| A 1093204853 | LINE | |
| A 1093208353 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| 269 | A 1093200653 | LINE |
| Repalced by: A 1093207753 | ||
| 269 | A 1093207753 | LINE |
| A 1093205253 | LINE | |
| Repalced by: A 1093207853 | ||
| A 1093207853 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093206053 | LINE | |
| Repalced by: A 1093207853 | ||
| A 1093207853 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1003204153 | LINE | |
| 272 | A 1099970282 | HOSE |
| A 1099971082 | HOSE | |
| A 1099971782 | HOSE | |
| FROM BRACKET AT FRAME TO BRACKET AT FRONT SUBFRAME | ||
| A 1093204553 | LINE | |
| Repalced by: A 1123205553 | ||
| A 1123205553 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| FROM BRACKET TO LEFT FRONT LEVEL ADJUSTMENT VALVE | ||
| A 1093206453 | LINE | |
| Repalced by: A 1123205753 | ||
| A 1123205753 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| FROM BRACKET TO LEFT FRONT LEVEL ADJUSTMENT VALVE | ||
| A 1093207753 | LINE | |
| FROM BRACKET TO LEFT FRONT LEVEL ADJUSTMENT VALVE | ||
| A 1093200253 | LINE | |
| Repalced by: A 1093202853 | ||
| 278 | A 1093202853 | LINE |
| Repalced by: A 1093207453 | ||
| 278 | A 1093207453 | LINE |
| Repalced by: A 1093207753 | ||
| 278 | A 1093207753 | LINE |
| A 1123205753 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| 279 | A 1093202753 | LINE |
| Repalced by: A 1093207553 | ||
| 279 | A 1093207553 | LINE |
| A 1003203953 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| 280 | A 0069972082 | HOSE |
| N 900269016100 | CLAMP | |
| A 1129950120 | CLAMP | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 284 | A 1093200353 | LINE |
| A 1093203353 | LINE | |
| Repalced by: A 1093207653 | ||
| A 1093207653 | LINE | |
| A 1093203953 | LINE | |
| Repalced by: A 1093207653 | ||
| A 1093207653 | LINE | |
| 286 | A 1009900172 | DISTRIBUTOR |
| A 1129970440 | SEAL RING | |
| 287 | A 1093200453 | LINE |
| A 1093203453 | LINE | |
| Repalced by: A 1093207453 | ||
| A 1093207453 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| A 1093204153 | LINE | |
| Repalced by: A 1123205753 | ||
| A 1123205753 | LINE | |
| Repalced by: A 1093207753 | ||
| A 1093207753 | LINE | |
| 289 | A 1099970382 | HOSE |
| A 1099973682 | HOSE | |
| A 1099971782 | HOSE | |
| FROM BRACKET AT FRAME TO BRACKET AT FRONT SUBFRAME | ||
| A 1093204453 | LINE | |
| Repalced by: A 1093207553 | ||
| A 1093207553 | LINE | |
| FROM BRACKET TO LEFT FRONT LEVEL ADJUSTMENT VALVE | ||
| A 1093206353 | LINE | |
| Repalced by: A 1093207553 | ||
| A 1093207553 | LINE | |
| A 1093207553 | LINE | |
| 294 | A 1093200753 | LINE |
| A 1093203053 | LINE | |
| Repalced by: A 1093208253 | ||
| A 1093208253 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093205153 | LINE | |
| Repalced by: A 1093208253 | ||
| A 1093208253 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093206153 | LINE | |
| Repalced by: A 1093208253 | ||
| A 1093208253 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1003204153 | LINE | |
| 298 | A 1093201053 | LINE |
| Repalced by: A 1093208353 | ||
| 298 | A 1093208353 | LINE |
| Repalced by: A 1003204153 | ||
| 298 | A 1003204153 | LINE |
| A 1093203553 | LINE | |
| Repalced by: A 1093208353 | ||
| A 1093208353 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093204753 | LINE | |
| Repalced by: A 1093208253 | ||
| A 1093208253 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1093208153 | LINE | |
| Repalced by: A 1003204153 | ||
| A 1003204153 | LINE | |
| A 1129900266 | INTERMEDIATE PIECE | |
| A 1129970440 | SEAL RING | |
| A 1093200043 | BRACKET | |
| 305 | A 1093202353 | LINE |
| Repalced by: A 1093208753 | ||
| 305 | A 1093208753 | LINE |
| A 1093205653 | LINE | |
| Repalced by: A 1093208653 | ||
| A 1093208653 | LINE | |
| Repalced by: A 1093208753 | ||
| A 1093208753 | LINE | |
| A 1093208753 | LINE | |
| 307 | A 0002950073 | LOCK |
| 308 | A 1099950007 | CLAMP |
| A 1129950007 | CLAMP | |
| N 000084005130 | SCREW | |
| N 000127005203 | LOCK WASHER | |
| N 000934005008 | NUT | |
| 312 | A 1809950022 | CLAMP |
| N 072571001025 | CLAMP | |
| A 1009950042 | CLAMP | |
| Repalced by: A 1119950042 | ||
| A 1119950042 | CLAMP | |
| Repalced by: A 1409950222 | ||
| A 1409950222 | CLAMP | |
| A 1109950022 | CLAMP | |
| 315 | N 073379008100 | HOSE |
| AT LEFT AND RIGHT AIR COMPENSATING LINES UNDER TRUNK | ||
| 316 | A 0009978682 | HOSE |
| 317 | N 073379006101 | HOSE |
| AT AIR CONDUITS UNDER FRONT FLOOR | ||
| 318 | A 1204760184 | DAMPING STRIP |
| A 1124760084 | DAMPING STRIP | |
| A 1104760084 | DAMPING STRIP | |
| N 007976005203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
