Transporto priemonė: 300 TD TURBODIESEL USA; VIN numerio dalis: 123193

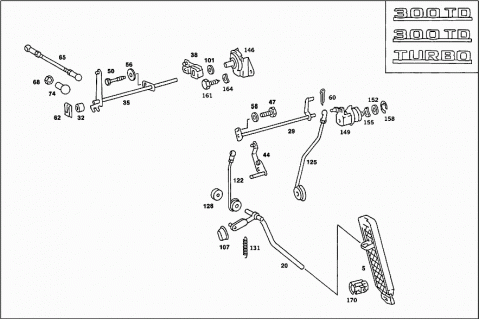

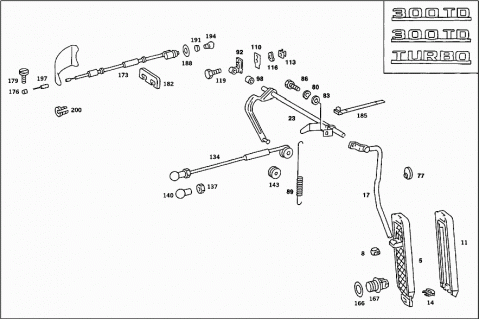

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| 008 | A 1233010022 | JOINT |
| 011 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 011 | A 1233000204 | ACCELERATOR PEDAL |
| 011 | A 1233010082 | PAD |
| 014 | A 1249888678 | CLIP |
| 017 | A 1233010901 | LEVER |
| 020 | A 1233000125 | LEVER |
| 023 | A 1233001420 | SHAFT |
| 029 | A 1233004520 | SHAFT |
| 029 | A 1233006120 | SHAFT |
| 032 | A 1093010051 | SPACER RING |
| CONTROL SHAFT TO ENGINE | ||
| 035 | A 1233003420 | SHAFT |
| 038 | A 1233001925 | LEVER |
| WITH DAMPER | ||
| 044 | A 1233003625 | LEVER |
| 047 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 047 | N 304017006018 | SCREW |
| 050 | N 000561006115 | SCREW |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 056 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 056 | N 009021006208 | WASHER |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 058 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 058 | N 000125006449 | WASHER |
| 060 | A 1233010273 | LOCK |
| CONTROL SHAFT TO ENGINE | ||
| 062 | N 912007008000 | CLIP |
| CONTROL SHAFT TO ENGINE | ||
| 065 | A 1233003715 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 065 | A 1263000815 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 068 | N 000934005008 | NUT |
| 074 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 074 | A 0009918922 | BALL SOCKET |
| 077 | A 1233010597 | BOOT |
| 080 | N 000137008204 | SPRING WASHER |
| 083 | N 000125008418 | WASHER |
| 086 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 086 | N 304017008016 | SCREW |
| 089 | A 1239930310 | SPRING |
| 092 | A 1233010118 | BEARING |
| 098 | A 1233010251 | SPACER RING |
| 101 | A 1233010051 | SPACER RING |
| 107 | A 1233010497 | BOOT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 110 | A 1233010280 | GASKET |
| BEARING TO FIRE WALL | ||
| 113 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 113 | A 0009902291 | NUT RETAINER |
| BEARING TO FIRE WALL | ||
| 116 | N 000137006204 | SPRING WASHER |
| BEARING TO FIRE WALL | ||
| 119 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 119 | N 304017006020 | SCREW |
| BEARING TO FIRE WALL | ||
| 122 | A 1233003615 | ROD |
| 125 | A 1233004115 | ROD |
| 128 | A 1803010097 | BOOT |
| 131 | A 1119931110 | SPRING |
| 134 | A 1233003215 | ROD |
| CONTROL | ||
| 137 | N 000934005004 | NUT |
| 140 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 140 | A 0009918922 | BALL SOCKET |
| 143 | A 1233010285 | RUBBER BUFFER |
| 146 | A 1233000040 | BRACKET |
| 149 | A 1233001340 | BRACKET |
| 152 | A 1233010176 | WASHER |
| 155 | N 900055008002 | SPRING WASHER |
| 158 | N 006799007007 | LOCK PLATE |
| 161 | N 007976005203 | SHEET METAL SCREW |
| BEARING TO FIRE WALL | ||
| 164 | N 000137006204 | SPRING WASHER |
| BEARING TO FIRE WALL | ||
| 166 | A 1159970640 | SEAL RING |
| 167 | A 0003000141 | KICK-DOWN SWITCH |
| 170 | A 0015456314 | SWITCH |
| KICK-DOWN SWITCH | ||
| 170 | A 0015457814 | SWITCH |
| KICK-DOWN SWITCH | ||
| 173 | A 1233000332 | WIRE CABLE |
| INCREASE IN NUMBER OF REVOLUTIONS | ||
| 1025 MM | ||
| 173 | A 1233001732 | WIRE CABLE |
| INCREASE IN NUMBER OF REVOLUTIONS | ||
| 1055 MM | ||
| 176 | A 1233000086 | END PIECE |
| 179 | N 000084005402 | SCREW |
| 182 | A 1233020008 | GUIDE |
| 185 | A 0019974190 | LOOM TIE |
| 188 | A 1233020076 | WASHER |
| 191 | A 1105450272 | NUT |
| 194 | A 1105451137 | BUTTON |
| 197 | A 1233020209 | SLEEVE |
| 197 | A 1233020209 | SLEEVE |
| 200 | A 1163020150 | BUSHING |
