Transporto priemonė: 300 TD TURBODIESEL USA; VIN numerio dalis: 123193

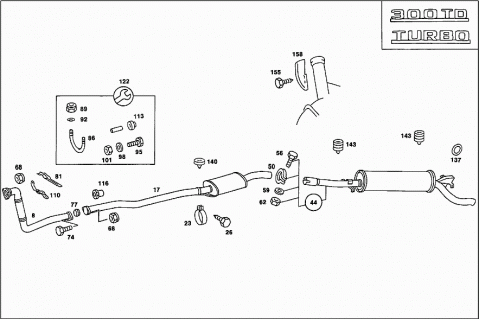

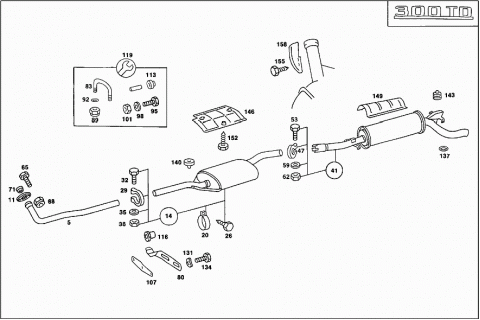

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1234903319 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 1234908219 | EXHAUST PIPE |
| Repalced by: A 1234901720 | ||
| 008 | A 1234901720 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 1234901720 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 1234909619 | EXHAUST PIPE |
| 011 | A 1074920345 | FLANGE |
| Repalced by: A 1264920745 | ||
| 011 | A 1264920745 | FLANGE |
| 014 | A 1234902915 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 1234908015 | ||
| 014 | A 1234908015 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| 014 | A 1234904615 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| 017 | A 1234905615 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 1234908315 | ||
| 017 | A 1234908315 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL | ||
| 020 | A 1159950435 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 023 | A 1169950035 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 026 | N 007976005202 | SHEET METAL SCREW |
| HEAT SHIELD MOUNTING | ||
| 029 | A 1074900041 | CLAMP |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 029 | A 1124900341 | CLAMP |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 032 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 032 | N 304017008043 | SCREW |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 035 | N 000433008406 | WASHER |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 038 | N 000934008013 | NUT |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 041 | A 1234902615 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 1234907915 | ||
| 041 | A 1234907915 | EXHAUST MUFFLER WITH PIPE |
| REAR | ||
| 044 | A 1234905715 | EXHAUST MUFFLER WITH PIPE |
| REAR | ||
| 047 | A 1074900041 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 047 | A 1124900341 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 050 | A 1244900141 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 053 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 053 | N 304017008043 | SCREW |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 056 | N 000931008251 | SCREW |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 059 | N 000433008406 | WASHER |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 062 | N 000934008013 | NUT |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 065 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 065 | N 304017008053 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 068 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 068 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 068 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 068 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 071 | A 1074921409 | CONNECTOR |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 074 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 074 | N 304017008043 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 077 | A 1264920581 | SEAL RING |
| Repalced by: A 2024920181 | ||
| 077 | A 2024920181 | SEAL RING |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 080 | A 1234920141 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 081 | A 1234923141 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 083 | A 1234920027 | CLAMPING BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 086 | A 1164920127 | CLAMPING BRACKET |
| Repalced by: A 2014920327 | ||
| 086 | A 2014920327 | CLAMPING BRACKET |
| Repalced by: A 2014920427 | ||
| 086 | A 2014920427 | CLAMPING BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 089 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 089 | A 0009903250 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 092 | N 002093016100 | DISC SPRING |
| EXHAUST PIPE TO BRACKET | ||
| 095 | N 000931008266 | SCREW |
| BRACKET TO MOUNTING PLATE OR TO TRANSMISSION | ||
| 095 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 095 | N 304017008021 | SCREW |
| BRACKET TO MOUNTING PLATE OR TO TRANSMISSION | ||
| 098 | N 000440009103 | WASHER |
| BRACKET TO MOUNTING PLATE OR TO TRANSMISSION | ||
| 101 | N 000934008013 | NUT |
| BRACKET TO MOUNTING PLATE OR TO TRANSMISSION | ||
| 107 | A 1144920318 | BASE PLATE |
| 110 | A 1234900444 | PLATE |
| 113 | A 1211550181 | RUBBER RING |
| BRACKET TO MOUNTING PLATE OR TO TRANSMISSION | ||
| 116 | A 1084920053 | SPACER TUBE |
| Repalced by: A 1264920172 | ||
| 116 | A 1264920172 | NUT |
| BRACKET TO MOUNTING PLATE | ||
| 119 | A 1084920253 | SPACER TUBE |
| Repalced by: A 1264920172 | ||
| 119 | A 1264900337 | REPAIR KIT |
| FRONT EXHAUST PIPE SUSPENSION | ||
| 122 | A 1264900037 | REPAIR KIT |
| Repalced by: A 1264900537 | ||
| 122 | A 1264900537 | REPAIR KIT |
| Repalced by: A 2014900237 | ||
| 122 | A 2014900237 | REPAIR KIT |
| FRONT EXHAUST PIPE SUSPENSION | ||
| 131 | N 000137008204 | SPRING WASHER |
| BRACKET TO TRANSMISSION | ||
| 134 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 134 | N 304017008024 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 137 | A 1074920082 | DAMPING PAD |
| EXHAUST PIPE SUSPENSION | ||
| 140 | A 1099870239 | RUBBER BUFFER |
| IN FRONT OF CENTRAL MUFFLER | ||
| 140 | A 1129870140 | RUBBER BUFFER |
| IN FRONT OF CENTRAL MUFFLER | ||
| 143 | A 1239870940 | RUBBER BUFFER |
| IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER | ||
| 143 | A 1239870940 | RUBBER BUFFER |
| ABOVE TAIL PIPE,OUTSIDE | ||
| 146 | A 1234920530 | PROTECTIVE PLATE |
| ABOVE CENTRAL MUFFLER | ||
| 149 | A 1236820571 | SCREENING |
| LEFT,ABOVE REAR MUFFLER | ||
| 152 | N 007976004217 | SHEET METAL SCREW |
| HEAT SHIELD MOUNTING | ||
| 4,8X9,5 | ||
| 152 | N 007976004217 | SHEET METAL SCREW |
| AT FLOOR,BELOW REAR SEAT BENCH | ||
| 152 | N 914031004301 | COMBINATION BOLT |
| HEAT SHIELD MOUNTING | ||
| 4,8X9,5 | ||
| 155 | N 914031004203 | COMBINATION BOLT |
| 158 | A 1236821171 | SCREENING |
| FUEL FILLER NECK | ||
