Transporto priemonė: 300 TD TURBODIESEL USA; VIN numerio dalis: 123193

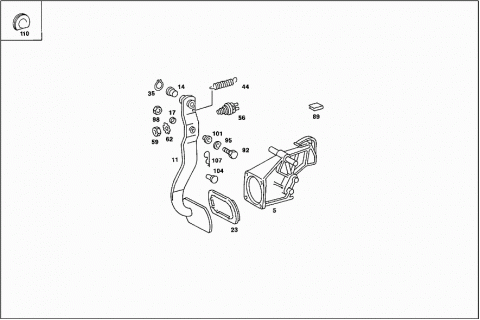

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1232900531 | BEARING |
| 011 | A 1232901218 | PEDAL |
| Repalced by: A 1232901618 | ||
| 011 | A 1232901618 | PEDAL |
| BRAKE PEDAL | ||
| 014 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 014 | A 1242920050 | BUSHING |
| 017 | A 1232920050 | BUSHING |
| 017 | A 1262920050 | BUSHING |
| 023 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 035 | N 000471016001 | LOCK RING |
| 044 | A 1239931210 | SPRING |
| 056 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 059 | A 0009909251 | NUT |
| 062 | N 006797012250 | TOOTHED WASHER |
| 089 | A 1232940212 | BEARING |
| 092 | N 000933008153 | SCREW |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 095 | N 000137008204 | SPRING WASHER |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 098 | N 000934008013 | NUT |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 101 | A 1152910350 | BUSHING |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 101 | A 1232920150 | BUSHING |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 104 | A 1262920074 | PIN |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 104 | A 1262920174 | PIN |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 107 | N 912011008000 | LOCK |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 110 | A 1109870044 | EXPANSION PLUG |
| Repalced by: A 1139870044 | ||
| 110 | A 1139870044 | EXPANSION PLUG |
