Transporto priemonė: 350 SEL; VIN numerio dalis: 116029

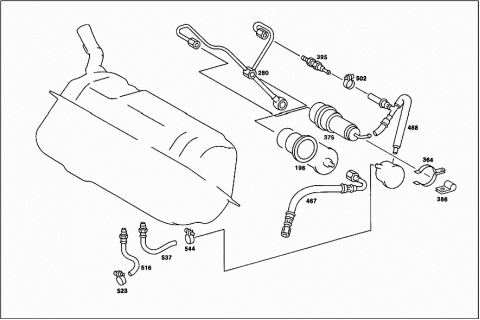

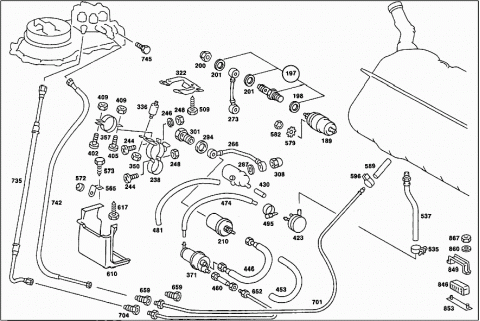

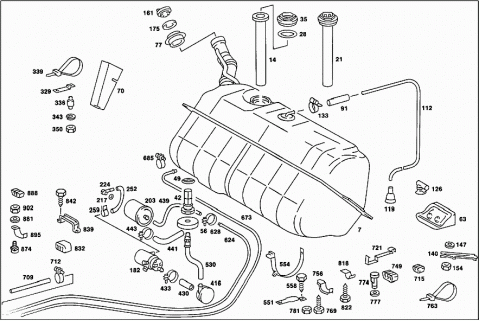

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1164701201 | FUEL TANK | |
| Repalced by: A 1164702601 | ||
| 007 | A 1164702601 | FUEL TANK |
| 96 L. | ||
| 014 | A 1165420304 | GAUGE SENDER UNIT |
| 021 | A 1165420504 | GAUGE SENDER UNIT |
| 028 | A 1079971345 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 035 | A 1164710121 | FLANGE |
| 042 | A 2014700406 | FUEL STRAINER |
| 049 | A 1109970145 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 056 | A 1074710980 | GASKET |
| 063 | A 1164710380 | GASKET |
| 070 | A 1164750020 | PAD |
| 077 | A 1079972481 | GROMMET |
| 091 | A 1074762426 | HOSE |
| Repalced by: A 2019970852 | ||
| 091 | A 2019970852 | HOSE |
| 80 MM | ||
| A 1164710915 | BREATHER PIPE | |
| Repalced by: A 1164713615 | ||
| 112 | A 1164713615 | BREATHER PIPE |
| 119 | A 1074710281 | BOOT |
| 126 | A 1234700225 | BREATHER |
| 133 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 133 | N 000000000665 | CLAMP |
| 140 | A 1074710522 | REINFORCEMENT |
| FUEL TANK TO CONSOLE | ||
| 147 | A 1089900340 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 154 | N 000934008013 | NUT |
| FUEL TANK TO CONSOLE | ||
| 161 | A 0004716130 | FILLER CAP |
| MAKE HUF | ||
| 161 | A 2014710130 | FILLER CAP |
| MAKE HUF | ||
| A 1234710230 | FILLER CAP | |
| WITH LOCK UNDEFINED | ||
| 161 | A 1244700005 | FILLER CAP |
| 175 | A 1104710280 | GASKET |
| 175 | A 1154710079 | SEAL RING |
| 182 | A 0010917101 | FUEL PUMP |
| A 0020910901 | FUEL PUMP | |
| Repalced by: A 0020911301 | ||
| A 0020911301 | FUEL PUMP | |
| Repalced by: A 0020919701 | ||
| 189 | A 0020919701 | FUEL PUMP |
| 196 | A 1230910082 | INSULATION |
| ABOVE FUEL PUMP | ||
| 196 | A 1230910182 | INSULATION |
| FOR REPAIR PURPOSES ONLY | ||
| 197 | A 0000900110 | VALVE |
| 198 | N 007603012405 | SEAL RING |
| 200 | A 1239900053 | NUT |
| FUEL LINE TO FEED PUMP | ||
| 201 | N 007603012405 | SEAL RING |
| 203 | A 0000927601 | FILTER |
| 210 | A 0024770301 | FUEL FILTER |
| Repalced by: A 0024771901 | ||
| 210 | A 0024771901 | FUEL FILTER |
| Repalced by: A 0024774501 | ||
| 210 | A 0024774501 | FUEL FILTER |
| 217 | N 007603014100 | SEAL RING |
| 224 | A 1074700279 | INTERMEDIATE PIECE |
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| A 1164700481 | BRACKET | |
| Repalced by: A 1234700381 | ||
| 238 | A 1234700381 | BRACKET |
| FUEL PUMP AND FUEL FILTER | ||
| 244 | N 007985005165 | SCREW |
| 246 | N 912004005103 | LOCK WASHER |
| 248 | N 000934005008 | NUT |
| 252 | A 1149971882 | HOSE |
| 160 MM | ||
| 259 | A 0019976990 | LOOM TIE |
| 266 | A 1164702675 | FUEL HOSE |
| FROM FUEL PUMP TO FUEL FILTER | ||
| 273 | A 1234700675 | FUEL HOSE |
| FROM FUEL PUMP TO FUEL FILTER | ||
| 280 | A 1234702264 | LINE |
| FROM PUMP TO FILTER,ACCUMULATOR VALVE | ||
| 287 | N 007603010404 | SEAL RING |
| 294 | N 007603012405 | SEAL RING |
| 294 | N 007603012405 | SEAL RING |
| 301 | N 915036008202 | HOLLOW SCREW |
| 301 | N 915036008202 | HOLLOW SCREW |
| 308 | N 000917010005 | NUT |
| A 1164780040 | BRACKET | |
| Repalced by: A 1264780340 | ||
| 322 | A 1264780340 | BRACKET |
| 329 | A 1074760136 | BRACKET |
| 336 | A 1269880011 | BUFFER |
| 336 | A 1269880011 | BUFFER |
| 336 | A 1269880011 | BUFFER |
| 339 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 339 | A 1149970590 | LOOM TIE |
| 343 | N 912004005103 | LOCK WASHER |
| 350 | N 000934005008 | NUT |
| 357 | A 1234700481 | BRACKET |
| FUEL ACCUMULATOR | ||
| 364 | A 1234700681 | BRACKET |
| FUEL ACCUMULATOR | ||
| 371 | A 0004760121 | ACCUMULATOR |
| 379 | A 0004760821 | ACCUMULATOR |
| 379 | A 0004760421 | ACCUMULATOR |
| 386 | A 1169950301 | CLAMP |
| Repalced by: A 1239950001 | ||
| 386 | A 1239950001 | CLAMP |
| PRESSURE COMPENSATOR VALVE TO BRACKET | ||
| 395 | A 1164700193 | VALVE |
| 402 | N 007985005165 | SCREW |
| 405 | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 405 | N 000000001181 | SCREW |
| 409 | N 000934005008 | NUT |
| 416 | A 1074700216 | DAMPER CAGE |
| 416 | A 1074700216 | DAMPER CAGE |
| 416 | A 1074700716 | DAMPER CAGE |
| 416 | A 1074700716 | DAMPER CAGE |
| 416 | A 1074700716 | DAMPER CAGE |
| 423 | A 1164700216 | DAMPER CAGE |
| 423 | A 1264700116 | DAMPER CAGE |
| 430 | A 1124761226 | HOSE |
| 55 MM | ||
| 430 | A 1234763026 | HOSE |
| 50 MM | ||
| 433 | N 916002017100 | CLAMP |
| 433 | N 916033021100 | CLAMP |
| A 1074700775 | FUEL HOSE | |
| Repalced by: A 1149971882 | ||
| 439 | A 1149971882 | HOSE |
| 460 MM | ||
| 441 | A 1239976382 | HOSE |
| Repalced by: A 1079971482 | ||
| 441 | A 1079971482 | HOSE |
| (PROTECTIVE HOSE) | ||
| 443 | A 0019976990 | LOOM TIE |
| 446 | A 1164702775 | FUEL HOSE |
| FROM FUEL FILTER TO FUEL ACCUMULATOR | ||
| 453 | A 1079971482 | HOSE |
| 240 MM | ||
| 460 | A 1164705275 | FUEL HOSE |
| FROM FUEL ACCUMULATOR TO FEED LINE | ||
| 467 | A 1234702075 | FUEL HOSE |
| FROM FUEL FILTER TO FEED LINE | ||
| 474 | A 1074763726 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 360 MM | ||
| 474 | A 1074763726 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 340 MM | ||
| 481 | A 1239976382 | HOSE |
| Repalced by: A 1079971482 | ||
| 481 | A 1079971482 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 300 MM | ||
| 481 | A 1079971482 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 280 MM | ||
| 488 | A 1234702275 | FUEL HOSE |
| FROM ACCUMULATOR TO DAMPER CAGE & VALVE | ||
| 495 | N 916033011100 | CLAMP |
| ACCUMULATOR-TO-DAMPER-CAGE LEAK LINE | ||
| 502 | N 916033011100 | CLAMP |
| FROM ACCUMULATOR TO DAMPER CAGE & VALVE | ||
| 509 | N 007976006203 | SHEET METAL SCREW |
| A 1164700575 | FUEL HOSE | |
| Repalced by: A 1164703975 | ||
| 516 | A 1164701475 | FUEL HOSE |
| 523 | A 0019976990 | LOOM TIE |
| 523 | N 916033012100 | CLAMP |
| 530 | A 1164701575 | FUEL HOSE |
| 530 | A 1164701575 | FUEL HOSE |
| 535 | N 916002017100 | CLAMP |
| 535 | N 916002017100 | CLAMP |
| 537 | A 1234700875 | FUEL HOSE |
| 537 | A 1234700875 | FUEL HOSE |
| 544 | N 916033021100 | CLAMP |
| 544 | N 916033021100 | CLAMP |
| 551 | A 1164760036 | BRACKET |
| 554 | A 1149970190 | LOOM TIE |
| 558 | N 007976006203 | SHEET METAL SCREW |
| A 1074760036 | BRACKET | |
| Repalced by: A 1264760536 | ||
| 565 | A 1264760536 | BRACKET |
| Repalced by: A 1264760636 | ||
| 565 | A 1264760636 | BRACKET |
| 572 | A 1009970881 | GROMMET |
| 572 | A 1169971581 | GROMMET |
| 573 | N 007976006203 | SHEET METAL SCREW |
| 579 | N 006797004132 | TOOTHED WASHER |
| 579 | N 006797005132 | TOOTHED WASHER |
| 582 | N 000934004006 | NUT |
| 582 | N 000934005008 | NUT |
| 589 | A 1149971882 | HOSE |
| 100 MM FROM FUEL RETURN LINE TO FUEL TARK | ||
| 596 | A 0019976990 | LOOM TIE |
| 610 | A 1264780137 | PROTECTIVE COVER |
| 617 | N 007976006203 | SHEET METAL SCREW |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 624 | A 1164765101 | LINE |
| FEED | ||
| 624 | A 1164760901 | LINE |
| FEED | ||
| 624 | A 1164760001 | LINE |
| FEED | ||
| 624 | A 1164760301 | LINE |
| FEED | ||
| 628 | A 0019976990 | LOOM TIE |
| 652 | A 1074700265 | LINE |
| FEED | ||
| 652 | A 1164703464 | LINE |
| FEED | ||
| 652 | A 1164703264 | LINE |
| FEED | ||
| 652 | A 1164703164 | LINE |
| FEED | ||
| 659 | A 1809900066 | UNION SCREW |
| 673 | A 1164765201 | LINE |
| RETURN | ||
| 673 | A 1164760501 | LINE |
| RETURN | ||
| 673 | A 1164761001 | LINE |
| RETURN | ||
| 673 | A 1164760101 | LINE |
| RETURN | ||
| 673 | A 1164760601 | LINE |
| RETURN | ||
| 685 | A 0019976990 | LOOM TIE |
| 701 | A 1164703764 | LINE |
| Repalced by: A 1264705264 | ||
| 701 | A 1264705264 | LINE |
| RETURN | ||
| 701 | A 1164703864 | LINE |
| RETURN | ||
| 701 | A 1164703664 | LINE |
| RETURN | ||
| 701 | A 1164703564 | LINE |
| RETURN | ||
| 704 | A 1809900066 | UNION SCREW |
| 709 | A 1149971882 | HOSE |
| 250 MM FROM FEED LINE TO ENGINE | ||
| 712 | A 0019976990 | LOOM TIE |
| 712 | N 916033012100 | CLAMP |
| 712 | A 0019976990 | LOOM TIE |
| 715 | A 1154760084 | DAMPING STRIP |
| 18 MM | ||
| A 1104760184 | DAMPING STRIP | |
| Repalced by: A 0009877770 | ||
| A 0009877770 | RUBBER SECTION | |
| 715 | A 0009877770 | RUBBER SECTION |
| 20 MM | ||
| 721 | A 0039889178 | CLIP |
| FUEL LINE TO BRAKE BOOSTER | ||
| 735 | A 1164704975 | FUEL HOSE |
| FEED | ||
| 735 | A 1164705775 | FUEL HOSE |
| FEED | ||
| 742 | A 1164704875 | FUEL HOSE |
| RETURN | ||
| 742 | A 1164705075 | FUEL HOSE |
| RETURN | ||
| 745 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 745 | N 304017006034 | SCREW |
| 749 | A 1104760084 | DAMPING STRIP |
| 749 | A 1104760084 | DAMPING STRIP |
| 756 | A 1109950022 | CLAMP |
| 756 | A 1109950022 | CLAMP |
| 756 | A 1109950022 | CLAMP |
| 763 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 763 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 769 | N 007976005203 | SHEET METAL SCREW |
| 769 | N 007976005203 | SHEET METAL SCREW |
| 769 | N 007976006203 | SHEET METAL SCREW |
| 774 | A 1204200227 | SCREW |
| 777 | A 0009873841 | RUBBER RING |
| 781 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 781 | N 304032006008 | NUT |
| 818 | A 1099950022 | CLAMP |
| 818 | A 1099950022 | CLAMP |
| 822 | N 007976006203 | SHEET METAL SCREW |
| 832 | A 1164760284 | DAMPING STRIP |
| 832 | A 1164760284 | DAMPING STRIP |
| A 1263280181 | BUFFER | |
| 832 | A 1104760084 | DAMPING STRIP |
| SIDE MEMBER,TOP | ||
| 839 | A 1099950015 | CLAMP |
| 839 | A 1099950015 | CLAMP |
| 839 | A 1109950015 | CLAMP |
| SIDE MEMBER,TOP | ||
| 842 | N 007976006203 | SHEET METAL SCREW |
| 842 | N 007976005203 | SHEET METAL SCREW |
| 846 | A 1163280284 | SHIM |
| Repalced by: A 1163280184 | ||
| 846 | A 1163280184 | SHIM |
| 849 | A 1129950222 | CLAMP |
| 853 | A 1163200543 | BRACKET |
| 860 | A 0009873841 | RUBBER RING |
| 867 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 867 | N 304032006008 | NUT |
| 874 | A 1204200227 | SCREW |
| 881 | A 0009873841 | RUBBER RING |
| 888 | A 1124760184 | DAMPING STRIP |
| 895 | A 1809950022 | CLAMP |
| 902 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 902 | N 304032006008 | NUT |
