Transporto priemonė: 350 SEL; VIN numerio dalis: 116029

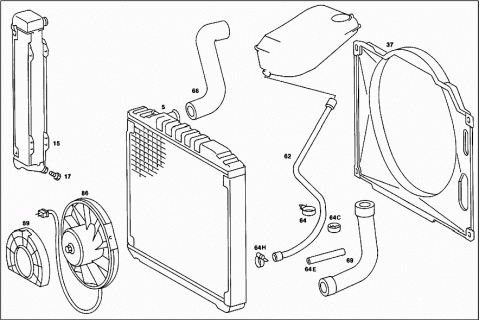

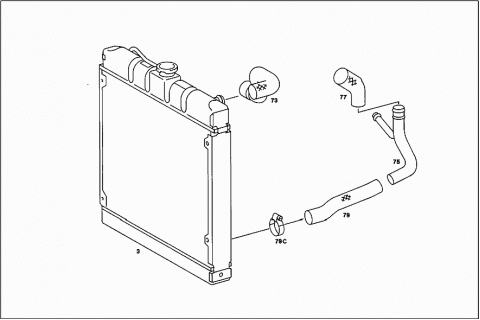

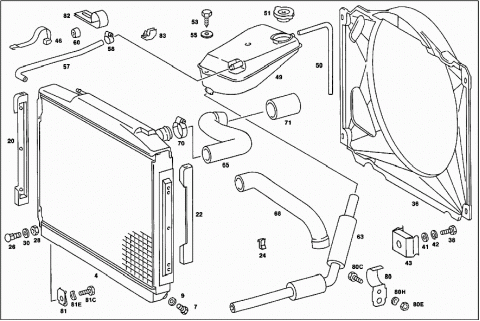

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 1165011001 | RADIATOR |
| 003 | A 1165011001 | RADIATOR |
| 003 | A 1165011901 | RADIATOR |
| 004 | A 1165011801 | RADIATOR |
| 004 | A 1165011501 | RADIATOR |
| 005 | A 1165011701 | RADIATOR |
| 005 | A 1165012601 | RADIATOR |
| 007 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 007 | N 007604014110 | SCREW PLUG |
| 009 | N 007603014405 | SEAL RING |
| 015 | A 1161801365 | OIL COOLER |
| 017 | A 0019971530 | SCREW PLUG |
| 020 | A 1075040012 | RUBBER MOUNTING |
| 022 | A 1075040112 | RUBBER MOUNTING |
| 024 | A 0039880678 | CLIP |
| 026 | N 000603006047 | SCREW |
| 028 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 028 | N 304032006008 | NUT |
| 030 | N 000125006421 | WASHER |
| 036 | A 1165050155 | FAN SHROUD |
| 036 | A 1165050355 | FAN SHROUD |
| 037 | A 1165050455 | FAN SHROUD |
| 038 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 038 | N 304017005002 | SCREW |
| 041 | A 0019901840 | WASHER |
| Repalced by: A 1269901440 | ||
| 041 | A 1269901440 | WASHER |
| 042 | N 912004005103 | LOCK WASHER |
| 043 | A 0005050172 | NUT |
| 046 | A 1075040186 | SPRING |
| A 1165000249 | TANK | |
| Repalced by: A 1265000349 | ||
| A 1165000249 | TANK | |
| Repalced by: A 1265000349 | ||
| 049 | A 1265000349 | TANK |
| Repalced by: A 1265001549 | ||
| 049 | A 1265001549 | TANK |
| A 0005010044 | COVER | |
| TO 1265001549 | ||
| A 0129970348 | SEAL RING | |
| TO 1265001549 | ||
| N 000471030002 | LOCK RING | |
| TO 1265001549 | ||
| 050 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 050 | A 0219977682 | HOSE |
| DE-AERATION | ||
| 051 | A 1235010215 | RADIATOR CAP |
| 053 | N 007976004205 | SHEET METAL SCREW |
| 053 | N 007976004207 | SHEET METAL SCREW |
| 055 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 055 | N 009021005205 | WASHER |
| 057 | N 900271008019 | HOSE |
| Repalced by: N 000000000734 | ||
| 057 | N 000000000734 | HOSE |
| 8 X 15 X 820 MM | ||
| 057 | N 000000000734 | HOSE |
| 8 X 15 X 820 MM | ||
| 058 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 058 | N 000000000665 | CLAMP |
| 060 | A 1164661282 | RUBBER RING |
| 062 | A 1165000975 | HOSE |
| A 1165001275 | HOSE | |
| 062 | A 1165001275 | HOSE |
| 063 | A 1165000175 | HOSE |
| 063 | A 1165000675 | HOSE |
| 063 | A 1165000275 | HOSE |
| 064 | A 0009955844 | CLAMP |
| 064C | A 1164660882 | RUBBER RING |
| 064E | A 1165012182 | HOSE |
| 064H | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 064H | N 000000000667 | CLAMP |
| 064H | N 000000000667 | CLAMP |
| 064H | N 916026023001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 064H | N 000000000667 | CLAMP |
| 065 | A 1165012582 | HOSE |
| TOP | ||
| 066 | A 1165012282 | HOSE |
| TOP | ||
| 068 | A 1165012482 | HOSE |
| BOTTOM | ||
| 069 | A 1165012382 | HOSE |
| BOTTOM | ||
| 070 | N 916026040000 | CLAMP |
| Repalced by: A 0069974390 | ||
| 070 | A 0069974390 | LOOM TIE |
| 070 | N 916026045000 | CLAMP |
| Repalced by: A 0069970690 | ||
| 070 | A 0069970690 | LOOM TIE |
| 071 | A 1165012982 | HOSE |
| 073 | A 1105012282 | HOSE |
| TOP | ||
| A 1105000272 | LINE | |
| Repalced by: A 1105000472 | ||
| 075 | A 1105000472 | LINE |
| 077 | A 1105011682 | HOSE |
| 079 | A 1105011982 | HOSE |
| 079 | A 1105012582 | HOSE |
| 079C | N 916026045000 | CLAMP |
| Repalced by: A 0069970690 | ||
| 079C | A 0069970690 | LOOM TIE |
| 079C | N 916026036000 | CLAMP |
| Repalced by: A 0069970590 | ||
| 079C | A 0069970590 | LOOM TIE |
| 080 | A 1239950320 | CLAMP |
| 080C | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 080C | N 304017006018 | SCREW |
| 080E | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 080E | N 304032006008 | NUT |
| 080H | N 000137006204 | SPRING WASHER |
| 081 | A 0019900091 | NUT RETAINER |
| 081C | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 081C | N 304017006018 | SCREW |
| 081E | N 000137006204 | SPRING WASHER |
| 082 | A 1088350291 | CLAMP |
| 083 | A 1265010220 | BRACKET |
| 086 | A 0005006093 | BLOWER |
| 089 | A 0005031001 | PROTECTIVE GRILL |
