Transporto priemonė: 350 SEL; VIN numerio dalis: 116029
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

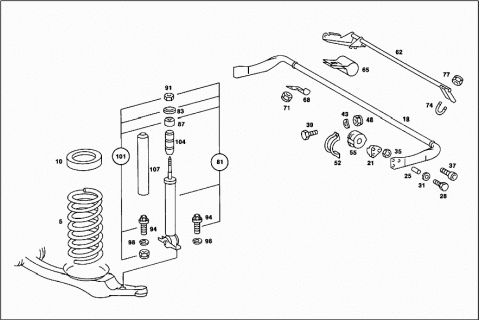

| 005 | A 1163213304 | FRONT SPRING |
| 005 | A 1163213204 | FRONT SPRING |
| 010 | A 1073210284 | SHIM |
| Repalced by: A 1233211384 | ||
| 010 | A 1233211384 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 1 (8 MM) | ||
| 010 | A 1233211384 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 1 (8 MM) | ||
| 010 | A 1073210384 | SHIM |
| Repalced by: A 1233211484 | ||
| 010 | A 1233211484 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 2 (13 MM) | ||
| 010 | A 1233211484 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 2 (13 MM) | ||
| 010 | A 1073210484 | SHIM |
| Repalced by: A 1233211584 | ||
| 010 | A 1233211584 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 3 (18 MM) | ||
| 010 | A 1233211584 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 3 (18 MM) | ||
| 010 | A 1073210584 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 4 (23 MM) | ||
| 010 | A 1233211684 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 4 (23 MM) | ||
| 018 | A 1163234265 | TORSION BAR |
| FRONT | ||
| 018 | A 1163235265 | TORSION BAR |
| FRONT | ||
| 021 | A 1163330343 | CLAMPING PIECE |
| LEFT | ||
| 021 | A 1163330443 | CLAMPING PIECE |
| RIGHT | ||
| 025 | N 007346008001 | CLAMPING SLEEVE |
| Repalced by: N 000000000999 | ||
| 025 | N 000000000999 | SCREW |
| 028 | N 000933006123 | SCREW |
| 031 | N 000125006421 | WASHER |
| 035 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 035 | N 913002006009 | NUT |
| 037 | N 000912010086 | SCREW |
| Repalced by: N 000912010218 | ||
| 037 | N 000912010218 | SCREW |
| 039 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 039 | N 304017008021 | SCREW |
| TORSION BAR TO FRAME | ||
| 043 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 043 | N 000137008212 | SPRING WASHER |
| TORSION BAR TO FRAME | ||
| 048 | N 913002008004 | NUT |
| TORSION BAR TO FRAME | ||
| 048 | N 913002008004 | NUT |
| TORSION BAR TO FRAME | ||
| 052 | A 1163230640 | BRACKET |
| TORSION BAR TO FRAME | ||
| 055 | A 1163232685 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 055 | A 1163233085 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 055 | A 1163233685 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 055 | A 1163233585 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 062 | A 1163200327 | LEVER |
| 062 | A 1163200527 | LEVER |
| 065 | A 1163270084 | SHIM |
| LEVER TO TORSION BAR | ||
| 068 | A 1169950320 | CLAMP |
| LEVER TO TORSION BAR | ||
| 071 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 071 | N 913002006009 | NUT |
| LEVER TO TORSION BAR | ||
| 074 | A 1163270128 | U-BOLT |
| LEVER TO TORSION BAR | ||
| 077 | N 913002005005 | NUT |
| LEVER TO TORSION BAR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

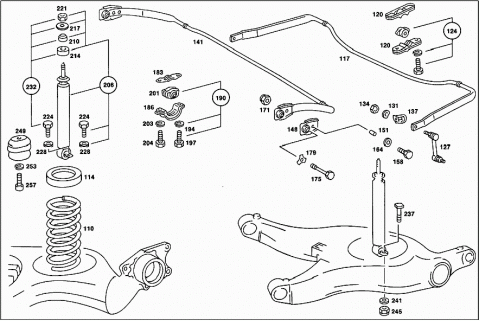

| FRONT SHOCK ABSORBERS | ||
| A 1163232300 | SHOCK ABSORBER | |
| Repalced by: A 1163200030 | ||
| 081 | A 1163200030 | SHOCK ABSORBER |
| FRONT | ||
| 083 | A 1153230767 | RETAINER |
| Repalced by: A 1233230367 | ||
| 083 | A 1233230367 | RETAINER |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| 087 | A 1803260168 | RUBBER BUFFER |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| 091 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 091 | N 308673010000 | NUT |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| 094 | A 1239900422 | SCREW |
| SHOCK ABSORBER TO LOWER CONTROL ARM | ||
| 098 | N 912006008000 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER CONTROL ARM | ||
| 101 | A 1163200056 | REPAIR KIT |
| Repalced by: A 1169900099 | ||
| 101 | A 1169900099 | ATTACHMENT |
| SHOCK ABSORBER MOUNTING,FRONT | ||
| 104 | A 1153230644 | RUBBER BUFFER |
| 107 | A 1153230438 | DUST CAP |
| 110 | A 1163240804 | REAR SPRING |
| 114 | A 1153252244 | RUBBER BUFFER |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 1 (9,5 MM) | ||
| 114 | A 1153252344 | RUBBER BUFFER |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 2 (14 MM) | ||
| 114 | A 1153252444 | RUBBER BUFFER |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 3 (19 MM) | ||
| 117 | A 1163261565 | TORSION BAR |
| REAR | ||
| 120 | A 1073260826 | CLAMP |
| TORSION BAR TO FRAME | ||
| 124 | A 1075860432 | REPAIR KIT |
| TORSION BAR,REAR | ||
| A 1163260881 | RUBBER MOUNTING | |
| TORSION BAR TO FRAME | ||
| 127 | A 1153201589 | ROD |
| TORSION BAR TO REAR AXLE | ||
| 131 | N 000137010201 | SPRING WASHER |
| TORSION BAR TO REAR AXLE | ||
| 134 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 134 | N 304035010001 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 137 | A 1153260397 | PROTECTIVE PLATE |
| TORSION BAR TO REAR AXLE | ||
| 141 | A 1163202111 | TORSION BAR |
| REAR | ||
| 141 | A 1163202511 | TORSION BAR |
| REAR | ||
| A 1163200237 | SHACKLE | |
| Repalced by: A 1163200437 | ||
| 148 | A 1163200437 | SHACKLE |
| 151 | N 007346008001 | CLAMPING SLEEVE |
| Repalced by: N 000000000999 | ||
| 151 | N 000000000999 | SCREW |
| 151 | N 007346011005 | CLAMPING SLEEVE |
| 158 | N 000933006123 | SCREW |
| 158 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 158 | N 304017008034 | SCREW |
| 164 | N 000125006421 | WASHER |
| 164 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 164 | N 000125008443 | WASHER |
| 171 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 171 | N 913002006009 | NUT |
| 171 | N 913002008004 | NUT |
| 175 | A 1079900019 | SCREW |
| Repalced by: A 1079900119 | ||
| 175 | A 1079900119 | SCREW |
| TORSION BAR TO WHEEL CARRIER | ||
| 175 | A 1079900119 | SCREW |
| TORSION BAR TO WHEEL CARRIER | ||
| 179 | A 1163260376 | WASHER |
| TORSION BAR TO WHEEL CARRIER | ||
| 183 | A 1073260226 | CLAMP |
| TOP | ||
| 186 | A 1073260426 | CLAMP |
| BOTTOM | ||
| 190 | A 1075860132 | REPAIR KIT |
| TORSION BAR,REAR | ||
| A 1163260781 | RUBBER MOUNTING | |
| TORSION BAR TO FRAME | ||
| 194 | N 912004012100 | LOCK WASHER |
| TORSION BAR TO FRAME | ||
| 197 | N 308676012012 | SCREW |
| TORSION BAR TO FRAME | ||
| 201 | A 1163261381 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 203 | N 912004012100 | LOCK WASHER |
| TORSION BAR TO FRAME | ||
| 204 | N 308676012012 | SCREW |
| TORSION BAR TO FRAME | ||
| 206 | A 1263200031 | SHOCK ABSORBER |
| Repalced by: A 1263200931 | ||
| 206 | A 1263200931 | SHOCK ABSORBER |
| REAR | ||
| 210 | A 1153261668 | RUBBER BUFFER |
| SHOCK ABSORBER TO FRAME | ||
| 214 | A 1153261768 | RUBBER BUFFER |
| SHOCK ABSORBER TO FRAME | ||
| 217 | A 1153260176 | WASHER |
| Repalced by: A 2023260076 | ||
| 217 | A 2023260076 | WASHER |
| SHOCK ABSORBER TO FRAME | ||
| 221 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 221 | N 308673010000 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 224 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 224 | N 304017010019 | SCREW |
| SHOCK ABSORBER TO TRANSVERSE CONTROL ARM | ||
| 228 | N 000137010201 | SPRING WASHER |
| SHOCK ABSORBER TO TRANSVERSE CONTROL ARM | ||
| 232 | A 1153200056 | REPAIR KIT |
| Repalced by: A 1159900099 | ||
| 232 | A 1159900099 | ATTACHMENT |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 237 | A 1153520171 | SCREW |
| 241 | A 1073520676 | WASHER |
| 245 | N 913002010001 | NUT |
| 249 | A 1153200344 | RUBBER BUFFER |
| 253 | N 912004008102 | LOCK WASHER |
| STOP BUFFER TO FRAME | ||
| 257 | N 000912008009 | SCREW |
| Repalced by: N 000912008200 | ||
| 257 | N 000912008200 | SCREW |
| Repalced by: N 000912008219 | ||
| 257 | N 000912008219 | SCREW |
| STOP BUFFER TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

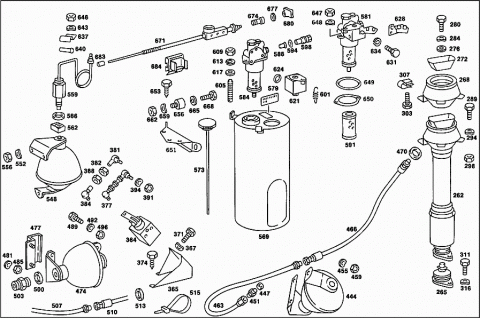

| HYDROPNEUMATIC SUSPENSION | ||
| 262 | A 1163202513 | HYDROPN. SPRING LEG |
| FRONT LEFT | ||
| 262 | A 1163203813 | HYDROPN. SPRING LEG |
| FOR SPORTY DRIVING | ||
| VORN LINKS / FRONT LEFT | ||
| 262 | A 1163202613 | HYDROPN. SPRING LEG |
| FRONT RIGHT | ||
| 262 | A 1163203913 | HYDROPN. SPRING LEG |
| FOR SPORTY DRIVING | ||
| VORN RECHTS / FRONT RIGHT | ||
| 265 | A 1163201028 | JOINT |
| 265 | A 1163200928 | JOINT |
| 268 | A 1163271881 | RUBBER MOUNTING |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 272 | A 1163271281 | REBOUND STOP |
| (REBOUND STOP) | ||
| 276 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 276 | N 007349010007 | WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 280 | N 000933010145 | SCREW |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 284 | N 000137010201 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 289 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 289 | N 304017006018 | SCREW |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 294 | N 000137006204 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 298 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 298 | N 304032006008 | NUT |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 303 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 303 | N 304017008016 | SCREW |
| 307 | A 1239900891 | NUT RETAINER |
| 311 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 311 | N 304017008023 | SCREW |
| HYDROPNEUMATIC SPRING LEG TO FRONT AXLE | ||
| 316 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 316 | N 000137008212 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRONT AXLE | ||

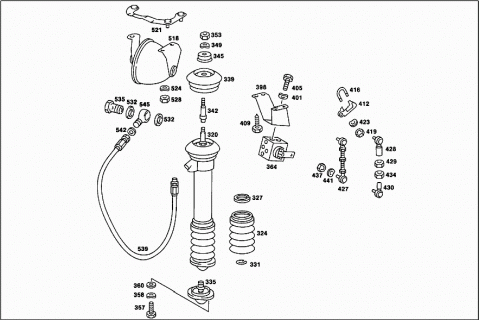

| 320 | A 1163203613 | HYDROPN. SPRING LEG |
| REAR | ||
| 320 | A 1163203713 | HYDROPN. SPRING LEG |
| FOR SPORTY DRIVING | ||
| HINTEN / REAR | ||
| 324 | A 1163280292 | BOOT |
| 327 | A 1163280008 | RING |
| TOP | ||
| 331 | A 1163280108 | RING |
| BOTTOM | ||
| 335 | A 1163200828 | JOINT |
| 335 | A 1163201128 | JOINT |
| 339 | A 1163271481 | RUBBER MOUNTING |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 342 | A 1163280774 | PIN |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 345 | A 1163271581 | RUBBER MOUNTING |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 349 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 349 | N 000137008212 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 353 | N 000934008013 | NUT |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 357 | N 000933010128 | SCREW |
| HYDROPNEUMATIC SPRING LEG TO REAR AXLE | ||
| 358 | N 000137010201 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO REAR AXLE | ||
| 360 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 360 | N 000125010532 | WASHER |
| HYDROPNEUMATIC SPRING LEG TO REAR AXLE | ||
| 364 | A 1163200358 | VALVE |
| Repalced by: A 1263200658 | ||
| 364 | A 1263200658 | VALVE |
| HEIGHT CONTROL VALVE | ||
| 365 | A 1163280540 | BRACKET |
| FRONT HEIGHT CONTROL VALVE | ||
| 365 | A 1163281040 | BRACKET |
| FRONT HEIGHT CONTROL VALVE | ||
| 367 | N 000137006204 | SPRING WASHER |
| BRACKET TO FRAME | ||
| 371 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 371 | N 304017006018 | SCREW |
| BRACKET TO FRAME | ||
| 374 | N 007976006203 | SHEET METAL SCREW |
| HEIGHT CONTROL VALVE TO BRACKET | ||
| 377 | A 1233201489 | ROD |
| 381 | A 1233280063 | JOINT |
| R.H. THREAD | ||
| 382 | N 000934006007 | NUT |
| R.H. THREAD | ||
| 384 | A 1233280163 | JOINT |
| L.H. THREAD | ||
| 388 | N 000934006012 | NUT |
| L.H. THREAD | ||
| 391 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 391 | N 304032006008 | NUT |
| 394 | N 000137006204 | SPRING WASHER |
| 398 | A 1163280440 | BRACKET |
| REAR HEIGHT CONTROL VALVE | ||
| 401 | N 000137006204 | SPRING WASHER |
| BRACKET TO FRAME | ||
| 405 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 405 | N 304017006018 | SCREW |
| BRACKET TO FRAME | ||
| 409 | N 007976006203 | SHEET METAL SCREW |
| HEIGHT CONTROL VALVE TO BRACKET | ||
| 412 | A 1163260369 | LEVER |
| 416 | A 1163280026 | MOUNTING BOW |
| LEVER TO TORSION BAR | ||
| 419 | N 000934005008 | NUT |
| LEVER TO TORSION BAR | ||
| 423 | N 000137005203 | SPRING WASHER |
| LEVER TO TORSION BAR | ||
| 427 | A 1233201489 | ROD |
| 428 | A 1233280063 | JOINT |
| R.H. THREAD | ||
| 429 | N 000934006007 | NUT |
| R.H. THREAD | ||
| 430 | A 1233280163 | JOINT |
| L.H. THREAD | ||
| 434 | N 000934006012 | NUT |
| L.H. THREAD | ||
| 437 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 437 | N 304032006008 | NUT |
| ROD TO TORSION BAR | ||
| 441 | N 000137006204 | SPRING WASHER |
| ROD TO TORSION BAR | ||
| 444 | A 1263200715 | AIR CELL |
| LEFT,FRONT AXLE,RED | ||
| 447 | N 007603014106 | SEAL RING |
| 451 | N 915013008002 | SCREW FITTING |
| 455 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 455 | N 000137008212 | SPRING WASHER |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 459 | N 000934008013 | NUT |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 463 | A 1163205772 | LINE |
| FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG | ||
| 466 | A 1269974082 | HOSE |
| FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG | ||
| 470 | N 007603014106 | SEAL RING |
| 474 | A 1263200715 | AIR CELL |
| FRONT AXLE, RIGHT; RED | ||
| 477 | A 1163200443 | BRACKET |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 481 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 481 | N 000137008212 | SPRING WASHER |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 485 | N 000934008013 | NUT |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 489 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 489 | N 304017008039 | SCREW |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 492 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 492 | N 000137008212 | SPRING WASHER |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 496 | N 000934008013 | NUT |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 500 | N 007603014106 | SEAL RING |
| 503 | N 915013008002 | SCREW FITTING |
| 507 | A 1163205672 | LINE |
| FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG | ||
| 510 | A 1269974082 | HOSE |
| FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG | ||
| 513 | N 007603014106 | SEAL RING |
| 515 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 515 | A 1149970590 | LOOM TIE |
| 518 | A 1263200515 | AIR CELL |
| Repalced by: A 1263201315 | ||
| 518 | A 1263201315 | AIR CELL |
| REAR AXLE;BLUE | ||
| 521 | A 1263200243 | BRACKET |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 524 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 524 | N 000137008212 | SPRING WASHER |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 528 | N 000934008013 | NUT |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 532 | N 007603014106 | SEAL RING |
| 535 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 535 | N 915036010108 | HOLLOW SCREW |
| 539 | A 1269974082 | HOSE |
| FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG | ||
| 542 | N 007603014106 | SEAL RING |
| 545 | N 915009008002 | BANJO UNION |
| 548 | A 1263200715 | AIR CELL |
| CENTRAL,RED | ||
| 552 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 552 | N 000137008212 | SPRING WASHER |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 556 | N 000934008013 | NUT |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 559 | A 0015452311 | SWITCH |
| CENTRAL ACCUMULATOR PRESSURE SWITCH | ||
| 562 | A 1163270365 | FITTING |
| 566 | N 007603014106 | SEAL RING |
| 569 | A 1163200214 | RESERVOIR |
| (OIL RESERVOIR) | ||
| 573 | A 0003280221 | COVER |
| OIL DIPSTICK | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.NOS.: | ||
| 649 | ||
| 579 | A 1165845921 | GUIDE SIGN |
| 581 | A 1263200158 | VALVE |
| (VALVE UNIT) | ||
| 584 | A 1163200558 | VALVE |
| Repalced by: A 1263200058 | ||
| 584 | A 1263200058 | VALVE |
| PRESSURE REGULATOR | ||
| 588 | A 1163270091 | FILTER |
| 591 | A 0021845501 | OIL FILTER |
| 594 | A 0069977645 | SEAL RING |
| 598 | A 1163270071 | SCREW |
| 601 | A 1169930510 | SPRING |
| TO 116 320 05 58 | ||
| 605 | A 1169970019 | THREADED PIN |
| TO 116 320 05 58 | ||
| 609 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 609 | N 304032006008 | NUT |
| TO 116 320 05 58 | ||
| 613 | N 912004006102 | LOCK WASHER |
| TO 116 320 05 58 | ||
| 617 | N 000440006162 | WASHER |
| TO 116 320 05 58 | ||
| 621 | A 1163200458 | VALVE |
| ADJUSTMENT SWITCH | ||
| A 1163270265 | FITTING | |
| 624 | A 0009970248 | SEAL RING |
| 628 | A 1163200343 | BRACKET |
| WIRE CABLE | ||
| 631 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 631 | N 000933006151 | SCREW |
| ADJUSTMENT SWITCH TO PRESSURE REGULATOR | ||
| 634 | N 912004006102 | LOCK WASHER |
| ADJUSTMENT SWITCH TO PRESSURE REGULATOR | ||
| 637 | A 1169950420 | CLAMP |
| WIRE CABLE TO VALVE UNIT BRACKET | ||
| 640 | A 1169970581 | GROMMET |
| WIRE CABLE TO VALVE UNIT BRACKET | ||
| 643 | N 000137006204 | SPRING WASHER |
| WIRE CABLE TO VALVE UNIT BRACKET | ||
| 646 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 646 | N 304032006008 | NUT |
| WIRE CABLE TO VALVE UNIT BRACKET | ||
| 647 | N 000934005008 | NUT |
| VALVE UNIT TO OIL RESERVOIR | ||
| 648 | N 000137005203 | SPRING WASHER |
| VALVE UNIT TO OIL RESERVOIR | ||
| 649 | A 0029979748 | SEAL RING |
| VALVE UNIT TO OIL RESERVOIR | ||
| 650 | A 1263270076 | WASHER |
| VALVE UNIT TO OIL RESERVOIR | ||
| 651 | A 1163270540 | BRACKET |
| OIL RESERVOIR TO WHEELHOUSE PANEL | ||
| 653 | N 007976006203 | SHEET METAL SCREW |
| BRACKET TO FRAME | ||
| 656 | A 1169880911 | BUFFER |
| OIL RESERVOIR TO CONSOLE | ||
| 659 | N 000137006204 | SPRING WASHER |
| OIL RESERVOIR TO CONSOLE | ||
| 662 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 662 | N 304032006008 | NUT |
| OIL RESERVOIR TO CONSOLE | ||
| 665 | N 000125006421 | WASHER |
| OIL RESERVOIR TO CONSOLE | ||
| 668 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 668 | N 304017006034 | SCREW |
| OIL RESERVOIR TO CONSOLE | ||
| 671 | A 1163200191 | WIRE CABLE |
| 671 | A 1163200291 | WIRE CABLE |
| 674 | A 0003270178 | THREADED UNION |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 677 | A 1169900051 | NUT |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 680 | A 1163200197 | KNOB |
| Repalced by: A 1263200097 | ||
| 680 | A 1263200097 | KNOB |
| 683 | A 1163290193 | PROTECTIVE CAP |
| WIRE CABLE TO VALVE UNIT LEVER | ||
| 684 | A 0029884978 | CLIP |
| WIRE CABLE TO BRAKE BOOSTER | ||
| 686 | A 1169979682 | HOSE |
| FROM PUMP TO OIL RESERVOIR | ||
| 689 | N 040621016200 | INSULATING HOSE |
| 690 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 690 | A 0059970190 | LOOM TIE |
| 692 | N 915006006003 | DOUBLE FITTING |
| 695 | N 007603014106 | SEAL RING |
| 698 | A 1163208972 | LINE |
| FROM OIL TANK TO OIL PUMP | ||
| 701 | A 1163201053 | LINE |
| (COOLING LINE) | ||
| 701 | A 1163201153 | LINE |
| (COOLING LINE) | ||
| 704 | A 1149970482 | HOSE |
| FROM OIL RESERVOIR TO COOLING LINE | ||
| 180 MM | ||
| 704 | A 1149970482 | HOSE |
| FROM COOLING LINE TO OIL PUMP PIPE | ||
| 300 MM | ||
| 707 | A 1079971482 | HOSE |
| (PROTECTIVE HOSE) | ||
| 240 MM | ||
| 708 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 708 | N 000000000665 | CLAMP |
| X XXXXXXXXXXXX | PART NAME MISSING | |

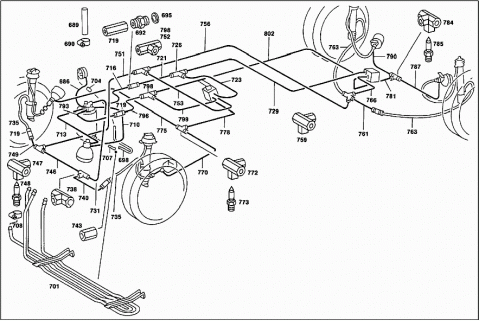

| DELIVERY LINES | ||
| 710 | A 1234206228 | LINE |
| FROM RESERVOIR PRESSURE SWITCH TO CENTRAL ACCUMULATOR | ||
| 713 | A 1234209328 | LINE |
| FROM ADJUSTMENT SWITCH TO CENTRAL ACCUMULATOR | ||
| 716 | A 1234207328 | LINE |
| FROM OIL RESERVOIR TO COUPLING PIECE | ||
| 719 | A 1214290134 | ADAPTER FITTING |
| 721 | A 1163209572 | LINE |
| FROM OIL RESERVOIR TO DISTRIBUTOR | ||
| 723 | A 1234209128 | LINE |
| FROM FRONT HEIGHT CONTROL VALVE TO DISTRIBUTOR | ||
| 726 | A 1169900272 | DISTRIBUTOR |
| 729 | A 1234208928 | LINE |
| FROM REAR HEIGHT CONTROL VALVE TO DISTRIBUTOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

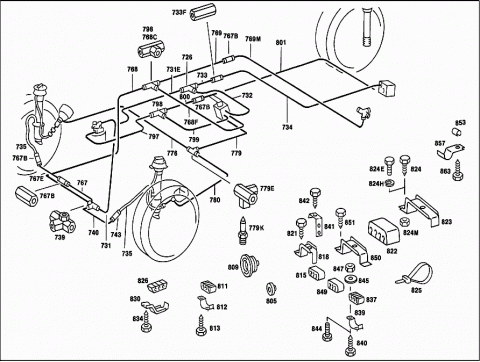

| RETURN LINE | ||
| 731 | A 1234209228 | LINE |
| FROM OIL RESERVOIR TO DISTRIBUTOR | ||
| 731E | A 1234209528 | LINE |
| FROM OIL RESERVOIR TO DISTRIBUTOR | ||
| 732 | A 1234209128 | LINE |
| FROM DISTRIBUTOR TO HEIGHT CONTROL VALVE IN ENGINE COMPARTMENT | ||
| 733 | A 1234206628 | LINE |
| FROM DISTRIBUTOR TO COUPLING IN THE RIGHT OF ENGINE COMPARTMENT | ||
| 733F | A 1214290134 | ADAPTER FITTING |
| 734 | A 1234209028 | LINE |
| FROM COUPLING PIECE TO LEFT SELFLEVELLING UNIT | ||
| 735 | A 1163201672 | LINE |
| 738 | A 1169900272 | DISTRIBUTOR |
| 739 | A 1169900372 | DISTRIBUTOR |
| 740 | A 1234209328 | LINE |
| FROM DISTRIBUTOR TO COUPLING | ||
| 743 | A 1214290134 | ADAPTER FITTING |
| 746 | A 1234209828 | LINE |
| FROM DISTRIBUTOR TO DISTRIBUTOR | ||
| A 1169900272 | DISTRIBUTOR | |
| Repalced by: A 1169900372 | ||
| 747 | A 1169900372 | DISTRIBUTOR |
| 748 | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| 749 | A 1234206728 | LINE |
| FROM DISTRIBUTOR TO COUPLING IN THE RIGHT OF ENGINE COMPARTMENT | ||
| 751 | A 1163209872 | LINE |
| Repalced by: A 1234209628 | ||
| 751 | A 1234209628 | LINE |
| FROM DISTRIBUTOR TO COUPLING | ||
| 752 | A 1169900272 | DISTRIBUTOR |
| A 1214290134 | ADAPTER FITTING | |
| A 1163202772 | LINE | |
| Repalced by: A 1233206728 | ||
| 753 | A 1234206828 | LINE |
| FROM DISTRIBUTOR TO HEIGHT CONTROL VALVE IN ENGINE COMPARTMENT | ||
| 756 | A 1234208428 | LINE |
| FROM COUPLING PIECE TO DISTRIBUTOR AT CROSS MEMBER | ||
| 759 | A 1169900372 | DISTRIBUTOR |
| FROM DISTRIBUTOR TO COUPLING | ||
| 761 | A 1234206528 | LINE |
| FROM DISTRIBUTOR TO COUPLING | ||
| 763 | A 1163208872 | LINE |
| FROM HYDROPNEUMATIC SPRING LEG TO DISTRIBUTOR | ||
| 766 | A 1234206528 | LINE |
| FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE | ||
| 767 | A 1234206628 | LINE |
| FROM LEFT DISTRIBUTOR TO RIGHT COUPLING | ||
| 767B | A 1214290134 | ADAPTER FITTING |
| 767E | A 1234205628 | LINE |
| FROM COUPLING PIECE TO COUPLING PIECE AT RIGHT WHEELHOUSE | ||
| 768 | A 1234209528 | LINE |
| QUADRUPLE DISTRIBUTOR TO TRIPLE DISTRIBUTOR AT LEFT WHEELHOUSE | ||
| 768C | A 1169900272 | DISTRIBUTOR |
| 768F | A 1234209228 | LINE |
| TRIPLE DISTRIBUTOR TO SELF-LEVELLING UNIT IN ENGINE COMPARTMENT | ||
| 769 | A 1234209828 | LINE |
| TRIPLE DISTRIBUTOR TO RIGHT COUPLING | ||
| 769M | A 1234208328 | LINE |
| FROM COUPLING PIECE TO DISTRIBUTOR AT CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FILLING LINES | ||
| 770 | A 1163200653 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT SPRING LOAD ACCUMULATOR | ||
| A 1169900272 | DISTRIBUTOR | |
| Repalced by: A 1169900372 | ||
| 772 | A 1169900372 | DISTRIBUTOR |
| 773 | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| 775 | A 1234209128 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT SPRING LOAD ACCUMULATOR | ||
| 776 | A 1163200753 | LINE |
| DISTRIBUTOR TO RIGHT FRONT HYDROPNEUMATIC ACCUMULATOR | ||
| 778 | A 1234206728 | LINE |
| FROM DISTRIBUTOR TO HEIGHT CONTROL VALVE IN ENGINE COMPARTMENT | ||
| 779 | A 1234206428 | LINE |
| FROM HEIGHT CONTROL VALVE IN ENGINE COMPARTMENT TO LEFT DISTRIBUTOR | ||
| A 1169900272 | DISTRIBUTOR | |
| Repalced by: A 1169900372 | ||
| 779E | A 1169900372 | DISTRIBUTOR |
| 779K | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| 780 | A 1234205728 | LINE |
| FROM DISTRIBUTOR TO LEFT SPRING LOAD ACCUMULATOR | ||
| 781 | A 1234205328 | LINE |
| FROM REAR HEIGHT CONTROL VALVE TO DISTRIBUTOR | ||
| A 1169900272 | DISTRIBUTOR | |
| Repalced by: A 1169900372 | ||
| 784 | A 1169900372 | DISTRIBUTOR |
| 785 | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| 787 | A 1163208672 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR SPRING LOAD ACCUMULATOR | ||
| 790 | A 1163208772 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR SPRING LOAD ACCUMULATOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONTROL LINES | ||
| 793 | A 1234207228 | LINE |
| FROM OIL RESERVOIR TO COUPLING PIECE | ||
| 796 | A 1234206628 | LINE |
| FROM COUPLING PIECE TO DISTRIBUTOR AT CROSS MEMBER | ||
| 797 | A 1234206528 | LINE |
| OIL RESERVOIR TO TRIPLE DISTRIBUTOR | ||
| 798 | A 1169900272 | DISTRIBUTOR |
| 799 | A 1234205028 | LINE |
| FROM TRIPLE DISTRIBUTOR TO SELFLEVELLING UNIT IN ENGINE COMPARTMENT | ||
| 180 MM | ||
| 799 | A 1234205028 | LINE |
| FROM TRIPLE DISTRIBUTOR TO SELFLEVELLING UNIT IN ENGINE COMPARTMENT | ||
| 180 MM | ||
| 800 | A 1234209728 | LINE |
| TRIPLE DISTRIBUTOR TO RIGHT COUPLING | ||
| 801 | A 1234208828 | LINE |
| FROM RIGHT COUPLING PIECE TO REAR SELF-LEVELLING UNIT | ||
| 802 | A 1234209028 | LINE |
| FROM TRIPLE DISTRIBUTOR TO REAR SELFLEVELLING UNIT | ||
| 805 | A 0019971481 | GROMMET |
| RIGHT WHEELHOUSE PANEL | ||
| 809 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 809 | A 0089971781 | GROMMET |
| LEFT WHEELHOUSE PANEL | ||
| 811 | A 1114760384 | DAMPING STRIP |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 812 | A 1109950022 | CLAMP |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 813 | N 007976006203 | SHEET METAL SCREW |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 815 | A 1163280184 | SHIM |
| AT CROSS MEMBER | ||
| 818 | A 1109950022 | CLAMP |
| AT CROSS MEMBER | ||
| 821 | N 007976006203 | SHEET METAL SCREW |
| AT CROSS MEMBER | ||
| 822 | A 1163280184 | SHIM |
| AT WHEELHOUSE PANEL | ||
| 822 | A 1163280184 | SHIM |
| AT WHEELHOUSE PANEL | ||
| 823 | A 1109950022 | CLAMP |
| AT WHEELHOUSE PANEL | ||
| 824 | N 007976006203 | SHEET METAL SCREW |
| AT WHEELHOUSE PANEL | ||
| 824E | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 824E | N 304017006018 | SCREW |
| AT WHEELHOUSE PANEL | ||
| 824H | N 912004006102 | LOCK WASHER |
| AT WHEELHOUSE PANEL | ||
| 824M | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 824M | N 304032006008 | NUT |
| AT WHEELHOUSE PANEL | ||
| 825 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 825 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 825 | A 0019974390 | LOOM TIE |
| 826 | A 1163280584 | SHIM |
| AT FIRE WALL | ||
| 830 | A 1809950022 | CLAMP |
| AT FIRE WALL | ||
| 834 | N 007976005203 | SHEET METAL SCREW |
| AT FIRE WALL | ||
| 837 | A 1164280085 | DAMPING STRIP |
| Repalced by: A 1163280684 | ||
| 837 | A 1163280684 | SHIM |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 837 | A 1163280684 | SHIM |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 837 | A 1163280684 | SHIM |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 837 | A 1163280684 | SHIM |
| MAIN FLOOR,ON THE RIGHT | ||
| 837 | A 1163280684 | SHIM |
| REAR SEAT BENCH FLOOR,REAR SEAT BENCH BACKREST,AND TANK | ||
| 839 | A 1109950022 | CLAMP |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 839 | A 1109950022 | CLAMP |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 839 | A 1109950022 | CLAMP |
| MAIN FLOOR,ON THE RIGHT | ||
| 839 | A 1109950022 | CLAMP |
| REAR SEAT BENCH FLOOR,REAR SEAT BENCH BACKREST,AND TANK | ||
| 840 | N 007976006203 | SHEET METAL SCREW |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 840 | N 007976006203 | SHEET METAL SCREW |
| AT SIDE MEMBER,BOTTOM RIGHT | ||
| 840 | N 007976006203 | SHEET METAL SCREW |
| MAIN FLOOR,ON THE RIGHT | ||
| 840 | N 007976006203 | SHEET METAL SCREW |
| REAR SEAT BENCH FLOOR,REAR SEAT BENCH BACKREST,AND TANK | ||
| 841 | A 2014280040 | BRACKET |
| CONNECTOR AT SIDE MEMBER | ||
| 842 | N 007976006203 | SHEET METAL SCREW |
| CONNECTOR AT SIDE MEMBER | ||
| 844 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 844 | N 304017006016 | SCREW |
| MAIN FLOOR,ON THE RIGHT | ||
| 845 | A 0009873841 | RUBBER RING |
| MAIN FLOOR,ON THE RIGHT | ||
| 847 | N 000934006007 | NUT |
| MAIN FLOOR,ON THE RIGHT | ||
| 849 | A 1163280684 | SHIM |
| 850 | A 1099950022 | CLAMP |
| 851 | N 007976006203 | SHEET METAL SCREW |
| 853 | A 1263280181 | BUFFER |
| AT REAR CROSS MEMBER | ||
| 857 | A 1089950520 | CLAMP |
| AT REAR CROSS MEMBER | ||
| 863 | N 007976006203 | SHEET METAL SCREW |
| AT REAR CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RUBBER BUFFER USED FOR EMERGENCY RUNNING | ||
| A 1263270030 | RUBBER BUFFER | |
| FRONT | ||
| A 1163200145 | STRAP | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 000934008013 | NUT | |
| A 1163280039 | RUBBER BUFFER | |
| REAR LEFT | ||
| A 1163280139 | RUBBER BUFFER | |
| REAR RIGHT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
