Transporto priemonė: 350 SEL; VIN numerio dalis: 116029

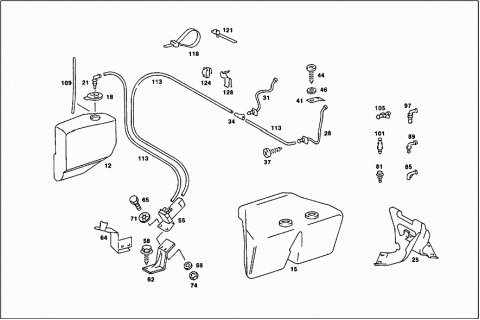

Grupė: 86 WINDSHIELD WASHER - 001 PANE WASHER,EMERGENCY EQUIPMENT
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 91 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 92 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 92E | ||
| A 0008650850 | FIRST AID BOX | |
| Repalced by: A 0008600250 | ||
| A 0008600250 | FIRST AID BAG | |
| 012 | A 1168690020 | RESERVOIR |
| 015 | A 1168690320 | RESERVOIR |
| A 1168690420 | RESERVOIR | |
| 018 | A 0008691119 | FILLER CAP |
| 018 | A 0008691119 | FILLER CAP |
| A 1238690072 | FILLER CAP | |
| Repalced by: A 1248690072 | ||
| A 1248690072 | FILLER CAP | |
| Repalced by: A 1248690172 | ||
| A 1248690172 | FILLER CAP | |
| Repalced by: A 2028609369 | ||
| A 2028609369 | FASTENER | |
| 021 | A 0008690224 | CONNECTOR |
| 025 | A 1168690314 | HOLDER |
| N 007976006303 | SHEET METAL SCREW | |
| A 1168600147 | NOZZLE | |
| Repalced by: A 1168600347 | ||
| 028 | A 1168600347 | NOZZLE |
| LEFT | ||
| 031 | A 1168600247 | NOZZLE |
| RIGHT | ||
| 034 | A 1158690024 | CONNECTOR |
| PANE WASHER | ||
| 034 | A 1158690024 | CONNECTOR |
| HEADLAMP WIPER/WASHER | ||
| 037 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 037 | N 000000002062 | SCREW |
| 041 | A 1168690114 | HOLDER |
| 044 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 044 | N 000000000453 | SHEET METAL SCREW |
| 044 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 044 | N 000000002062 | SCREW |
| 046 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 046 | N 000125004319 | WASHER |
| 055 | A 1158690221 | PUMP |
| Repalced by: A 0008693021 | ||
| 055 | A 0008693021 | PUMP |
| PANE WASHER | ||
| 055 | A 0008693021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 058 | N 914031004201 | COMBINATION BOLT |
| 062 | A 1168690214 | HOLDER |
| 062 | A 1168690214 | HOLDER |
| A 1168690614 | HOLDER | |
| Repalced by: A 1168691014 | ||
| 064 | A 1168691014 | HOLDER |
| A 1168690714 | HOLDER | |
| N 914031004201 | COMBINATION BOLT | |
| BRACKET TO LEFT FRONT SIDE MEMBER | ||
| 065 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 065 | N 304017005002 | SCREW |
| PUMP TO BRACKET | ||
| N 000933005059 | SCREW | |
| Repalced by: N 304017005007 | ||
| N 304017005007 | SCREW | |
| PUMP TO BRACKET | ||
| 068 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 068 | N 009021005205 | WASHER |
| PUMP TO BRACKET | ||
| 068 | N 009021005205 | WASHER |
| PUMP TO BRACKET | ||
| 071 | N 000137005203 | SPRING WASHER |
| PUMP TO BRACKET | ||
| 071 | N 000137005203 | SPRING WASHER |
| PUMP TO BRACKET | ||
| 074 | N 000934005008 | NUT |
| PUMP TO BRACKET | ||
| 074 | N 000934005008 | NUT |
| PUMP TO BRACKET | ||
| A 1158690147 | NOZZLE | |
| Repalced by: A 1078690247 | ||
| 081 | A 1078690247 | NOZZLE |
| Repalced by: A 1078600047 | ||
| 081 | A 1078600047 | NOZZLE |
| Repalced by: A 1078600147 | ||
| 081 | A 1078600147 | NOZZLE |
| HEADLAMP WIPER/WASHER | ||
| 085 | A 1138690024 | CONNECTOR |
| 089 | A 0008690324 | CONNECTOR |
| 089 | A 1168690024 | CONNECTOR |
| 097 | A 0008690224 | CONNECTOR |
| 101 | A 1078690119 | VALVE |
| 105 | A 1078690024 | CONNECTOR |
| BETWEEN NOZZLES AND CHECK VALVE | ||
| 105 | A 1078690024 | CONNECTOR |
| BETWEEN CHECK VALVE AND PUMP | ||
| 109 | A 0029975982 | HOSE |
| 109 | A 0029975982 | HOSE |
| 109 | A 0029975982 | HOSE |
| 109 | A 0029975982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 113 | A 0109978982 | HOSE |
| 118 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 118 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 121 | A 1149970190 | LOOM TIE |
| 124 | A 0009881878 | CLIP |
| 128 | A 0029887178 | CLIP |
