Transporto priemonė: 350 SE; VIN numerio dalis: 116028

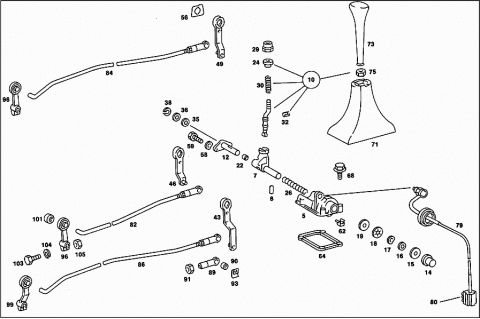

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1152673405 | BEARING | |
| Repalced by: A 1152673605 | ||
| 005 | A 1152673605 | BEARING |
| 007 | A 1152607282 | SHIFTING TUBE |
| 008 | A 1159910301 | PIN |
| 010 | A 1232602239 | SHIFT LEVER |
| RANGE OF DELIVERY | ||
| 012 | A 1152600376 | GUIDE |
| 014 | A 1152670750 | BUSHING |
| 015 | A 1232670252 | SPACER WASHER |
| 016 | A 1159902640 | WASHER |
| 017 | N 900055018001 | SPRING WASHER |
| 018 | A 1239930626 | DISC SPRING |
| 019 | A 1232670252 | SPACER WASHER |
| 022 | A 1152672250 | BUSHING |
| 024 | A 1152680550 | BUSHING |
| 026 | A 1159939303 | SPRING |
| 029 | A 1152670114 | CAP |
| 030 | A 1159939902 | SPRING |
| 032 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 032 | N 001481005017 | CLAMPING SLEEVE |
| 035 | A 1119971240 | SEAL RING |
| 036 | A 1869906940 | WASHER |
| 038 | A 1862680273 | LOCK |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| A 1152601939 | SHIFT LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152603839 | SHIFT LEVER | |
| Repalced by: A 1152604139 | ||
| 043 | A 1152604139 | SHIFT LEVER |
| REVERSE SPEED | ||
| A 1152601739 | SHIFT LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152603639 | SHIFT LEVER | |
| Repalced by: A 1152604339 | ||
| 046 | A 1152604339 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| A 1152601839 | SHIFT LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152603739 | SHIFT LEVER | |
| Repalced by: A 1152604239 | ||
| 049 | A 1152604239 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 056 | A 1152670676 | WASHER |
| 058 | N 000137006204 | SPRING WASHER |
| 059 | N 000933006130 | SCREW |
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| 062 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 062 | A 0019906791 | NUT RETAINER |
| 064 | A 1152670380 | GASKET |
| 068 | N 914130006100 | SCREW |
| 071 | A 1232670097 | BOOT |
| 073 | A 1262670410 | HANDLE |
| 075 | N 070616010003 | NUT |
| 079 | A 0005452406 | SWITCH |
| 080 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 080 | A 0065457828 | PLUG HOUSING |
| 082 | A 1162600333 | SHIFTING ROD |
| 082 | A 1162604433 | SHIFTING ROD |
| 084 | A 1162600433 | SHIFTING ROD |
| 084 | A 1162604533 | SHIFTING ROD |
| 086 | A 1162600533 | SHIFTING ROD |
| 086 | A 1162604633 | SHIFTING ROD |
| 089 | A 1152600353 | END PIECE |
| 090 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 090 | A 2109920010 | BUSHING |
| 091 | N 070616010004 | NUT |
| 093 | A 0009942960 | LOCK |
| 096 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 096 | A 1152682530 | SHIFT LEVER |
| 096 | A 1232605237 | LEVER |
| 099 | A 1232602437 | LEVER |
| Repalced by: A 1232670030 | ||
| 099 | A 1232670030 | LEVER |
| 099 | A 1232605437 | LEVER |
| 101 | A 0009920510 | BUSHING |
| 103 | N 000933006127 | SCREW |
| 103 | N 914126006004 | SCREW |
| 104 | N 912004006102 | LOCK WASHER |
| N 000125006421 | WASHER | |
| 105 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 105 | N 304032006008 | NUT |
| A 1152671905 | BEARING | |
| Repalced by: A 1152673505 | ||
| 120 | A 1152673505 | BEARING |
| 123 | A 1152600538 | SHAFT |
| 125 | A 1159920310 | BUSHING |
| 127 | A 1152671250 | BUSHING |
| 130 | A 1152671250 | BUSHING |
| 132 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 132 | A 0079942041 | LOCK |
| 134 | A 1152670052 | SPACER WASHER |
| 137 | A 1232670410 | HANDLE |
| 139 | N 070616010003 | NUT |
| A 1152601253 | END PIECE | |
| Repalced by: A 1262670123 | ||
| A 1152670323 | YOKE | |
| Repalced by: A 1262670123 | ||
| 142 | A 1262670123 | YOKE |
| 144 | A 1269930120 | SPRING |
| 146 | A 1152670950 | BUSHING |
| 148 | A 1152670174 | PIN |
| 150 | N 912002006000 | LOCK |
| 152 | A 1152670376 | WASHER |
| 155 | A 1152670380 | GASKET |
| BEARING BRACKET TO TUNNEL | ||
| 157 | N 914130006100 | SCREW |
| BEARING BRACKET TO TUNNEL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| 159 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 159 | A 0019906791 | NUT RETAINER |
| BEARING BRACKET TO TUNNEL | ||
| 161 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 161 | N 009021006208 | WASHER |
| BEARING BRACKET TO TUNNEL | ||
| 165 | A 0002600972 | SHIFT CASE |
| A 0005444993 | LAMP SOCKET | |
| GEAR INDICATOR | ||
| 167 | A 0005445493 | LAMP SOCKET |
| A 0005445593 | COVER | |
| 168 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 168 | A 1265401081 | PLUG SOCKET |
| N 072601012110 | BULB | |
| 169 | A 0009881878 | CLIP |
| 170 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 170 | N 304017006018 | SCREW |
| 171 | N 000137006204 | SPRING WASHER |
| 174 | A 1232670197 | BOOT |
| 177 | A 1152670597 | BOOT |
| 180 | A 1162600633 | SHIFTING ROD |
| 180 | A 1162600733 | SHIFTING ROD |
| 180 | A 1162603533 | SHIFTING ROD |
| Repalced by: A 1142602333 | ||
| 180 | A 1142602333 | SHIFTING ROD |
| 182 | A 1132670183 | SEAL |
| 184 | A 1132670059 | GUIDE |
| 186 | N 007341004105 | RIVET |
| 188 | N 070616010004 | NUT |
| 190 | A 0009942960 | LOCK |
| 192 | A 1159920310 | BUSHING |
