Transporto priemonė: 380 SEL; VIN numerio dalis: 126033
Grupė: 30 CONTROL

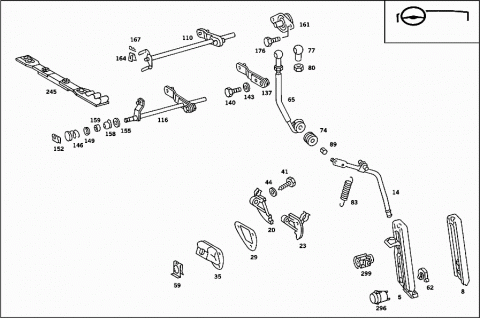

| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1263000504 | ACCELERATOR PEDAL |
| 008 | A 1233010082 | PAD |
| 014 | A 1263001125 | LEVER |
| ACCELERATOR PEDAL | ||
| 014 | A 1263001025 | LEVER |
| ACCELERATOR PEDAL | ||
| 017 | A 1263001325 | LEVER |
| ACCELERATOR PEDAL | ||
| 020 | A 1263010018 | BEARING |
| ACCELERATOR PEDAL | ||
| 023 | A 1263010118 | BEARING |
| BEARING TO FIRE WALL | ||
| 026 | A 1233010118 | BEARING |
| BEARING TO FIRE WALL | ||
| 029 | A 1263010084 | SHIM |
| BEARING TO FIRE WALL | ||
| 032 | A 1263010184 | SHIM |
| BEARING TO FIRE WALL | ||
| 035 | A 1263010297 | BOOT |
| BEARING TO FIRE WALL | ||
| 038 | A 1163010297 | BOOT |
| BEARING TO FIRE WALL | ||
| 041 | N 007976006207 | SHEET METAL SCREW |
| BEARING TO FIRE WALL | ||
| 041 | N 007976006207 | SHEET METAL SCREW |
| BEARING TO FIRE WALL | ||
| 044 | N 000125006421 | WASHER |
| BEARING TO FIRE WALL | ||
| 044 | N 000125006421 | WASHER |
| BEARING TO FIRE WALL | ||
| 047 | N 914031004300 | COMBINATION BOLT |
| Repalced by: N 000000000548 | ||
| 047 | N 000000000548 | SCREW |
| 050 | A 1263010080 | GASKET |
| BEARING TO FIRE WALL | ||
| 053 | A 1233010051 | SPACER RING |
| 056 | A 1263010540 | BRACKET |
| 059 | A 0019944945 | LOCK |
| Repalced by: A 0019946045 | ||
| 059 | A 0019946045 | LOCK |
| Repalced by: A 0029945545 | ||
| 059 | A 0029945545 | LOCK |
| BEARING TO FIRE WALL | ||
| 059 | A 0029945545 | LOCK |
| BEARING TO FIRE WALL | ||
| 062 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 062 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 065 | A 1263000415 | ROD |
| 074 | A 1163010185 | RUBBER BUFFER |
| Repalced by: A 1263010285 | ||
| 074 | A 1263010285 | RUBBER BUFFER |
| Repalced by: A 1263010585 | ||
| 074 | A 1263010585 | RUBBER BUFFER |
| 077 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 077 | A 0009918922 | BALL SOCKET |
| 080 | N 000934005008 | NUT |
| 083 | A 1269932010 | SPRING |
| Repalced by: A 1269932210 | ||
| 083 | A 1269932210 | SPRING |
| 086 | A 1269932510 | SPRING |
| Repalced by: A 1269932810 | ||
| 086 | A 1269932810 | SPRING |
| 089 | A 1163010050 | BUSHING |
| BALL SOCKET TO ROD | ||
| 092 | A 1263000028 | LEVER |
| 095 | A 1263000036 | BEARING BRACKET |
| 098 | N 007976004205 | SHEET METAL SCREW |
| 101 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 101 | N 000125004319 | WASHER |
| 104 | N 006799007007 | LOCK PLATE |
| LINK TO LEVER | ||
| 107 | N 000988008006 | FITTED WASHER |
| LINK TO LEVER | ||
| 110 | A 1263001920 | SHAFT |
| 116 | A 1263002120 | SHAFT |
| 122 | A 1263002520 | SHAFT |
| 125 | A 1263002720 | SHAFT |
| 131 | A 1263001725 | LEVER |
| 137 | A 1263001225 | LEVER |
| 140 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 140 | N 304017006018 | SCREW |
| 143 | N 000125006421 | WASHER |
| 146 | A 1269930005 | SPRING |
| CONTROL SHAFT TO ENGINE | ||
| 149 | A 1082410112 | RETAINER |
| CONTROL SHAFT TO ENGINE | ||
| 152 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 152 | N 000000002965 | SCREW |
| CONTROL SHAFT TO ENGINE | ||
| 155 | N 000433008406 | WASHER |
| CONTROL SHAFT TO ENGINE | ||
| 158 | A 1163000085 | JOINT BALL |
| Repalced by: A 1263000085 | ||
| 158 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| 158 | A 1263010485 | RUBBER BUFFER |
| 159 | A 1163010150 | BUSHING |
| 161 | A 1263000540 | BRACKET |
| 164 | A 1233010140 | BRACKET |
| CONTROL SHAFT TO ENGINE | ||
| 167 | A 1233010273 | LOCK |
| CONTROL SHAFT TO ENGINE | ||
| 176 | N 914125006300 | SCREW |
| Repalced by: N 910106006000 | ||
| 176 | N 910106006000 | SCREW |
| BEARING TO FIRE WALL | ||
| 245 | A 0003000415 | ROD |
| 248 | A 1263000515 | ROD |
| 254 | A 1263000715 | ROD |
| Repalced by: A 1263000915 | ||
| 254 | A 1263000915 | ROD |
| 257 | N 000934005008 | NUT |
| 260 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 260 | A 0009918922 | BALL SOCKET |
| 263 | A 1233010285 | RUBBER BUFFER |
| TO 126 300 05 15 | ||
| 266 | A 1163010150 | BUSHING |
| TO 126 300 05 15 | ||
| 290 | A 1263000067 | SEAL WASHER |
| 293 | A 1232950183 | BOOT |
| 296 | A 1263010141 | STOP |
| 299 | A 0015456314 | SWITCH |
| KICK-DOWN SWITCH | ||
| 299 | A 0015457814 | SWITCH |
| KICK-DOWN SWITCH | ||
