Transporto priemonė: 380 SE; VIN numerio dalis: 126032

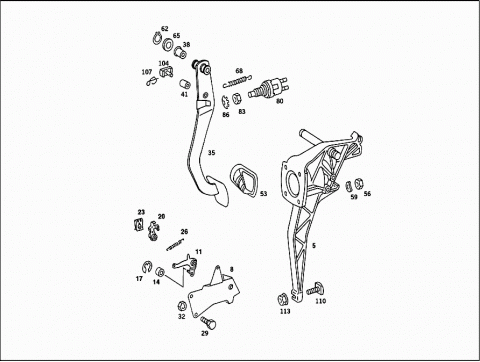

Grupė: 29 PEDALS - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1262901119 | BEARING BRACKET |
| Repalced by: A 1262901719 | ||
| 005 | A 1262901719 | BEARING BRACKET |
| Repalced by: A 1262902319 | ||
| 005 | A 1262902319 | BEARING BRACKET |
| 005 | A 1262902819 | BEARING BRACKET |
| 008 | A 1262902919 | BEARING BRACKET |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 011 | A 1262900227 | LEVER |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 014 | A 1242920035 | ROLLER |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 017 | N 006799003202 | LOCK PLATE |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 020 | A 1262900327 | LEVER |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 023 | N 912007006001 | CLIP |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 026 | A 1269934010 | SPRING |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 029 | N 000933006127 | SCREW |
| Repalced by: N 304017006019 | ||
| 029 | N 304017006019 | SCREW |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| M 6X25 | ||
| 029 | N 000933006207 | SCREW |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| M 6X14 | ||
| 032 | N 000934006007 | NUT |
| PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL | ||
| 035 | A 1262901318 | PEDAL |
| Repalced by: A 1262901718 | ||
| 035 | A 1262901718 | PEDAL |
| Repalced by: A 1262902018 | ||
| 035 | A 1262902018 | PEDAL |
| BRAKE PEDAL | ||
| 038 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 038 | A 1242920050 | BUSHING |
| 041 | A 1262920050 | BUSHING |
| 053 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 056 | A 2019900150 | NUT |
| Repalced by: N 000934008010 | ||
| 056 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 056 | N 304032008006 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 059 | N 000137008204 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 062 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 062 | A 0079942041 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 065 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 068 | A 1269930310 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 068 | A 1269933910 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 080 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| 080 | A 0005458709 | SWITCH |
| STOP LIGHT SWITCH | ||
| 083 | N 006797012250 | TOOTHED WASHER |
| STOP LIGHT SWITCH | ||
| 086 | A 0009909251 | NUT |
| STOP LIGHT SWITCH | ||
| 104 | A 1262920074 | PIN |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 107 | N 912011008000 | LOCK |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 110 | A 0009900233 | SCREW |
| Repalced by: A 0009904833 | ||
| 110 | A 0009904833 | SCREW |
| Repalced by: A 0009905233 | ||
| 110 | A 0009905233 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 113 | N 913017006000 | NUT |
| BEARING BRACKET TO FRAME | ||
