Transporto priemonė: 380 SE; VIN numerio dalis: 126032

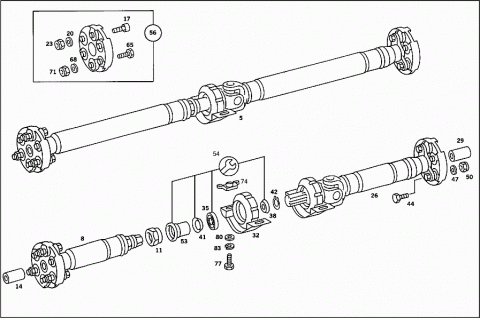

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1264104906 | PROPELLER SHAFT |
| Repalced by: A 1264106506 | ||
| 005 | A 1264106506 | PROPELLER SHAFT |
| 005 | A 1264105006 | PROPELLER SHAFT |
| Repalced by: A 1264106606 | ||
| 005 | A 1264106606 | PROPELLER SHAFT |
| 005 | A 1264108706 | PROPELLER SHAFT |
| 005 | A 1264108506 | PROPELLER SHAFT |
| 005 | A 1264102306 | PROPELLER SHAFT |
| Repalced by: A 1264104906 | ||
| 005 | A 1264104906 | PROPELLER SHAFT |
| 005 | A 1264102406 | PROPELLER SHAFT |
| Repalced by: A 1264105006 | ||
| 005 | A 1264105006 | PROPELLER SHAFT |
| 008 | A 1264100901 | PROPELLER SHAFT |
| Repalced by: A 1264103901 | ||
| 008 | A 1264103901 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1264102201 | PROPELLER SHAFT |
| Repalced by: A 1264104001 | ||
| 008 | A 1264104001 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1264105701 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1264105801 | PROPELLER SHAFT |
| FRONT | ||
| 011 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 011 | A 1104110172 | NUT |
| 014 | A 1234100232 | CENTERING BUSHING |
| 014 | A 2014100232 | CENTERING BUSHING |
| Repalced by: A 1244101032 | ||
| 014 | A 1244101032 | CENTERING BUSHING |
| 017 | A 1079900001 | SCREW |
| Repalced by: A 1409903201 | ||
| 017 | A 1409903201 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 020 | N 000125013008 | WASHER |
| 023 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 023 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 026 | A 1264102802 | PROPELLER SHAFT |
| Repalced by: A 1264103702 | ||
| 026 | A 1264103702 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1264102902 | PROPELLER SHAFT |
| Repalced by: A 1264103802 | ||
| 026 | A 1264103802 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1264105402 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1264105102 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1264101402 | PROPELLER SHAFT |
| Repalced by: A 1264102802 | ||
| 026 | A 1264102802 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1264100802 | PROPELLER SHAFT |
| Repalced by: A 1264102902 | ||
| 026 | A 1264102902 | PROPELLER SHAFT |
| REAR | ||
| 029 | A 1154100032 | CENTERING BUSHING |
| 32 MM X 47.5 MM | ||
| 029 | A 1154100032 | CENTERING BUSHING |
| 32 MM X 47.5 MM | ||
| 029 | A 1234100532 | CENTERING BUSHING |
| 32 MM X 53 MM | ||
| 029 | A 1244100332 | CENTERING BUSHING |
| Repalced by: A 1244100732 | ||
| 029 | A 1244100732 | CENTERING BUSHING |
| 032 | A 1264100181 | RUBBER BOOT BEARING |
| 032 | A 1244100281 | RUBBER BOOT BEARING |
| Repalced by: A 1244100781 | ||
| 032 | A 1244100781 | RUBBER BOOT BEARING |
| 035 | A 0039812325 | BALL BEARING |
| 038 | A 1074110296 | PROTECTIVE CAP |
| 038 | A 1074110296 | PROTECTIVE CAP |
| 041 | A 1234110096 | PROTECTIVE CAP |
| 042 | N 900055030200 | LOCK RING |
| 044 | A 1079900001 | SCREW |
| Repalced by: A 1409903201 | ||
| 044 | A 1409903201 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 52.5 MM | ||
| 044 | A 1409903201 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 52.5 MM | ||
| 044 | N 000960012199 | SCREW |
| 65 MM | ||
| 047 | N 000125013008 | WASHER |
| 050 | N 913002012002 | NUT |
| Repalced by: A 1269900151 | ||
| 050 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 050 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 053 | A 1154110697 | BOOT |
| Repalced by: A 2024110097 | ||
| 053 | A 2024110097 | BOOT |
| Repalced by: A 2024110497 | ||
| 053 | A 2024110497 | BOOT |
| 054 | A 1244100110 | INTERMEDIATE BEARING |
| REPAIR KIT | ||
| 056 | A 1075860041 | REPAIR KIT |
| Repalced by: A 1074100015 | ||
| 056 | A 1074100015 | REPAIR KIT |
| Repalced by: A 1074100115 | ||
| 056 | A 1074100115 | REPAIR KIT |
| Repalced by: A 1264100415 | ||
| 056 | A 1264100415 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 056 | A 1264100615 | FLEXIBLE JOINT DISC |
| PARTS KIT,REAR | ||
| 065 | A 1079900001 | SCREW |
| Repalced by: A 1409903201 | ||
| 065 | A 1409903201 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 065 | A 1409903201 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 52.5 MM | ||
| 065 | N 000960012199 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 65 MM | ||
| 068 | N 000125013008 | WASHER |
| 071 | N 913002012002 | NUT |
| Repalced by: A 1269900151 | ||
| 071 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 071 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 074 | A 1164130017 | THREADED UNION |
| INTERMEDIATE BEARING TO FRAME | ||
| 074 | A 2014130317 | THREADED UNION |
| INTERMEDIATE BEARING TO FRAME | ||
| 077 | N 000933008153 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 077 | N 000933008215 | SCREW |
| Repalced by: A 0069909301 | ||
| 077 | A 0069909301 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 080 | A 1109901240 | WASHER |
| Repalced by: A 1089900340 | ||
| 080 | A 1089900340 | WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 080 | A 1249900440 | WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 083 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
