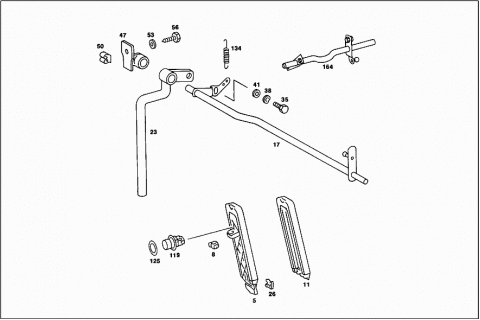

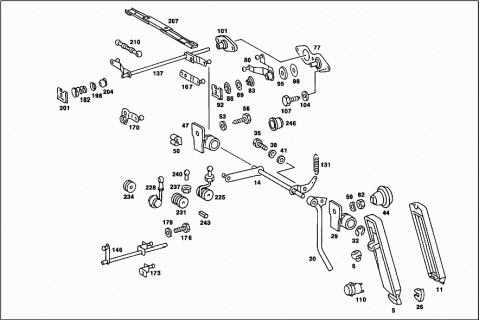

Transporto priemonė: 420 SL; VIN numerio dalis: 107047
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| 008 | A 1233010022 | JOINT |
| 011 | A 1233010082 | PAD |
| 014 | A 1073002520 | SHAFT |
| 014 | A 1073002820 | SHAFT |
| 017 | A 1073000820 | SHAFT |
| 017 | A 1073002920 | SHAFT |
| 020 | A 1073010201 | LEVER |
| 023 | A 1073010301 | LEVER |
| 026 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 026 | A 1249888678 | CLIP |
| 029 | A 1153010818 | BEARING |
| 032 | N 900055012402 | LOCK RING |
| 035 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 035 | N 304017008016 | SCREW |
| 038 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 038 | N 000137008212 | SPRING WASHER |
| 041 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 041 | N 000125008443 | WASHER |
| 044 | A 1079972581 | GROMMET |
| 047 | A 1153010818 | BEARING |
| 050 | A 0029886778 | CLIP |
| BEARING TO FIRE WALL | ||
| 053 | N 000125006421 | WASHER |
| BEARING TO FIRE WALL | ||
| Repalced by: N 000125006449 | ||
| 053 | N 000125006449 | WASHER |
| BEARING TO FIRE WALL | ||
| 056 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 056 | N 914031005208 | COMBINATION BOLT |
| BEARING TO FIRE WALL | ||
| 059 | N 000137005203 | SPRING WASHER |
| BEARING TO FIRE WALL | ||
| 062 | N 000934005008 | NUT |
| BEARING TO FIRE WALL | ||
| 077 | A 1073000036 | BEARING BRACKET |
| Repalced by: A 1073000236 | ||
| 077 | A 1073000236 | BEARING BRACKET |
| 080 | A 1073000725 | LEVER |
| 083 | A 1269930005 | SPRING |
| 086 | A 1082410112 | RETAINER |
| 089 | A 1233010176 | WASHER |
| 092 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 092 | N 000000002965 | SCREW |
| 095 | A 1263010376 | WASHER |
| 098 | A 1263010476 | WASHER |
| 101 | A 1073000040 | BRACKET |
| 104 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 104 | N 000433005304 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 107 | N 007976004211 | SHEET METAL SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 107 | N 007976004215 | SHEET METAL SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 110 | A 1263010141 | STOP |
| 119 | A 0025452214 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 125 | A 1159970640 | SEAL RING |
| 131 | A 1869931810 | SPRING |
| 134 | A 1169930610 | SPRING |
| 137 | A 1073003420 | SHAFT |
| 146 | A 1073003620 | SHAFT |
| 164 | A 1073003820 | SHAFT |
| 167 | A 1073000625 | LEVER |
| 170 | A 1073000825 | LEVER |
| 173 | A 1073000025 | LEVER |
| 176 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 176 | N 304017006018 | SCREW |
| 179 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 179 | N 000125006449 | WASHER |
| 182 | A 1079931201 | SPRING |
| CONTROL SHAFT TO FIRE WALL | ||
| 182 | A 1269930005 | SPRING |
| CONTROL SHAFT TO ENGINE | ||
| 198 | A 1093010051 | SPACER RING |
| CONTROL SHAFT TO FIRE WALL | ||
| 198 | A 1082410112 | RETAINER |
| CONTROL SHAFT TO ENGINE | ||
| 201 | N 912007008000 | CLIP |
| Repalced by: N 000000002965 | ||
| 201 | N 000000002965 | SCREW |
| CONTROL SHAFT TO ENGINE | ||
| 204 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| 204 | A 1263010485 | RUBBER BUFFER |
| CONTROL SHAFT TO ENGINE | ||
| A 1163010150 | BUSHING | |
| CONTROL SHAFT TO ENGINE | ||
| A 1163010150 | BUSHING | |
| CONTROL SHAFT TO ENGINE | ||
| 207 | A 0003000415 | ROD |
| CONTROL SHAFT TO ENGINE | ||
| 210 | A 1073001215 | ROD |
| CONTROL SHAFT TO ENGINE | ||
| 210 | A 1073001315 | ROD |
| 225 | A 1073001015 | ROD |
| 228 | A 1073001515 | ROD |
| 228 | A 1073001415 | ROD |
| 231 | A 1073010097 | DAMPING RING |
| 234 | A 1233010285 | RUBBER BUFFER |
| 237 | N 000934005008 | NUT |
| 240 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 240 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 240 | A 0009930461 | CONICAL CUP |
| 240 | A 0009930461 | CONICAL CUP |
| 240 | A 1153000086 | END PIECE |
| Repalced by: A 0009918822 | ||
| 240 | A 0009918822 | BALL SOCKET |
| 243 | A 1150720450 | BUSHING |
| 246 | A 1169870144 | EXPANSION PLUG |
