Transporto priemonė: 420 SL; VIN numerio dalis: 107047

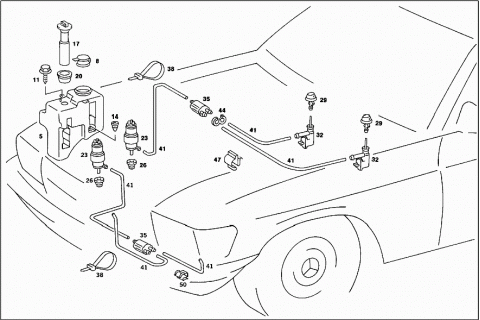

Grupė: 86 WINDSHIELD WASHER - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1078690620 | RESERVOIR |
| PANE WASHER | ||
| 008 | A 1248690072 | FILLER CAP |
| Repalced by: A 1248690172 | ||
| 008 | A 1248690172 | FILLER CAP |
| Repalced by: A 2028609369 | ||
| 008 | A 2028609369 | FASTENER |
| 011 | N 914031004206 | COMBINATION BOLT |
| RESERVOIR TO WHEELHOUSE | ||
| 014 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 014 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLE FOR HEADLAMP CLEANING DEVICE | ||
| 017 | A 1265401117 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 020 | A 1269974281 | GROMMET |
| Repalced by: A 1269974881 | ||
| 020 | A 1269974881 | GROMMET |
| 023 | A 1238690021 | PUMP |
| Repalced by: A 1248690221 | ||
| 023 | A 1248690221 | PUMP |
| Repalced by: A 1248690421 | ||
| 023 | A 1248690421 | PUMP |
| Repalced by: A 2028690021 | ||
| 023 | A 2028690021 | PUMP |
| 023 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER; AT WINDSHIELD WASHER RESERVOIR | ||
| 023 | A 0008693821 | PUMP |
| Repalced by: A 1248690021 | ||
| 023 | A 1248690021 | PUMP |
| Repalced by: A 1248690621 | ||
| 023 | A 1248690621 | PUMP |
| Repalced by: A 1248690521 | ||
| 023 | A 1248690521 | PUMP |
| Repalced by: A 2028690021 | ||
| 023 | A 2028690021 | PUMP |
| 023 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER; AT WINDSHIELD WASHER RESERVOIR | ||
| 023 | A 1248690121 | PUMP |
| Repalced by: A 1248690521 | ||
| 023 | A 1248690521 | PUMP |
| Repalced by: A 2028690021 | ||
| 023 | A 2028690021 | PUMP |
| 023 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER; AT WINDSHIELD WASHER RESERVOIR | ||
| 026 | A 1239973681 | GROMMET |
| PUMP TO RESERVOIR | ||
| 029 | A 1078600047 | NOZZLE |
| Repalced by: A 1078600147 | ||
| 029 | A 1078600147 | NOZZLE |
| 032 | A 1078690124 | CONNECTOR |
| Repalced by: A 1078690224 | ||
| 032 | A 1078690224 | CONNECTOR |
| Repalced by: A 1078690324 | ||
| 032 | A 1078690324 | CONNECTOR |
| HEATED | ||
| 035 | A 0008600062 | VALVE |
| Repalced by: A 0008600862 | ||
| 035 | A 0008600862 | CHECK VALVE |
| (CHECK VALVE),WINDSHIELD WASHER | ||
| 035 | A 0008600862 | CHECK VALVE |
| HOSE BETWEEN LEFT AND RIGHT NOZZLES | ||
| 038 | A 0019974190 | LOOM TIE |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH | ||
| 038 | A 0019974190 | LOOM TIE |
| HOSE TO CABLE HARNESS | ||
| 100 MM | ||
| 038 | A 0029970790 | LOOM TIE |
| Repalced by: A 0019974190 | ||
| 038 | A 0019974190 | LOOM TIE |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH | ||
| 041 | A 0109978982 | HOSE |
| DIA., | ||
| 8.2X4.6 MM | ||
| 041 | A 0109978982 | HOSE |
| FROM LEFT NOZZLE TO CHECK VALVE | ||
| 1300 MM | ||
| 041 | A 0109978982 | HOSE |
| FROM RIGHT NOZZLE TO CHECK VALVE | ||
| 550 MM | ||
| 041 | A 0109978982 | HOSE |
| FROM PUMP TO CHECK VALVE | ||
| 815 MM | ||
| 041 | A 0109978982 | HOSE |
| FROM NOZZLE TO CHECK VALVE | ||
| 600 MM | ||
| 041 | A 0109978982 | HOSE |
| FROM PUMP TO CHECK VALVE | ||
| 620 MM | ||
| 041 | A 0109978982 | HOSE |
| FROM PUMP TO CHECK VALVE | ||
| 1050 MM | ||
| 044 | A 0009950068 | CLAMP |
| AT HOSE TO LEFT AND RIGHT NOZZLES | ||
| 047 | A 0009883378 | CLIP |
| HOSE TO ENGINE HOOD | ||
| 050 | A 0009881878 | CLIP |
| HOSE TO BUMPER | ||
