Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036

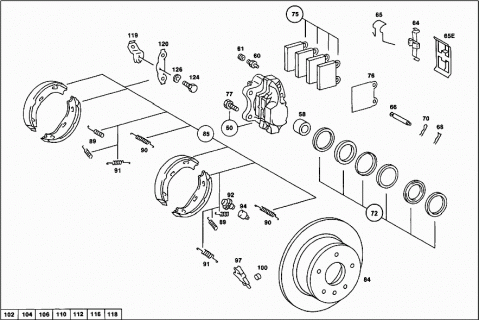

Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1164200083 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| 001 | A 1164200283 | CALIPER |
| LEFT;BENDIX;LESS LINING | ||
| 001 | A 1164200183 | CALIPER |
| RIGHT,TEVES,LESS LINING | ||
| 001 | A 1164200383 | CALIPER |
| Repalced by: A 1164200183 | ||
| 001 | A 1164200183 | CALIPER |
| RIGHT;BENDIX;LESS LINING | ||
| 004 | A 0004214383 | PISTON |
| TEVES | ||
| 004 | A 0004215483 | PISTON |
| BENDIX | ||
| 006 | A 0004211191 | SPRING |
| TEVES | ||
| 007 | A 0004211591 | SPRING |
| BENDIX | ||
| 007 | A 0004212191 | SPRING |
| BENDIX | ||
| 008 | A 0004201755 | BLEEDER VALVE |
| TEVES | ||
| 008 | A 0004204655 | BLEEDER VALVE |
| BENDIX | ||
| 009 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 009 | A 0004210887 | PROTECTIVE CAP |
| TEVES | ||
| 009 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 009 | A 0004210887 | PROTECTIVE CAP |
| BENDIX | ||
| 012 | A 0009911760 | DOWEL PIN |
| TEVES | ||
| 012 | A 0009912360 | DOWEL PIN |
| BENDIX | ||
| 014 | A 0004210573 | LOCK |
| BENDIX | ||
| 020 | A 0014207820 | BRAKE PAD |
| PARTS KIT | ||
| 020 | A 0014207820 | BRAKE PAD |
| PARTS KIT | ||
| 022 | A 0004210196 | SHIM |
| 024 | A 0005867442 | REPAIR KIT |
| TEVES | ||
| 024 | A 0015861142 | REPAIR KIT |
| BENDIX | ||
| 024 | A 0015861142 | REPAIR KIT |
| BENDIX | ||
| 024 | A 0015861142 | REPAIR KIT |
| BENDIX | ||
| 024 | A 0015861142 | REPAIR KIT |
| BENDIX | ||
| 026 | A 1234210171 | SCREW |
| Repalced by: A 1234210271 | ||
| 026 | A 1234210271 | SCREW |
| 028 | A 1159940732 | LOCK |
| 031 | A 1164200205 | BRAKE DISC |
| A 1235860042 | REPAIR KIT | |
| BRAKE DISC TO WHEEL HUB | ||
| 033 | A 0009907212 | SCREW |
| 035 | A 1264210220 | PROTECTIVE PLATE |
| 038 | N 914125006501 | SCREW |
| 041 | A 1164200286 | BRACKET |
| 043 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 043 | N 304017006034 | SCREW |
| 044 | N 912004006102 | LOCK WASHER |
| A 0004235898 | CALIPER | |
| Repalced by: A 1234200583 | ||
| A 0004236398 | CALIPER | |
| Repalced by: A 1234200583 | ||
| 050 | A 1234200583 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| A 0004235998 | CALIPER | |
| Repalced by: A 1234200683 | ||
| A 0004236498 | CALIPER | |
| Repalced by: A 1234200683 | ||
| 050 | A 1234200683 | CALIPER |
| RIGHT,TEVES,LESS LINING | ||
| 050 | A 1234200783 | CALIPER |
| Repalced by: A 1264201483 | ||
| 050 | A 1264201483 | CALIPER |
| LEFT;BENDIX;LESS LINING | ||
| 050 | A 1234200883 | CALIPER |
| Repalced by: A 1264201583 | ||
| 050 | A 1264201583 | CALIPER |
| RIGHT;BENDIX;LESS LINING | ||
| 050 | A 1234200983 | CALIPER |
| LEFT;GIRLING;LESS LINING; IN PAIRS OPTIONAL WITH | ||
| 050 | A 1234201083 | CALIPER |
| RIGHT;GIRLING;LESS LINING; IN PAIRS OPTIONAL WITH | ||
| 050 | A 1264200483 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| 050 | A 1264200583 | CALIPER |
| RIGHT,TEVES,LESS LINING | ||
| 058 | A 0004233683 | PISTON |
| TEVES | ||
| 058 | A 0004233583 | PISTON |
| 38 MM BENDIX | ||
| 058 | A 0004233883 | PISTON |
| GIRLING | ||
| 060 | A 0004201955 | BLEEDER VALVE |
| 7-MM THREAD | ||
| TEVES | ||
| 060 | A 0004201655 | BLEEDER VALVE |
| BENDIX | ||
| 060 | A 0004204655 | BLEEDER VALVE |
| 8-MM THREAD | ||
| 061 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 061 | A 0004210887 | PROTECTIVE CAP |
| 064 | A 0004211791 | SPRING |
| TEVES | ||
| 065 | A 0004211391 | SPRING |
| BENDIX | ||
| 065 | A 0004212291 | SPRING |
| BENDIX | ||
| 065E | A 0004233693 | SPRING |
| GIRLING | ||
| 066 | A 0009910360 | DOWEL PIN |
| TEVES | ||
| A 0009911960 | DOWEL PIN | |
| Repalced by: A 0009912660 | ||
| 066 | A 0009912660 | DOWEL PIN |
| BENDIX | ||
| 066 | A 0004231774 | PIN |
| GIRLING | ||
| 068 | A 0004210273 | LOCK |
| Repalced by: A 0004210573 | ||
| 068 | A 0004210573 | LOCK |
| BENDIX,TO 000 991 19 60 | ||
| 070 | A 0004210573 | LOCK |
| TO 000 991 26 60,000 423 17 74 | ||
| 072 | A 0015867343 | REPAIR KIT |
| TEVES | ||
| 072 | A 0015860142 | REPAIR KIT |
| BENDIX | ||
| 072 | A 0015868742 | REPAIR KIT |
| GIRLING | ||
| 075 | A 0014200620 | BRAKE PAD |
| PARTS KIT | ||
| 075 | A 0014200620 | BRAKE PAD |
| PARTS KIT | ||
| A 0014200620 | BRAKE PAD | |
| PARTS KIT | ||
| 076 | A 0004230061 | SHIM |
| 077 | A 1234230071 | SCREW |
| 077 | A 1164230071 | SCREW |
| A 1154230273 | LOCK | |
| SEE FIG.120 | ||
| 084 | A 1264230012 | BRAKE DISC |
| 085 | A 1264200120 | BRAKE SHOE |
| A 1084200120 | BRAKE SHOE | |
| A 1164200020 | BRAKE SHOE | |
| 089 | A 1084230092 | SPRING |
| 090 | A 1084230192 | SPRING |
| Repalced by: A 9019931310 | ||
| 090 | A 9019931310 | SPRING |
| 091 | A 1084230692 | SPRING |
| 092 | A 1234200073 | SCREW |
| 094 | A 1164230050 | BUSHING |
| A 1145860042 | REPAIR KIT | |
| Repalced by: A 1145860142 | ||
| A 1145860142 | REPAIR KIT | |
| TURNBUCKLE | ||
| 097 | A 1154201189 | SHACKLE |
| 100 | A 1084270074 | PIN |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.490 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.777 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.786 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.499 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.517 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.526 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.508 | ||
| 119 | A 1154281740 | BRACKET |
| 119 | A 1154281840 | BRACKET |
| RIGHT | ||
| 120 | A 1154230273 | LOCK |
| 124 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 124 | N 304017006034 | SCREW |
| 126 | N 000137006204 | SPRING WASHER |
| A 0014308430 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024306830 | ||
| 130 | A 0024306830 | BRAKE BOOSTER ASSEMBLY |
| 132 | A 0004350912 | FILTER |
| 135 | A 0004314387 | PROTECTIVE CAP |
| 138 | A 0024302801 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 138 | A 0034302201 | BRAKE MASTER CYLINDER |
| BENDIX | ||
| 138 | A 0024309301 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 139 | A 0034306001 | BRAKE MASTER CYLINDER |
| Repalced by: A 0044300901 | ||
| 139 | A 0044300901 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 139 | A 0044300901 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 140 | A 0049973245 | SEAL RING |
| 143 | N 000472028000 | LOCK RING |
| 145 | A 0015869343 | REPAIR KIT |
| TEVES | ||
| 145 | A 0015869343 | REPAIR KIT |
| TEVES | ||
| 145 | A 0015865543 | REPAIR KIT |
| BENDIX | ||
| 145 | A 0025862243 | REPAIR KIT |
| TEVES TO 003 430 60 01 | ||
| 145 | A 0025862243 | REPAIR KIT |
| TEVES TO 003 430 60 01 | ||
| 145 | A 0004302760 | REPAIR KIT |
| TEVES TO 004 430 09 01 | ||
| N 007603006106 | SEAL RING | |
| 149 | N 912004008102 | LOCK WASHER |
| 151 | N 000934008013 | NUT |
| A 0004316402 | RESERVOIR | |
| Repalced by: A 0004318402 | ||
| A 0004318402 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| 153 | A 0014314202 | RESERVOIR |
| TEVES, THREE-CHAMBER | ||
| 153 | A 0014314202 | RESERVOIR |
| TEVES, THREE-CHAMBER | ||
| 154 | A 0014315502 | RESERVOIR |
| TEVES | ||
| 154 | A 0014315502 | RESERVOIR |
| TEVES | ||
| 155 | A 0014315302 | RESERVOIR |
| TEVES | ||
| 156 | A 0004317687 | PROTECTIVE CAP |
| 156 | A 0004317687 | PROTECTIVE CAP |
| 156 | A 0004319087 | PROTECTIVE CAP |
| 157 | A 0004315433 | FILLER CAP |
| 157 | A 0004315433 | FILLER CAP |
| 157 | A 0004315433 | FILLER CAP |
| 158 | A 0009972940 | SEAL RING |
| 158 | A 0009972940 | SEAL RING |
| 158 | A 0009972940 | SEAL RING |
| A 0002950050 | BUSHING | |
| Repalced by: A 0004310950 | ||
| 159 | A 0004310950 | BUSHING |
| 159 | A 0004310950 | BUSHING |
| 160 | A 0015426317 | SENDER UNIT |
| FRONT | ||
| 160 | A 0015426317 | SENDER UNIT |
| FRONT | ||
| 160 | A 0015426317 | SENDER UNIT |
| THREE-CHAMBER RESERVOIR,REAR | ||
| 160 | A 0015426317 | SENDER UNIT |
| THREE-CHAMBER RESERVOIR,REAR | ||
| 160 | A 0025429917 | SENDER UNIT |
| REAR | ||
| 161 | A 0004317560 | SEAL RING |
| 161 | A 0004317560 | SEAL RING |
| 162 | A 0004318260 | SEAL RING |
| 162 | A 0004318260 | SEAL RING |
| A 0004311633 | FILLER CAP | |
| A 0004311633 | FILLER CAP | |
| 165 | A 0004310062 | COVERING |
| 167 | A 0004314334 | STRAINER |
| 167 | A 0004314334 | STRAINER |
| 167 | A 0004314334 | STRAINER |
| 167 | A 0004314234 | STRAINER |
| 183 | A 1154310180 | GASKET |
| 186 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 186 | N 000137008212 | SPRING WASHER |
| 188 | N 000934008013 | NUT |
| 191 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 191 | N 304017008034 | SCREW |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 193 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 193 | N 000137008212 | SPRING WASHER |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 195 | N 000934008013 | NUT |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 197 | A 1152910350 | BUSHING |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 199 | A 1232920150 | BUSHING |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 201 | A 1262920074 | PIN |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 201 | A 1262920174 | PIN |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 203 | N 912011008000 | LOCK |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 205 | A 1164300729 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164301729 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302829 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164300929 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302929 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164304129 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302329 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164303629 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164303329 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164300829 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302529 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164303429 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164300429 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164301529 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302729 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302029 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164300529 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302229 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302629 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164303129 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 209 | A 1169870941 | RUBBER RING |
| 209 | A 1169870941 | RUBBER RING |
| 211 | A 0009972881 | GROMMET |
| 211 | A 0009972881 | GROMMET |
| 213 | A 1094301029 | LINE |
| 213 | A 1094301029 | LINE |
| 213 | A 1094301029 | LINE |
| 213 | A 1164302129 | LINE |
| 213 | A 1164301429 | LINE |
| 213 | A 1164301429 | LINE |
| 216 | A 1234205928 | LINE |
| FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| 216 | A 1234205928 | LINE |
| FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| 216 | A 1234205828 | LINE |
| FROM REAR MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| 216 | A 1234207228 | LINE |
| FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| 216 | A 1234207228 | LINE |
| FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| 216 | A 1234207228 | LINE |
| FROM REAR MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| 220 | A 1234207128 | LINE |
| FROM FRONT MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 220 | A 1234207128 | LINE |
| FROM FRONT MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 220 | A 1234207228 | LINE |
| FROM REAR MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 220 | A 1234205828 | LINE |
| FROM FRONT MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 220 | A 1234205828 | LINE |
| 220 | A 1234205828 | LINE |
| FROM REAR MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 224 | A 0019971481 | GROMMET |
| 226 | A 1234208528 | LINE |
| FROM REAR MASTER CYLINDER TO DISTRIBUTOR | ||
| 226 | A 1234208628 | LINE |
| FROM FRONT MASTER CYLINDER TO DISTRIBUTOR | ||
| 226 | A 1234208628 | LINE |
| FROM REAR MASTER CYLINDER TO DISTRIBUTOR | ||
| 226 | A 1234208728 | LINE |
| FROM FRONT MASTER CYLINDER TO DISTRIBUTOR | ||
| 227 | A 1234206928 | LINE |
| FROM REAR MASTER CYLINDER TO COUPLER | ||
| 227 | A 1234206928 | LINE |
| FROM REAR MASTER CYLINDER TO COUPLER | ||
| 227 | A 1234207028 | LINE |
| FROM FRONT MASTER CYLINDER TO COUPLER | ||
| 229 | A 1234208028 | LINE |
| FROM COUPLER TO DISTRIBUTOR | ||
| 229 | A 1234208128 | LINE |
| FROM COUPLER TO DISTRIBUTOR | ||
| 230 | A 1214290134 | ADAPTER FITTING |
| 232 | A 1089950520 | CLAMP |
| 234 | A 1263280181 | BUFFER |
| 236 | N 007976005203 | SHEET METAL SCREW |
| 237 | A 0004284224 | DISTRIBUTOR |
| 238 | N 007976006204 | SHEET METAL SCREW |
| 239 | A 1234205528 | LINE |
| FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE | ||
| 243 | A 1234206628 | LINE |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| 246 | A 1109950022 | CLAMP |
| 248 | A 1164280085 | DAMPING STRIP |
| Repalced by: A 1163280684 | ||
| 248 | A 1163280684 | SHIM |
| 249 | N 007976005203 | SHEET METAL SCREW |
| 251 | A 1234280535 | BRAKE HOSE |
| 253 | A 0004280673 | RETAINING SPRING |
| 255 | A 1164280135 | BRAKE HOSE |
| Repalced by: A 1264280135 | ||
| 255 | A 1264280135 | BRAKE HOSE |
| 255 | A 1234280135 | BRAKE HOSE |
| Repalced by: A 1264280335 | ||
| 255 | A 1264280335 | BRAKE HOSE |
| 256 | A 0004280673 | RETAINING SPRING |
| 257 | A 1234205028 | LINE |
| FROM LEFT REAR BRAKE HOSE TO CALIPER | ||
| 180 MM | ||
| 257 | A 1074201928 | LINE |
| Repalced by: A 1234205428 | ||
| 257 | A 1234205428 | LINE |
| FROM LEFT REAR BRAKE HOSE TO CALIPER | ||
| 257 | A 1234205028 | LINE |
| FROM RIGHT REAR BRAKE HOSE TO CALIPER | ||
| 180 MM | ||
| 257 | A 1074202028 | LINE |
| Repalced by: A 1234205428 | ||
| 257 | A 1234205428 | LINE |
| FROM RIGHT REAR BRAKE HOSE TO CALIPER | ||
| 260 | A 1159950101 | CLAMP |
| 261 | A 1009950042 | CLAMP |
| Repalced by: A 1119950042 | ||
| 261 | A 1119950042 | CLAMP |
| Repalced by: A 1409950222 | ||
| 261 | A 1409950222 | CLAMP |
| 263 | A 1114760081 | RUBBER PAD |
| 265 | N 007976005203 | SHEET METAL SCREW |

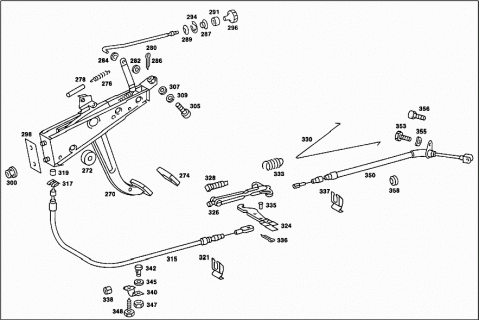

| 270 | A 1164200384 | PARKING BRAKE |
| 270 | A 1164200984 | PARKING BRAKE |
| 272 | A 1154270786 | DAMPING RING |
| 272 | A 1164270186 | DAMPING RING |
| 274 | A 1074270082 | PAD |
| 276 | A 1164300093 | SPRING |
| 278 | A 0069976882 | HOSE |
| 25 MM | ||
| 280 | A 1164270231 | ROD |
| 282 | N 000125006421 | WASHER |
| 284 | N 000137006204 | SPRING WASHER |
| 286 | N 000094001510 | COTTER PIN |
| 287 | A 1164270012 | GUIDE |
| 289 | A 1164270073 | LOCK |
| 291 | A 1154270886 | DAMPING RING |
| 294 | N 006799005002 | LOCK PLATE |
| 296 | A 1155400028 | KNOB |
| 298 | A 1154270079 | GASKET |
| 300 | N 913013006000 | NUT |
| Repalced by: N 913019006000 | ||
| 300 | N 913019006000 | NUT |
| Repalced by: N 913012006001 | ||
| 300 | N 913012006001 | NUT |
| 305 | N 000912006066 | SCREW |
| 307 | A 1809901040 | WASHER |
| 309 | N 912004006102 | LOCK WASHER |
| 315 | A 1164200585 | BRAKE CABLE |
| 315 | A 1164200685 | BRAKE CABLE |
| 317 | A 1159930325 | SPRING |
| 319 | N 073379006101 | HOSE |
| 319 | N 073379006101 | HOSE |
| 321 | A 1159930325 | SPRING |
| BRAKE CABLE TO BRACKET | ||
| 324 | A 1164200442 | BRAKE LEVER |
| 326 | A 1234200589 | SHACKLE |
| 328 | A 1154270671 | SCREW |
| 330 | A 1164270141 | BRACKET |
| 333 | A 1169930410 | SPRING |
| 335 | A 1154270974 | PIN |
| 336 | N 000094001510 | COTTER PIN |
| 337 | A 1159930325 | SPRING |
| REAR BRAKE CABLE TO BRACKET | ||
| 338 | A 1154270095 | PROTECTIVE CAP |
| 340 | A 1159950210 | CLAMP |
| 342 | A 1204200227 | SCREW |
| 345 | A 0009873841 | RUBBER RING |
| 347 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 347 | N 304032006008 | NUT |
| 348 | N 007976006203 | SHEET METAL SCREW |
| A 1164200485 | BRAKE CABLE | |
| Repalced by: A 1164201685 | ||
| A 1164201585 | BRAKE CABLE | |
| Repalced by: A 1164201685 | ||
| 350 | A 1164201685 | BRAKE CABLE |
| A 1164200985 | BRAKE CABLE | |
| Repalced by: A 1164201385 | ||
| 350 | A 1164201385 | BRAKE CABLE |
| LEFT | ||
| A 1164201085 | BRAKE CABLE | |
| Repalced by: A 1164201485 | ||
| 350 | A 1164201485 | BRAKE CABLE |
| RIGHT | ||
| 353 | N 070614010010 | SCREW |
| Repalced by: N 000933010162 | ||
| 353 | N 000933010162 | SCREW |
| 355 | N 000137010205 | SPRING WASHER |
| 356 | N 914019008002 | COMBINATION BOLT |
| 358 | A 1159970681 | GROMMET |

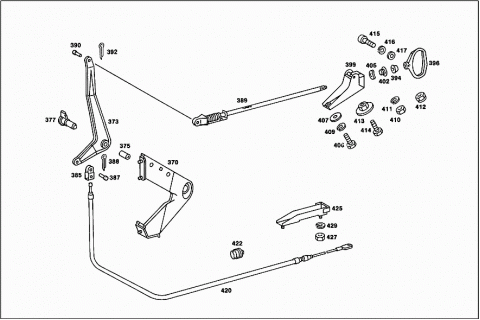

| 370 | A 1164200168 | SUPPORT |
| 373 | A 1154201212 | BRAKE LEVER |
| 375 | A 1104270050 | BUSHING |
| 377 | A 1164200082 | PIN |
| 385 | A 1154271889 | CONNECTOR |
| 387 | N 001434008070 | PIN |
| 388 | N 000094002059 | COTTER PIN |
| 389 | A 1164200088 | RATCHET ROD |
| 390 | N 001434008070 | PIN |
| 392 | N 000094002059 | COTTER PIN |
| 394 | A 1154270686 | DAMPING RING |
| A 1164200095 | HANDLE | |
| Repalced by: A 1234200395 | ||
| 396 | A 1234200395 | HANDLE |
| 399 | A 1164200686 | BRACKET |
| 402 | A 1154270640 | SCREW |
| 405 | N 900055016001 | SPRING WASHER |
| 406 | N 000931006191 | SCREW |
| 407 | N 009021007200 | WASHER |
| 409 | N 912004006102 | LOCK WASHER |
| 410 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 410 | N 304032006008 | NUT |
| 411 | N 912004006102 | LOCK WASHER |
| 412 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 412 | N 913002006009 | NUT |
| 413 | A 1164200486 | BRACKET |
| 414 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 414 | N 304014008001 | SCREW |
| 415 | N 000912005002 | SCREW |
| 416 | N 007980005001 | LOCK WASHER |
| 417 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 417 | N 000433005304 | WASHER |
| 420 | A 1164200785 | BRAKE CABLE |
| 420 | A 1164200885 | BRAKE CABLE |
| 422 | A 1164270096 | CUP |
| 425 | A 1164200386 | BRACKET |
| 427 | N 000934006007 | NUT |
| 429 | N 912004006102 | LOCK WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
