Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

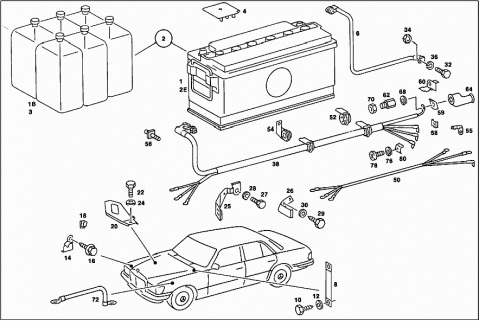

68839

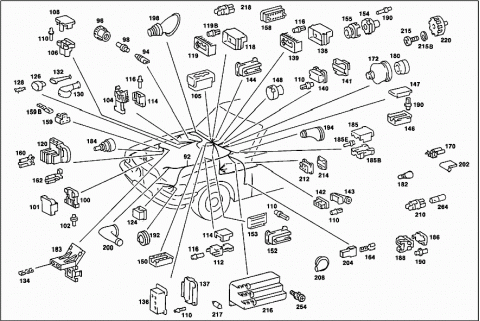

68840

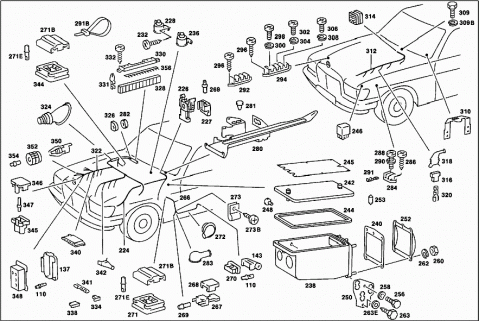

68841
68842

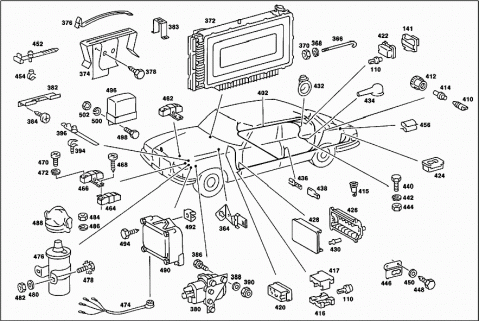

68843
68844

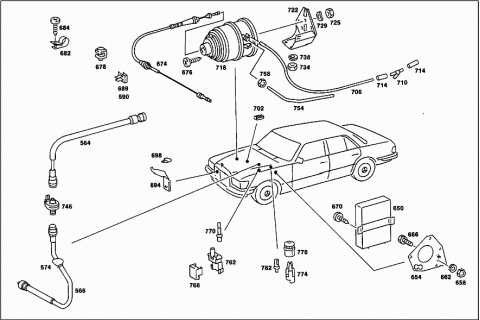

68845
# Kodas Pavadinimas
001 A 0035413101 BATTERY
55 AH
001B A 0009890515 BATTERY ACID BOTTLE SET
Repalced by: A 0009891315
001B A 0009891315 BATTERY ACID BOTTLE SET
TO 55 AH
002 A 1245400001 BATTERY
Repalced by: A 1245400101
002 A 1245400101 BATTERY
Repalced by: A 0035416601
002 A 0035416601 BATTERY
PARTS KIT
TO 55 AH
002 A 1235400101 BATTERY
Repalced by: A 1405400001
002 A 1405400001 BATTERY
Repalced by: A 0035417501
002 A 0035417501 BATTERY
PARTS KIT
66 AH
002 A 1235400201 BATTERY
Repalced by: A 1405400101
002 A 1405400101 BATTERY
Repalced by: A 0035419201
002 A 0035419201 BATTERY
Repalced by: A 0045414601
002 A 0045414601 BATTERY
PARTS KIT
Repalced by: A 0055412501
002 A 0055412501 BATTERY
PARTS KIT
002E A 0025417301 BATTERY
Repalced by: A 0035416601
002E A 0035416601 BATTERY
55 AH
002E A 0015417901 BATTERY
Repalced by: A 0035417501
002E A 0035417501 BATTERY
66 AH
002E A 0015418001 BATTERY
Repalced by: A 0035419201
002E A 0035419201 BATTERY
Repalced by: A 0045414601
002E A 0045414601 BATTERY
88 AH
Repalced by: A 0055412501
002E A 0055412501 BATTERY
88 AH
003 A 0009890715 BATTERY ACID BOTTLE SET
Repalced by: A 0009891215
003 A 0009891215 BATTERY ACID BOTTLE SET
TO 55 AH
003 A 0009890515 BATTERY ACID BOTTLE SET
Repalced by: A 0009891315
003 A 0009891315 BATTERY ACID BOTTLE SET
TO 001 541 79 01
003 A 0009890815 BATTERY ACID BOTTLE SET
Repalced by: A 0009891415
003 A 0009891415 BATTERY ACID BOTTLE SET
TO 88 AH
004 A 0005461835 BOOT
Repalced by: A 0005462335
004 A 0005462335 BOOT
Repalced by: A 0015460835
004 A 0015460835 BOOT
004 A 0005462335 BOOT
Repalced by: A 0015460835
004 A 0015460835 BOOT
006 A 1165400331 NEG. CABLE
FROM BATTERY NEG. POLE TO FRAME
006 A 1265400531 NEG. CABLE
FROM BATTERY NEG. POLE TO FRAME
008 A 1805400441 GROUND STRAP
FROM ENGINE HOOD TO COWL
010 N 007976004212 SHEET METAL SCREW
GROUND STRAP TO COWL
012 N 000125004311 WASHER
Repalced by: N 000125004319
012 N 000125004319 WASHER
GROUND STRAP TO COWL
014 A 1165453840 BRACKET
016 N 914031004201 COMBINATION BOLT
BRACKET TO BATTERY FRAME
018 A 0039888078 CLIP
020 A 1165461843 BRACKET
ENGINE RIGHT SUPPORT
022 N 000933012063 SCREW
ENGINE RIGHT SUPPORT
024 N 000137012203 SPRING WASHER
Repalced by: N 000137012206
024 N 000137012206 SPRING WASHER
ENGINE RIGHT SUPPORT
025 A 1165460643 BRACKET
STARTING CABLE
026 A 1165461143 BRACKET
STARTING CABLE
027 N 000933012063 SCREW
BRACKET TO ENGINE SUPPORTING ARM
028 N 000137012203 SPRING WASHER
Repalced by: N 000137012206
028 N 000137012206 SPRING WASHER
BRACKET TO ENGINE SUPPORTING ARM
029 N 007976004203 SHEET METAL SCREW
BRACKET TO WHEEL ARCH PANEL
030 N 009021004108 WASHER
Repalced by: N 009021004207
030 N 009021004207 WASHER
BRACKET TO WHEEL ARCH PANEL
032 N 000933008130 SCREW
Repalced by: N 304017008039
032 N 304017008039 SCREW
NEGATIVE CABLE OR GROUND STRAP TO SIDE MEMBER
034 N 000934008013 NUT
NEGATIVE CABLE TO SIDE MEMBER
036 N 912004008102 LOCK WASHER
NEGATIVE CABLE OR GROUND STRAP TO SIDE MEMBER
038 A 1165400830 POSITIVE CABLE
038 A 1165402430 POSITIVE CABLE
038 A 1165401030 POSITIVE CABLE
038 A 1165401330 POSITIVE CABLE
038 A 1165400930 POSITIVE CABLE
038 A 1165401130 POSITIVE CABLE
038 A 1165402130 POSITIVE CABLE
050 A 1165403709 CABLE HARNESS
FROM STARTING MOTOR TO CABLE CONNECTOR
050 A 1165403809 CABLE HARNESS
FROM STARTING MOTOR TO CABLE CONNECTOR
050 A 1165403909 CABLE HARNESS
FROM STARTING MOTOR TO CABLE CONNECTOR
050 A 1165404009 CABLE HARNESS
FROM STARTING MOTOR TO CABLE CONNECTOR
050 A 1165405109 CABLE HARNESS
FROM STARTING MOTOR TO CABLE CONNECTOR
052 A 0005462837 GROMMET
052 A 0005462837 GROMMET
052 A 0005460937 GROMMET
052 A 0005460937 GROMMET
052 A 0005460837 GROMMET
Repalced by: A 0005460937
052 A 0005460937 GROMMET
054 A 0005462137 GROMMET
055 N 900261008001 CABLE SHOE
056 A 1115460071 SCREW
POSITIVE CABLE TO BATTERY
058 A 1165460073 LOCK
CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A
059 A 1165460173 LOCK
CABLE TO STARTING MOTOR,TERMINAL 30
060 A 1165460273 LOCK
CABLE TO STARTING MOTOR,TERMINAL 30
062 A 1165460044 CLAMPING PIECE
CABLE TO STARTING MOTOR,TERMINAL 30
064 A 1115460235 BOOT
064 A 1115460235 BOOT
064 A 1165460135 BOOT
068 N 912004008102 LOCK WASHER
CABLE TO STARTING MOTOR,TERMINAL 30
070 N 000934008013 NUT
CABLE TO STARTING MOTOR,TERMINAL 30
072 A 1165400531 NEG. CABLE
FROM ENGINE TO FRAME
072 A 1165400531 NEG. CABLE
FROM ENGINE TO FRAME
072 A 1165400231 NEG. CABLE
FROM ENGINE TO FRAME
072 A 1165400531 NEG. CABLE
FROM ENGINE TO FRAME
076 N 912004005103 LOCK WASHER
CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A
078 N 007985004123 SCREW
CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A
078 N 007985005152 SCREW
CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A
080 A 0001510011 MOUNTING BOW
CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A
082 A 0005463335 BOOT
ALTERNATOR,TERMINAL B+
084 A 1165409709 CABLE HARNESS
ALTERNATOR
A 0045458528 PLUG
Repalced by: A 0085452028
086 A 0085452028 PIN BUSHING HOUSING
UNIPOLAR
088 A 0095451428 COVER
TO 008 545 20 28
090 A 0015454426 ROUND PIN BUSHING
TO 008 545 20 28
091 A 0009972881 GROMMET
CABLE TO ALTERNATOR
092 A 1165400705 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402005 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402205 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165405105 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165406705 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165400905 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402105 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402305 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165405205 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165406805 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165400505 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165400805 CABLE HARNESS
MAIN CABLE HARNESS
A 1165400005 CABLE HARNESS
Repalced by: A 1165400605
092 A 1165400605 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165401105 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165401405 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165403805 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165404205 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165407105 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402705 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165405505 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402405 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165405705 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165400105 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165401205 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165401605 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165403905 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165404505 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165407205 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165402805 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165405605 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165404405 CABLE HARNESS
MAIN CABLE HARNESS
092 A 1165405805 CABLE HARNESS
MAIN CABLE HARNESS
A 0045458528 PLUG
Repalced by: A 0085452028
094 A 0085452028 PIN BUSHING HOUSING
COOLING WATER TEMPERATURE,GEAR SELECTOR LIGHTING; UNIPOLAR
096 A 0095451428 COVER
TO 008 545 20 28
098 A 0015454426 ROUND PIN BUSHING
TO 008 545 20 28
A 0025454928 PLUG
Repalced by: A 0085453728
100 A 0085453728 PIN BUSHING HOUSING
BIPOLAR
101 A 0085453828 COVER
TO 008 545 37 28
102 A 0035452626 ROUND PIN BUSHING
TO 008 545 37 28
A 0035454728 PLUG
Repalced by: A 0085450828
104 A 0085450828 PIN BUSHING HOUSING
BIPOLAR
105 A 0008210626 CONNECTOR
INTERIOR REAR LAMP SWITCH
A 0055455628 PLUG
Repalced by: A 0095454428
106 A 0095454428 PIN BUSHING HOUSING
THERMO-TIME SWITCH; BIPOLAR
108 A 0095454528 COVER
TO 009 545 44 28
110 A 0035452626 ROUND PIN BUSHING
TO 009 545 44 28
A 0085451428 PLUG
Repalced by: A 0085450828
112 A 0085450828 PIN BUSHING HOUSING
BRAKE FLUID CONTROL,BRAKE LINING WEAR INDICATION
112 A 0085450828 PIN BUSHING HOUSING
BRAKE FLUID CONTROL,BRAKE LINING WEAR INDICATION
114 A 0085451128 COVER
Repalced by: A 0005457903
114 A 0005457903 CAP
BRAKE FLUID CONTROL,BRAKE LINING WEAR INDICATION
114 A 0005457903 CAP
BRAKE FLUID CONTROL,BRAKE LINING WEAR INDICATION
116 A 0015454426 ROUND PIN BUSHING
A 0045456528 PLUG
Repalced by: A 0095459428
118 A 0095459428 PLUG
HYDROPNEUMATIC SPRING SUSPENSION ADJUSTER SWITCH; 5-POLE
119 A 0095459528 PLUG
TO 009 545 94 28
119B A 0045456628 PIN BUSHING
TO 009 545 94 28
120 A 0045459228 PLUG
ALTERNATOR,3-POLE
120 A 0055450228 PIN BUSHING HOUSING
ALTERNATOR,3-POLE
124 A 0065454528 PLUG
HEADLAMP CONNECTION
124 A 0065454528 PLUG
HEADLAMP CONNECTION
124 A 0065454528 PLUG
HEADLAMP CONNECTION
124 A 0065454528 PLUG
HEADLAMP CONNECTION
126 A 1165400181 PLUG
WARM-UP SENDER UNIT,COLD START VALVE, AIR-FLOW SENSOR PLATE CONTACT
128 A 0025451926 CONTACT SPRING
Repalced by: A 0035450226
128 A 0035450226 CONTACT SPRING
WARM-UP SENDER UNIT,COLD START VALVE, AIR-FLOW SENSOR PLATE CONTACT
130 A 0005452845 BOOT
WARM-UP SENDER UNIT,COLD START VALVE, AIR-FLOW SENSOR PLATE CONTACT
132 A 0005453145 BOOT
WARM-UP SENDER UNIT AND COLD START VALVE
134 A 0055451828 PIN BUSHING
REFRIGERANT COMPRESSOR
A 0055451328 PLUG
Repalced by: A 0065458028
136 A 0065458028 PIN BUSHING HOUSING
MAIN RELAY,PUMP RELAY,ELECTRONICS, WIPER MOTOR;6-POLE
137 A 0095453028 COVER
TO 006 545 80 28
A 0008210526 CONNECTOR
Repalced by: A 0008212326
138 A 0008212326 CONNECTOR
HEATED REAR PANE SWITCH; 4-POLE
139 A 0008210438 COVER
TO 000 821 23 26
A 0045458628 PLUG
Repalced by: A 0075450028
140 A 0075450028 PIN BUSHING HOUSING
Repalced by: A 0155454928
140 A 0155454928 PLUG
4-POLE
141 A 0095452128 COVER
TO 007 545 00 28
A 0065459328 PLUG
Repalced by: A 0095454228
142 A 0095454228 PLUG
STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH
143 A 0095454328 COVER
TO 009 545 42 28
144 A 0025454028 PLUG
Repalced by: A 0065458128
144 A 0065458128 PIN BUSHING HOUSING
INTERMITTENT ACTION SWITCH,BLOWER; 8-POLE
A 0055455828 PLUG
Repalced by: A 0095459928
146 A 0095459928 PIN BUSHING HOUSING
HAZARD WARNING LIGHT SWITCH;8-POLE
147 A 0095459828 COVER
TO 009 545 99 28
148 A 0045452628 PLUG
IGNITION LOCK,8-POLE
150 A 0065459528 PLUG
Repalced by: A 0105450028
150 A 0105450028 PIN BUSHING HOUSING
TEMPOMAT (CRUISE CONTROL) AMPLIFIER; 12-POLE
A 0025453528 PLUG
Repalced by: A 0095452628
152 A 0095452628 PIN BUSHING HOUSING
TAIL LAMP CABLE HARNESS,12-POLE
153 A 0095452428 COVER
TO 009 545 26 28
A 0035454628 PLUG
Repalced by: A 0105450428
154 A 0105450428 PIN BUSHING HOUSING
INSTRUMENT CLUSTER;15-POLE
155 A 0105450528 COVER
TO 010 545 04 28
158 A 0035453828 PLUG
Repalced by: A 0095452328
158 A 0095452328 PIN BUSHING HOUSING
STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
158 A 0095452328 PIN BUSHING HOUSING
TAIL LAMP CABLE HARNESS
159 A 0025459528 PIN BUSHING HOUSING
REGULATOR AND CUT-OUT
159B A 0005464640 CABLE SHOE
REGULATOR AND CUT-OUT
160 A 0005467840 PIN BUSHING
CABLE HARNESS TO ALTERNATOR
162 A 0005467940 PIN BUSHING
CABLE HARNESS TO ALTERNATOR
164 A 0005464340 PIN BUSHING
DOOR CONTACT SWITCH,CARBURETOR HEATING,FOOT-OPERATED PARKING BRAKE
A 0005464540 CABLE SHOE
DOOR CONTACT SWITCH,CARBURETOR HEATING,FOOT-OPERATED PARKING BRAKE
164 A 0005464740 CABLE SHOE
Repalced by: A 0005464640
164 A 0005464640 CABLE SHOE
RANCO SWITCH
170 A 0005468340 CABLE SHOE
CHARGE CONTROL
170 A 0005468340 CABLE SHOE
LOW PRESSURE SWITCH
172 A 0005452245 BOOT
LIGHT ROTARY SWITCH
180 A 0005452345 BOOT
LIGHT ROTARY SWITCH
182 A 0065454128 PLUG
RADIO SET
182 A 0065454428 PLUG
RADIO SET
183 A 0115455928 PIN BUSHING HOUSING
REFRIGERANT COMPRESSOR
184 A 0045458428 PLUG
Repalced by: A 1265401081
184 A 1265401081 PLUG SOCKET
CHARGING CONTROL LAMP CABLE,1-POLE
A 0025452428 PLUG
Repalced by: A 0095454028
185 A 0095454028 PLUG HOUSING
REAR INSIDE LAMP;2-POLIG
185B A 0095454128 COVER
TO 009 545 40 28
185E A 0015453826 PLUG PIN
TO 009 545 40 28
186 A 0105450928 COVER
BUZZER CONTACT
188 A 0105451028 PIN BUSHING HOUSING
BUZZER CONTACT;2-POLE
190 A 0025459926 ROUND PIN BUSHING
BUZZER CONTACT
192 A 1169970781 GROMMET
HEADLAMP CONNECTION
194 A 1169971381 GROMMET
FIRE WALL,LEFT
198 A 1169971881 GROMMET
FIRE WALL,RIGHT
198 A 1169971881 GROMMET
FIRE WALL,RIGHT
198 A 1169972881 GROMMET
FIRE WALL,RIGHT
200 A 0005450745 BOOT
LOW PRESSURE SWITCH
202 A 0005460445 INSULATING SLEEVE
CHARGE CONTROL
202 A 0005460445 INSULATING SLEEVE
LOW PRESSURE SWITCH
204 A 0005460845 INSULATING SLEEVE
CLOCK,GLOVE COMPARTMENT LAMP,DOOR CONTACT,FOOT OPERATED PARKING BRAKE
204 A 0005460145 INSULATING SLEEVE
HEATER BLOWER
204 A 0005460145 INSULATING SLEEVE
RANCO SWITCH
208 A 1149970581 GROMMET
210 A 0005452219 SOCKET
BRAKE LINING WEAR INDICATOR
210 A 0005452219 SOCKET
HYDRAULIC SPRING SUSPENSION
212 A 0005445493 LAMP SOCKET
LIGHTING OF GEAR INDICATOR
214 A 0005445593 COVER
LIGHTING OF GEAR INDICATOR
215 N 007985004107 SCREW
CABLE TO FUSE BOX
215 N 007985004123 SCREW
ELECTRIC CABLE TO LIGHT ROTARY SWITCH
215B N 912004004102 LOCK WASHER
216 A 1165400150 FUSE BOX
216 A 1165400250 FUSE BOX
216 A 1165400350 FUSE BOX
217 A 0005458234 FUSE
Repalced by: N 072581008101
217 N 072581008101 FUSE
8 A
217 A 0005458334 FUSE
16 A
217 A 0005458434 FUSE
Repalced by: A 0015457534
217 A 0015457534 FUSE
25 A
218 A 0008250082 SOCKET
BLOWER SWITCH AND HEATING CONTROL
220 A 0005453704 LIGHT SWITCH
LIGHT ROTARY SWITCH
222 A 1165460006 ELECTRIC CABLE
FROM ALTERNATOR TERMINAL B+ TO CABLE CONNECTOR
224 A 1165404909 CABLE HARNESS
COLD START
224 A 1165404909 CABLE HARNESS
COLD START
A 0035454728 PLUG
Repalced by: A 0085450828
226 A 0085450828 PIN BUSHING HOUSING
BIPOLAR
227 A 0085451128 COVER
Repalced by: A 0005457903
227 A 0005457903 CAP
TO 008 545 11 28
A 0015403597 VALVE
Repalced by: A 0015407097
228 A 0015407097 VALVE
Repalced by: A 0015408697
228 A 0015408697 VALVE
PULL-DOWN RETARDATION
228 A 0015408697 VALVE
PULL-DOWN RETARDATION
A 0015402997 VALVE
Repalced by: A 0015407097
228 A 0015407097 VALVE
Repalced by: A 0015408697
228 A 0015408697 VALVE
FLOAT CHAMBER VENTILATION
228 A 0015408697 VALVE
FLOAT CHAMBER VENTILATION
232 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
232 N 000000000460 SHEET METAL SCREW
232 N 007981004318 SHEET METAL SCREW
VALVE TO BODY
A 0015402097 VALVE
Repalced by: A 0015407097
236 A 0015407097 VALVE
Repalced by: A 0015408697
236 A 0015408697 VALVE
IDLING ADJUSTMENT
236 A 0015408697 VALVE
IDLING ADJUSTMENT
238 A 1165400050 FUSE BOX
238 A 1165400450 FUSE BOX
240 A 1165450080 GASKET
242 A 1165400082 COVER
242 A 1165400182 COVER
244 A 1165450094 RUBBER PAD
244 A 1165450294 RUBBER PAD
245 A 1165450700 MARKING STRIP
FUSE BOX
246 A 0015420219 RELAY
FUEL PUMP AND WARM-UP COMPENSATOR
246 A 0015420219 RELAY
FUEL PUMP AND WARM-UP COMPENSATOR
246 A 0015420219 RELAY
FUEL PUMP AND WARM-UP COMPENSATOR
248 A 1109870539 RUBBER BUFFER
TO PLUG MOUNTING HOLE USED FOR RELAY BRACKET IN FUSE BOX
250 A 1165400373 BRACKET
250 A 1165452640 BRACKET
252 A 1165450049 FLANGE
253 A 0005458234 FUSE
Repalced by: N 072581008101
253 N 072581008101 FUSE
(SPARE FUSE)
8 A
253 A 0005458334 FUSE
(SPARE FUSE)
16 A
253 A 0005458434 FUSE
Repalced by: A 0015457534
253 A 0015457534 FUSE
(SPARE FUSE)
25 A
254 N 914025004103 COMBINATION BOLT
FUSE BOX TO FUSE BOX AND TO RELAY BOX
256 N 000933004037 SCREW
RELAY BRACKET TO FUSE BOX
258 N 000137004202 SPRING WASHER
RELAY BRACKET TO FUSE BOX
260 N 000934005008 NUT
FUSE BOX TO FIRE WALL
262 N 912004005103 LOCK WASHER
FUSE BOX TO FIRE WALL
263 N 007976004205 SHEET METAL SCREW
BRACKET TO INSTRUMENT PANEL
263E N 009021005202 WASHER
Repalced by: N 009021005205
263E N 009021005205 WASHER
BRACKET TO INSTRUMENT PANEL
264 N 072601012110 BULB
264 A 0005446794 BULB
Repalced by: N 072601012240
264 N 072601012240 BULB
BRAKE LINING WEAR INDICATOR
264 N 072601012240 BULB
HYDRAULIC SPRING SUSPENSION
266 A 1165403509 CABLE HARNESS
AUTOMATIC TRANSMISSION
266 A 1165400308 CABLE HARNESS
AUTOMATIC TRANSMISSION
266 A 1165400308 CABLE HARNESS
AUTOMATIC TRANSMISSION
A 0035454728 PLUG
Repalced by: A 0085450828
267 A 0085450828 PIN BUSHING HOUSING
BIPOLAR
268 A 0085451128 COVER
Repalced by: A 0005457903
268 A 0005457903 CAP
TO 008 545 08 28
269 A 0015454426 ROUND PIN BUSHING
TO 008 545 08 28
A 0065459328 PLUG
Repalced by: A 0095454228
270 A 0095454228 PLUG
4-POLE
271 A 0035457128 PLUG
Repalced by: A 0065457828
271 A 0065457828 PLUG HOUSING
6-POLE
271B A 0095453028 COVER
TO 006 545 78 28
271E A 0015453826 PLUG PIN
TO 006 545 78 28
272 A 1149970581 GROMMET
A 0019951101 CLAMP
AT TUNNEL
273 A 0009957601 CLAMP
KICK-DOWN SWITCH CABLE TO TOEBOARD
273B N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
273B N 000000002062 SCREW
KICK-DOWN SWITCH CABLE TO TOEBOARD
274 A 1075400283 HANDLE
Repalced by: A 6015400083
274 A 6015400083 HANDLE
LIGHT ROTARY SWITCH
274 A 6015400083 HANDLE
LIGHT ROTARY SWITCH
A 1075450330 SHELL
Repalced by: A 1075450530
274E A 1075450530 SHELL
LIGHT ROTARY SWITCH
274E A 1075450530 SHELL
LIGHT ROTARY SWITCH
275 A 1165450130 SHELL
LIGHT ROTARY SWITCH
275 A 1165450230 SHELL
LIGHT ROTARY SWITCH
276 A 1164270073 LOCK
LIGHT ROTARY SWITCH
277 A 1075450072 NUT
LIGHT ROTARY SWITCH
278 A 0008250094 BULB
Repalced by: N 000000001061
278 N 000000001061 BULB
LIGHT ROTARY SWITCH
0.4 W
280 A 1165400973 BRACKET
280 A 1165401373 BRACKET
281 A 1119871215 PLUG
Repalced by: A 0009871840
281 A 0009871840 RUBBER BUFFER
282 A 1869970681 GROMMET
SOLENOID SWITCH BRANCH-OFF
282 A 1119971481 GROMMET
SOLENOID SWITCH BRANCH-OFF
282 A 1169973481 GROMMET
SOLENOID SWITCH BRANCH-OFF
283 A 0005463335 BOOT
ELECTRIC CABLE TO KICK-DOWN SWITCH
284 A 0005467041 CABLE CONNECTOR
BIPOLAR
286 N 007981004331 SHEET METAL SCREW
CABLE CONNECTOR TO LEFT WHEEL ARCH PANEL
288 N 007985004125 SCREW
Repalced by: N 007985004107
288 N 007985004107 SCREW
CABLES TO CABLE CONNECTOR
290 N 912006004100 LOCK WASHER
CABLES TO CABLE CONNECTOR
291 N 900261004000 CABLE SHOE
291B A 1149970190 LOOM TIE
80 MM X 7 MM
A 1149970290 LOOM TIE
Repalced by: A 1149970590
A 1149970590 LOOM TIE
120 MM X 9 MM
291B A 1149970290 LOOM TIE
Repalced by: A 1149970590
291B A 1149970590 LOOM TIE
120 MM X 9 MM
291B A 0019974190 LOOM TIE
100 X 7 MM
291B A 0019974290 LOOM TIE
Repalced by: A 0019974390
291B A 0019974390 LOOM TIE
140 MM
292 A 0005469641 CABLE CONNECTOR
3-POLE
294 A 0015460941 CABLE CONNECTOR
4-POLE
296 N 007981004331 SHEET METAL SCREW
CABLE CONNECTOR TO BATTERY CASE
298 N 007985004125 SCREW
Repalced by: N 007985004107
298 N 007985004107 SCREW
CABLE HARNESS TO CABLE CONNECTOR
300 N 912004004102 LOCK WASHER
CABLE HARNESS TO CABLE CONNECTOR
302 N 007985005125 SCREW
Repalced by: N 007985005157
302 N 007985005157 SCREW
CABLE HARNESS TO CABLE CONNECTOR
304 N 912004005103 LOCK WASHER
CABLE HARNESS TO CABLE CONNECTOR
306 N 007985006128 SCREW
CABLE HARNESS TO CABLE CONNECTOR
308 N 912004006102 LOCK WASHER
CABLE HARNESS TO CABLE CONNECTOR
309 N 000933006102 SCREW
Repalced by: N 304017006016
309 N 304017006016 SCREW
GROUND CONNECTION TO BRACES AT INSTRUMENT PANEL
309B N 912004006102 LOCK WASHER
GROUND CONNECTION TO BRACES AT INSTRUMENT PANEL
310 A 1165462343 BRACKET
MAIN CABLE HARNESS TO BRACKET,FLOOR SHIFT
312 A 1145402109 CABLE HARNESS
INJECTION VALVE
314 A 0065455728 PLUG
Repalced by: A 0095455228
314 A 0095455228 PLUG HOUSING
4-POLE
316 A 0045454828 PLUG
INJECTION VALVE
318 A 0005462035 BOOT
INJECTION VALVE
320 A 0005466940 CABLE SHOE
INJECTION VALVE
321 A 1165402809 CABLE HARNESS
ELECTRONIC FUEL INJECTION
321 A 1165404309 CABLE HARNESS
ELECTRONIC FUEL INJECTION
321 A 1165403209 CABLE HARNESS
ELECTRONIC FUEL INJECTION
321 A 1165404409 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165403309 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165406809 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165402909 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165406909 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165403109 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165408509 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165403009 CABLE HARNESS
ELECTRONIC FUEL INJECTION
322 A 1165408609 CABLE HARNESS
ELECTRONIC FUEL INJECTION
324 A 1079971581 GROMMET
324 A 1169971881 GROMMET
326 A 0019974681 GROMMET
328 A 0135459228 PLUG
25-POLE
330 A 0005460643 BRACKET
331 A 0005467040 CABLE SHOE
332 N 007981002222 SHEET METAL SCREW
334 A 0045454828 PLUG
BIPOLAR
336 A 0045457628 PLUG
3-POLE
338 A 0045455028 PLUG
PRESSURE SENSOR
340 A 0065458728 PLUG
ELECTRIC CABLE TO THROTTLE HOUSING
341 A 0005466940 CABLE SHOE
342 A 0005461135 BOOT
INJECTION VALVE
342 A 0005462035 BOOT
COLD START VALVE,BIPOLAR
342 A 0005461435 BOOT
CABLE HARNESS TO CONTACTOR
342 A 0005461335 BOOT
PRESSURE SENSOR
342 A 0005461735 BOOT
ELECTRIC CABLE TO THROTTLE HOUSING
A 0035457128 PLUG
Repalced by: A 0065457828
344 A 0065457828 PLUG HOUSING
ADDITIONAL CABLE HARNESS TO MAIN CABLE HARNESS
A 0055455628 PLUG
Repalced by: A 0095454428
345 A 0095454428 PIN BUSHING HOUSING
THERMO-TIME SWITCH; BIPOLAR
346 A 0095454528 COVER
TO 009 545 44 28
347 A 0035452626 ROUND PIN BUSHING
TO 009 545 44 28
A 0045458628 PLUG
Repalced by: A 0075450028
347B A 0075450028 PIN BUSHING HOUSING
Repalced by: A 0155454928
347B A 0155454928 PLUG
4-POLE
A 0055451328 PLUG
Repalced by: A 0065458028
348 A 0065458028 PIN BUSHING HOUSING
CABLE HARNESS TO CONTACTOR
A 0045458528 PLUG
Repalced by: A 0085452028
350 A 0085452028 PIN BUSHING HOUSING
TEMPERATURE GAUGE SENDER UNIT
352 A 0095451428 COVER
TO 008 545 20 28
354 A 0015454426 ROUND PIN BUSHING
TO 008 545 20 28
356 A 0005460173 RAIL
N 000934006024 NUT
ELECTRONIC CABLE TO STARTING CABLE
N 000125006421 WASHER
ELECTRONIC CABLE TO STARTING CABLE
Repalced by: N 000125006449
N 000125006449 WASHER
ELECTRONIC CABLE TO STARTING CABLE
N 912004006102 LOCK WASHER
ELECTRONIC CABLE TO STARTING CABLE
364 A 1165401073 BRACKET
LINE TO BRAKE BOOSTER
366 A 1082950124 CLAMPING SCREW
BRACKET TO BRAKE BOOSTER
368 N 912004006102 LOCK WASHER
BRACKET TO BRAKE BOOSTER
370 N 000934006013 NUT
Repalced by: N 304032006008
370 N 304032006008 NUT
BRACKET TO BRAKE BOOSTER
372 A 0005452932 CONTROL UNIT
ELECTRONIC CONTROL BOX
372 A 0005453332 CONTROL UNIT
ELECTRONIC CONTROL BOX
372 A 0005452732 CONTROL UNIT
ELECTRONIC CONTROL BOX
374 A 1165400673 BRACKET
ELECTRONIC CONTROL BOX
374 A 1165400773 BRACKET
ELECTRONIC CONTROL BOX
376 A 1165451840 BRACKET
376 A 1165451840 BRACKET
376 A 1165452140 BRACKET
378 N 007976004205 SHEET METAL SCREW
BRACKET TO SIDE PANEL
380 A 0025423317 SENDER UNIT
380 A 0025421617 SENDER UNIT
380 A 0025423217 SENDER UNIT
382 A 1165450586 CLAMP
ELECTRONIC CONTROL BOX
383 A 1165450686 CLAMP
ELECTRONIC CONTROL BOX
384 N 007976004205 SHEET METAL SCREW
BRACKET TO SIDE PANEL
386 N 000933006130 SCREW
PRESSURE SENSOR TO LEFT WHEEL ARCH PANEL
388 N 912004006102 LOCK WASHER
PRESSURE SENSOR TO LEFT WHEEL ARCH PANEL
390 N 913002006005 NUT
Repalced by: N 913002006009
390 N 913002006009 NUT
PRESSURE SENSOR TO LEFT WHEEL ARCH PANEL
N 000933004028 SCREW
GROUND CABLE TO RADIATOR BAFFLE PLATE
N 912004004102 LOCK WASHER
GROUND CABLE TO RADIATOR BAFFLE PLATE
N 000934004006 NUT
GROUND CABLE TO RADIATOR BAFFLE PLATE
394 A 1109950165 CLAMP
HIGH TENSION/DIAGNOSIS/CONTROL CABLES TO FUEL LINE
396 A 1169970790 LOOM TIE
Repalced by: A 0019974190
396 A 0019974190 LOOM TIE
HIGH TENSION/DIAGNOSIS/CONTROL CABLES TO FUEL LINE
402 A 1165401307 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165401807 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165404007 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165402207 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165403407 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165405607 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165401407 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165403607 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165404607 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165400907 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165401907 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165404107 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165402307 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165403507 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165405707 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165403107 CABLE HARNESS
TAIL LAMP CABLE HARNESS
402 A 1165404707 CABLE HARNESS
TAIL LAMP CABLE HARNESS
A 0045458528 PLUG
Repalced by: A 0085452028
410 A 0085452028 PIN BUSHING HOUSING
ELECTRICALLY HEATED REAR WINDOW PANE, 1- POLE
412 A 0095451428 COVER
TO 008 545 20 28
414 A 0015454426 ROUND PIN BUSHING
TO 008 545 20 28
A 0005454728 PLUG
415 A 0045458528 PLUG
Repalced by: A 0085452028
415 A 0085452028 PIN BUSHING HOUSING
READING LAMP, 1-POLE
A 0025454928 PLUG
Repalced by: A 0085453728
416 A 0085453728 PIN BUSHING HOUSING
READING LAMP, 2-POLE
417 A 0085453828 COVER
TO 008 545 37 28
420 A 0008210626 CONNECTOR
INTERIOR REAR LAMP SWITCH
A 0045458628 PLUG
Repalced by: A 0075450028
422 A 0075450028 PIN BUSHING HOUSING
Repalced by: A 0155454928
422 A 0155454928 PLUG
4-POLE
424 A 0025454028 PLUG
Repalced by: A 0065458128
424 A 0065458128 PIN BUSHING HOUSING
STOP AND TAIL LIGHTS,8-POLE
A 0025452628 PLUG
Repalced by: A 0095455428
426 A 0095455428 PLUG HOUSING
MAIN CABLE HARNESS, 12-POLES
A 0035453728 PLUG
Repalced by: A 0125450328
426 A 0095455628 PLUG HOUSING
Repalced by: A 0095455628
426 A 0095455628 PLUG HOUSING
(PLUG HOUSING),14-POLE
428 A 0095456028 COVER
TO 009 545 56 28
428 A 0095452428 PLUG
TO 009 545 54 28
428 A 0095456028 COVER
TO 009 545 56 28
430 A 0015453826 PLUG PIN
TO 009 545 56 28
432 A 0079975881 GROMMET
FUEL PUMP BRANCH-OFF TO LUGGAGE COMPARTMENT FLOOR
434 A 1239971681 GROMMET
ELECTRIC CABLES TO FUEL PUMP
436 A 0005464340 PIN BUSHING
438 A 0005460845 INSULATING SLEEVE
440 N 000933004028 SCREW
TAIL LAMP CABLE HARNESS GROUND CONNECTION TO REAR PANEL
442 N 912004004102 LOCK WASHER
TAIL LAMP CABLE HARNESS GROUND CONNECTION TO REAR PANEL
444 N 000934004006 NUT
TAIL LAMP CABLE HARNESS GROUND CONNECTION TO REAR PANEL
446 A 1235454940 BRACKET
TAIL LAMP CABLE HARNESS COUPLER
448 N 007976004205 SHEET METAL SCREW
450 N 000125004311 WASHER
Repalced by: N 000125004319
450 N 000125004319 WASHER
452 A 1169970790 LOOM TIE
Repalced by: A 0019974190
452 A 0019974190 LOOM TIE
BRANCH-OFF TO WARM-UP SENDER,AIR-FLOW SENSOR-PLATE CONTACT,COLD START VALVE
454 A 1109950365 CLAMP
Repalced by: A 0004760436
454 A 0004760436 BRACKET
BRANCH-OFF TO WARM-UP SENDER,AIR-FLOW SENSOR-PLATE CONTACT,COLD START VALVE
456 A 0039887978 CLIP
Repalced by: A 0059888178
456 A 0059888178 CLIP
ELECTRIC CABLE TO REAR LID LEFT HINGE
456 A 0009881778 CLIP
BRANCH-OFF TO LUGGAGE COMPARTMENT TO REAR LID
456 A 0009881778 CLIP
BRANCH-OFF TO LUGGAGE COMPARTMENT TO REAR LID
456 A 0009888978 CLIP
FUEL PUMP BRANCH-OFF TO LUGGAGE COMPARTMENT FLOOR
462 A 0001581745 SERIES RESISTOR
1.8 OHM
462 A 0001581845 SERIES RESISTOR
1.8 OHM
464 A 0001581945 SERIES RESISTOR
0.4 OHM
464 A 0001582045 SERIES RESISTOR
0.4 OHM
466 A 0001581345 SERIES RESISTOR
0.6 OHM
466 A 0001582145 SERIES RESISTOR
Repalced by: A 0001581345
466 A 0001581345 SERIES RESISTOR
0.6 OHM
468 N 007981004331 SHEET METAL SCREW
SERIES RESISTOR TO LEFT WHEEL ARCH PANEL
470 N 007985004123 SCREW
CABLE TO SERIES RESISTOR
472 N 912004004102 LOCK WASHER
CABLE TO SERIES RESISTOR
474 A 1165408309 CABLE HARNESS
TRANSISTORIZED IGNITION
476 A 0001584903 IGNITION COIL
476 A 0001582803 IGNITION COIL
478 A 2019902201 SCREW
IGNITION COIL TO LEFT WHEEL ARCH PANEL
480 A 0009900848 WASHER
IGNITION COIL TO LEFT WHEEL ARCH PANEL
482 N 000934006013 NUT
Repalced by: N 304032006008
482 N 304032006008 NUT
IGNITION COIL TO LEFT WHEEL ARCH PANEL
484 N 000934005008 NUT
CABLES TO IGNITION COIL
486 N 912004005103 LOCK WASHER
CABLES TO IGNITION COIL
488 A 0001581285 SUPPRESSOR HOUSING
488 A 0001581485 SUPPRESSOR HOUSING
490 A 0005458432 CONTROL UNIT
TRANSISTORIZED IGNITION
490 A 0005457632 IGNITION CONTROL BOX
TRANSISTORIZED IGNITION
492 A 0029886778 CLIP
TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL
494 N 007976005205 SHEET METAL SCREW
TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL
496 A 0021543606 REGULATOR AND CUT-OUT
Repalced by: A 0021547406
496 A 0021547406 REGULATOR AND CUT-OUT
498 N 000933006103 SCREW
Repalced by: N 304017006018
498 N 304017006018 SCREW
REGULATOR MOUNTING
500 N 912004006102 LOCK WASHER
REGULATOR MOUNTING
502 N 000934006013 NUT
Repalced by: N 304032006008
502 N 304032006008 NUT
REGULATOR MOUNTING
504 A 0035421020 HORN
335 HZ
504 A 0035421620 HORN
335 HZ
504 A 0035420720 HORN
400 HZ
504 A 0035421720 HORN
400 HZ
506 N 000933008131 SCREW
Repalced by: N 304017008016
506 N 304017008016 SCREW
HORN TO CROSS STRUT
508 N 912004008102 LOCK WASHER
HORN TO CROSS STRUT
510 N 007985004123 SCREW
ELECTRIC CABLE TO HORN
512 N 912004004102 LOCK WASHER
ELECTRIC CABLE TO HORN
514 A 1165409309 CABLE HARNESS
DIAGNOSIS
514 A 1165400108 CABLE HARNESS
DIAGNOSIS
516 A 1235450026 PLUG SOCKET
516 A 1235450026 PLUG SOCKET
518 A 0025459926 ROUND PIN BUSHING
518 A 0025459926 ROUND PIN BUSHING
520 A 1235450003 CAP
520 A 1235450003 CAP
522 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
522 N 000000000460 SHEET METAL SCREW
DIAGNOSIS BOX TO BRACKET
524 A 0015450211 SWITCH
FOOT OPERATED PARKING BRAKE
524 A 0015450211 SWITCH
FOOT OPERATED PARKING BRAKE
526 A 0019906751 NUT
Repalced by: A 0002520372
526 A 0002520372 NUT
526 A 0002520372 NUT
528 N 912006008000 LOCK WASHER
529 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
529 N 000137008212 SPRING WASHER
530 A 2018201110 SWITCH
Repalced by: A 2018202110
530 A 2018202110 SWITCH
FOOT OPERATED PARKING BRAKE
532 A 0039888678 CLIP
534 A 1165451040 BRACKET
536 A 1165401973 BRACKET
536 A 1165401973 BRACKET
539 A 0015450832 CONTROL UNIT
HOT STARTING RELAY
542 A 0005400217 SENDER UNIT
Repalced by: A 1265402017
542 A 1265402017 SENDER UNIT
BRAKE LINING WEAR INDICATOR
544 A 1165407909 CABLE HARNESS
BRAKE LINING WEAR INDICATOR,LEFT
544 A 1165408409 CABLE HARNESS
BRAKE LINING WEAR INDICATOR,RIGHT
546 A 0135457928 PLUG PIN
548 A 0019971481 GROMMET
550 N 000933006127 SCREW
COUPLER TO BRAKE CALIPER
552 N 000137006204 SPRING WASHER
COUPLER TO BRAKE CALIPER
554 A 1265460643 BRACKET
556 N 000933006122 SCREW
Repalced by: N 304017006034
556 N 304017006034 SCREW
558 A 0009883378 CLIP
ADDITIONAL CABLE HARNESS TO WHEELHOUSE PANEL
562 A 1165420007 FLEXIBLE SHAFT
1220 MM
562 A 1165420107 FLEXIBLE SHAFT
1330 MM
562 A 1165420607 FLEXIBLE SHAFT
1380 MM
562 A 1165420207 FLEXIBLE SHAFT
1460 MM
562 A 1165420307 FLEXIBLE SHAFT
1570 MM
562 A 1165421607 FLEXIBLE SHAFT
1620 MM
564 A 1075421407 FLEXIBLE SHAFT
400 MM
566 A 1165421207 FLEXIBLE SHAFT
970 MM
574 A 0079975881 GROMMET
575 A 1165420840 BRACKET
576 A 0019951001 CLAMP
577 N 007981003246 SHEET METAL SCREW
578 N 000933006194 SCREW
FLEXIBLE SHAFT TO TRANSMISSION
579 N 000137006204 SPRING WASHER
FLEXIBLE SHAFT TO TRANSMISSION
580 A 1165420044 PIPE LINE
580 A 1165420644 PIPE LINE
580 A 1165420844 PIPE LINE
580 A 1165420144 PIPE LINE
580 A 1165420444 PIPE LINE
580 A 1165420544 PIPE LINE
580 A 1165420344 PIPE LINE
580 A 1165420744 PIPE LINE
580 A 1165420944 PIPE LINE
580 A 1165420244 PIPE LINE
586 A 0019971481 GROMMET
588 A 1235460481 COVERING
FOOT OPERATED PARKING-BRAKE CABLE
590 A 0029884978 CLIP
OIL PRESS. GAUGE LINE TO BRAKE BOOSTER & TO RETAINING BRACKET AT FIRE WALL
592 A 1165422740 BRACKET
594 A 1149880178 CLIP
596 A 0085428506 SPEEDOMETER
240 KM
596 A 0085428706 SPEEDOMETER
240 KM
596 A 0085428806 SPEEDOMETER
240 KM
596 A 0085427706 SPEEDOMETER
260 KM
600 A 0035400747 INSTRUMENT CLUSTER
A 0005421978 CONNECTION PLATE
602 A 0005424125 POTENTIOMETER
604 A 0005451919 SOCKET
608 A 0005452019 SOCKET
610 A 1075420056 HOUSING
612 A 1145420280 GASKET
614 N 007981003243 SHEET METAL SCREW
SPEEDOMETER, INSTRUMENT CLUSTER, AND TACHOMETER
616 N 000125004311 WASHER
Repalced by: N 000125004319
616 N 000125004319 WASHER
SPEEDOMETER, INSTRUMENT CLUSTER, AND TACHOMETER
618 N 007981003247 SHEET METAL SCREW
POTENTIOMETER TO HOUSING
620 N 000934004006 NUT
SPEEDOMETER, INSTRUMENT CLUSTER, AND TACHOMETER
626 A 0039885378 CLIP
628 A 0005400643 RAIL
LEFT
630 A 1075400143 RAIL
RIGHT
630 A 1165400343 RAIL
RIGHT
636 A 0005454019 SOCKET
TELL-TALE LAMP
636 A 0005451619 SOCKET
INSTRUMENT LIGHTING
638 A 0005420911 CLOCK
640 A 0015426016 TACHOMETER
WITH CLOCK
640 A 0015426116 TACHOMETER
WITH CLOCK
642 A 0005446794 BULB
Repalced by: N 072601012240
642 N 072601012240 BULB
642 N 072601012230 BULB
646 A 1165401509 CABLE HARNESS
TACHOMETER
650 A 0055451232 CONTROL UNIT
TEMPOMAT
654 A 1165454040 BRACKET
658 N 000934006013 NUT
Repalced by: N 304032006008
658 N 304032006008 NUT
BRACKET TO PEDAL ASSEMBLY
662 N 912004006102 LOCK WASHER
BRACKET TO PEDAL ASSEMBLY
666 N 000933006127 SCREW
BRACKET TO PEDAL ASSEMBLY
670 N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
670 N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
670 N 000000000459 SHEET METAL SCREW
CONTROL UNIT TO BRACKET
674 A 1163001830 WIRE CABLE
A 1163002230 WIRE CABLE
676 N 007981004244 SHEET METAL SCREW
Repalced by: N 000000000453
676 N 000000000453 SHEET METAL SCREW
WIRE CABLE TO ACTUATOR
678 A 0029880178 CLIP
WIRE CABLE TO AIR CLEANER
682 A 1159950101 CLAMP
WIRE CABLE TO RIGHT WHEEL ARCH PANEL
684 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
684 N 000000000460 SHEET METAL SCREW
WIRE CABLE TO RIGHT WHEEL ARCH PANEL
689 A 0029884978 CLIP
WIRE CABLE TO COOLING WATER EXPANSION HOSE BRACKET
694 A 1165453740 BRACKET
698 A 0019889878 CLIP
702 A 1170780041 BRACKET
706 A 0009979652 HOSE
900 MM
710 A 1170780145 BRANCH-OFF FITTING
714 A 0079976182 HOSE
30 MM
714 A 0079976182 HOSE
30 MM
718 A 0015450732 CONTROL UNIT
ACTUATOR
722 A 1165402973 BRACKET
BRACKET TO WHEEL ARCH PANEL
725 N 000934008013 NUT
ACTUATOR TO BRACKET
729 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
729 N 000137008212 SPRING WASHER
ACTUATOR TO BRACKET
734 N 000934006013 NUT
Repalced by: N 304032006008
734 N 304032006008 NUT
BRACKET TO WHEEL ARCH PANEL
738 N 912004006102 LOCK WASHER
BRACKET TO WHEEL ARCH PANEL
742 A 1165409209 CABLE HARNESS
MAIN CABLE HARNESS TO PULSE SENDER UNIT
746 A 0045420517 SENDER UNIT
750 A 0045426517 SENDER UNIT
754 A 1169977682 HOSE
758 A 0009907154 NUT
762 A 0085450928 PLUG HOUSING
ADDITIONAL CABLE HARNESS USED FOR FLOAT CHAMBER VENTILATION VALVE,2-POLE
766 A 0085451128 COVER
Repalced by: A 0005457903
766 A 0005457903 CAP
TO 008 545 09 28
770 A 0135457928 PLUG PIN
TO 008 545 09 28
774 A 0085452028 PIN BUSHING HOUSING
ELECTRIC CABLE TO CARBURETOR
778 A 0095451428 COVER
TO 008 545 20 28
782 A 0015454426 ROUND PIN BUSHING
TO 008 545 20 28
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
