Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

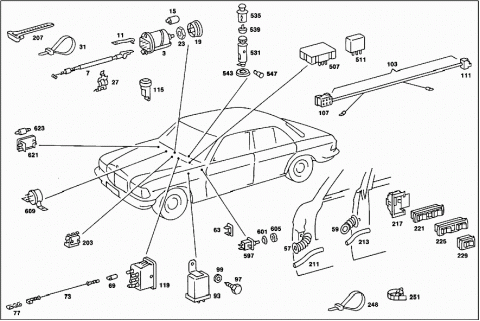

| 003 | A 1168210051 | SWITCH |
| A 1168300031 | WIRE CABLE | |
| Repalced by: A 1168300431 | ||
| 007 | A 1168300431 | WIRE CABLE |
| 011 | A 1168330068 | SPRING |
| 015 | A 0015440194 | BULB |
| Repalced by: A 0008250094 | ||
| 015 | A 0008250094 | BULB |
| Repalced by: N 000000001061 | ||
| 015 | N 000000001061 | BULB |
| FOR CABLE WITH SOCKET,SEE GROUP 54 | ||
| 019 | A 1168200092 | KNOB |
| 023 | A 1075450072 | NUT |
| 027 | A 0019886878 | CLIP |
| A 0029970890 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 031 | A 0019974390 | LOOM TIE |
| 240 MM | ||
| A 1079970481 | GROMMET | |
| Repalced by: A 1079972981 | ||
| 035 | A 1079972981 | GROMMET |
| A 1168200112 | COVERING | |
| Repalced by: A 1168200512 | ||
| 039 | A 1168200512 | COVERING |
| LEFT | ||
| A 1168200212 | COVERING | |
| Repalced by: A 1168200412 | ||
| A 1168200412 | COVERING | |
| RIGHT | ||
| 043 | A 0009906236 | SCREW |
| 045 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 045 | N 000125004319 | WASHER |
| 049 | A 1168210336 | COVERING |
| LEFT | ||
| A 1168210436 | COVERING | |
| RIGHT | ||
| 053 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 053 | N 000000000453 | SHEET METAL SCREW |
| 057 | A 1078210097 | HOSE |
| 059 | A 1168210097 | HOSE |
| 063 | A 0008210038 | COVER |
| 069 | N 072601012230 | BULB |
| 069 | A 0015440194 | BULB |
| Repalced by: A 0008250094 | ||
| 069 | A 0008250094 | BULB |
| Repalced by: N 000000001061 | ||
| 069 | N 000000001061 | BULB |
| A 1168200017 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| A 1168200117 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| A 1168200017 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| 073 | A 1238200017 | LIGHT GUIDE |
| 073 | A 1238200017 | LIGHT GUIDE |
| 077 | A 0005468440 | CABLE SHOE |
| A 0008204315 | ELECTRIC CABLE | |
| Repalced by: A 0008208015 | ||
| A 0008208015 | ELECTRIC CABLE | |
| Repalced by: A 1248201215 | ||
| A 1248201215 | ELECTRIC CABLE | |
| TO ANTENNA | ||
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| A 0019974190 | LOOM TIE | |
| 081 | A 1088210751 | SWITCH |
| PANE WASHER SYSTEM | ||
| 085 | N 000933005073 | SCREW |
| 087 | N 000137005203 | SPRING WASHER |
| 089 | N 000934005008 | NUT |
| A 1078200110 | SWITCH | |
| Repalced by: A 1078200010 | ||
| 093 | A 1078200010 | SWITCH |
| 097 | N 007976004205 | SHEET METAL SCREW |
| 099 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 099 | N 009021005205 | WASHER |
| N 914025004103 | COMBINATION BOLT | |
| 103 | A 1168200615 | ELECTRIC CABLE |
| HEATED REAR WINDOW PANE | ||
| 107 | A 0025454628 | PLUG |
| Repalced by: A 0055451328 | ||
| 107 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 107 | A 0065458028 | PIN BUSHING HOUSING |
| HEATED REAR WINDOW PANE | ||
| 111 | A 0008210526 | CONNECTOR |
| Repalced by: A 0008212326 | ||
| 111 | A 0008212326 | CONNECTOR |
| HEATED WINDOW ROCKER SWITCH | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| 115 | A 0085452028 | PIN BUSHING HOUSING |
| A 0018217651 | SWITCH | |
| Repalced by: A 0008206010 | ||
| 119 | A 0008206010 | SWITCH |
| HEATED REAR WINDOW PANE | ||
| A 0005458334 | FUSE | |
| 123 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 123 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 125 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 125 | A 0095454028 | PLUG HOUSING |
| BIPOLAR | ||
| 131 | A 0008210626 | CONNECTOR |
| 135 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 135 | A 0095454028 | PLUG HOUSING |
| BIPOLAR | ||
| 139 | A 0005454728 | PLUG |
| 139 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 139 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 141 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 141 | A 1265401081 | PLUG SOCKET |
| UNIPOLAR | ||
| 145 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 145 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 145 | A 0155454928 | PLUG |
| 4-POLE | ||
| 149 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 149 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 151 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 151 | A 0095454028 | PLUG HOUSING |
| BIPOLAR | ||
| A 0015454028 | PLUG | |
| BIPOLAR | ||
| A 0025455228 | PLUG | |
| Repalced by: A 0045458628 | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 3-POLE | ||
| A 0055450728 | PLUG | |
| 3-POLE | ||
| A 0008210625 | PLUG | |
| BIPOLAR | ||
| A 1119972381 | GROMMET | |
| Repalced by: A 0089971781 | ||
| A 0089971781 | GROMMET | |
| A 1169971481 | GROMMET | |

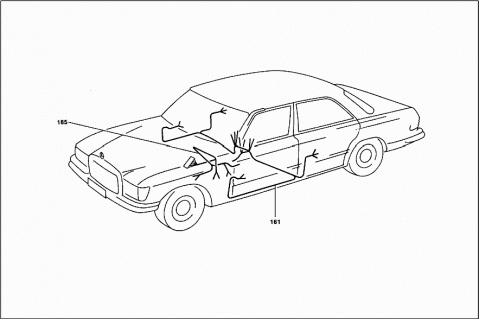

| 161 | A 1168208615 | ELECTRIC CABLE |
| ELECTRIC WINDOW REGULATOR,FOURFOLD | ||
| 161 | A 1168209815 | ELECTRIC CABLE |
| ELECTRIC WINDOW REGULATOR,FOURFOLD | ||
| 165 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 165 | A 0065457828 | PLUG HOUSING |
| 6-POLE | ||
| 168 | A 0045456428 | PLUG |
| Repalced by: A 0045456528 | ||
| 168 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 168 | A 0095459428 | PLUG |
| 4-POLE | ||
| 171 | A 0045456328 | PLUG |
| Repalced by: A 0045456528 | ||
| 171 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 171 | A 0095459428 | PLUG |
| 3-POLE | ||
| 174 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 174 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 177 | A 0045456228 | PIN BUSHING HOUSING |
| Repalced by: A 0095458328 | ||
| 177 | A 0095458328 | PIN BUSHING HOUSING |
| 180 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 180 | A 0095454028 | PLUG HOUSING |
| BIPOLAR | ||
| 185 | A 1168201515 | ELECTRIC CABLE |
| ELECTRIC WINDOW REGULATOR ADDITIONAL CABLE HARNESS | ||
| 185 | A 1168201415 | ELECTRIC CABLE |
| ELECTRIC WINDOW REGULATOR ADDITIONAL CABLE HARNESS | ||
| 189 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 189 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 189 | A 0045453028 | PLUG |
| Repalced by: A 0055451328 | ||
| 189 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 189 | A 0065458028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 189 | A 0035455528 | PLUG |
| Repalced by: A 0055451328 | ||
| 189 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 189 | A 0065458028 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 1168690814 | HOLDER | |
| N 914031005200 | COMBINATION BOLT | |
| 199 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 199 | A 0009871840 | RUBBER BUFFER |
| 199 | A 0009871840 | RUBBER BUFFER |
| 203 | A 0029884878 | CLIP |
| 203 | A 0029884878 | CLIP |
| A 0029970890 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 207 | A 0019974390 | LOOM TIE |
| 240 MM | ||
| N 007985004136 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| 211 | N 040621014200 | INSULATING HOSE |
| 14 X 1 X 250 MM MOTOR CABLE CONNECTOR, FRONT DOOR | ||
| 213 | N 040621009200 | INSULATING HOSE |
| 9 X 0.7 X 250 MM MOTOR CABLE CONNECTOR, REAR DOOR | ||
| 217 | A 1098210665 | CASE |
| Repalced by: A 1238210265 | ||
| 217 | A 1238210265 | CASE |
| 221 | A 0018214951 | SWITCH |
| WITH SAFETY SWITCH | ||
| 225 | A 0018215051 | SWITCH |
| LESS SAFETY SWITCH | ||
| 229 | A 0018215151 | SWITCH |
| LESS SAFETY SWITCH | ||
| 233 | A 0015420219 | RELAY |
| ELECTRIC WINDOW REGULATOR | ||
| 233 | A 0015422219 | RELAY |
| ELECTRIC WINDOW REGULATOR | ||
| 237 | A 1168210014 | BRACKET |
| 240 | N 007976004215 | SHEET METAL SCREW |
| 244 | A 0005458334 | FUSE |
| 248 | A 0019974190 | LOOM TIE |
| FRONT AND REAR DOORS,INSIDE | ||
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| 248 | A 0019974190 | LOOM TIE |
| FRONT AND REAR DOORS,INSIDE | ||
| 251 | A 1149970190 | LOOM TIE |
| ON SIDE PANEL | ||
| 251 | A 1149970190 | LOOM TIE |
| ON REAR DOOR | ||
| 255 | A 0029880278 | CLIP |
| 255 | A 0029880278 | CLIP |
| 259 | A 0009972781 | GROMMET |
| 259 | A 0009972881 | GROMMET |
| 263 | N 000084004139 | SCREW |
| 265 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 265 | N 912004004102 | LOCK WASHER |
| N 007985004107 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| 273 | N 914025004103 | COMBINATION BOLT |
| 277 | A 0005467041 | CABLE CONNECTOR |
| ON FRONT AND REAR DOORS | ||
| 281 | N 007516004115 | TAPPING SCREW |

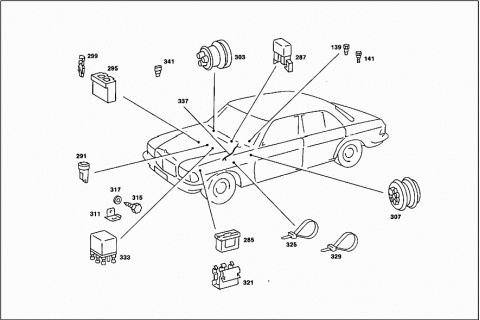

| A 1168205915 | ELECTRIC CABLE | |
| TO AIR CONDITIONER AND AUXILIARY FAN | ||
| A 1168205815 | ELECTRIC CABLE | |
| TO AIR CONDITIONER AND AUXILIARY FAN | ||
| A 0035455528 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| CABLE CONNECTOR 4-POLE | ||
| 285 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 285 | A 0085453728 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 2-POLE | ||
| 287 | A 0035454728 | PLUG |
| Repalced by: A 0085450828 | ||
| 287 | A 0085450828 | PIN BUSHING HOUSING |
| CABLE CONNECTOR 2-POLE | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| 291 | A 0085452028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR,1-POLE | ||
| 295 | A 0055451728 | PLUG |
| Repalced by: A 0115455928 | ||
| 295 | A 0115455928 | PIN BUSHING HOUSING |
| 299 | A 0055451828 | PIN BUSHING |
| 303 | A 1169971481 | GROMMET |
| 307 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 307 | A 0089971781 | GROMMET |
| 311 | A 1168210114 | BRACKET |
| AIR CONDITIONER CABLE HARNESS | ||
| 315 | N 007976005203 | SHEET METAL SCREW |
| 317 | N 000125006421 | WASHER |
| N 914025004103 | COMBINATION BOLT | |
| 321 | A 0029884878 | CLIP |
| A 0009888978 | CLIP | |
| 325 | A 1149970190 | LOOM TIE |
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| 329 | A 0019974190 | LOOM TIE |
| A 0005458334 | FUSE | |
| 16 A | ||
| 333 | A 0015420219 | RELAY |
| AIR CONDITIONER | ||
| A 0015422219 | RELAY | |
| 337 | A 0008200710 | SWITCH |
| Repalced by: A 0008208010 | ||
| 337 | A 0008208010 | SWITCH |
| AT LIQUID TANK | ||
| 337 | A 0018201710 | SWITCH |
| Repalced by: A 0018201810 | ||
| 337 | A 0018201810 | SWITCH |
| Repalced by: A 0008208010 | ||
| 337 | A 0008208010 | SWITCH |
| AT LIQUID TANK | ||
| 341 | A 0005460645 | INSULATING SLEEVE |
| A 0008203242 | ELECTRIC MOTOR | |
| Repalced by: A 0008204042 | ||
| A 0008203442 | ELECTRIC MOTOR | |
| Repalced by: A 0008204042 | ||
| 381 | A 0008204042 | ELECTRIC MOTOR |

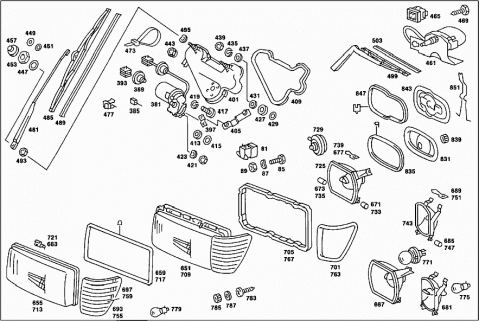

| 385 | A 0008243075 | CARBON BRUSH SET |
| ASSORTMENT = 3 PIECES | ||
| 389 | A 1169971081 | GROMMET |
| A 0055454928 | PLUG | |
| Repalced by: A 0035457128 | ||
| 393 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 393 | A 0065457828 | PLUG HOUSING |
| 5-PIN | ||
| A 0008246510 | CRANK | |
| Repalced by: A 0008246810 | ||
| 397 | A 0008246810 | CRANK |
| A 1168200828 | HOUSING | |
| Repalced by: A 1168201928 | ||
| 401 | A 1168201928 | HOUSING |
| A 1168201528 | HOUSING | |
| Repalced by: A 1168201828 | ||
| A 1168201828 | HOUSING | |
| 405 | A 0008241406 | ROD |
| A 0008241306 | ROD | |
| A 1168240298 | SEAL | |
| Repalced by: A 1168240498 | ||
| 409 | A 1168240498 | SEAL |
| A 1168240398 | SEAL | |
| Repalced by: A 1168240698 | ||
| A 1168240698 | SEAL | |
| 413 | A 0009874741 | RUBBER RING |
| 415 | A 0029901040 | WASHER |
| 417 | N 000084006197 | SCREW |
| 419 | N 912004006102 | LOCK WASHER |
| 421 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 421 | N 304032008006 | NUT |
| 423 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 423 | N 000137008212 | SPRING WASHER |
| 427 | A 0039974140 | SEAL RING |
| 429 | A 0019909840 | WASHER |
| Repalced by: N 000988018003 | ||
| 429 | N 000988018003 | FITTED WASHER |
| 431 | A 0009873841 | RUBBER RING |
| 435 | N 912004006102 | LOCK WASHER |
| 437 | N 000125006421 | WASHER |
| 437 | N 000125006421 | WASHER |
| 439 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 439 | N 304032006008 | NUT |
| 439 | N 304032006008 | NUT |
| 443 | N 913011006000 | NUT |
| A 0019909740 | WASHER | |
| Repalced by: A 0019909840 | ||
| 447 | A 0019909840 | WASHER |
| Repalced by: N 000988018003 | ||
| 447 | N 000988018003 | FITTED WASHER |
| 449 | A 0039974140 | SEAL RING |
| 451 | A 0019909840 | WASHER |
| Repalced by: N 000988018003 | ||
| 451 | N 000988018003 | FITTED WASHER |
| 453 | A 0019909151 | NUT |
| 457 | A 1168240072 | CAPSULE |
| 461 | A 1168201342 | ELECTRIC MOTOR |
| LEFT, HEADLAMP CLEANING DEVICE | ||
| A 1168201442 | ELECTRIC MOTOR | |
| RIGHT,HEADLAMP CLEANING DEVICE | ||
| 465 | A 0065455628 | PLUG |
| Repalced by: A 0065455728 | ||
| 465 | A 0065455728 | PLUG |
| Repalced by: A 0095455228 | ||
| 465 | A 0095455228 | PLUG HOUSING |
| 3-POLE | ||
| A 0065455728 | PLUG | |
| Repalced by: A 0095455228 | ||
| A 0095455228 | PLUG HOUSING | |
| 4-POLE | ||
| 469 | N 007976005203 | SHEET METAL SCREW |
| 473 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 473 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| A 0029970890 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 473 | A 0019974390 | LOOM TIE |
| 240 MM | ||
| 477 | A 0039880378 | CLIP |
| A 1168200544 | WIPER ARM | |
| Repalced by: A 1168202544 | ||
| A 1168202544 | WIPER ARM | |
| LEFT | ||
| A 1168200644 | WIPER ARM | |
| Repalced by: A 1168202644 | ||
| 481 | A 1168202644 | WIPER ARM |
| RIGHT | ||
| A 1168200144 | WIPER ARM | |
| Repalced by: A 1168202744 | ||
| A 1168202744 | WIPER ARM | |
| LEFT | ||
| A 1168200244 | WIPER ARM | |
| Repalced by: A 1168202844 | ||
| A 1168202844 | WIPER ARM | |
| RIGHT | ||
| A 1168200045 | WIPER BLADE | |
| Repalced by: A 1168200345 | ||
| 485 | A 1168200345 | WIPER BLADE |
| LEFT | ||
| 485 | A 1168200345 | WIPER BLADE |
| RIGHT | ||
| A 1168200145 | WIPER BLADE | |
| Repalced by: A 1168200245 | ||
| A 1168200245 | WIPER BLADE | |
| Repalced by: A 1168200445 | ||
| 485 | A 1168200445 | WIPER BLADE |
| LEFT | ||
| 485 | A 1168200445 | WIPER BLADE |
| RIGHT | ||
| 489 | A 0008241427 | WIPER RUBBER |
| LEFT | ||
| 489 | A 0008241427 | WIPER RUBBER |
| RIGHT | ||
| A 0008241527 | WIPER RUBBER | |
| Repalced by: A 1168200445 | ||
| 489 | A 0008241827 | WIPER RUBBER |
| LEFT | ||
| 489 | A 0008241827 | WIPER RUBBER |
| RIGHT | ||
| 493 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 493 | N 304035008001 | NUT |
| 495 | A 0009901748 | WASHER |
| 499 | A 1168201944 | WIPER ARM |
| LEFT, HEADLAMP CLEANING DEVICE | ||
| A 1168202044 | WIPER ARM | |
| RIGHT,HEADLAMP CLEANING DEVICE | ||
| 503 | A 0008241927 | WIPER RUBBER |
| A 1168210025 | PLUG | |
| Repalced by: A 1168210063 | ||
| 507 | A 1168210063 | PULSE SENDER UNIT |
| WINDSHIELD WIPER SYSTEM | ||
| A 1158210225 | PLUG | |
| Repalced by: A 1158210063 | ||
| 511 | A 1158210063 | PULSE SENDER UNIT |
| WINDSHIELD WIPER SYSTEM | ||
| 511 | A 1238210063 | PULSE SENDER UNIT |
| WINDSHIELD WIPER SYSTEM | ||
| 511 | A 0008210763 | PULSE SENDER UNIT |
| Repalced by: A 1238210063 | ||
| 511 | A 1238210063 | PULSE SENDER UNIT |
| WINDSHIELD WIPER SYSTEM | ||
| 531 | A 1158250153 | CIGAR LIGHTER |
| 535 | A 0008250751 | ELEMENT |
| 539 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 539 | A 0008250252 | INCANDESCENT SPIRAL |
| 543 | A 0029941641 | LOCK |
| 547 | N 072601012110 | BULB |
| 581 | A 0008252301 | DOME LAMP |
| FRONT | ||
| 581 | A 0008206201 | INTERIOR LAMP |
| Repalced by: A 0008206301 | ||
| 581 | A 0008206301 | INTERIOR LAMP |
| FRONT | ||
| 581 | A 0008253101 | DOME LAMP |
| Repalced by: A 0008252301 | ||
| 581 | A 0008252301 | DOME LAMP |
| FRONT | ||
| 581 | A 0008206301 | INTERIOR LAMP |
| FRONT | ||
| A 0008252401 | DOME LAMP | |
| Repalced by: A 1238200501 | ||
| 585 | A 1238200501 | INTERIOR LAMP |
| REAR | ||
| A 0008253201 | DOME LAMP | |
| Repalced by: A 1238200701 | ||
| 585 | A 1238200701 | INTERIOR LAMP |
| Repalced by: A 1238200501 | ||
| 585 | A 1238200501 | INTERIOR LAMP |
| REAR | ||
| 589 | N 072601012120 | BULB |
| A 0018217451 | SWITCH | |
| Repalced by: A 0008205810 | ||
| 593 | A 0008205810 | SWITCH |
| DOME LAMP ROCKER SWITCH | ||
| A 0008212052 | CONTACTOR | |
| Repalced by: A 0008213152 | ||
| A 0008212852 | CONTACTOR | |
| Repalced by: A 0008213152 | ||
| 597 | A 0008213152 | CONTACTOR |
| Repalced by: A 0008213252 | ||
| 597 | A 0008213252 | CONTACTOR |
| Repalced by: A 2018201110 | ||
| 597 | A 2018201110 | SWITCH |
| Repalced by: A 2018202110 | ||
| 597 | A 2018202110 | SWITCH |
| DOOR CONTACT | ||
| 597 | A 2018202110 | SWITCH |
| ELECTRIC WINDOW REGULATOR TO FRONT PANEL LEFT PILLAR | ||
| A 0008213252 | CONTACTOR | |
| Repalced by: A 2018201110 | ||
| A 2018201110 | SWITCH | |
| Repalced by: A 2018202110 | ||
| A 2018202110 | SWITCH | |
| GLOVE COMPARTMENT LAMP | ||
| 601 | A 1159840556 | WASHER |
| 605 | A 1169900065 | NUT |
| A 1128200010 | SWITCH | |
| Repalced by: A 0028210151 | ||
| 609 | A 0028210151 | SWITCH |
| TIME-LAG RELAY | ||
| A 0008205510 | SWITCH | |
| Repalced by: A 0008213047 | ||
| A 0008213047 | RELAY | |
| TIME-LAG RELAY | ||
| 613 | A 1158200050 | INTERIOR LAMP |
| Repalced by: A 2018200401 | ||
| 613 | A 2018200401 | INTERIOR LAMP |
| Repalced by: A 2018200801 | ||
| 613 | A 2018200801 | INTERIOR LAMP |
| Repalced by: A 2018201211 | ||
| 613 | A 2018201211 | INTERIOR LAMP |
| LUGGAGE COMPARTMENT LAMP | ||
| 615 | A 0008213152 | CONTACTOR |
| Repalced by: A 0008213252 | ||
| 615 | A 0008213252 | CONTACTOR |
| Repalced by: A 2018201110 | ||
| 615 | A 2018201110 | SWITCH |
| Repalced by: A 2018202110 | ||
| 615 | A 2018202110 | SWITCH |
| 617 | N 072601012120 | BULB |
| A 1158250043 | LAMP | |
| Repalced by: A 1238200101 | ||
| A 1158250143 | LAMP | |
| Repalced by: A 1238200101 | ||
| 621 | A 1238200101 | INTERIOR LAMP |
| Repalced by: A 1268201301 | ||
| 621 | A 1268201301 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| 623 | N 072601012130 | BULB |
| 651 | A 1168202361 | LIGHTING UNIT |
| LEFT,RIGHT-SIDE TRAFFIC | ||
| A 1168202461 | LIGHTING UNIT | |
| RIGHT,RIGHT-SIDE TRAFFIC | ||
| 655 | A 0018269390 | LENS |
| LEFT | ||
| A 0018269490 | LENS | |
| RIGHT | ||
| 659 | A 0008268980 | SEAL |
| Repalced by: A 0018264480 | ||
| 659 | A 0018264480 | SEAL |
| 663 | A 0008263884 | SPRING |
| A 0008265778 | REFLECTOR | |
| Repalced by: A 0018260378 | ||
| 667 | A 0018260378 | REFLECTOR |
| LEFT | ||
| A 0008265878 | REFLECTOR | |
| Repalced by: A 0018260478 | ||
| A 0018260478 | REFLECTOR | |
| RIGHT | ||
| 671 | A 0008260094 | BUSHING |
| 673 | A 0008260494 | BUSHING |
| 677 | A 0008260139 | SHACKLE |
| 681 | A 0008265978 | REFLECTOR |
| 685 | A 0008260094 | BUSHING |
| 689 | A 0008260139 | SHACKLE |
| 693 | A 0008261957 | LENS |
| WITH SHELL,LEFT BLINKER LAMP | ||
| A 0008262057 | LENS | |
| WITH SHELL,RIGHT BLINKER LAMP | ||
| A 0018268390 | LENS | |
| Repalced by: A 0008200466 | ||
| 697 | A 0008200466 | LENS |
| LEFT | ||
| A 0018268490 | LENS | |
| Repalced by: A 0008200566 | ||
| A 0008200566 | LENS | |
| RIGHT | ||
| 701 | A 0008269080 | SEAL |
| LEFT | ||
| A 0008269180 | SEAL | |
| RIGHT | ||
| A 0008269280 | SEAL | |
| Repalced by: A 0008269480 | ||
| 705 | A 0008269480 | SEAL |
| A 1168200161 | LIGHTING UNIT | |
| Repalced by: A 1168203761 | ||
| 709 | A 1168203761 | LIGHTING UNIT |
| LEFT,RIGHT-SIDE TRAFFIC | ||
| H 4 | ||
| 709 | A 1168203761 | LIGHTING UNIT |
| LEFT,RIGHT-SIDE TRAFFIC | ||
| H 4 | ||
| 709 | A 1168205761 | LIGHTING UNIT |
| LEFT;R.H.TRAFFIC; WITH LIGHT RANGE REGULATOR | ||
| A 1168200261 | LIGHTING UNIT | |
| Repalced by: A 1168203861 | ||
| A 1168203861 | LIGHTING UNIT | |
| RIGHT,RIGHT-SIDE TRAFFIC | ||
| H 4 | ||
| A 1168203861 | LIGHTING UNIT | |
| RIGHT,RIGHT-SIDE TRAFFIC | ||
| H 4 | ||
| A 1168205861 | LIGHTING UNIT | |
| RIGHT;R.H.TRAFFIC; WITH LIGHT RANGE REGULATOR | ||
| 713 | A 0018267990 | LENS |
| LEFT | ||
| 713 | A 0018267990 | LENS |
| LEFT | ||
| A 0018268090 | LENS | |
| RIGHT | ||
| A 0018268090 | LENS | |
| RIGHT | ||
| 717 | A 0008268980 | SEAL |
| Repalced by: A 0018264480 | ||
| 717 | A 0018264480 | SEAL |
| 717 | A 0018264480 | SEAL |
| 721 | A 0008263884 | SPRING |
| 721 | A 0008263884 | SPRING |
| A 0008264878 | REFLECTOR | |
| Repalced by: A 0008269578 | ||
| 725 | A 0008269578 | REFLECTOR |
| LEFT | ||
| 725 | A 0008269578 | REFLECTOR |
| LEFT | ||
| A 0018260878 | REFLECTOR | |
| LEFT,HEADLIGHT RANGE REGULATOR | ||
| A 0008264978 | REFLECTOR | |
| Repalced by: A 0008269678 | ||
| A 0008269678 | REFLECTOR | |
| RIGHT | ||
| A 0008269678 | REFLECTOR | |
| RIGHT | ||
| A 0018260978 | REFLECTOR | |
| RIGHT,HEADLIGHT RANGE REGULATOR | ||
| 729 | A 0008003075 | ELEMENT |
| 733 | A 0008260094 | BUSHING |
| 733 | A 0008260094 | BUSHING |
| 735 | A 0008260494 | BUSHING |
| 735 | A 0008260494 | BUSHING |
| 739 | A 0008260139 | SHACKLE |
| 739 | A 0008260139 | SHACKLE |
| A 0008266178 | REFLECTOR | |
| Repalced by: A 0008269178 | ||
| 743 | A 0008269178 | REFLECTOR |
| LEFT | ||
| 743 | A 0008269178 | REFLECTOR |
| LEFT | ||
| A 0008266278 | REFLECTOR | |
| Repalced by: A 0008269278 | ||
| A 0008269278 | REFLECTOR | |
| RIGHT | ||
| A 0008269278 | REFLECTOR | |
| RIGHT | ||
| 747 | A 0008260094 | BUSHING |
| 747 | A 0008260094 | BUSHING |
| 751 | A 0008260139 | SHACKLE |
| 751 | A 0008260139 | SHACKLE |
| 755 | A 0008261957 | LENS |
| WITH SHELL,LEFT BLINKER LAMP | ||
| 755 | A 0008261957 | LENS |
| WITH SHELL,LEFT BLINKER LAMP | ||
| A 0008262057 | LENS | |
| WITH SHELL,RIGHT BLINKER LAMP | ||
| A 0008262057 | LENS | |
| WITH SHELL,RIGHT BLINKER LAMP | ||
| A 0018268390 | LENS | |
| Repalced by: A 0008200466 | ||
| 759 | A 0008200466 | LENS |
| LEFT | ||
| 759 | A 0008200466 | LENS |
| LEFT | ||
| A 0018268490 | LENS | |
| Repalced by: A 0008200566 | ||
| A 0008200566 | LENS | |
| RIGHT | ||
| A 0008200566 | LENS | |
| RIGHT | ||
| 763 | A 0008269080 | SEAL |
| LEFT | ||
| 763 | A 0008269080 | SEAL |
| LEFT | ||
| A 0008269180 | SEAL | |
| RIGHT | ||
| A 0008269180 | SEAL | |
| RIGHT | ||
| A 0008269280 | SEAL | |
| Repalced by: A 0008269480 | ||
| 767 | A 0008269480 | SEAL |
| 767 | A 0008269480 | SEAL |
| 771 | N 072601012100 | BULB |
| HIGH/LOW BEAM | ||
| A 0005449094 | BULB | |
| Repalced by: N 072601012803 | ||
| 771 | N 072601012803 | BULB |
| Repalced by: N 000000000374 | ||
| 771 | N 000000000374 | BULB |
| N 072601012900 | BULB | |
| SIDE MARKER AND CLEARANCE LIGHTS | ||
| 775 | N 072601012400 | BULB |
| FOGLIGHT | ||
| 775 | N 072601012290 | BULB |
| Repalced by: N 000000001417 | ||
| 775 | N 000000001417 | BULB |
| Repalced by: N 072601012290 | ||
| 775 | N 072601012290 | BULB |
| 775 | N 072601012290 | BULB |
| 779 | N 072601012190 | BULB |
| BLINKER LIGHT | ||
| 783 | N 007981004270 | SHEET METAL SCREW |
| 785 | A 1089900057 | NUT |
| 787 | A 3099870041 | RUBBER RING |
| Repalced by: A 3099870141 | ||
| 787 | A 3099870141 | RUBBER RING |
| A 1168201217 | ELECTRIC CABLE | |
| LIGHT RANGE REGULATOR LIGHT-GUIDE | ||
| 801 | A 1168200062 | LICENSE PLATE LAMP |
| 805 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 805 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE | ||
| 809 | A 1169970681 | GROMMET |
| 813 | N 072601012130 | BULB |
| A 1078260058 | SEAL | |
| Repalced by: A 1078200966 | ||
| A 1078260067 | LENS | |
| Repalced by: A 1078200966 | ||
| 817 | A 1078200966 | LENS |
| 821 | A 1079900140 | WASHER |
| 823 | N 007985004179 | SCREW |
| 831 | A 1168260024 | COVERING |
| 831 | A 1168260124 | COVERING |
| Repalced by: A 1168260024 | ||
| 831 | A 1168260024 | COVERING |
| 835 | A 1168260080 | SEAL |
| 839 | A 1089900057 | NUT |
| A 1168202366 | LENS | |
| Repalced by: A 1168200078 | ||
| 843 | A 1168200078 | COVER |
| LIGHTING UNIT SHELL | ||
| 847 | A 1168260180 | SEAL |
| 851 | A 1168260084 | SPRING |
| A 1168200964 | TAIL LAMP | |
| Repalced by: A 1168203564 | ||
| A 1168202964 | TAIL LAMP | |
| Repalced by: A 1168203564 | ||
| 881 | A 1168203564 | TAIL LAMP |
| LEFT | ||
| A 1168201064 | TAIL LAMP | |
| Repalced by: A 1168203064 | ||
| A 1168203064 | TAIL LAMP | |
| RIGHT | ||
| A 1168201164 | TAIL LAMP | |
| Repalced by: A 1168203764 | ||
| A 1168203164 | TAIL LAMP | |
| Repalced by: A 1168203764 | ||
| A 1168203764 | TAIL LAMP | |
| LEFT | ||
| A 1168201264 | TAIL LAMP | |
| Repalced by: A 1168203664 | ||
| A 1168203264 | TAIL LAMP | |
| Repalced by: A 1168203664 | ||
| A 1168203664 | TAIL LAMP | |
| RIGHT | ||
| A 1168201366 | LENS | |
| Repalced by: A 1168200166 | ||
| A 1168200166 | LENS | |
| Repalced by: A 1168202566 | ||
| A 1168202566 | LENS | |
| WITH REFLECTOR,LEFT | ||
| A 1168200166 | LENS | |
| Repalced by: A 1168202566 | ||
| 885 | A 1168202566 | LENS |
| WITH REFLECTOR,LEFT | ||
| A 1168200266 | LENS | |
| Repalced by: A 1168201466 | ||
| A 1168201466 | LENS | |
| Repalced by: A 1168202666 | ||
| A 1168202666 | LENS | |
| WITH REFLECTOR,RIGHT | ||
| A 1168201466 | LENS | |
| Repalced by: A 1168202666 | ||
| A 1168202666 | LENS | |
| WITH REFLECTOR,RIGHT | ||
| A 1168200766 | LENS | |
| Repalced by: A 1168202866 | ||
| A 1168202866 | LENS | |
| LESS REFLECTOR,LEFT | ||
| A 1168200766 | LENS | |
| Repalced by: A 1168202966 | ||
| A 1168202966 | LENS | |
| Repalced by: A 1168202866 | ||
| A 1168200866 | LENS | |
| Repalced by: A 1168203066 | ||
| A 1168203066 | LENS | |
| LESS REFLECTOR,RIGHT | ||
| 889 | A 1168260158 | SEAL |
| LEFT | ||
| A 1168260258 | SEAL | |
| RIGHT | ||
| 893 | N 072601012190 | BULB |
| BLINKER/STOP/BACK-UP/REAR FOG LIGHT | ||
| N 072601012701 | BULB | |
| Repalced by: N 072601012702 | ||
| 897 | N 072601012702 | BULB |
| TAIL AND CLEARANCE LIGHTS | ||
| 901 | A 1159900557 | NUT |
| 905 | A 1168260097 | PAD |
| 909 | A 1114620175 | WASHER |
| 909 | A 1114620175 | WASHER |
| 911 | N 000934005008 | NUT |
| 915 | A 0015449732 | SENDER UNIT |
| 915 | A 0025442332 | SENDER UNIT |
| 919 | A 0018217951 | SWITCH |
| A 1168200917 | ELECTRIC CABLE | |
| DOME LAMP | ||
| A 1168201017 | ELECTRIC CABLE | |
| DOME LAMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
