Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036

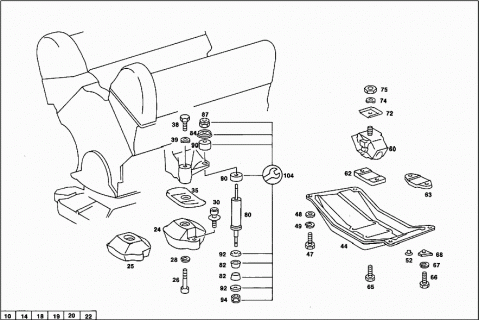

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 042, GROUP 22, FIG.NO. 10 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 043, GROUP 22, FIG.NO. 16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 042, GROUP 22, FIG.NO. 15 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 043, GROUP 22, FIG.NO. 21 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 042, GROUP 22, FIG.NO. 18 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 043, GROUP 22, FIG.NO. 26 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 046, GROUP 22, FIG.NO. 19 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 042, GROUP 22, FIG.NO. 37 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 043, GROUP 22, FIG.NO. 35 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 042, GROUP 22, FIG.NO. 42 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 043, GROUP 22, FIG.NO. 39 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 046, GROUP 22, FIG.NO. 31 | ||
| N 000912010092 | SCREW | |
| Repalced by: N 000912010224 | ||
| N 000912010224 | SCREW | |
| A 1162410813 | RUBBER MOUNTING | |
| FRONT | ||
| A 1232411213 | RUBBER MOUNTING | |
| FRONT | ||
| A 1162412813 | RUBBER MOUNTING | |
| FRONT | ||
| A 1162412813 | RUBBER MOUNTING | |
| FRONT RIGHT | ||
| A 1232411613 | RUBBER MOUNTING | |
| FRONT | ||
| A 1232411613 | RUBBER MOUNTING | |
| FRONT RIGHT | ||
| 024 | A 1162412913 | RUBBER MOUNTING |
| FRONT LEFT | ||
| 024 | A 1232411113 | RUBBER MOUNTING |
| FRONT LEFT | ||
| 025 | A 1232411413 | RUBBER MOUNTING |
| 026 | N 000912012117 | SCREW |
| Repalced by: N 007984012011 | ||
| 026 | N 007984012011 | SCREW |
| 026 | N 000912012114 | SCREW |
| 028 | N 912006012000 | LOCK WASHER |
| 030 | N 914019008000 | COMBINATION BOLT |
| 035 | A 1162410034 | SCREENING PLATE |
| 035 | A 1232410234 | SCREENING PLATE |
| 038 | N 000933012063 | SCREW |
| 039 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 039 | N 000137012206 | SPRING WASHER |
| 044 | A 1162420401 | ENGINE SUPPORT |
| REAR | ||
| 044 | A 1162420601 | ENGINE SUPPORT |
| REAR | ||
| 047 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 047 | N 304017008021 | SCREW |
| 048 | N 007349008002 | WASHER |
| 049 | N 912004008102 | LOCK WASHER |
| 052 | A 0009908522 | SCREW |
| 060 | A 1162400418 | RUBBER MOUNTING |
| REAR | ||
| 060 | A 1162400418 | RUBBER MOUNTING |
| REAR | ||
| A 1082400318 | RUBBER MOUNTING | |
| Repalced by: A 1232402518 | ||
| 060 | A 1232402518 | RUBBER MOUNTING |
| REAR | ||
| 062 | A 1162420226 | SHIM |
| 063 | A 1162420126 | SHIM |
| 063 | A 1162420326 | SHIM |
| 065 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 065 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 065 | A 0099900101 | SCREW |
| 066 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 066 | N 304017008021 | SCREW |
| 066 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 066 | N 304017008016 | SCREW |
| 066 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 066 | N 304017008021 | SCREW |
| 067 | N 912004008102 | LOCK WASHER |
| 068 | A 1269900540 | WASHER |
| 072 | A 1082420031 | MOUNTING PLATE |
| 074 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 074 | N 000137012206 | SPRING WASHER |
| 075 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 075 | N 308673012002 | NUT |
| A 0002401348 | ENGINE VIBRATION ABSORBER | |
| Repalced by: A 1162400148 | ||
| A 0002400648 | ENGINE VIBRATION ABSORBER | |
| Repalced by: A 1162400248 | ||
| 080 | A 1162400148 | ENGINE VIBRATION ABSORBER |
| 080 | A 1162400248 | ENGINE VIBRATION ABSORBER |
| 080 | A 1162400448 | ENGINE VIBRATION ABSORBER |
| 080 | A 1162400548 | ENGINE VIBRATION ABSORBER |
| 082 | A 1072410065 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER,TOP | ||
| 082 | A 1072410065 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 082 | A 1232410365 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER,TOP | ||
| 082 | A 1232410365 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 084 | A 1082410012 | RETAINER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 084 | A 1152410712 | RETAINER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 084 | A 1262410012 | RETAINER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 087 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 087 | N 913002006009 | NUT |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 090 | A 1072410065 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER,BOTTOM | ||
| 090 | A 1072410065 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| 092 | A 1082410012 | RETAINER |
| ENGINE SHOCK ABSORBER,BOTTOM | ||
| 092 | A 1082410012 | RETAINER |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| 092 | A 1072410512 | RETAINER |
| ENGINE SHOCK ABSORBER,BOTTOM | ||
| 092 | A 1072410512 | RETAINER |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| 094 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 094 | N 913002006009 | NUT |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| 104 | A 1162400117 | REPAIR KIT |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
