Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036
Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE

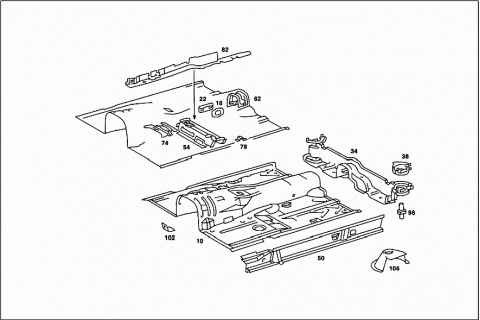

84261

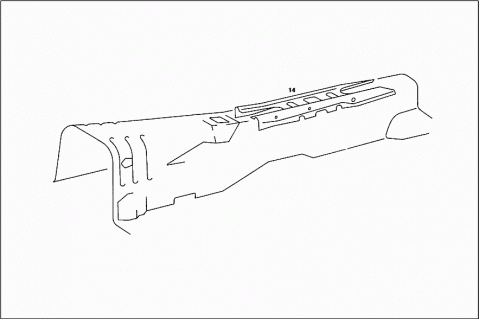

84262

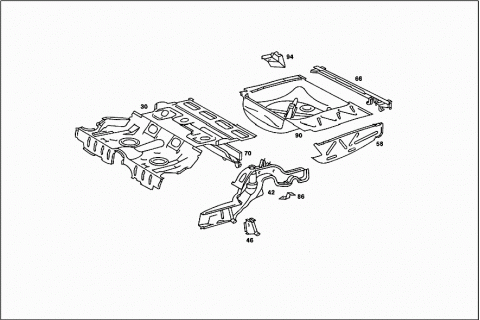

84263
# Kodas Pavadinimas
010 A 1166160167 FLOOR
Repalced by: A 1166161567
010 A 1166161667 FLOOR
Repalced by: A 1166161567
010 A 1166161567 FLOOR
010 A 1166160067 FLOOR
Repalced by: A 1166161567
010 A 1166161567 FLOOR
014 A 1166160116 REINFORCEMENT
018 A 1166100053 MOUNTING
A 1166100091 GUIDE
022 A 1166100291 GUIDE
030 A 1166160068 FLOOR
034 A 1166100120 CROSS MEMBER
038 A 1166100352 TAKE-UP DEVICE
LEFT
A 1166100452 TAKE-UP DEVICE
RIGHT
042 A 1166100110 SIDE MEMBER
LEFT
A 1166100210 SIDE MEMBER
RIGHT
046 A 1166100131 CONSOLE
JACK,REAR
050 A 1166100309 SUPPORT
LEFT
050 A 1166100109 SUPPORT
LEFT
A 1166100409 SUPPORT
RIGHT
A 1166100209 SUPPORT
RIGHT
054 A 1166100320 CROSS MEMBER
BELOW LEFT FRONT SEAT
A 1166100420 CROSS MEMBER
BELOW RIGHT FRONT SEAT
A 1166101020 CROSS MEMBER
BELOW RIGHT FRONT SEAT
058 A 1166160342 RECESS
LEFT
A 1166160442 RECESS
RIGHT
062 A 1166100052 TAKE-UP DEVICE
062 A 1166100052 TAKE-UP DEVICE
A 1166100014 CROSS MEMBER
Repalced by: A 1166100114
066 A 1166100114 CROSS MEMBER
070 A 1166100016 CROSS MEMBER
074 A 1166160017 STIFFENING
078 A 1166160031 CONSOLE
A 1166100125 REINFORCEMENT
Repalced by: A 1160100525
082 A 1166100525 REINFORCEMENT
LEFT
A 1166100225 REINFORCEMENT
Repalced by: A 1166100625
A 1166100625 REINFORCEMENT
RIGHT
A 1166101425 REINFORCEMENT
RIGHT
086 A 1166160114 BRACKET
LEFT
A 1166160214 BRACKET
RIGHT
090 A 1166100075 SPARE WHEEL WELL
094 A 1166100831 CONSOLE
WITH TOWING BRACKET
098 A 1166120044 BUSHING
102 A 1166160020 MOUNTING
ACCELERATOR PEDAL
106 A 1166120122 COVERING
