Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036

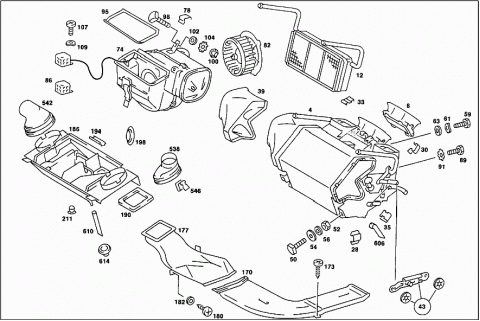

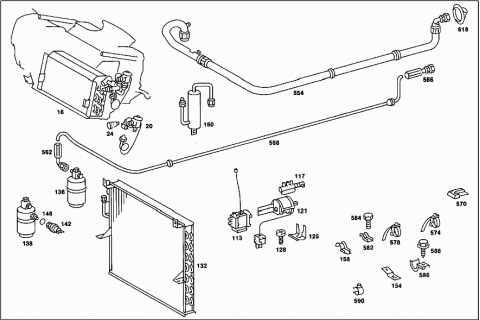

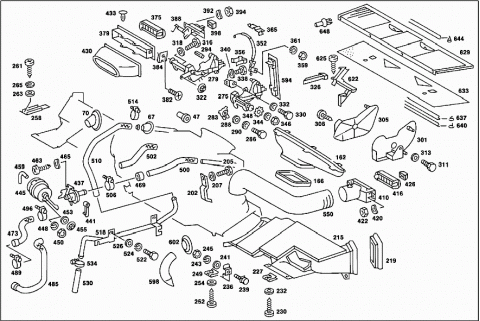

Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1168300062 | HEATER CASE | |
| Repalced by: A 1168302262 | ||
| 004 | A 1168302262 | HEATER CASE |
| A 1168300762 | HEATER CASE | |
| Repalced by: A 1168303062 | ||
| A 1168302062 | HEATER CASE | |
| Repalced by: A 1168303062 | ||
| A 1168303062 | HEATER CASE | |
| A 1168300262 | HEATER CASE | |
| Repalced by: A 1168302362 | ||
| A 1168302362 | HEATER CASE | |
| A 1168300862 | HEATER CASE | |
| Repalced by: A 1168303162 | ||
| A 1168302162 | HEATER CASE | |
| Repalced by: A 1168303162 | ||
| A 1168303162 | HEATER CASE | |
| 008 | A 1168300025 | PIPE SOCKET |
| 012 | A 1168350001 | HEAT EXCHANGER |
| A 1168350174 | EVAPORATOR | |
| Repalced by: A 1168300058 | ||
| 016 | A 1168300058 | EVAPORATOR |
| Repalced by: A 1078300058 | ||
| 016 | A 1078300058 | EVAPORATOR |
| Repalced by: A 0008304858 | ||
| 016 | A 0008304858 | EVAPORATOR |
| A 1168350274 | EVAPORATOR | |
| Repalced by: A 1168300158 | ||
| A 1168300158 | EVAPORATOR | |
| Repalced by: A 0008301358 | ||
| A 0008301358 | EVAPORATOR | |
| 020 | A 1158350072 | VALVE |
| 024 | A 1088350247 | FILTER |
| A 0008350434 | SPRING | |
| Repalced by: A 0008351334 | ||
| 028 | A 0008351334 | SPRING |
| Repalced by: A 0008352134 | ||
| 028 | A 0008352134 | SPRING |
| 030 | A 0008351234 | SPRING |
| Repalced by: A 1238350034 | ||
| 030 | A 1238350034 | SPRING |
| 033 | A 0008351134 | SPRING |
| 035 | A 0008351034 | SPRING |
| 039 | A 1168310188 | HOSE |
| A 1168310288 | HOSE | |
| 043 | A 1165860083 | REPAIR KIT |
| 047 | A 1169971281 | GROMMET |
| 050 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 050 | A 0009905233 | SCREW |
| 052 | N 000934006007 | NUT |
| 054 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 054 | N 009021006208 | WASHER |
| 056 | N 006797006145 | TOOTHED WASHER |
| 059 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 059 | N 304017006034 | SCREW |
| 061 | N 000137006204 | SPRING WASHER |
| 063 | N 000125006421 | WASHER |
| 067 | A 1079970181 | GROMMET |
| 070 | A 1169970481 | GROMMET |
| 074 | A 1168300362 | HEATER CASE |
| 074 | A 1168300562 | HEATER CASE |
| A 1168300462 | HEATER CASE | |
| A 1168300662 | HEATER CASE | |
| 078 | A 0008351334 | SPRING |
| Repalced by: A 0008352134 | ||
| 078 | A 0008352134 | SPRING |
| 082 | A 0008358102 | MOTOR |
| A 0008358202 | MOTOR | |
| A 1168350006 | SWITCH | |
| Repalced by: A 1168350106 | ||
| 086 | A 1168350106 | RESISTOR |
| 089 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 089 | N 304017006018 | SCREW |
| 091 | N 006797006145 | TOOTHED WASHER |
| 095 | A 1168350098 | SEAL |
| 098 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 098 | A 0009905233 | SCREW |
| 100 | N 000934006007 | NUT |
| 102 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 102 | N 009021006208 | WASHER |
| 104 | N 006797006145 | TOOTHED WASHER |
| 107 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 107 | N 000000001933 | SCREW |
| 109 | N 000137004202 | SPRING WASHER |
| 113 | A 1168210151 | SWITCH |
| COMBINED TEMPERATURE AND VACUUM SWITCH | ||
| 117 | A 0018352906 | SWITCH |
| 121 | A 1168210065 | CASE |
| COMBINED TEMPERATURE AND VACUUM SWITCH | ||
| A 1075450072 | NUT | |
| AIR-CONDITIONER TEMPERATURE/VACUUM SWITCH TO COVERING IN CASE | ||
| A 0015440194 | BULB | |
| Repalced by: A 0008250094 | ||
| A 0008250094 | BULB | |
| Repalced by: N 000000001061 | ||
| N 000000001061 | BULB | |
| AIR-CONDITIONER TEMPERATURE/VACUUM SWITCH | ||
| A 1168200292 | KNOB | |
| SYMBOL: TRANSPARENT BLUE; TO AIR-CONDITIONER TEMPERATURE-AND-VACUUM SWITCH | ||
| A 0015440194 | BULB | |
| Repalced by: A 0008250094 | ||
| A 0008250094 | BULB | |
| Repalced by: N 000000001061 | ||
| N 000000001061 | BULB | |
| KNOB LIGHTING | ||
| 125 | A 1168330514 | BRACKET |
| 128 | N 007981003257 | SHEET METAL SCREW |
| A 1168350770 | CONDENSER | |
| Repalced by: A 1168301670 | ||
| A 1168301670 | CONDENSER | |
| Repalced by: A 1168302770 | ||
| 132 | A 1168302770 | CONDENSER |
| 136 | A 1168350071 | TANK |
| A 1168300283 | TANK | |
| Repalced by: A 1168300483 | ||
| 138 | A 1168300483 | TANK |
| N 914031004201 | COMBINATION BOLT | |
| LIQUID TANK TO CONDENSER | ||
| A 1168303315 | PIPE LINE | |
| FROM COMPRESSOR TO CONDENSER | ||
| A 1169950201 | CLAMP | |
| A 0009940645 | LOCK | |
| LIQUID TANK TO CONDENSER | ||
| A 0008350298 | SEAL | |
| Repalced by: A 0008356598 | ||
| A 0008356598 | SEAL | |
| LIQUID TANK TO CONDENSER | ||
| A 0008202110 | SWITCH | |
| Repalced by: A 0008202710 | ||
| 142 | A 0008202710 | SWITCH |
| AT LIQUID TANK | ||
| 142 | A 0008204310 | SWITCH |
| Repalced by: A 1248205910 | ||
| 142 | A 1248205910 | SWITCH |
| Repalced by: A 1248213651 | ||
| 142 | A 1248213651 | SWITCH |
| Repalced by: A 1248208310 | ||
| 142 | A 1248208310 | SWITCH |
| AT LIQUID TANK | ||
| 146 | A 1239970740 | SEAL RING |
| Repalced by: A 1409971145 | ||
| 146 | A 1409971145 | SEAL RING |
| 150 | A 1168300083 | TANK |
| AT CONDENSER | ||
| 150 | A 1168300683 | TANK |
| AT CONDENSER | ||
| N 914031005208 | COMBINATION BOLT | |
| N 914001006004 | COMBINATION BOLT | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 913008006300 | SHEET METAL NUT | |
| 154 | A 1168350014 | BRACKET |
| 154 | A 1168351314 | BRACKET |
| N 914001006004 | COMBINATION BOLT | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 914004005001 | COMBINATION BOLT | |
| N 914031005208 | COMBINATION BOLT | |
| N 007976005202 | SHEET METAL SCREW | |
| 158 | A 1149950220 | CLAMP |
| 158 | A 1239950001 | CLAMP |
| N 914001006004 | COMBINATION BOLT | |
| Repalced by: N 000933006102 | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 914004005001 | COMBINATION BOLT | |
| 162 | A 1168300319 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1168300419 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 166 | A 1078310098 | SEAL |
| A 1168310346 | DUCT | |
| Repalced by: A 1168310946 | ||
| 170 | A 1168310946 | DUCT |
| LEFT | ||
| A 1168310446 | DUCT | |
| Repalced by: A 1168311046 | ||
| A 1168311046 | DUCT | |
| RIGHT | ||
| A 1168311446 | DUCT | |
| RIGHT | ||
| 173 | N 007981004331 | SHEET METAL SCREW |
| 177 | A 1168310146 | DUCT |
| LEFT | ||
| A 1168310246 | DUCT | |
| RIGHT | ||
| 180 | N 007981004331 | SHEET METAL SCREW |
| 180 | N 007981004270 | SHEET METAL SCREW |
| 182 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 182 | N 009021004207 | WASHER |
| 186 | A 1168300745 | AIR DUCT |
| CENTRAL | ||
| 190 | A 1078310142 | FRAME |
| 194 | A 1078310134 | SPRING |
| A 0009897085 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| 5 MM D. 1200 MM LONG | ||
| 198 | A 1169972281 | GROMMET |
| 202 | A 1168310014 | BRACKET |
| 205 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 205 | N 304017006018 | SCREW |
| BRACKET TO CENTRAL AIR DUCT | ||
| 207 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 207 | N 009021006208 | WASHER |
| BRACKET TO CENTRAL AIR DUCT | ||
| 211 | A 1159870340 | RUBBER BUFFER |
| 215 | A 1168300145 | AIR DUCT |
| LEFT | ||
| A 1168300245 | AIR DUCT | |
| RIGHT | ||
| 219 | A 1168310598 | SEAL |
| OUTSIDE LEFT | ||
| A 1168310698 | SEAL | |
| OUTSIDE RIGHT | ||
| N 007981004257 | SHEET METAL SCREW | |
| Repalced by: N 000000000463 | ||
| N 000000000463 | SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| 227 | A 0009947145 | LOCK |
| 230 | N 007981004257 | SHEET METAL SCREW |
| Repalced by: N 000000000463 | ||
| 230 | N 000000000463 | SCREW |
| 232 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 232 | N 009021005205 | WASHER |
| 236 | A 1168310112 | ANGLE |
| 239 | A 1204200227 | SCREW |
| 241 | N 000125006421 | WASHER |
| 243 | N 912004006102 | LOCK WASHER |
| 245 | N 000934006007 | NUT |
| A 0009943445 | LOCK | |
| Repalced by: A 0009940645 | ||
| 249 | A 0009940645 | LOCK |
| 252 | N 007981004257 | SHEET METAL SCREW |
| Repalced by: N 000000000463 | ||
| 252 | N 000000000463 | SCREW |
| 254 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 254 | N 000433005304 | WASHER |
| 258 | A 1168310212 | ANGLE |
| A 1168310312 | ANGLE | |
| AIR DUCT TO FRONT PANEL,LEFT | ||
| 261 | N 007981004258 | SHEET METAL SCREW |
| 263 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 263 | N 000433005304 | WASHER |
| 265 | N 912004005103 | LOCK WASHER |
| A 1168310412 | ANGLE | |
| AIR DUCT TO PISTOL GRIP HAND BRAKE | ||
| A 1204200227 | SCREW | |
| N 000125006421 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 1168300585 | OPERATING UNIT | |
| Repalced by: A 1168300785 | ||
| 275 | A 1168300785 | OPERATING UNIT |
| LEFT | ||
| A 1168300685 | OPERATING UNIT | |
| Repalced by: A 1168300885 | ||
| 279 | A 1168300885 | OPERATING UNIT |
| RIGHT | ||
| 283 | A 1168000073 | SWITCH |
| 286 | N 000933004016 | SCREW |
| 288 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 288 | N 000125004319 | WASHER |
| 290 | N 000137004202 | SPRING WASHER |
| 294 | N 001481003011 | CLAMPING SLEEVE |
| A 0009902248 | WASHER | |
| 301 | A 1168310541 | COVERING |
| LEFT | ||
| 305 | A 1168310641 | COVERING |
| RIGHT | ||
| 308 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 308 | N 000000000459 | SHEET METAL SCREW |
| 311 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 311 | N 304017006034 | SCREW |
| 313 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 313 | N 009021006208 | WASHER |
| 316 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 316 | N 304017006016 | SCREW |
| 318 | N 006797006145 | TOOTHED WASHER |
| A 0009941860 | LOCK | |
| Repalced by: N 912003003000 | ||
| A 0009949145 | LOCK | |
| Repalced by: N 912003003000 | ||
| 322 | N 912003003000 | DUO CLIP |
| 326 | A 1168330140 | OPERATING HANDLE |
| 330 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 330 | N 304017006034 | SCREW |
| 332 | N 000137006204 | SPRING WASHER |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 338 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 338 | N 304017006034 | SCREW |
| 340 | N 000137006204 | SPRING WASHER |
| 344 | N 000137006204 | SPRING WASHER |
| LEVER TO OPERATING UNIT | ||
| 346 | N 000934006007 | NUT |
| LEVER TO OPERATING UNIT | ||
| 348 | N 006797008120 | TOOTHED WASHER |
| LEVER TO OPERATING UNIT | ||
| 352 | A 1168300131 | WIRE CABLE |
| 356 | A 0008330081 | CLIP |
| 359 | N 000933005058 | SCREW |
| 361 | N 912004005103 | LOCK WASHER |
| 365 | A 0019886878 | CLIP |
| A 1168300443 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301543 | ||
| 375 | A 1168301543 | AIR DISTRIBUTOR |
| 379 | A 1168310142 | FRAME |
| 382 | N 007982004318 | SHEET METAL SCREW |
| 384 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 384 | A 1409941045 | LOCK |
| 388 | A 1168300085 | OPERATING UNIT |
| 392 | N 000137005203 | SPRING WASHER |
| 394 | N 000934005008 | NUT |
| 398 | A 1168330440 | OPERATING HANDLE |
| A 1168300143 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301743 | ||
| A 1168301143 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301743 | ||
| A 1168301343 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301743 | ||
| 410 | A 1168301743 | AIR DISTRIBUTOR |
| LEFT | ||
| 410 | A 1168301743 | AIR DISTRIBUTOR |
| LEFT | ||
| A 1168301243 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301843 | ||
| A 1168301443 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301843 | ||
| A 1168300243 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301843 | ||
| A 1168301843 | AIR DISTRIBUTOR | |
| RIGHT | ||
| A 1168301843 | AIR DISTRIBUTOR | |
| RIGHT | ||
| 410 | A 1168300174 | LOUVRE |
| LEFT | ||
| A 1168300274 | LOUVRE | |
| RIGHT | ||
| A 1168300443 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301543 | ||
| 416 | A 1168301543 | AIR DISTRIBUTOR |
| 420 | N 000137005203 | SPRING WASHER |
| 422 | N 000934005008 | NUT |
| 426 | A 1168330340 | OPERATING HANDLE |
| LEFT | ||
| A 1168330440 | OPERATING HANDLE | |
| RIGHT | ||
| 430 | A 1168310088 | HOSE |
| 433 | A 0009900892 | RIVET |
| 437 | A 1168350020 | CONTROL VALVE |
| MAKE BEHR | ||
| 441 | A 1168331045 | LEVER |
| MAKE BEHR | ||
| A 1168300684 | VALVE | |
| MAKE MECANO-BUNDY | ||
| 445 | A 1168000975 | ELEMENT |
| Repalced by: A 1168001775 | ||
| 448 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 448 | N 912004004102 | LOCK WASHER |
| 450 | N 000934004006 | NUT |
| 453 | A 1169870541 | RUBBER RING |
| 453 | A 1169870541 | RUBBER RING |
| 455 | A 0009949645 | LOCK |
| 455 | A 0009949645 | LOCK |
| A 1078330197 | HOSE | |
| Repalced by: A 1170780581 | ||
| 459 | A 1170780581 | HOSE |
| 463 | N 007981004257 | SHEET METAL SCREW |
| Repalced by: N 000000000463 | ||
| 463 | N 000000000463 | SCREW |
| 465 | N 000137005203 | SPRING WASHER |
| A 1078350098 | SEAL | |
| Repalced by: A 1168350198 | ||
| 469 | A 1168350198 | SEAL |
| 473 | A 1168310494 | HOSE |
| A 1168313494 | HOSE | |
| A 1168302096 | HOSE | |
| Repalced by: A 1168313094 | ||
| A 1168313094 | HOSE | |
| A 1109870541 | RUBBER RING | |
| A 1168313794 | HOSE | |
| A 1168310094 | HOSE | |
| Repalced by: A 1168310394 | ||
| 485 | A 1168310394 | HOSE |
| A 1168311694 | HOSE | |
| 489 | N 916026023001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 489 | N 000000000667 | CLAMP |
| 489 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 489 | N 000000000667 | CLAMP |
| 496 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 496 | N 000000000667 | CLAMP |
| 500 | A 1078310194 | HOSE |
| 502 | A 1168311494 | HOSE |
| 506 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 506 | N 000000000667 | CLAMP |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 510 | A 1168310294 | HOSE |
| A 1168310594 | HOSE | |
| Repalced by: A 1168311994 | ||
| 510 | A 1168311994 | HOSE |
| A 1168311794 | HOSE | |
| A 1109870541 | RUBBER RING | |
| 514 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 514 | N 000000000667 | CLAMP |
| A 1168300215 | PIPE LINE | |
| Repalced by: A 1168301515 | ||
| 518 | A 1168301515 | PIPE LINE |
| A 1168302515 | PIPE LINE | |
| Repalced by: A 1168303915 | ||
| A 1168303915 | PIPE LINE | |
| 522 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 522 | N 304017008039 | SCREW |
| 524 | N 912004008102 | LOCK WASHER |
| 526 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 526 | N 000125008443 | WASHER |
| 530 | A 1168311894 | HOSE |
| Repalced by: A 4615012382 | ||
| 530 | A 4615012382 | HOSE |
| 534 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 534 | N 000000000667 | CLAMP |
| 538 | A 1168310025 | PIPE SOCKET |
| LEFT | ||
| A 1168310225 | PIPE SOCKET | |
| RIGHT | ||
| 542 | A 1168310125 | PIPE SOCKET |
| RIGHT | ||
| 542 | A 1168310125 | PIPE SOCKET |
| LEFT | ||
| A 0019886678 | CLIP | |
| Repalced by: A 1079881878 | ||
| 546 | A 1079881878 | CLIP |
| A 0119972282 | HOSE | |
| Repalced by: A 1168310488 | ||
| 550 | A 1168310488 | HOSE |
| Repalced by: A 1168311088 | ||
| 550 | A 1168311088 | HOSE |
| 554 | A 1168301015 | PIPE LINE |
| FROM EVAPORATOR TO COMPRESSOR LINE | ||
| A 1168302415 | PIPE LINE | |
| FROM EVAPORATOR TO COMPRESSOR LINE | ||
| A 1168302415 | PIPE LINE | |
| FROM EVAPORATOR TO COMPRESSOR LINE | ||
| A 1168302815 | PIPE LINE | |
| FROM LIQUID TANK TO EXPANSION VALVE | ||
| A 1168303615 | PIPE LINE | |
| FROM LIQUID TANK TO EXPANSION VALVE | ||
| 558 | A 0009971952 | HOSE |
| Repalced by: A 0189970582 | ||
| 558 | A 0189970582 | HOSE |
| Repalced by: A 0189975882 | ||
| 558 | A 0189975882 | HOSE |
| Repalced by: A 0009971752 | ||
| 558 | A 0009971752 | HOSE |
| I.D.,8MM;BLACK;3500MM; FROM LIQUID TANK TO EVAPORATOR | ||
| A 0009972352 | HOSE | |
| I.D.,13 MM;6000 MM | ||
| 562 | A 0009979768 | CONNECTOR |
| 5/8",90 DEGREES;TO 8-MM-I.D.HOSE | ||
| 566 | A 0009979868 | CONNECTOR |
| 5/8",180 DEGREES;TO 8-MM-I.D.HOSE | ||
| A 0009975668 | CONNECTOR | |
| 7/8",180 DEGREES;TO 13-MM-I.D.HOSE | ||
| 570 | A 0039880878 | CLIP |
| A 0019886578 | CLIP | |
| Repalced by: A 0039888178 | ||
| A 0039888178 | CLIP | |
| 574 | A 1149970490 | LOOM TIE |
| Repalced by: A 1149970290 | ||
| 574 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 574 | A 1149970590 | LOOM TIE |
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| 578 | A 0019974190 | LOOM TIE |
| 578 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 578 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| A 0029970890 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 582 | A 1879950037 | CLAMP |
| 584 | N 007976004205 | SHEET METAL SCREW |
| 584 | N 007976004215 | SHEET METAL SCREW |
| 586 | A 1009950820 | CLAMP |
| Repalced by: A 1239950320 | ||
| 586 | A 1239950320 | CLAMP |
| 588 | N 914031005208 | COMBINATION BOLT |
| A 1109950065 | CLAMP | |
| Repalced by: A 0004760436 | ||
| A 0004760436 | BRACKET | |
| 590 | A 1109950165 | CLAMP |
| 594 | A 1168350121 | ESCUTCHEON |
| LEFT | ||
| A 1168350221 | ESCUTCHEON | |
| RIGHT | ||
| A 1168350397 | HOSE | |
| Repalced by: A 1168350597 | ||
| 598 | A 1168350597 | HOSE |
| 602 | A 1169970081 | GROMMET |
| A 1168350797 | HOSE | |
| DRAIN PIPE AT CENTRAL PART BELOW WINDSHIELD,INSIDE | ||
| 606 | A 1168350297 | HOSE |
| 606 | A 1168350297 | HOSE |
| 610 | A 1168350197 | HOSE |
| 610 | A 1168350197 | HOSE |
| 614 | A 1079970281 | GROMMET |
| 614 | A 1079970281 | GROMMET |
| 618 | A 1169970281 | GROMMET |
| 622 | A 1168300128 | WATER BAFFLE |
| RIGHT | ||
| A 1168300228 | WATER BAFFLE | |
| LEFT | ||
| 625 | N 007981003203 | SHEET METAL SCREW |
| 629 | A 1168360065 | GRILLE |
| 629 | A 1168360165 | GRILLE |
| 629 | A 1168360165 | GRILLE |
| A 1168360265 | GRILLE | |
| 633 | A 1168360018 | SCREEN |
| Repalced by: A 1168360118 | ||
| 633 | A 1168360118 | SCREEN |
| 633 | A 1168360118 | SCREEN |
| 633 | A 1168360118 | SCREEN |
| 637 | A 0019872451 | RUBBER SEAL |
| 700 MM | ||
| 640 | A 0019874651 | RUBBER SEAL |
| 160 MM | ||
| 640 | A 0019874651 | RUBBER SEAL |
| 50 MM | ||
| A 0009871126 | PLASTIC PAD | |
| Repalced by: A 1086980497 | ||
| 644 | A 1086980497 | PAD |
| 40 MM | ||
| 648 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 648 | A 0009902292 | RIVET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
