Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036

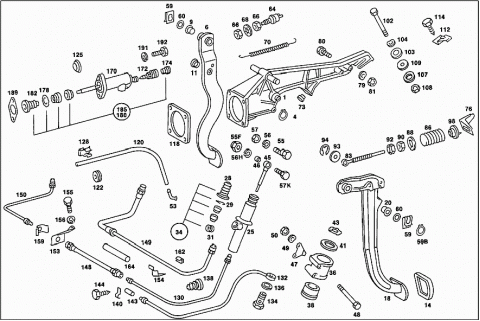

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1072901331 | BEARING | |
| Repalced by: A 1072901631 | ||
| A 1072901231 | BEARING | |
| Repalced by: A 1072901631 | ||
| 001 | A 1072901631 | BEARING |
| Repalced by: A 1072900119 | ||
| 001 | A 1072900119 | BEARING BRACKET |
| A 1072901531 | BEARING | |
| Repalced by: A 1072901831 | ||
| A 1072901431 | BEARING | |
| Repalced by: A 1072901831 | ||
| A 1072901831 | BEARING | |
| Repalced by: A 1072900319 | ||
| A 1072900319 | BEARING BRACKET | |
| 004 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 004 | A 0079942041 | LOCK |
| 006 | A 1072900218 | PEDAL |
| Repalced by: A 1072902018 | ||
| 006 | A 1072902018 | PEDAL |
| A 1072900418 | PEDAL | |
| Repalced by: A 1072902218 | ||
| 006 | A 1072902218 | PEDAL |
| A 1162900118 | PEDAL | |
| Repalced by: A 1162900418 | ||
| 006 | A 1162900418 | PEDAL |
| A 1162900318 | PEDAL | |
| Repalced by: A 1162900618 | ||
| 006 | A 1162900618 | PEDAL |
| 009 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 009 | A 1242920050 | BUSHING |
| 011 | A 1102920150 | BUSHING |
| 011 | A 1262920050 | BUSHING |
| 014 | A 1072910182 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 014 | A 1232910082 | PAD |
| 018 | A 1072900816 | PEDAL |
| Repalced by: A 1072902216 | ||
| 018 | A 1072902216 | PEDAL |
| A 1162900116 | PEDAL | |
| Repalced by: A 1162900216 | ||
| 018 | A 1162900216 | PEDAL |
| 020 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 020 | A 1242920050 | BUSHING |
| 025 | A 0002957806 | MASTER CYLINDER |
| 025 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 025 | A 0012958706 | MASTER CYLINDER |
| 025 | A 0002956606 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 025 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 025 | A 0012958706 | MASTER CYLINDER |
| A 0002959006 | MASTER CYLINDER | |
| Repalced by: A 0002959806 | ||
| 025 | A 0002959806 | MASTER CYLINDER |
| 028 | A 0002951583 | BOOT |
| 029 | N 000472019000 | LOCK RING |
| 031 | A 0009971186 | PLUG |
| 034 | A 0005862929 | REPAIR KIT |
| 036 | A 1152950340 | BRACKET |
| 038 | A 1082950050 | BUSHING |
| 041 | A 1082950076 | WASHER |
| 043 | A 0019943241 | LOCK |
| 045 | A 1152900639 | ROD |
| 046 | A 1102950250 | BUSHING |
| 047 | A 1072910041 | STOP |
| 048 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 048 | N 304014006004 | SCREW |
| 049 | N 000137006204 | SPRING WASHER |
| 050 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 050 | N 304032006008 | NUT |
| A 0002950136 | INTERMEDIATE PIECE | |
| 053 | A 0002950036 | INTERMEDIATE PIECE |
| 055 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 055F | A 1152950172 | NUT |
| 056 | N 912004008102 | LOCK WASHER |
| 056H | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 056H | N 000137008212 | SPRING WASHER |
| 057 | N 000936008012 | NUT |
| 057K | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 057K | N 304017008016 | SCREW |
| 059 | A 0009941151 | LOCK |
| 059 | A 0009941151 | LOCK |
| 059B | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 059B | A 0079942041 | LOCK |
| 059B | A 0079942041 | LOCK |
| 060 | A 1152910076 | WASHER |
| 060 | A 1152910076 | WASHER |
| 064 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| 066 | A 0009909251 | NUT |
| 068 | N 006797012250 | TOOTHED WASHER |
| 070 | A 1079930410 | SPRING |
| 073 | A 1072910086 | STOP |
| 076 | A 1152910540 | BRACKET |
| 079 | N 000137006204 | SPRING WASHER |
| 080 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 080 | N 000933006151 | SCREW |
| 081 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 081 | N 304032006008 | NUT |
| 083 | A 1152901339 | ROD |
| 083 | A 1072900139 | ROD |
| A 1102910750 | BUSHING | |
| 086 | A 1079930501 | SPRING |
| 086 | A 1089930201 | SPRING |
| 088 | A 1112910491 | SPRING RETAINER |
| 090 | N 070615010004 | NUT |
| 092 | N 007967010001 | NUT |
| 093 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 093 | N 000125008443 | WASHER |
| 094 | N 006799006003 | LOCK PLATE |
| 098 | A 1072910091 | SPRING RETAINER |
| 102 | N 000931006191 | SCREW |
| 103 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 103 | N 009021006208 | WASHER |
| 104 | N 000137006204 | SPRING WASHER |
| 107 | A 1079901740 | WASHER |
| 108 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 108 | N 304032006008 | NUT |
| 109 | N 009021007200 | WASHER |
| 112 | A 1162910040 | BRACKET |
| 112 | A 1162910040 | BRACKET |
| 112 | A 1162910040 | BRACKET |
| 112 | A 1162910040 | BRACKET |
| 114 | N 007976004205 | SHEET METAL SCREW |
| 114 | N 007976004205 | SHEET METAL SCREW |
| 114 | N 007976004205 | SHEET METAL SCREW |
| 114 | N 007976004205 | SHEET METAL SCREW |
| 118 | A 1154310180 | GASKET |
| 120 | A 0099973882 | HOSE |
| 122 | A 0079975881 | GROMMET |
| 125 | A 1109870044 | EXPANSION PLUG |
| Repalced by: A 1139870044 | ||
| 125 | A 1139870044 | EXPANSION PLUG |
| 128 | A 0039880378 | CLIP |
| 130 | A 1162900013 | LINE |
| 132 | A 1162900213 | LINE |
| 132 | A 1162900313 | LINE |
| 134 | N 915036006101 | HOLLOW SCREW |
| 136 | N 007603010404 | SEAL RING |
| 138 | A 1232950183 | BOOT |
| 140 | N 072571001025 | CLAMP |
| 140 | N 072571001025 | CLAMP |
| 140 | N 072571001025 | CLAMP |
| 143 | N 073379006101 | HOSE |
| 143 | N 073379006101 | HOSE |
| 143 | N 073379006101 | HOSE |
| 144 | A 0009907536 | SCREW |
| 144 | A 0009907536 | SCREW |
| 144 | A 0009907536 | SCREW |
| 148 | A 0002952135 | HOSE |
| 148 | A 0002952135 | HOSE |
| A 0002952135 | HOSE | |
| Repalced by: A 1232950713 | ||
| 148 | A 0002952335 | HOSE |
| A 1232900113 | LINE | |
| Repalced by: A 1232950713 | ||
| 149 | A 1232950713 | PIPE |
| Repalced by: A 4602950113 | ||
| 149 | A 4602950113 | PIPE |
| 150 | A 1072900013 | LINE |
| 150 | A 1072900113 | LINE |
| 150 | A 1072900313 | LINE |
| Repalced by: A 1123205553 | ||
| 150 | A 1123205553 | LINE |
| 153 | A 1072950340 | BRACKET |
| 153 | A 1072950340 | BRACKET |
| 153 | A 1072950340 | BRACKET |
| 154 | A 1232950040 | BRACKET |
| 154 | A 1232950340 | BRACKET |
| 155 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 155 | N 304017008016 | SCREW |
| 156 | N 912004008102 | LOCK WASHER |
| 159 | A 1072950173 | LOCK |
| 159 | A 1072950173 | LOCK |
| 162 | A 1232950350 | BUSHING |
| 164 | N 073379006101 | HOSE |
| 30 MM | ||
| 170 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 170 | A 0012956807 | SLAVE CYLINDER |
| 170 | A 0002958207 | SLAVE CYLINDER |
| Repalced by: A 0002956507 | ||
| 170 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 170 | A 0012956807 | SLAVE CYLINDER |
| 170 | A 0002959507 | SLAVE CYLINDER |
| 172 | A 0004201055 | BLEEDER VALVE |
| 174 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 174 | A 0004210887 | PROTECTIVE CAP |
| A 0002950373 | LOCK | |
| 178 | A 0009945935 | SNAP RING |
| 180 | A 0002903367 | REPAIR KIT |
| 182 | A 0002952183 | BOOT |
| 185 | A 0002900611 | REPAIR KIT |
| A 0002951983 | BOOT | |
| A 0002950373 | LOCK | |
| 185 | A 0005863929 | REPAIR KIT |
| Repalced by: A 0002902111 | ||
| 185 | A 0002902111 | SLAVE CYLINDER |
| A 0002953183 | BOOT | |
| A 0002950973 | LOCK | |
| 185 | A 0005862629 | REPAIR KIT |
| A 0002951983 | BOOT | |
| A 0002950373 | LOCK | |
| 189 | A 1152510080 | GASKET |
| 191 | N 912004008102 | LOCK WASHER |
| 192 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 192 | N 304017008027 | SCREW |
| A 0002950973 | LOCK | |
| A 0002953183 | BOOT | |
