Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036

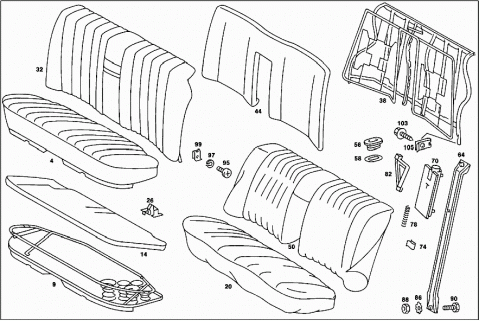

Grupė: 92 REAR BENCH - 001 REAR SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR AMELIORATED VERSION,SEE SA 56 0433 | ||
| 004 | A 1169200020 | REAR SEAT CUSHION |
| A 1169201220 | REAR SEAT CUSHION | |
| 004 | A 1169200120 | REAR SEAT CUSHION |
| 004 | A 1169200920 | REAR SEAT CUSHION |
| 004 | A 1169200920 | REAR SEAT CUSHION |
| 004 | A 1169200920 | REAR SEAT CUSHION |
| A 1169200420 | REAR SEAT CUSHION | |
| A 1169201320 | REAR SEAT CUSHION | |
| A 1169201320 | REAR SEAT CUSHION | |
| Repalced by: A 1169201520 | ||
| A 1169201520 | REAR SEAT CUSHION | |
| 009 | A 1169200022 | CUSHION FRAME |
| A 1169200122 | CUSHION FRAME | |
| A 1169240014 | PAD | |
| Repalced by: A 1169240114 | ||
| 014 | A 1169240114 | PAD |
| A 1169200250 | PAD | |
| Repalced by: A 1169240114 | ||
| 020 | A 1169200046 | COVER |
| A 1169201946 | COVER | |
| 020 | A 1169200146 | COVER |
| 020 | A 1169201646 | COVER |
| 020 | A 1169201646 | COVER |
| 020 | A 1169201646 | COVER |
| A 1169200446 | COVER | |
| A 1169201846 | COVER | |
| A 0009833413 | BAND | |
| 2020 MM | ||
| A 0009833413 | BAND | |
| 2020 MM | ||
| A 0009870281 | SEALING CORD | |
| A 0009870281 | SEALING CORD | |
| A 0019870230 | WELT | |
| A 0019870230 | WELT | |
| A 0019873030 | WELT | |
| Repalced by: A 0019870230 | ||
| A 1169200002 | SEAT CUSHION LESS COVER | |
| COMPLETE, BUT LESS COVER | ||
| 026 | A 1079200014 | BRACKET |
| 032 | A 1169200030 | BACKREST |
| A 1169201430 | BACKREST | |
| 032 | A 1169200130 | BACKREST |
| 032 | A 1169201130 | BACKREST |
| 032 | A 1169201130 | BACKREST |
| 032 | A 1169201130 | BACKREST |
| A 1169200430 | BACKREST | |
| A 1169201330 | BACKREST | |
| A 1169201330 | BACKREST | |
| Repalced by: A 1169201630 | ||
| A 1169201630 | BACKREST | |
| A 1169200032 | BACKREST FRAME | |
| Repalced by: A 1169200232 | ||
| 038 | A 1169200232 | BACKREST FRAME |
| A 1169200232 | BACKREST FRAME | |
| Repalced by: A 1169200832 | ||
| 038 | A 1169200832 | BACKREST FRAME |
| A 1169240016 | PAD | |
| Repalced by: A 1169240216 | ||
| 044 | A 1169240216 | PAD |
| 044 | A 1169240216 | PAD |
| A 1169240016 | PAD | |
| A 1169240216 | PAD | |
| Repalced by: A 1169200316 | ||
| A 1169200316 | PAD | |
| A 1169200316 | PAD | |
| A 1169200316 | PAD | |
| Repalced by: A 1169200416 | ||
| 044 | A 1169200416 | PAD |
| 050 | A 1169200047 | COVER |
| A 1169201447 | COVER | |
| 050 | A 1169200147 | COVER |
| 050 | A 1169200847 | COVER |
| 050 | A 1169200847 | COVER |
| 050 | A 1169200847 | COVER |
| A 1169200447 | COVER | |
| A 1169201347 | COVER | |
| A 1169201547 | COVER | |
| A 0039880178 | CLIP | |
| A 0009842061 | CLIP | |
| COVER TO PAD | ||
| 056 | A 1159880482 | EYE |
| Repalced by: A 1269880182 | ||
| 056 | A 1269880182 | EYE |
| A 1139880182 | EYE | |
| Repalced by: A 1239880382 | ||
| A 1239880382 | EYE | |
| 058 | A 1159880482 | EYE |
| Repalced by: A 1269880182 | ||
| 058 | A 1269880182 | EYE |
| 064 | A 1169700243 | FRAME |
| A 1169700115 | RAIL | |
| Repalced by: A 1239700315 | ||
| 070 | A 1239700315 | RAIL |
| LEFT | ||
| A 1169700215 | RAIL | |
| Repalced by: A 1239700415 | ||
| A 1239700415 | RAIL | |
| RIGHT | ||
| 074 | A 1159880478 | CLIP |
| 078 | A 1159750337 | SPRING |
| 082 | A 1009750085 | CONTROL MECHANISM |
| 086 | N 006797005110 | TOOTHED WASHER |
| 088 | N 913013005000 | NUT |
| Repalced by: N 910113005001 | ||
| 088 | N 910113005001 | NUT |
| 090 | N 007985006149 | SCREW |
| Repalced by: N 007985006580 | ||
| 090 | N 007985006580 | SCREW |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR CENTRAL ARMREST,SEE GROUP 97 | ||
| A 1169200004 | BACKREST LESS COVER | |
| 095 | N 007981005209 | SHEET METAL SCREW |
| 097 | N 912004006102 | LOCK WASHER |
| 099 | A 0009944745 | LOCK |
| 103 | N 914031004206 | COMBINATION BOLT |
| 105 | A 1239940645 | LOCK |
| Repalced by: A 1239941845 | ||
| 105 | A 1239941845 | LOCK |
