Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

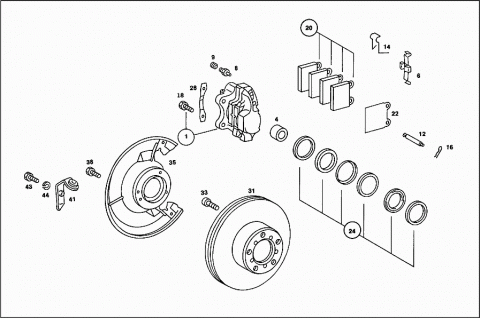

| A 0014213698 | CALIPER | |
| Repalced by: A 0024211898 | ||
| A 0014217798 | CALIPER | |
| Repalced by: A 0024211898 | ||
| 001 | A 0024211898 | CALIPER |
| Repalced by: A 1164200083 | ||
| 001 | A 1164200083 | CALIPER |
| LEFT;TEVES;IN PAIRS OPTIONAL WITH | ||
| 116 420 02 83 | ||
| A 0034211098 | CALIPER | |
| Repalced by: A 1264200083 | ||
| 001 | A 1264200083 | CALIPER |
| LEFT;TEVES;IN PAIRS OPTIONAL WITH | ||
| 126 420 02 83 | ||
| A 0014213798 | CALIPER | |
| Repalced by: A 0024211998 | ||
| A 0014217898 | CALIPER | |
| Repalced by: A 0024211998 | ||
| A 0024211998 | CALIPER | |
| Repalced by: A 1164200183 | ||
| 001 | A 1164200183 | CALIPER |
| RIGHT;TEVES; IN PAIRS OPTIONAL WITH | ||
| 116 420 03 83 | ||
| A 0034211198 | CALIPER | |
| Repalced by: A 1264200183 | ||
| 001 | A 1264200183 | CALIPER |
| RIGHT;TEVES; IN PAIRS OPTIONAL WITH | ||
| 126 420 03 83 | ||
| A 0014218698 | CALIPER | |
| Repalced by: A 0024212398 | ||
| 001 | A 0024212398 | CALIPER |
| Repalced by: A 1164200283 | ||
| 001 | A 1164200283 | CALIPER |
| LEFT;MAKE BENDIX; IN PAIRS OPTIONAL WITH | ||
| 002 421 18 98 | ||
| A 0034211798 | CALIPER | |
| Repalced by: A 1264200283 | ||
| 001 | A 1264200283 | CALIPER |
| LEFT;MAKE BENDIX; IN PAIRS OPTIONAL WITH | ||
| 126 420 02 83 | ||
| A 0014218798 | CALIPER | |
| Repalced by: A 0024212498 | ||
| A 0024212498 | CALIPER | |
| Repalced by: A 1164200383 | ||
| 001 | A 1164200383 | CALIPER |
| Repalced by: A 1164200183 | ||
| 001 | A 1164200183 | CALIPER |
| RIGHT;BENDIX;IN PAIRS OPTIONAL WITH | ||
| 116 420 01 83 | ||
| A 0034211898 | CALIPER | |
| Repalced by: A 1264200383 | ||
| 001 | A 1264200383 | CALIPER |
| RIGHT;BENDIX;IN PAIRS OPTIONAL WITH | ||
| 126 420 01 83 | ||
| 004 | A 0004214383 | PISTON |
| TEVES | ||
| 004 | A 0004215383 | PISTON |
| TEVES | ||
| A 0004214683 | PISTON | |
| Repalced by: A 0004215483 | ||
| 004 | A 0004215483 | PISTON |
| BENDIX | ||
| A 0004210991 | SPRING | |
| Repalced by: A 0004211191 | ||
| 006 | A 0004211191 | SPRING |
| TEVES | ||
| 006 | A 0004212491 | SPRING |
| TEVES | ||
| 008 | A 0004201755 | BLEEDER VALVE |
| TEVES | ||
| 008 | A 0004202455 | BLEEDER VALVE |
| Repalced by: A 0004204655 | ||
| 008 | A 0004204655 | BLEEDER VALVE |
| BENDIX | ||
| 009 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 009 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 009 | A 0004210887 | PROTECTIVE CAP |
| 012 | A 0009911760 | DOWEL PIN |
| TEVES | ||
| 012 | A 0009914060 | DOWEL PIN |
| TEVES | ||
| 012 | A 0009912360 | DOWEL PIN |
| BENDIX | ||
| 012 | A 0009914360 | DOWEL PIN |
| BENDIX | ||
| 014 | A 0004211591 | SPRING |
| BENDIX | ||
| 014 | A 0004212191 | SPRING |
| BENDIX | ||
| 014 | A 0004212791 | SPRING |
| BENDIX | ||
| 016 | A 0004210473 | LOCK |
| Repalced by: A 0004210573 | ||
| 016 | A 0004210573 | LOCK |
| 018 | A 1234210171 | SCREW |
| Repalced by: A 1234210271 | ||
| 018 | A 1234210271 | SCREW |
| A 0015863242 | REPAIR KIT | |
| Repalced by: A 0004206520 | ||
| A 0004206520 | TS BRAKE PAD | |
| Repalced by: A 0004206320 | ||
| A 0015863642 | REPAIR KIT | |
| Repalced by: A 0004206320 | ||
| 020 | A 0004206320 | TS BRAKE PAD |
| PARTS KIT | ||
| A 0015863342 | REPAIR KIT | |
| Repalced by: A 0004206420 | ||
| 020 | A 0004206420 | TS BRAKE PAD |
| PARTS KIT | ||
| A 0025864542 | REPAIR KIT | |
| Repalced by: A 0004206020 | ||
| A 0004206020 | TS BRAKE PAD | |
| Repalced by: A 0004209520 | ||
| 020 | A 0004209520 | TS BRAKE PAD |
| Repalced by: A 0014207520 | ||
| 020 | A 0014207520 | TS BRAKE PAD |
| Repalced by: A 0014209920 | ||
| 020 | A 0014209920 | TS BRAKE PAD |
| PARTS KIT | ||
| A 0025864642 | REPAIR KIT | |
| Repalced by: A 0004205920 | ||
| A 0004205920 | TS BRAKE PAD | |
| Repalced by: A 0004209420 | ||
| 020 | A 0004209420 | TS BRAKE PAD |
| Repalced by: A 0014207520 | ||
| 020 | A 0014207520 | TS BRAKE PAD |
| Repalced by: A 0014209920 | ||
| 020 | A 0014209920 | TS BRAKE PAD |
| PARTS KIT | ||
| 022 | A 0004210196 | SHIM |
| 024 | A 0005867442 | REPAIR KIT |
| TEVES | ||
| 024 | A 0025864442 | REPAIR KIT |
| TEVES | ||
| 024 | A 0015861142 | REPAIR KIT |
| BENDIX | ||
| 028 | A 1159940732 | LOCK |
| 031 | A 1164200205 | BRAKE DISC |
| 031 | A 1264200005 | BRAKE DISC |
| A 1235860042 | REPAIR KIT | |
| BRAKE DISC TO WHEEL HUB | ||
| A 0009903712 | SCREW | |
| Repalced by: A 0009907212 | ||
| 033 | A 0009907212 | SCREW |
| A 1164201444 | PROTECTIVE PLATE | |
| Repalced by: A 1264210220 | ||
| A 1164211320 | PROTECTIVE PLATE | |
| Repalced by: A 1264210220 | ||
| 035 | A 1264210220 | PROTECTIVE PLATE |
| 038 | N 914125006501 | SCREW |
| 041 | A 1164200286 | BRACKET |
| 043 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 043 | N 304017006034 | SCREW |
| 044 | N 912004006102 | LOCK WASHER |

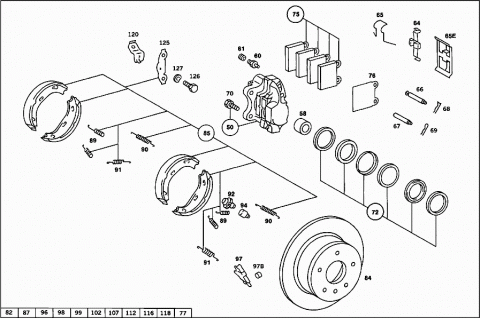

| A 0004236398 | CALIPER | |
| Repalced by: A 0004237298 | ||
| A 0004237298 | CALIPER | |
| Repalced by: A 1234200583 | ||
| 050 | A 1234200583 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| A 0004236498 | CALIPER | |
| Repalced by: A 0004237398 | ||
| A 0004237398 | CALIPER | |
| Repalced by: A 1234200683 | ||
| 050 | A 1234200683 | CALIPER |
| RIGHT,TEVES,LESS LINING | ||
| A 0004237098 | CALIPER | |
| Repalced by: A 1234200783 | ||
| 050 | A 1234200783 | CALIPER |
| Repalced by: A 1264201483 | ||
| 050 | A 1264201483 | CALIPER |
| LEFT;BENDIX;LESS LINING | ||
| A 0004237198 | CALIPER | |
| Repalced by: A 1234200883 | ||
| 050 | A 1234200883 | CALIPER |
| Repalced by: A 1264201583 | ||
| 050 | A 1264201583 | CALIPER |
| RIGHT;BENDIX;LESS LINING | ||
| A 0004239198 | CALIPER | |
| Repalced by: A 1234200983 | ||
| 050 | A 1234200983 | CALIPER |
| LEFT;GIRLING;LESS LINING; IN PAIRS OPTIONAL WITH | ||
| A 0004239298 | CALIPER | |
| Repalced by: A 1234201083 | ||
| 050 | A 1234201083 | CALIPER |
| RIGHT;GIRLING;LESS LINING; IN PAIRS OPTIONAL WITH | ||
| A 0004236098 | CALIPER | |
| Repalced by: A 0004238298 | ||
| A 0004238298 | CALIPER | |
| Repalced by: A 1264200483 | ||
| 050 | A 1264200483 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| A 0004236198 | CALIPER | |
| Repalced by: A 0004238398 | ||
| A 0004238398 | CALIPER | |
| Repalced by: A 1264200583 | ||
| 050 | A 1264200583 | CALIPER |
| RIGHT,TEVES,LESS LINING | ||
| A 0004233283 | PISTON | |
| Repalced by: A 0004233683 | ||
| 058 | A 0004233683 | PISTON |
| TEVES | ||
| 058 | A 0004233583 | PISTON |
| BENDIX | ||
| 058 | A 0004233883 | PISTON |
| GIRLING | ||
| 060 | A 0004201955 | BLEEDER VALVE |
| 7-MM THREAD | ||
| 060 | A 0004201655 | BLEEDER VALVE |
| BENDIX | ||
| 060 | A 0004202455 | BLEEDER VALVE |
| Repalced by: A 0004204655 | ||
| 060 | A 0004204655 | BLEEDER VALVE |
| 8-MM THREAD | ||
| 061 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 061 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 061 | A 0004210887 | PROTECTIVE CAP |
| A 0004210391 | SPRING | |
| Repalced by: A 0004211791 | ||
| 064 | A 0004211791 | SPRING |
| TEVES | ||
| 065 | A 0004211391 | SPRING |
| BENDIX | ||
| 065 | A 0004212291 | SPRING |
| 065E | A 0004233693 | SPRING |
| GIRLING | ||
| 066 | A 0009910360 | DOWEL PIN |
| TEVES | ||
| A 0009911960 | DOWEL PIN | |
| Repalced by: A 0009912660 | ||
| 067 | A 0009912660 | DOWEL PIN |
| BENDIX | ||
| 067 | A 0004231774 | PIN |
| GERLING | ||
| 068 | A 0004210273 | LOCK |
| Repalced by: A 0004210573 | ||
| 068 | A 0004210573 | LOCK |
| BENDIX TO 000 991 19 60 | ||
| 069 | A 0004210573 | LOCK |
| TO 000 991 26 60,000 423 17 74 | ||
| 070 | A 1234230071 | SCREW |
| 070 | A 1164230071 | SCREW |
| A 0005863943 | REPAIR KIT | |
| Repalced by: A 0015867343 | ||
| 072 | A 0015867343 | REPAIR KIT |
| TEVES | ||
| 072 | A 0015860142 | REPAIR KIT |
| BENDIX | ||
| 072 | A 0015868742 | REPAIR KIT |
| GIRLING | ||
| A 0005867642 | REPAIR KIT | |
| Repalced by: A 0004207620 | ||
| 075 | A 0004207620 | BRAKE PAD |
| Repalced by: A 0014200620 | ||
| 075 | A 0014200620 | TS BRAKE PAD |
| PARTS KIT | ||
| A 0025864742 | REPAIR KIT | |
| Repalced by: A 0004205820 | ||
| 075 | A 0004205820 | BRAKE PAD |
| PARTS KIT | ||
| A 0025864842 | REPAIR KIT | |
| Repalced by: A 0004205720 | ||
| 075 | A 0004205720 | BRAKE PAD |
| PARTS KIT | ||
| 076 | A 0004230061 | SHIM |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 70 | ||
| 077 | A 1234230071 | SCREW |
| SEE FIG. NO.: | ||
| 70 | ||
| 077 | A 1164230071 | SCREW |
| SEE FIG. NO.: | ||
| 70 | ||
| A 1159940532 | LOCK | |
| Repalced by: A 1154230273 | ||
| 082 | A 1154230273 | LOCK |
| SEE FIG.125 | ||
| 084 | A 1154230412 | BRAKE DISC |
| Repalced by: A 1264230012 | ||
| 084 | A 1264230012 | BRAKE DISC |
| 085 | A 1234200120 | BRAKE SHOE |
| Repalced by: A 1264200120 | ||
| 085 | A 1264200120 | BRAKE SHOE |
| 087 | A 1084200120 | BRAKE SHOE |
| A 1164200020 | BRAKE SHOE | |
| A 1234200020 | BRAKE SHOE | |
| Repalced by: A 1234200120 | ||
| 089 | A 1084230092 | SPRING |
| 090 | A 1084230192 | SPRING |
| Repalced by: A 9019931310 | ||
| 090 | A 9019931310 | SPRING |
| 091 | A 1084230692 | SPRING |
| A 1084200273 | SCREW | |
| Repalced by: A 1234200073 | ||
| 092 | A 1234200073 | SCREW |
| A 1084230050 | BUSHING | |
| Repalced by: A 1164230050 | ||
| 094 | A 1164230050 | BUSHING |
| A 1145860042 | REPAIR KIT | |
| Repalced by: A 1145860142 | ||
| 096 | A 1145860142 | REPAIR KIT |
| TURNBUCKLE | ||
| 097 | A 1154201189 | SHACKLE |
| 097B | A 1084270074 | CYLINDER PIN |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO. 90 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO. 91 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.143E | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.143J | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.144E | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.145 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 35, FIG.NO.145D | ||
| 120 | A 1154281740 | BRACKET |
| LEFT | ||
| 120 | A 1154281840 | BRACKET |
| RIGHT | ||
| 125 | A 1154230273 | LOCK |
| 126 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 126 | N 304017006034 | SCREW |
| 127 | N 000137006204 | SPRING WASHER |

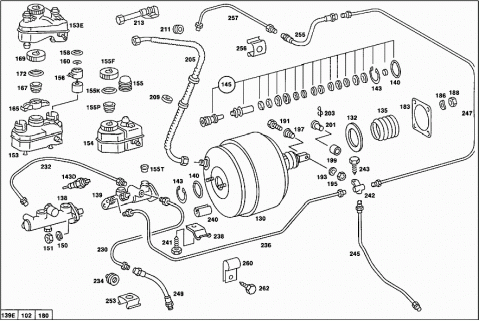

| A 0004309530 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014308430 | ||
| A 0014308430 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024304430 | ||
| A 0024304430 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024306830 | ||
| 130 | A 0024306830 | BRAKE BOOSTER ASSEMBLY |
| 132 | A 0004350912 | FILTER |
| 135 | A 0004314387 | PROTECTIVE CAP |
| 138 | A 0024302801 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 138 | A 0034302201 | BRAKE MASTER CYLINDER |
| BENDIX | ||
| 139 | A 0034305901 | BRAKE MASTER CYLINDER |
| TEVES | ||
| A 0034306001 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0044300901 | ||
| 139 | A 0044300901 | BRAKE MASTER CYLINDER |
| TEVES | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 139 | ||
| 140 | A 0049973245 | SEAL RING |
| 143 | N 000472028000 | LOCK RING |
| 143D | A 0045423017 | SENDER UNIT |
| A 0015860443 | REPAIR KIT | |
| Repalced by: A 0015869343 | ||
| 145 | A 0015869343 | REPAIR KIT |
| TEVES | ||
| TO 002 430 28 01 | ||
| A 0015869243 | REPAIR KIT | |
| Repalced by: A 0025862243 | ||
| 145 | A 0025862243 | REPAIR KIT |
| TEVES,TO 003 430 59 01,003 430 59 01 | ||
| 145 | A 0004302760 | REPAIR KIT |
| TEVES TO 004 430 09 01 | ||
| 145 | A 0015865543 | REPAIR KIT |
| BENDIX,TO 003 430 22 01 | ||
| 150 | N 912004008102 | LOCK WASHER |
| 151 | N 000934008013 | NUT |
| A 0004316402 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| A 0014310602 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| A 0014310702 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| 153 | A 0014314202 | RESERVOIR |
| TEVES, THREE-CHAMBER | ||
| A 0004318902 | RESERVOIR | |
| Repalced by: A 0014314502 | ||
| 153E | A 0014314502 | RESERVOIR |
| Repalced by: A 0014314202 | ||
| 153E | A 0014314202 | RESERVOIR |
| A 0014311102 | RESERVOIR | |
| Repalced by: A 0014315502 | ||
| A 0014311402 | RESERVOIR | |
| Repalced by: A 0014315502 | ||
| A 0014314302 | RESERVOIR | |
| Repalced by: A 0014315502 | ||
| 154 | A 0014315502 | RESERVOIR |
| TEVES | ||
| A 0014312602 | RESERVOIR | |
| Repalced by: A 0014315302 | ||
| A 0014314402 | RESERVOIR | |
| Repalced by: A 0014315302 | ||
| 154 | A 0014315302 | RESERVOIR |
| TEVES | ||
| 155 | A 0004317687 | PROTECTIVE CAP |
| TEVES | ||
| 155 | A 0004319087 | PROTECTIVE CAP |
| TEVES | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| 155F | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| A 0004315133 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| 155F | A 0004315433 | FILLER CAP |
| TEVES | ||
| 155K | A 0009972940 | SEAL RING |
| 155K | A 0004319760 | SEAL RING |
| BENDIX | ||
| 155P | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 155P | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 155P | A 0004314334 | STRAINER |
| TEVES | ||
| 155P | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 155P | A 0004314334 | STRAINER |
| TEVES | ||
| 155T | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 155T | A 0004310950 | BUSHING |
| 155T | A 0004310935 | CONNECTOR |
| A 0025420617 | SENDER UNIT | |
| Repalced by: A 0015426317 | ||
| A 0025420617 | SENDER UNIT | |
| Repalced by: A 0025429917 | ||
| 156 | A 0015426317 | SENDER UNIT |
| TEVES, FOR FRONT SUPPLY CHAMBER | ||
| 156 | A 0015426317 | SENDER UNIT |
| THREE-CHAMBER RESERVOIR,REAR | ||
| 156 | A 0025429917 | SENDER UNIT |
| TEVES,FOR REAR SUPPLY CHAMBER | ||
| 158 | A 0004317560 | SEAL RING |
| TEVES | ||
| 160 | A 0004318260 | SEAL RING |
| TEVES | ||
| A 0004311633 | FILLER CAP | |
| TEVES | ||
| 165 | A 0004310062 | COVERING |
| TEVES | ||
| 167 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 167 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 167 | A 0004314334 | STRAINER |
| TEVES | ||
| A 0004312034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| 167 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 167 | A 0004314334 | STRAINER |
| TO 001 431 45 02 | ||
| A 0004312033 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004313233 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004311333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| 169 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 169 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 169 | A 0004315433 | FILLER CAP |
| 172 | A 0009972940 | SEAL RING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 155T | ||
| 183 | A 1154310180 | GASKET |
| 186 | N 000137008204 | SPRING WASHER |
| 188 | N 000934008013 | NUT |
| 191 | N 000933008153 | SCREW |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 193 | N 000137008204 | SPRING WASHER |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 195 | N 000934008013 | NUT |
| BRAKE BOOSTER PUSH ROD TO BRAKE PEDAL | ||
| 197 | A 1152910350 | BUSHING |
| 199 | A 1232920150 | BUSHING |
| 201 | A 1262920074 | PIN |
| 201 | A 1262920174 | PIN |
| 203 | N 912011008000 | LOCK |
| 205 | A 1164301029 | LINE |
| FROM VACUUM PUMP TO BRAKE BOOSTER | ||
| 205 | A 1164301829 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164302329 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1164302429 | LINE | |
| Repalced by: A 1164303629 | ||
| 205 | A 1164303629 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164303929 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 205 | A 1164301129 | LINE |
| Repalced by: A 1164300429 | ||
| 205 | A 1164300429 | LINE |
| FROM VACUUM PUMP TO BRAKE BOOSTER | ||
| 205 | A 1164301629 | LINE |
| INTAKE MANIFOLD-BRAKE BOOSTER | ||
| 205 | A 1164303029 | LINE |
| INTAKE MANIFOLD-BRAKE BOOSTER | ||
| 205 | A 1164302029 | LINE |
| INTAKE MANIFOLD-BRAKE BOOSTER | ||
| 207 | A 1164303229 | LINE |
| FROM VACUUM PUMP TO BRAKE BOOSTER | ||
| 208 | A 1164304029 | LINE |
| FROM VACUUM PUMP TO BRAKE BOOSTER | ||
| A 1219870039 | RUBBER BUFFER | |
| Repalced by: A 1169870941 | ||
| A 1169870641 | RUBBER RING | |
| Repalced by: A 1169870941 | ||
| 209 | A 1169870941 | RUBBER RING |
| 209 | A 1169870941 | RUBBER RING |
| 211 | A 0009972781 | GROMMET |
| 213 | A 1094301029 | LINE |
| 213 | A 1074300929 | LINE |
| 213 | A 1164301429 | LINE |
| 213D | A 1078000219 | TANK |
| VACUUM | ||
| 213L | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 213L | A 1238050298 | SEAL |
| 213S | A 1164300010 | BRACKET |
| 213W | N 007340004121 | RIVET |
| 214E | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 214E | N 304032006008 | NUT |
| 214K | A 0109977082 | HOSE |
| FROM LEFT RESERVOIR TO DISTRIBUTOR | ||
| 750 MM | ||
| 214K | A 0109977082 | HOSE |
| FROM RIGHT SUPPLY TANK TO DISTRIBUTOR | ||
| 2100 MM | ||
| 214K | A 0109977082 | HOSE |
| FROM DISTRIBUTOR TO BRAKE BOOSTER ASSEMBLY VACUUM LINE | ||
| 830 MM | ||
| 214M | A 1170780145 | BRANCH-OFF FITTING |
| 214P | A 1109974782 | HOSE |
| VERTEILERSTUECK ZUR UNTERDRUCKLEITUNG BREMSGERAET | ||
| 60 MM | ||
| 214T | A 1159971981 | GROMMET |
| A 0002300465 | VACUUM PUMP | |
| Repalced by: A 0002300365 | ||
| 215 | A 0002300365 | VACUUM PUMP |
| 217 | A 1102360116 | FOLLOWER |
| 219 | A 1104300529 | LINE |
| 221 | N 914020006002 | COMBINATION BOLT |
| N 915011008101 | HOLLOW SCREW | |
| Repalced by: N 915036010100 | ||
| 224 | N 915036010204 | HOLLOW SCREW |
| 225 | N 007603014104 | SEAL RING |
| 226 | A 0005864043 | REPAIR KIT |
| VALVE | ||
| 227 | A 0015860743 | REPAIR KIT |
| DIAPHRAGM | ||
| A 1164200128 | LINE | |
| Repalced by: A 1234205928 | ||
| 230 | A 1234205928 | LINE |
| FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| A 1164200028 | LINE | |
| Repalced by: A 1234207128 | ||
| 230 | A 1234207128 | LINE |
| FROM FRONT MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 230 | A 1164202228 | LINE |
| Repalced by: A 1234205928 | ||
| 230 | A 1234205928 | LINE |
| FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| A 1164202828 | LINE | |
| Repalced by: A 1164203628 | ||
| A 1164203628 | LINE | |
| Repalced by: A 1234205828 | ||
| 232 | A 1234205828 | LINE |
| FROM REAR MASTER CYLINDER TO LEFT FRONT BRAKE HOSE | ||
| A 1164202128 | LINE | |
| Repalced by: A 1234207128 | ||
| 232 | A 1234207128 | LINE |
| FROM FRONT MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| A 1164202628 | LINE | |
| Repalced by: A 1164203428 | ||
| A 1164203428 | LINE | |
| Repalced by: A 1234207228 | ||
| 232 | A 1234207228 | LINE |
| FROM REAR MASTER CYLINDER TO RIGHT FRONT BRAKE HOSE | ||
| 234 | A 0019971481 | GROMMET |
| A 1164200228 | LINE | |
| Repalced by: A 1234208528 | ||
| 236 | A 1234208528 | LINE |
| FROM REAR MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1164203028 | LINE | |
| Repalced by: A 1164203828 | ||
| A 1164203828 | LINE | |
| Repalced by: A 1234208628 | ||
| 236 | A 1234208628 | LINE |
| FROM FRONT MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1164201528 | LINE | |
| Repalced by: A 1234208628 | ||
| 236 | A 1234208628 | LINE |
| FROM REAR MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1164203128 | LINE | |
| Repalced by: A 1164203928 | ||
| A 1164203928 | LINE | |
| Repalced by: A 1234208728 | ||
| 236 | A 1234208728 | LINE |
| FROM FRONT MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1164203328 | LINE | |
| Repalced by: A 1164204128 | ||
| A 1164204128 | LINE | |
| Repalced by: A 1234208828 | ||
| 236 | A 1234208828 | LINE |
| FROM FRONT MASTER CYLINDER TO DISTRIBUTOR | ||
| 236 | A 1234208828 | LINE |
| FROM FRONT MASTER CYLINDER TO DISTRIBUTOR | ||
| 238 | A 1089950520 | CLAMP |
| 240 | A 1104280181 | RUBBER PAD |
| Repalced by: A 1263280181 | ||
| 240 | A 1263280181 | BUFFER |
| 241 | N 007976005203 | SHEET METAL SCREW |
| A 0004284824 | DISTRIBUTOR | |
| Repalced by: A 0004284224 | ||
| 242 | A 0004284224 | DISTRIBUTOR |
| 243 | N 007976006204 | SHEET METAL SCREW |
| A 1164200428 | LINE | |
| Repalced by: A 1234205528 | ||
| 245 | A 1234205528 | LINE |
| FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE | ||
| A 1164200328 | LINE | |
| Repalced by: A 1234206628 | ||
| 247 | A 1234206628 | LINE |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 0004288035 | BRAKE HOSE | |
| Repalced by: A 1234280535 | ||
| A 1234280335 | BRAKE HOSE | |
| Repalced by: A 1234280535 | ||
| 249 | A 1234280535 | BRAKE HOSE |
| 253 | A 0004280673 | RETAINING SPRING |
| A 0014281435 | BRAKE HOSE | |
| Repalced by: A 1164280135 | ||
| 253 | A 1164280135 | BRAKE HOSE |
| Repalced by: A 1264280135 | ||
| 253 | A 1264280135 | BRAKE HOSE |
| REAR | ||
| A 0004283535 | BRAKE HOSE | |
| Repalced by: A 1234280135 | ||
| 255 | A 1234280135 | BRAKE HOSE |
| Repalced by: A 1264280335 | ||
| 255 | A 1264280335 | BRAKE HOSE |
| REAR | ||
| 256 | A 0004280673 | RETAINING SPRING |
| A 1154201828 | LINE | |
| Repalced by: A 1234205028 | ||
| 257 | A 1234205028 | LINE |
| FROM LEFT REAR BRAKE HOSE TO CALIPER | ||
| 180 MM | ||
| A 1154201928 | LINE | |
| Repalced by: A 1234205028 | ||
| 257 | A 1234205028 | LINE |
| FROM RIGHT REAR BRAKE HOSE TO CALIPER | ||
| 180 MM | ||
| 257 | A 1074201928 | LINE |
| Repalced by: A 1234205428 | ||
| 257 | A 1234205428 | LINE |
| FROM LEFT REAR BRAKE HOSE TO CALIPER | ||
| 257 | A 1074202028 | LINE |
| Repalced by: A 1234205428 | ||
| 257 | A 1234205428 | LINE |
| FROM RIGHT REAR BRAKE HOSE TO CALIPER | ||
| 260 | A 1159950101 | CLAMP |
| 262 | N 007976005203 | SHEET METAL SCREW |

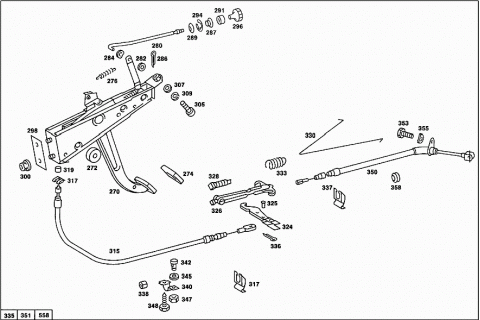

| 270 | A 1164200384 | PARKING BRAKE |
| 270 | A 1164200984 | PARKING BRAKE |
| 272 | A 1154270786 | DAMPING RING |
| 272 | A 1164270186 | DAMPING RING |
| 274 | A 1074270082 | PAD |
| A 1159932610 | SPRING | |
| Repalced by: A 1164300093 | ||
| 276 | A 1164300093 | SPRING |
| 280 | A 1164270231 | ROD |
| 282 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 282 | N 000125006449 | WASHER |
| 284 | N 900055006001 | SPRING WASHER |
| 286 | N 000094001510 | COTTER PIN |
| 287 | A 1164270012 | GUIDE |
| 289 | A 1164270073 | LOCK |
| 291 | A 1154270886 | DAMPING RING |
| 294 | N 006799005002 | LOCK PLATE |
| 296 | A 1074200095 | HANDLE |
| 298 | A 1154270079 | GASKET |
| 300 | N 913013006000 | NUT |
| Repalced by: N 913019006000 | ||
| 300 | N 913019006000 | NUT |
| Repalced by: N 913012006001 | ||
| 300 | N 913012006001 | NUT |
| 305 | N 000912006066 | SCREW |
| 307 | A 1809901040 | WASHER |
| 309 | N 912004006102 | LOCK WASHER |
| 315 | A 1164200585 | BRAKE CABLE |
| 315 | A 1164200685 | BRAKE CABLE |
| 317 | A 1159930325 | SPRING |
| 319 | N 073379006101 | HOSE |
| 324 | A 1164200442 | BRAKE LEVER |
| 325 | A 1154270974 | PIN |
| A 1164200289 | SHACKLE | |
| Repalced by: A 1234200589 | ||
| 326 | A 1234200589 | SHACKLE |
| 328 | A 1154270671 | SCREW |
| 330 | A 1164270141 | BRACKET |
| 333 | A 1169930410 | SPRING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.325 | ||
| 336 | N 000094001503 | COTTER PIN |
| 337 | A 1159930325 | SPRING |
| 338 | A 1154270095 | PROTECTIVE CAP |
| 340 | A 1159950210 | CLAMP |
| 342 | A 1204200227 | SCREW |
| 345 | A 0009873841 | RUBBER RING |
| 347 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 347 | N 304032006008 | NUT |
| 348 | N 007976006203 | SHEET METAL SCREW |
| A 1164200485 | BRAKE CABLE | |
| Repalced by: A 1164201685 | ||
| A 1164201585 | BRAKE CABLE | |
| Repalced by: A 1164201685 | ||
| 350 | A 1164201685 | BRAKE CABLE |
| 350 | A 1164201785 | BRAKE CABLE |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.315 | ||
| 353 | N 070614010010 | SCREW |
| Repalced by: N 000933010162 | ||
| 353 | N 000933010162 | SCREW |
| 355 | N 000137010205 | SPRING WASHER |
| 358 | A 1159970681 | GROMMET |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.358 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
