Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

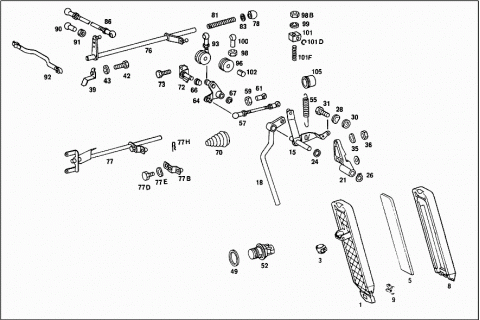

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONTROL | ||
| A 1153000404 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1163000004 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1233000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| 001 | A 1233000204 | ACCELERATOR PEDAL |
| A 1153010022 | JOINT | |
| Repalced by: A 1233010022 | ||
| 003 | A 1233010022 | JOINT |
| A 1153010083 | INSERT | |
| Repalced by: A 1163010182 | ||
| 005 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| A 1153010382 | PAD | |
| Repalced by: A 1163010182 | ||
| A 1163010082 | PAD | |
| Repalced by: A 1163010182 | ||
| A 1163010182 | PAD | |
| 008 | A 1233010082 | PAD |
| 009 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 009 | A 1249888678 | CLIP |
| 015 | A 1163000120 | SHAFT |
| 018 | A 1163010201 | ACCELERATOR PEDAL |
| A 1163010018 | BEARING | |
| Repalced by: A 1163010218 | ||
| 021 | A 1163010218 | BEARING |
| 024 | A 1143010051 | SPACER RING |
| 026 | N 900055012401 | RETAINING RING |
| 028 | N 000137008204 | SPRING WASHER |
| 030 | N 000125008418 | WASHER |
| 031 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 031 | N 304017008016 | SCREW |
| 035 | N 000137006204 | SPRING WASHER |
| 036 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 036 | N 304032006008 | NUT |
| 039 | A 1093011020 | LEVER |
| 042 | N 000933005036 | SCREW |
| 043 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 043 | N 000433005304 | WASHER |
| 049 | A 1159970640 | SEAL RING |
| 052 | A 0003000041 | KICK-DOWN SWITCH |
| Repalced by: A 0003000141 | ||
| 052 | A 0003000141 | KICK-DOWN SWITCH |
| A 1153040151 | NUT | |
| 055 | A 1169930610 | SPRING |
| 057 | A 1163000115 | ROD |
| 059 | N 000934005008 | NUT |
| 061 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 061 | A 0009918922 | BALL SOCKET |
| 064 | A 1163000128 | LEVER |
| A 1150720050 | BUSHING | |
| Repalced by: A 1150720450 | ||
| 066 | A 1150720450 | BUSHING |
| 067 | N 006799007007 | LOCK PLATE |
| A 1143010097 | BOOT | |
| A 1163010197 | BOOT | |
| Repalced by: A 1163010297 | ||
| 070 | A 1163010297 | BOOT |
| 072 | A 1163000036 | BEARING BRACKET |
| 073 | N 000933006130 | SCREW |
| A 1143001020 | SHAFT | |
| A 1163001520 | SHAFT | |
| 076 | A 1163000620 | SHAFT |
| 077 | A 1163001920 | SHAFT |
| A 1163001320 | SHAFT | |
| A 1163001120 | SHAFT | |
| 077A | A 1163002320 | SHAFT |
| 077B | A 1163000125 | LEVER |
| 077D | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 077D | N 304017006018 | SCREW |
| 077E | N 000137006204 | SPRING WASHER |
| N 912007008000 | CLIP | |
| A 1233010073 | LOCK | |
| Repalced by: A 1233010273 | ||
| 077H | A 1233010273 | LOCK |
| A 1093000085 | JOINT BALL | |
| Repalced by: A 1163000085 | ||
| A 1163000085 | JOINT BALL | |
| Repalced by: A 1263000085 | ||
| 078 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| A 1263010485 | RUBBER BUFFER | |
| A 1163010150 | BUSHING | |
| A 1169933601 | SPRING | |
| Repalced by: A 1169935001 | ||
| 081 | A 1169935001 | SPRING |
| 083 | A 1093010051 | SPACER RING |
| 084 | A 1163000340 | BRACKET |
| 084D | N 007976005203 | SHEET METAL SCREW |
| 084E | N 000137006204 | SPRING WASHER |
| 086 | A 1093000815 | ROD |
| A 1163001215 | ROD | |
| Repalced by: A 1233003715 | ||
| 087 | A 1233003715 | ROD |
| 090 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 090 | A 0009918922 | BALL SOCKET |
| 091 | N 000934005008 | NUT |
| 092 | A 0003000015 | ROD |
| A 0003000115 | ROD | |
| 093 | A 1163001015 | ROD |
| 094 | A 1163001115 | ROD |
| A 1163000815 | ROD | |
| Repalced by: A 1163000215 | ||
| A 1163000215 | ROD | |
| 096 | A 1163010097 | DAMPING RING |
| Repalced by: A 1163010185 | ||
| 096 | A 1163010185 | RUBBER BUFFER |
| 097 | A 1163010185 | RUBBER BUFFER |
| Repalced by: A 1263010285 | ||
| 097 | A 1263010285 | RUBBER BUFFER |
| Repalced by: A 1263010585 | ||
| 097 | A 1263010585 | RUBBER BUFFER |
| 098 | N 000934005008 | NUT |
| 098B | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 098B | N 304032006008 | NUT |
| 099 | N 006797006243 | TOOTHED WASHER |
| 100 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 100 | A 0009918922 | BALL SOCKET |
| 101 | A 1163000046 | BALL SOCKET |
| 101D | N 071805008300 | SNAP RING |
| 101F | A 1169933701 | SPRING |
| 102 | A 1163010050 | BUSHING |
| 105 | A 1169870144 | EXPANSION PLUG |
| 115 | A 1163000232 | WIRE CABLE |
| A 1163020083 | HOSE | |
| 121 | A 1233020008 | GUIDE |
| 127 | A 1233020076 | WASHER |
| 134 | A 1105450272 | NUT |
| 141 | A 1105451137 | BUTTON |
| 148 | A 1163020150 | BUSHING |
| A 1233020109 | SLEEVE | |
| Repalced by: A 1233020209 | ||
| 155 | A 1233020209 | SLEEVE |
| A 0009950368 | CLAMP | |

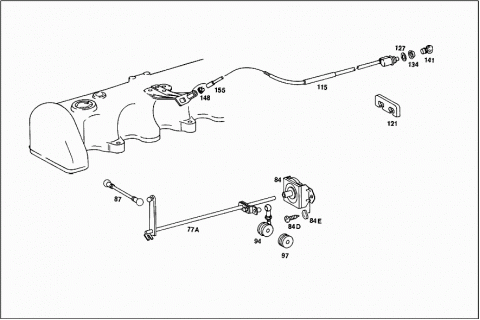

| TEMPOMAT(CRUISE CONTROL),AND IDLING ADJUSTMENT WIRE CABLE | ||
