Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

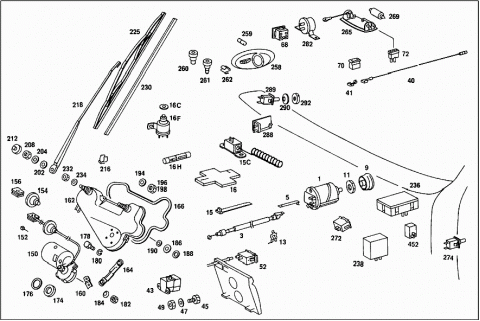

| 001 | A 1168210051 | SWITCH |
| 003 | A 1168300431 | WIRE CABLE |
| 005 | A 1168330068 | SPRING |
| A 0015440194 | BULB | |
| Repalced by: A 0008250094 | ||
| A 0008250094 | BULB | |
| Repalced by: N 000000001061 | ||
| N 000000001061 | BULB | |
| 009 | A 1168200092 | KNOB |
| 011 | A 1075450072 | NUT |
| 013 | A 0019886878 | CLIP |
| 015 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 015 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 015C | A 0028210351 | SWITCH |
| Repalced by: A 1238210051 | ||
| 015C | A 1238210051 | SWITCH |
| AT AIR CONDITIONER CASE | ||
| 016 | A 1168210076 | INSULATION |
| N 007981003214 | SHEET METAL SCREW | |
| 016C | A 0009871341 | RUBBER RING |
| 016F | A 0015400197 | VALVE |
| Repalced by: A 0015406897 | ||
| 016F | A 0015406897 | VALVE |
| Repalced by: A 0015407097 | ||
| 016F | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 016F | A 0015408697 | VALVE |
| AT AIR CONDITIONER CASE BRACKET | ||
| 016F | A 0015408697 | VALVE |
| AT AIR CONDITIONER CASE BRACKET | ||
| A 0015400097 | VALVE | |
| Repalced by: A 0015407097 | ||
| A 0015407097 | VALVE | |
| Repalced by: A 0015408697 | ||
| A 0015408697 | VALVE | |
| AT AIR CONDITIONER CASE BRACKET | ||
| A 0015400497 | VALVE | |
| Repalced by: A 0015403597 | ||
| A 0015403597 | VALVE | |
| Repalced by: A 0015406897 | ||
| A 0015406897 | VALVE | |
| Repalced by: A 0015407097 | ||
| A 0015407097 | VALVE | |
| Repalced by: A 0015408697 | ||
| A 0015408697 | VALVE | |
| AT AIR CONDITIONER CASE BRACKET | ||
| A 0015408697 | VALVE | |
| AT AIR CONDITIONER CASE BRACKET | ||
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| N 000137005203 | SPRING WASHER | |
| 016H | A 0008270037 | FUSE BOX |
| AUTOMATIC AIR CONDITIONER | ||
| 016H | A 0008270037 | FUSE BOX |
| AUTOMATIC AIR CONDITIONER | ||
| A 0005459934 | FUSE | |
| Repalced by: A 0015450134 | ||
| A 0015450134 | FUSE | |
| 1A | ||
| A 0015450134 | FUSE | |
| 1A | ||
| A 1079970481 | GROMMET | |
| Repalced by: A 1079972981 | ||
| 017 | A 1079972981 | GROMMET |
| A 1168200112 | COVERING | |
| Repalced by: A 1168200512 | ||
| 019 | A 1168200512 | COVERING |
| LEFT | ||
| A 1168200212 | COVERING | |
| Repalced by: A 1168200412 | ||
| A 1168200412 | COVERING | |
| RIGHT | ||
| 021 | N 007981003246 | SHEET METAL SCREW |
| 023 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 023 | N 000125004319 | WASHER |
| 025 | A 1168210336 | COVERING |
| BELOW LEFT REAR SEAT | ||
| A 1168210436 | COVERING | |
| UNDER RIGHT REAR SEAT | ||
| 027 | N 007981004219 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 027 | N 000000000453 | TAPPING SCREW |
| 028 | A 1168210736 | COVERING |
| LEFT | ||
| A 1168210836 | COVERING | |
| RIGHT | ||
| A 1168211036 | COVERING | |
| RIGHT | ||
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000000000460 | SHEET METAL SCREW | |

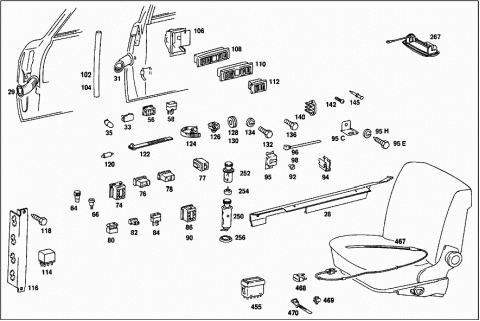

| 029 | A 1078210097 | HOSE |
| FRONT DOOR CABLE | ||
| 031 | A 1168210097 | HOSE |
| REAR DOOR CABLE | ||
| 033 | A 0008210038 | COVER |
| DOOR CONTACT OPENING | ||
| 033 | A 0008210038 | COVER |
| DOOR CONTACT OPENING | ||
| 035 | N 072601012230 | BULB |
| LIGHTING OF HEATING CONTROL LEVER | ||
| A 0015440194 | BULB | |
| Repalced by: A 0008250094 | ||
| A 0008250094 | BULB | |
| Repalced by: N 000000001061 | ||
| N 000000001061 | BULB | |
| LIGHTING OF DEFROSTER SYMBOL | ||
| A 1168200017 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| A 1168200117 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| A 1168200417 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| 040 | A 1238200017 | LIGHT GUIDE |
| ROCKER SWITCH LIGHT GUIDE | ||
| 040 | A 1238200017 | LIGHT GUIDE |
| ROCKER SWITCH LIGHT GUIDE | ||
| 040 | A 1238200017 | LIGHT GUIDE |
| ROCKER SWITCH LIGHT GUIDE | ||
| 040 | A 1238200017 | LIGHT GUIDE |
| ROCKER SWITCH LIGHT GUIDE | ||
| A 1168200517 | ELECTRIC CABLE | |
| Repalced by: A 1238200017 | ||
| 041 | A 0005468440 | CABLE SHOE |
| 043 | A 1088210751 | SWITCH |
| 045 | N 000933005073 | SCREW |
| SWITCH TO FOOTREST | ||
| 047 | N 000137005203 | SPRING WASHER |
| SWITCH TO FOOTREST | ||
| 049 | N 000934005008 | NUT |
| SWITCH TO FOOTREST | ||
| A 0018217751 | SWITCH | |
| Repalced by: A 0008206210 | ||
| 052 | A 0008206210 | SWITCH |
| ELECTRIC SLIDING ROOF | ||
| 056 | A 0008210626 | CONNECTOR |
| REAR DOOR CONTACT SWITCH CABLE HARNESS | ||
| 056 | A 0008210626 | CONNECTOR |
| REAR DOOR CONTACT SWITCH CABLE HARNESS | ||
| 058 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 058 | A 0095454028 | PLUG HOUSING |
| 2-PIN FOR REAR DOOR CONTACT SWITCH CABLE HARNESS | ||
| 064 | A 0005454728 | PLUG |
| 1-POLE FOR EXTENSION CABLE | ||
| 066 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 066 | A 1265401081 | PLUG SOCKET |
| 1-PIN FOR EXTENSION CABLE | ||
| 068 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 068 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 068 | A 0155454928 | PLUG |
| 4-POLE DOME LIGHT CABLE HARNESS | ||
| A 0015454028 | PLUG | |
| 2-POLE | ||
| 070 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 070 | A 0085453728 | PIN BUSHING HOUSING |
| DOME LAMP CABLE HARNESS | ||
| 070 | A 0085453728 | PIN BUSHING HOUSING |
| ELECTRIC SLIDING ROOF CABLE HARNESS | ||
| 070 | A 0085453728 | PIN BUSHING HOUSING |
| ELECTRIC SLIDING ROOF EXTENSION CABLE | ||
| 072 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 072 | A 0095454028 | PLUG HOUSING |
| DOME LAMP CABLE HARNESS | ||
| 072 | A 0095454028 | PLUG HOUSING |
| ELECTRIC SLIDING ROOF EXTENSION CABLE | ||
| A 1168208615 | ELECTRIC CABLE | |

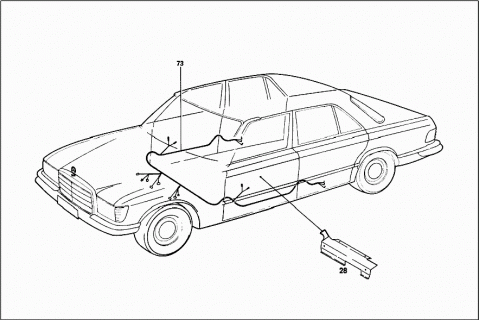

| 073 | A 1168209915 | ELECTRIC CABLE |
| A 1168209815 | ELECTRIC CABLE | |
| 074 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 074 | A 0065457828 | PLUG HOUSING |
| 6-POLE WINDOW LIFTER CABLE HARNESS | ||
| 074 | A 0065457828 | PLUG HOUSING |
| 6-POLE WINDOW LIFTER CABLE HARNESS | ||
| 076 | A 0045456428 | PLUG |
| Repalced by: A 0045456528 | ||
| 076 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 076 | A 0095459428 | PLUG |
| 4-POLE WINDOW LIFTER CABLE HARNESS | ||
| 076 | A 0095459428 | PLUG |
| 4-POLE WINDOW LIFTER CABLE HARNESS | ||
| A 0008210426 | CONNECTOR | |
| 077 | A 0008211226 | CONNECTOR |
| 078 | A 0045456328 | PLUG |
| Repalced by: A 0045456528 | ||
| 078 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 078 | A 0095459428 | PLUG |
| 3-POLE WINDOW LIFTER CABLE HARNESS | ||
| 078 | A 0095459428 | PLUG |
| 3-POLE WINDOW LIFTER CABLE HARNESS | ||
| 080 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 080 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE WINDOW LIFTER CABLE HARNESS | ||
| 080 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE WINDOW LIFTER CABLE HARNESS | ||
| 082 | A 0045456228 | PIN BUSHING HOUSING |
| Repalced by: A 0095458328 | ||
| 082 | A 0095458328 | PIN BUSHING HOUSING |
| 082 | A 0095458328 | PIN BUSHING HOUSING |
| 084 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 084 | A 0095454028 | PLUG HOUSING |
| 2-PIN WINDOW LIFTER CABLE HARNESS | ||
| 084 | A 0095454028 | PLUG HOUSING |
| 2-PIN WINDOW LIFTER CABLE HARNESS | ||
| A 1168201515 | ELECTRIC CABLE | |
| 086 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 086 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE ELECTRICALLY OPERATED WINDOW LIFTER ADDITIONAL CABLE HARNESS | ||
| 090 | A 0035455528 | PLUG |
| Repalced by: A 0055451328 | ||
| 090 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 090 | A 0065458028 | PIN BUSHING HOUSING |
| 4-POLE ELECTRICALLY OPERATED WINDOW LIFTER ADDITIONAL CABLE HARNESS | ||
| 092 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 092 | A 0009871840 | RUBBER BUFFER |
| WINDOW REGULATOR MOUNTING HOLE | ||
| A 0055450728 | PLUG | |
| 3-PIN,AUTOMATIC ANTENNA CABLE HARNESS | ||
| 094 | A 0029884878 | CLIP |
| DOME LAMP CABLE CONNECTOR TO INSTRUMENT PANEL | ||
| 094 | A 0029884878 | CLIP |
| REAR INTERIOR LAMP CABLE CONNECTOR TO RELAY BRACKET | ||
| 094 | A 0029884878 | CLIP |
| ELECTRIC SLIDING ROOF CABLE HARNESS TO INSTRUMENT PANEL REINFORCEMENT | ||
| N 007985004136 | SCREW | |
| ELECTRIC SLIDING ROOF CABLE TO FUSE BOX | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| ELECTRIC SLIDING ROOF CABLE TO FUSE BOX | ||
| 095 | A 1078210714 | BRACKET |
| CABLE CONNECTOR TO TUNNEL | ||
| 095C | A 1168210114 | BRACKET |
| AIR CONDITIONER CABLE HARNESS | ||
| 095E | N 007976005203 | SHEET METAL SCREW |
| 095H | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 095H | N 000125006449 | WASHER |
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 0029970890 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 096 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 096 | A 0019974390 | LOOM TIE |
| 250 MM | ||
| 098 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 098 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 102 | N 040621014200 | INSULATING HOSE |
| FRONT DOOR | ||
| 250 MM | ||
| 104 | N 040621009200 | INSULATING HOSE |
| REAR DOOR | ||
| 250 MM | ||
| 106 | A 1098210665 | CASE |
| Repalced by: A 1238210265 | ||
| 106 | A 1238210265 | CASE |
| WINDOW REGULATOR SWITCH TO REAR DOOR | ||
| 108 | A 0018214951 | SWITCH |
| DOUBLE, WITH SAFETY SWITCH | ||
| 110 | A 0018215051 | SWITCH |
| DOUBLE, LESS SAFETY SWITCH | ||
| 112 | A 0018215151 | SWITCH |
| SINGLE | ||
| 114 | A 0015420219 | RELAY |
| ELECTRIC WINDOW REGULATOR | ||
| 114 | A 0015420219 | RELAY |
| ELECTRIC WINDOW REGULATOR | ||
| A 0015422219 | RELAY | |
| ELECTRIC WINDOW REGULATOR | ||
| A 0015422219 | RELAY | |
| ELECTRIC WINDOW REGULATOR | ||
| 116 | A 1168210014 | BRACKET |
| RELAY | ||
| 118 | N 007976004215 | SHEET METAL SCREW |
| A 1149970490 | LOOM TIE | |
| Repalced by: A 1149970290 | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| A 1168210114 | BRACKET | |
| N 007976005203 | SHEET METAL SCREW | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| 120 | A 0005458334 | FUSE |
| 16 A | ||
| 120 | A 0005458334 | FUSE |
| 16 A | ||
| 122 | A 0019974190 | LOOM TIE |
| FRONT AND REAR DOORS,INSIDE | ||
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| A 0019974190 | LOOM TIE | |
| 124 | A 1149970190 | LOOM TIE |
| ON SIDE PANEL AND ON REAR DOOR | ||
| 124 | A 1149970190 | LOOM TIE |
| ON SIDE PANEL AND ON REAR DOOR | ||
| 126 | A 0029880278 | CLIP |
| CABLE HARNESS TO REAR DOOR INTERIOR PLATE | ||
| 128 | A 0009972781 | GROMMET |
| 130 | A 0009972881 | GROMMET |
| CABLE HARNESS THRU REAR DOOR INTERIOR PLATE | ||
| 132 | N 000084004139 | SCREW |
| CABLE CONNECTORS TO FRONT AND REAR DOORS | ||
| 134 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 134 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTORS TO FRONT AND REAR DOORS | ||
| 136 | N 914025004103 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 140 | A 0005467041 | CABLE CONNECTOR |
| 2-POLE ON FRONT AND REAR DOORS | ||
| 142 | N 007516004115 | TAPPING SCREW |
| CABLE CONNECTOR TO WINDOW REGULATOR | ||
| 145 | A 0009907297 | RIVET |
| A 0008203242 | ELECTRIC MOTOR | |
| Repalced by: A 0008204042 | ||
| A 0008203442 | ELECTRIC MOTOR | |
| Repalced by: A 0008204042 | ||
| 150 | A 0008204042 | ELECTRIC MOTOR |
| 152 | A 0008243075 | CARBON BRUSH SET |
| 3 PIECES | ||
| 154 | A 1169971081 | GROMMET |
| A 0055454928 | PLUG | |
| Repalced by: A 0035457128 | ||
| 156 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 156 | A 0065457828 | PLUG HOUSING |
| 5-PIN | ||
| A 0008246510 | CRANK | |
| Repalced by: A 0008246810 | ||
| 160 | A 0008246810 | CRANK |
| A 1168200828 | HOUSING | |
| Repalced by: A 1168201928 | ||
| 162 | A 1168201928 | HOUSING |
| 164 | A 0008241406 | ROD |
| A 1168240298 | SEAL | |
| Repalced by: A 1168240498 | ||
| 166 | A 1168240498 | SEAL |
| 174 | A 0009874741 | RUBBER RING |
| 176 | A 0029901040 | WASHER |
| 178 | N 000084006197 | SCREW |
| 180 | N 912004006102 | LOCK WASHER |
| 182 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 182 | N 304032008006 | NUT |
| 184 | N 000137008204 | SPRING WASHER |
| 186 | A 0039974140 | SEAL RING |
| 188 | A 0019909840 | WASHER |
| Repalced by: N 000988018003 | ||
| 188 | N 000988018003 | FITTED WASHER |
| 190 | A 0009873841 | RUBBER RING |
| N 912004006102 | LOCK WASHER | |
| 194 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 194 | N 000125006449 | WASHER |
| 196 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 196 | N 304032006008 | NUT |
| A 0009901150 | NUT | |
| Repalced by: N 913011006000 | ||
| 198 | N 913011006000 | NUT |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| 202 | A 0039974140 | SEAL RING |
| A 0019909740 | WASHER | |
| Repalced by: A 0019909840 | ||
| 204 | A 0019909840 | WASHER |
| Repalced by: N 000988018003 | ||
| 204 | N 000988018003 | FITTED WASHER |
| 208 | A 0019909151 | NUT |
| 212 | A 1168240072 | CAPSULE |
| 216 | A 0039880378 | CLIP |
| A 1168200544 | WIPER ARM | |
| Repalced by: A 1168202544 | ||
| A 1168202544 | WIPER ARM | |
| LEFT | ||
| A 1168200644 | WIPER ARM | |
| Repalced by: A 1168202644 | ||
| 218 | A 1168202644 | WIPER ARM |
| RIGHT | ||
| A 1168200045 | WIPER BLADE | |
| Repalced by: A 1168200345 | ||
| A 1168200345 | WIPER BLADE | |
| RIGHT | ||
| A 1168200145 | WIPER BLADE | |
| Repalced by: A 1168200245 | ||
| A 1168200245 | WIPER BLADE | |
| Repalced by: A 1168200445 | ||
| 225 | A 1168200445 | WIPER BLADE |
| LEFT | ||
| A 0008241427 | WIPER RUBBER | |
| RIGHT | ||
| A 0008241527 | WIPER RUBBER | |
| LEFT | ||
| 230 | A 0008241827 | WIPER RUBBER |
| LEFT | ||
| 232 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 232 | N 304035008001 | NUT |
| 234 | A 0009901748 | WASHER |
| 236 | A 1168210063 | PULSE SENDER UNIT |
| A 1158210063 | PULSE SENDER UNIT | |
| 238 | A 1238210063 | PULSE SENDER UNIT |
| A 0008210763 | PULSE SENDER UNIT | |
| Repalced by: A 1238210063 | ||
| A 1238210063 | PULSE SENDER UNIT | |
| 250 | A 1158250153 | CIGAR LIGHTER |
| 252 | A 0008250751 | ELEMENT |
| 254 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 254 | A 0008250252 | INCANDESCENT SPIRAL |
| 256 | A 0029941641 | LOCK |
| N 072601012110 | BULB | |
| 258 | A 1168200352 | READING LAMP |
| LEFT | ||
| A 1168200452 | READING LAMP | |
| RIGHT | ||
| 259 | N 072601012900 | BULB |
| T4W - 12V | ||
| 260 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 260 | A 0085452028 | PIN BUSHING HOUSING |
| ONE-POLE | ||
| 261 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 261 | A 1265401081 | PLUG SOCKET |
| ONE-PIN | ||
| 262 | A 0009881878 | CLIP |
| 265 | A 0008252301 | DOME LAMP |
| FRONT | ||
| A 0008206201 | INTERIOR LAMP | |
| Repalced by: A 0008206301 | ||
| A 0008206301 | INTERIOR LAMP | |
| FRONT | ||
| A 0008253101 | DOME LAMP | |
| Repalced by: A 0008252301 | ||
| A 0008252301 | DOME LAMP | |
| FRONT | ||
| A 0008206301 | INTERIOR LAMP | |
| FRONT | ||
| 267 | A 0008252401 | DOME LAMP |
| Repalced by: A 1238200501 | ||
| A 1238200501 | INTERIOR LAMP | |
| REAR | ||
| A 0008253201 | DOME LAMP | |
| Repalced by: A 1238200701 | ||
| A 1238200701 | INTERIOR LAMP | |
| Repalced by: A 1238200501 | ||
| A 1238200501 | INTERIOR LAMP | |
| REAR | ||
| 269 | N 072601012120 | BULB |
| K-12V 10W | ||
| A 1168200615 | ELECTRIC CABLE | |
| HEATED REAR WINDOW PANE | ||
| A 0025454628 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| A 0008210526 | CONNECTOR | |
| Repalced by: A 0008212326 | ||
| A 0008212326 | CONNECTOR | |
| HEATED WINDOW ROCKER SWITCH | ||
| A 0018217651 | SWITCH | |
| Repalced by: A 0008206010 | ||
| A 0008206010 | SWITCH | |
| HEATED REAR WINDOW PANE | ||
| A 0005458334 | FUSE | |
| A 1078200010 | SWITCH | |
| A 1078200110 | SWITCH | |
| N 007976004302 | TAPPING SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| A 0019974190 | LOOM TIE | |
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| 272 | A 0018217451 | SWITCH |
| Repalced by: A 0008205810 | ||
| A 0008205810 | SWITCH | |
| A 0008212052 | CONTACTOR | |
| Repalced by: A 0008213152 | ||
| A 0008212852 | CONTACTOR | |
| Repalced by: A 0008213152 | ||
| 274 | A 0008213152 | CONTACTOR |
| Repalced by: A 0008213252 | ||
| 274 | A 0008213252 | CONTACTOR |
| Repalced by: A 2018201110 | ||
| 274 | A 2018201110 | SWITCH |
| Repalced by: A 2018202110 | ||
| 274 | A 2018202110 | SWITCH |
| A 1128200010 | SWITCH | |
| Repalced by: A 0028210151 | ||
| 282 | A 0028210151 | SWITCH |
| DOME LAMP TIME-LAG RELAY | ||
| A 0008205510 | SWITCH | |
| Repalced by: A 0008213047 | ||
| A 0008213047 | RELAY | |
| DOME LAMP TIME-LAG RELAY | ||
| A 1158200050 | INTERIOR LAMP | |
| Repalced by: A 2018200401 | ||
| A 2018200401 | INTERIOR LAMP | |
| Repalced by: A 2018200801 | ||
| A 2018200801 | INTERIOR LAMP | |
| Repalced by: A 2018201211 | ||
| A 2018201211 | INTERIOR LAMP | |
| LUGGAGE COMPARTMENT LAMP | ||
| 285 | A 0008213152 | CONTACTOR |
| Repalced by: A 0008213252 | ||
| 285 | A 0008213252 | CONTACTOR |
| Repalced by: A 2018201110 | ||
| 285 | A 2018201110 | SWITCH |
| Repalced by: A 2018202110 | ||
| 285 | A 2018202110 | SWITCH |
| 286 | N 072601012120 | BULB |
| K-12V 10W | ||
| A 1158250043 | LAMP | |
| Repalced by: A 1238200101 | ||
| A 1158250143 | LAMP | |
| Repalced by: A 1238200101 | ||
| 288 | A 1238200101 | INTERIOR LAMP |
| Repalced by: A 1268201301 | ||
| 288 | A 1268201301 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| N 072601012130 | BULB | |
| R5W-12V | ||
| A 0008212052 | CONTACTOR | |
| Repalced by: A 0008213152 | ||
| A 0008212852 | CONTACTOR | |
| Repalced by: A 0008213152 | ||
| 289 | A 0008213152 | CONTACTOR |
| Repalced by: A 0008213252 | ||
| 289 | A 0008213252 | CONTACTOR |
| Repalced by: A 2018201110 | ||
| 289 | A 2018201110 | SWITCH |
| Repalced by: A 2018202110 | ||
| 289 | A 2018202110 | SWITCH |
| 290 | A 1159840556 | WASHER |
| 292 | A 1169900065 | NUT |

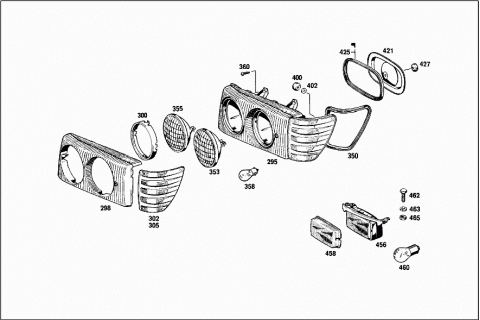

| 295 | A 1168200761 | LIGHTING UNIT |
| LEFT | ||
| A 1168200661 | LIGHTING UNIT | |
| RIGHT | ||
| A 1168260189 | RIM | |
| Repalced by: A 1168260389 | ||
| 298 | A 1168260389 | RIM |
| LEFT | ||
| A 1168260289 | RIM | |
| Repalced by: A 1168260489 | ||
| A 1168260489 | RIM | |
| RIGHT | ||
| 300 | A 0018262089 | RIM |
| 302 | A 0008261757 | LENS |
| WITH SHELL,LEFT BLINKER LAMP | ||
| A 0008261857 | LENS | |
| WITH SHELL,RIGHT BLINKER LAMP | ||
| A 0018268790 | LENS | |
| Repalced by: A 0008200666 | ||
| 305 | A 0008200666 | LENS |
| LEFT | ||
| A 0018268890 | LENS | |
| Repalced by: A 0008200766 | ||
| A 0008200766 | LENS | |
| RIGHT | ||
| 350 | A 0008269080 | SEAL |
| LEFT | ||
| A 0008269180 | SEAL | |
| RIGHT | ||
| A 0008260099 | BEAM UNIT | |
| Repalced by: A 0008263699 | ||
| 353 | A 0008263699 | BEAM UNIT |
| Repalced by: A 0008265599 | ||
| 353 | A 0008265599 | BEAM UNIT |
| HIGH/LOW BEAM | ||
| 353 | A 0008265599 | BEAM UNIT |
| HIGH/LOW BEAM | ||
| 353 | A 0008265599 | BEAM UNIT |
| HIGH/LOW BEAM | ||
| 355 | A 0008260199 | BEAM UNIT |
| Repalced by: A 0008265499 | ||
| 355 | A 0008265499 | BEAM UNIT |
| HIGH BEAM | ||
| 358 | N 072601012210 | BULB |
| BLINKER AND SIDE MARKER LAMPS | ||
| 360 | N 914032004208 | COMBINATION BOLT |
| 400 | A 1089900057 | NUT |
| 402 | A 3099870041 | RUBBER RING |

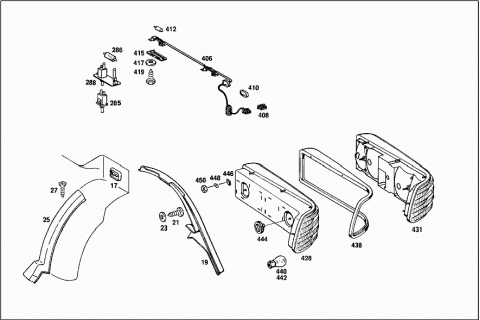

| 406 | A 1168200062 | LICENSE PLATE LAMP |
| 408 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 408 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE | ||
| 410 | A 1169970681 | GROMMET |
| 412 | N 072601012130 | BULB |
| R5W-12V | ||
| A 1078260058 | SEAL | |
| Repalced by: A 1078200966 | ||
| A 1078260067 | LENS | |
| Repalced by: A 1078200966 | ||
| 415 | A 1078200966 | LENS |
| 417 | A 1079900140 | WASHER |
| 419 | N 007985004179 | SCREW |
| 421 | A 1168260024 | COVERING |
| 421 | A 1168260024 | COVERING |
| A 1168202366 | LENS | |
| Repalced by: A 1168200078 | ||
| A 1168200078 | COVER | |
| LIGHTING UNIT SHELL | ||
| 425 | A 1168260080 | SEAL |
| 425 | A 1168260080 | SEAL |
| A 1168260180 | SEAL | |
| 427 | A 1089900057 | NUT |
| 427 | A 1089900057 | NUT |
| A 1168260084 | SPRING | |
| A 1168201564 | TAIL LAMP | |
| Repalced by: A 1168203364 | ||
| 428 | A 1168203364 | TAIL LAMP |
| LEFT | ||
| A 1168201664 | TAIL LAMP | |
| Repalced by: A 1168203464 | ||
| A 1168203464 | TAIL LAMP | |
| RIGHT | ||
| 431 | A 1168200566 | LENS |
| WITH REFLECTOR,LEFT | ||
| A 1168201166 | LENS | |
| LESS REFLECTOR,LEFT | ||
| A 1168200666 | LENS | |
| WITH REFLECTOR,RIGHT | ||
| A 1168201266 | LENS | |
| LESS REFLECTOR,RIGHT | ||
| 438 | A 1168260158 | SEAL |
| LEFT | ||
| A 1168260258 | SEAL | |
| RIGHT | ||
| 440 | N 072601012190 | BULB |
| BLINKER/STOP/BACK-UP LIGHTS | ||
| N 072601012701 | BULB | |
| Repalced by: N 072601012702 | ||
| 442 | N 072601012702 | BULB |
| TAIL AND CLEARANCE LIGHTS | ||
| R10W - 12V | ||
| N 072601012130 | BULB | |
| Repalced by: N 072601012701 | ||
| N 072601012701 | BULB | |
| SIDE MARKER LAMP | ||
| 444 | A 1159900557 | NUT |
| 446 | A 1168260097 | PAD |
| 448 | A 1114620175 | WASHER |
| 450 | N 000934005008 | NUT |
| 452 | A 0015449732 | SENDER UNIT |
| A 0025442332 | SENDER UNIT | |
| 455 | A 0018218851 | SWITCH |
| WARNING LIGHT | ||
| 455 | A 0018219351 | SWITCH |
| WARNING LIGHT | ||
| A 0008204956 | EXTERIOR LAMP | |
| Repalced by: A 0008206556 | ||
| 456 | A 0008206556 | EXTERIOR LAMP |
| LEFT | ||
| A 0008205056 | EXTERIOR LAMP | |
| Repalced by: A 0008206656 | ||
| A 0008206656 | EXTERIOR LAMP | |
| RIGHT | ||
| 458 | A 0018267190 | LENS |
| 460 | N 072601012290 | BULB |
| 462 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 462 | N 304017006020 | SCREW |
| 463 | N 912004006102 | LOCK WASHER |
| 465 | N 000934006007 | NUT |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| A 1158200110 | SWITCH | |
| Repalced by: A 1158200210 | ||
| 467 | A 1158200210 | SWITCH |
| 468 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 468 | A 0095454028 | PLUG HOUSING |
| 2-PIN | ||
| 469 | A 0029880178 | CLIP |
| 470 | A 1149970190 | LOOM TIE |
| A 0008278901 | ANTENNA | |
| REAR END MOUNTED,AUTOMATIC | ||
| A 0018270501 | ANTENNA | |
| REAR END MOUNTED,AUTOMATIC | ||

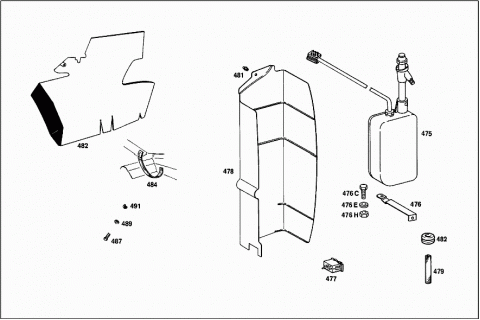

| 475 | A 0018271001 | ANTENNA |
| REAR END MOUNTED,AUTOMATIC | ||
| A 0008270812 | ANGLE | |
| CB RADIO COMMUNICATION | ||
| 476 | A 1168270514 | BRACKET |
| 476C | N 000933006026 | SCREW |
| 476E | N 000137006204 | SPRING WASHER |
| 476H | N 000934006007 | NUT |
| N 914023005100 | COMBINATION BOLT | |
| A 1238270098 | SEAL | |
| A 0018203315 | ELECTRIC CABLE | |
| A 0008204315 | ELECTRIC CABLE | |
| Repalced by: A 0008208015 | ||
| A 0008208015 | ELECTRIC CABLE | |
| Repalced by: A 1248201215 | ||
| A 1248201215 | ELECTRIC CABLE | |
| TO ANTENNA | ||
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| A 0019974190 | LOOM TIE | |
| A 0008202310 | SWITCH | |
| ANTENNA | ||
| 477 | A 0008203210 | SWITCH |
| Repalced by: A 0008206910 | ||
| A 0008206910 | SWITCH | |
| ANTENNA | ||
| 478 | A 1166930063 | COVERING |
| 479 | A 0109978982 | HOSE |
| ANTENNA WATER DRAIN | ||
| 180 MM | ||
| 479 | A 0109978982 | HOSE |
| ANTENNA WATER DRAIN | ||
| 500 MM | ||
| 482 | A 0009973181 | GROMMET |
| WATER DRAIN HOSE | ||
| 481 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 481 | A 0009902292 | RIVET |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 53 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 56 | ||
| A 1155400041 | GROUND STRAP | |
| Repalced by: A 1805400441 | ||
| 484 | A 1805400441 | GROUND STRAP |
| ENGINE HOOD | ||
| 487 | N 007976004205 | SHEET METAL SCREW |
| 489 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 489 | N 000433005304 | WASHER |
| 491 | N 000137006204 | SPRING WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
