Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

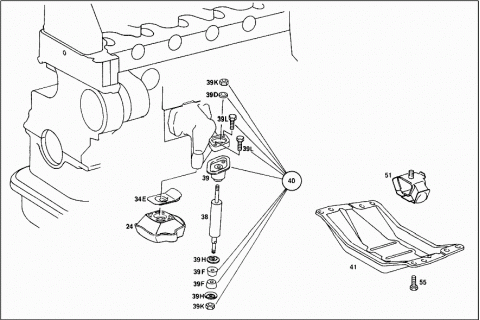

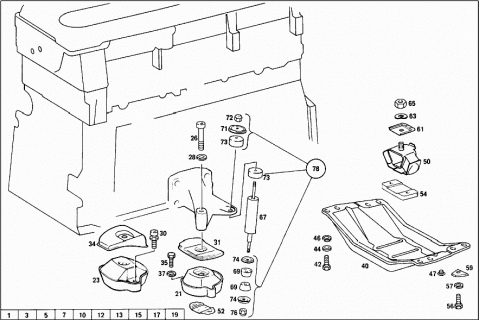

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 021 | A 1232411513 | RUBBER MOUNTING |
| A 1162411013 | RUBBER MOUNTING | |
| Repalced by: A 1162412913 | ||
| A 1162412913 | RUBBER MOUNTING | |
| FRONT LEFT | ||
| 023 | A 1232411713 | RUBBER MOUNTING |
| FRONT LEFT | ||
| 024 | A 1232413013 | RUBBER MOUNTING |
| FRONT LEFT | ||
| A 1162410913 | RUBBER MOUNTING | |
| Repalced by: A 1162412813 | ||
| A 1162412813 | RUBBER MOUNTING | |
| FRONT RIGHT | ||
| A 1232411613 | RUBBER MOUNTING | |
| FRONT RIGHT | ||
| A 1232411413 | RUBBER MOUNTING | |
| A 1232410913 | RUBBER MOUNTING | |
| Repalced by: A 1232412713 | ||
| A 1232412713 | RUBBER MOUNTING | |
| FRONT RIGHT | ||
| N 000912012117 | SCREW | |
| Repalced by: N 007984012011 | ||
| N 007984012011 | SCREW | |
| 026 | N 000912012114 | SCREW |
| 028 | N 912006012000 | LOCK WASHER |
| 030 | N 914019008000 | COMBINATION BOLT |
| 031 | A 1162410134 | SCREENING PLATE |
| Repalced by: A 1232410234 | ||
| 031 | A 1232410234 | SCREENING PLATE |
| 034 | A 1162410034 | SCREENING PLATE |
| A 1232410234 | SCREENING PLATE | |
| LEFT | ||
| 034E | A 1232410634 | SCREENING PLATE |
| LEFT | ||
| 035 | N 000933012063 | SCREW |
| 037 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 037 | N 000137012206 | SPRING WASHER |
| 038 | A 1232401048 | ENGINE VIBRATION ABSORBER |
| 039 | A 1162413313 | RUBBER MOUNTING |
| 039D | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 039D | N 000125006449 | WASHER |
| 039K | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 039K | N 913002006009 | NUT |
| 039F | A 1232410365 | RUBBER BUFFER |
| 039H | A 1262410012 | RETAINER |
| 039L | N 914004006001 | COMBINATION BOLT |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 040 | A 1165860024 | REPAIR KIT |
| Repalced by: A 1162400017 | ||
| 040 | A 1162400017 | REPAIR KIT |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
| A 1162420501 | ENGINE SUPPORT | |
| Repalced by: A 1162420601 | ||
| 041 | A 1162420601 | ENGINE SUPPORT |
| 042 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 042 | N 304017008021 | SCREW |
| 044 | N 007349008002 | WASHER |
| 046 | N 912004008102 | LOCK WASHER |
| 047 | A 0009908522 | SCREW |
| 050 | A 1082400318 | RUBBER MOUNTING |
| Repalced by: A 1162400418 | ||
| A 1162400218 | RUBBER MOUNTING | |
| Repalced by: A 1162400418 | ||
| 051 | A 1162400418 | RUBBER MOUNTING |
| REAR | ||
| 052 | A 1162420326 | SHIM |
| 054 | A 1162420226 | SHIM |
| A 1162420126 | SHIM | |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| 055 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 055 | N 304017008016 | SCREW |
| 056 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 056 | N 000933008337 | SCREW |
| N 000933008114 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| 057 | N 912004008102 | LOCK WASHER |
| A 1072420166 | WASHER | |
| Repalced by: A 1232420066 | ||
| A 1232420066 | WASHER | |
| Repalced by: A 1269900540 | ||
| 059 | A 1269900540 | WASHER |
| 061 | A 1082420031 | MOUNTING PLATE |
| 063 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 063 | N 000137012206 | SPRING WASHER |
| 065 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 065 | N 308673012002 | HEXAGON NUT |
| A 0002401348 | ENGINE VIBRATION ABSORBER | |
| Repalced by: A 1162400148 | ||
| A 0002401648 | ENGINE VIBRATION ABSORBER | |
| Repalced by: A 1162400148 | ||
| A 1162400148 | ENGINE VIBRATION ABSORBER | |
| A 0002400648 | ENGINE VIBRATION ABSORBER | |
| Repalced by: A 1162400248 | ||
| A 0002401848 | ENGINE VIBRATION ABSORBER | |
| Repalced by: A 1162400248 | ||
| 067 | A 1162400248 | ENGINE VIBRATION ABSORBER |
| A 1162400548 | ENGINE VIBRATION ABSORBER | |
| A 1082410065 | RUBBER BUFFER | |
| Repalced by: A 1072410065 | ||
| A 1072410065 | RUBBER BUFFER | |
| ENGINE SHOCK ABSORBER,TOP | ||
| A 1072410065 | RUBBER BUFFER | |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| A 1152411665 | RUBBER BUFFER | |
| Repalced by: A 1232410365 | ||
| A 1152411765 | RUBBER BUFFER | |
| Repalced by: A 1232410365 | ||
| 069 | A 1232410365 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER,TOP | ||
| 069 | A 1232410365 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| A 1082410012 | RETAINER | |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 071 | A 1152410712 | RETAINER |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| A 1262410012 | RETAINER | |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| 072 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 072 | N 913002006009 | NUT |
| ENGINE SHOCK ABSORBER TO ENGINE SUPPORT | ||
| A 1082410065 | RUBBER BUFFER | |
| Repalced by: A 1072410065 | ||
| 073 | A 1072410065 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER,BOTTOM | ||
| 073 | A 1072410065 | RUBBER BUFFER |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| 074 | A 1082410012 | RETAINER |
| ENGINE SHOCK ABSORBER,BOTTOM | ||
| 074 | A 1082410012 | RETAINER |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| A 1072410512 | RETAINER | |
| ENGINE SHOCK ABSORBER,BOTTOM | ||
| A 1072410512 | RETAINER | |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| 076 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 076 | N 913002006009 | NUT |
| ENGINE SHOCK ABSORBER TO FRONT SUBFRAME | ||
| A 1165860124 | REPAIR KIT | |
| Repalced by: A 1162400117 | ||
| 078 | A 1162400117 | REPAIR KIT |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
