Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

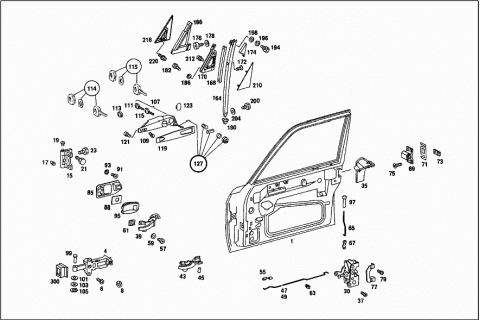

Grupė: 72 FRONT DOORS - 001 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1167200905 | DOOR SHELL | |
| LEFT | ||
| 001 | A 1167201005 | DOOR SHELL |
| RIGHT | ||
| A 1165860072 | REPAIR KIT | |
| Repalced by: A 1267200114 | ||
| A 1267200114 | BRACKET | |
| Repalced by: A 1167200014 | ||
| A 1167200014 | REPAIR KIT | |
| CONVERSION OF FRONT DOOR | ||
| 004 | A 1167200016 | DOOR CHECK |
| A 0009903330 | SCREW | |
| Repalced by: A 0009904830 | ||
| 006 | A 0009904830 | SCREW |
| 008 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 008 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 008 | N 913023006001 | NUT |
| A 1167200137 | HINGE | |
| LEFT | ||
| 015 | A 1167200237 | HINGE |
| Repalced by: A 1167200137 | ||
| 015 | A 1167200137 | HINGE |
| RIGHT | ||
| 017 | A 0009970488 | GREASE NIPPLE |
| 019 | A 1087330017 | BUSHING |
| N 914004008008 | COMBINATION BOLT | |
| Repalced by: A 1239900317 | ||
| 021 | A 1239900317 | SCREW |
| N 914004010001 | COMBINATION BOLT | |
| Repalced by: A 1169900017 | ||
| 023 | A 1169900017 | SCREW |
| A 1167200135 | LOCK | |
| LEFT | ||
| 030 | A 1167200435 | LOCK |
| RIGHT | ||
| A 1167230324 | EDGING | |
| Repalced by: A 1167230524 | ||
| A 1167230524 | EDGING | |
| LEFT | ||
| A 1167230424 | EDGING | |
| Repalced by: A 1167230624 | ||
| 035 | A 1167230624 | EDGING |
| RIGHT | ||
| 037 | A 0009903631 | SCREW |
| Repalced by: A 1409843029 | ||
| 037 | A 1409843029 | SCREW |
| A 1167600961 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| 039 | A 1167601061 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| 043 | A 1157600261 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| 045 | A 1159920125 | SLEEVE |
| A 1167230369 | PULL ROD | |
| LEFT | ||
| 047 | A 1167230469 | PULL ROD |
| RIGHT | ||
| 049 | A 1167230169 | PULL ROD |
| LEFT AND RIGHT | ||
| 055 | A 1009940160 | LOCK |
| 057 | N 007985006132 | SCREW |
| 059 | A 0009940510 | LOCK |
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 061 | A 0009907191 | NUT RETAINER |
| 063 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 063 | A 0069886378 | CLIP |
| 065 | A 1167230039 | LOCKING ROD |
| 067 | A 1009940160 | LOCK |
| A 1167200104 | LOCKING EYE | |
| LEFT | ||
| 069 | A 1167200204 | LOCKING EYE |
| RIGHT | ||
| 071 | A 1167230111 | PLATE |
| A 1167230211 | PLATE | |
| Repalced by: A 1167230111 | ||
| A 1167230111 | PLATE | |
| 073 | A 1166370011 | PLATE |
| 075 | A 1169900031 | SCREW |
| A 1167230124 | EDGING | |
| LEFT | ||
| 077 | A 1167230224 | EDGING |
| RIGHT | ||
| 079 | N 000966005010 | SCREW |
| A 1167660111 | ESCUTCHEON | |
| LEFT | ||
| 085 | A 1167660211 | ESCUTCHEON |
| RIGHT | ||
| 088 | A 1157660098 | SEAL |
| 091 | N 007987004119 | SCREW |
| 093 | N 006797004333 | TOOTHED WASHER |
| A 1087660390 | INSERT | |
| LEFT | ||
| 095 | A 1087660490 | INSERT |
| RIGHT | ||
| A 1167600065 | KNOB | |
| Repalced by: A 1107600565 | ||
| 097 | A 1107600565 | KNOB |
| 099 | A 1089910007 | PIN |
| 101 | A 1089900140 | WASHER |
| 103 | A 1089900240 | WASHER |
| 105 | N 912001006001 | LOCK |
| A 1167600359 | DOOR HANDLE | |
| Repalced by: A 1167600759 | ||
| A 1167600759 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1167600759 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1167600459 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1167600859 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1167600159 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| A 1167601159 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| 107 | A 1167600259 | DOOR HANDLE |
| LESS KEY,RIGHT | ||
| A 1167601259 | DOOR HANDLE | |
| LESS KEY,RIGHT | ||
| 109 | A 1207660015 | PIN |
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| 111 | A 0007600406 | KEY |
| MASTER KEY | ||
| HUF | ||
| A 0007665106 | KEY | |
| BLANK (MASTER KEY) | ||
| HUF | ||
| 113 | A 0007664406 | KEY HEAD |
| MASTER KEY | ||
| 114 | A 0007601906 | KEY |
| MASTER KEY | ||
| A 0007601606 | KEY | |
| Repalced by: A 2017602706 | ||
| A 2017602706 | KEY | |
| (FLAT KEY) | ||
| A 0007663606 | KEY | |
| Repalced by: A 0007600506 | ||
| 115 | A 0007600506 | KEY |
| SECONDARY KEY | ||
| HUF | ||
| A 0007665206 | KEY | |
| BLANK (SECONDARY KEY) | ||
| HUF | ||
| A 0007602006 | KEY | |
| SECONDARY KEY | ||
| 119 | A 1077660105 | PAD |
| 121 | N 914019006012 | COMBINATION BOLT |
| 123 | A 1169870444 | EXPANSION PLUG |
| 127 | A 1165860076 | REPAIR KIT |

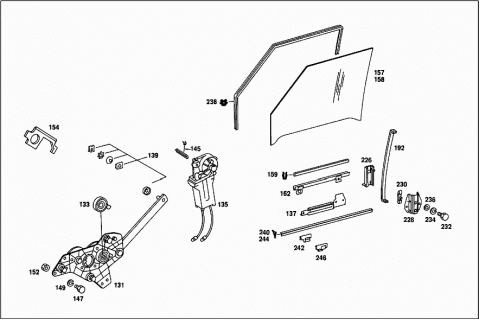

| A 1167200346 | WINDOW REGULATOR | |
| Repalced by: A 1167201146 | ||
| A 1167201146 | WINDOW REGULATOR | |
| ELECTRIC LEFT | ||
| A 1167200446 | WINDOW REGULATOR | |
| Repalced by: A 1167201246 | ||
| 131 | A 1167201246 | WINDOW REGULATOR |
| ELECTRIC RIGHT | ||
| 133 | A 0007681005 | SPRING |
| A 0007680334 | SPRING | |
| A 0008201642 | ELECTRIC MOTOR | |
| Repalced by: A 0018200542 | ||
| A 0018200542 | ELECTRIC MOTOR | |
| LEFT | ||
| A 0008201742 | ELECTRIC MOTOR | |
| Repalced by: A 0018200442 | ||
| 135 | A 0018200442 | ELECTRIC MOTOR |
| RIGHT | ||
| A 0009908922 | SCREW | |
| N 914114006001 | SCREW | |
| ELECTRIC MOTOR TO WINDOW REGULATOR | ||
| A 1167200145 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 137 | A 1167200245 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| 139 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 139 | A 1237200114 | REPAIR KIT |
| 145 | A 0019874651 | RUBBER SEAL |
| 50 MM | ||
| 147 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 147 | N 304017006016 | SCREW |
| WINDOW REGULATOR TO REINFORCEMENT | ||
| 149 | N 912004006102 | LOCK WASHER |
| WINDOW REGULATOR TO REINFORCEMENT | ||
| 152 | N 000934006007 | NUT |
| WINDOW REGULATOR TO REINFORCEMENT | ||
| 154 | A 1167250398 | SEAL |
| A 1167200318 | CRANK OPERATED WINDOW | |
| LEFT HEAT-ABSORBING GLASS | ||
| A 1167200418 | CRANK OPERATED WINDOW | |
| RIGHT HEAT-ABSORBING GLASS | ||
| A 1167250110 | GLASS PANE | |
| Repalced by: A 1167200118 | ||
| A 1167200118 | CRANK OPERATED WINDOW | |
| LEFT | ||
| A 1167250310 | GLASS PANE | |
| Repalced by: A 1167200318 | ||
| A 1167200318 | CRANK OPERATED WINDOW | |
| LEFT HEAT-ABSORBING GLASS | ||
| 157 | A 1167250210 | GLASS PANE |
| Repalced by: A 1167200218 | ||
| 157 | A 1167200218 | CRANK OPERATED WINDOW |
| RIGHT | ||
| 158 | A 1167250410 | GLASS PANE |
| Repalced by: A 1167200418 | ||
| 158 | A 1167200418 | CRANK OPERATED WINDOW |
| RIGHT HEAT-ABSORBING GLASS | ||
| 159 | A 0009876657 | RUBBER MOULDING |
| 385 MM | ||
| A 1167200147 | RETAINING RAIL | |
| LEFT | ||
| 162 | A 1167200247 | RETAINING RAIL |
| RIGHT | ||
| A 1167250130 | WINDOW GUIDE | |
| FRONT LEFT | ||
| 164 | A 1167250230 | WINDOW GUIDE |
| FRONT RIGHT | ||
| A 1167250166 | SEAL | |
| LEFT | ||
| 166 | A 1167250266 | SEAL |
| RIGHT | ||
| 168 | A 1167250098 | SEAL |
| 170 | A 1167250041 | BRACKET |
| 172 | N 000965004006 | SCREW |
| 174 | A 1167250198 | SEAL |
| GUIDE BRACKET,TOP | ||
| 174 | A 1167250198 | SEAL |
| WINDOW RUN, REAR TOP | ||
| 174 | A 1167250198 | SEAL |
| MIRROR BRACKET AT BOTTOM AGAINST WINDOW | ||
| 176 | N 007981004219 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 176 | N 000000000453 | TAPPING SCREW |
| BRACKET AND WINDOW GUIDE RAIL TO WINDOW FRAME | ||
| 178 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 178 | N 000125004319 | WASHER |
| BRACKET AND WINDOW GUIDE RAIL TO WINDOW FRAME | ||
| 180 | A 1169971181 | GROMMET |
| 182 | N 914126006001 | SCREW |
| Repalced by: N 910105006002 | ||
| 182 | N 910105006002 | HEXAGON HEAD BOLT |
| 186 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 186 | N 000125006449 | WASHER |
| 192 | A 1167250330 | WINDOW GUIDE |
| 194 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 194 | N 304017006016 | SCREW |
| 196 | N 912004006102 | LOCK WASHER |
| 198 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 198 | N 009021006208 | WASHER |
| 200 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 200 | N 304017006016 | SCREW |
| N 912004006102 | LOCK WASHER | |
| 204 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 204 | N 009021006208 | WASHER |
| A 1167250794 | COVERING | |
| TOP LEFT | ||
| 206 | A 1167250894 | COVERING |
| TOP RIGHT | ||
| A 1167200111 | PLATE | |
| Repalced by: A 1167250511 | ||
| A 1167250511 | PLATE | |
| INSIDE LEFT | ||
| 210 | A 1167250411 | PLATE |
| INSIDE RIGHT | ||
| 212 | N 007983002200 | SHEET METAL SCREW |
| 218 | A 1167250211 | PLATE |
| OUTSIDE RIGHT | ||
| 220 | N 914025004107 | COMBINATION BOLT |
| A 1167250134 | SLIDE | |
| Repalced by: A 1167200142 | ||
| A 1167200142 | SLIDING JAW | |
| LEFT | ||
| A 1167250234 | SLIDE | |
| Repalced by: A 1167200242 | ||
| 226 | A 1167200242 | SLIDING JAW |
| RIGHT | ||
| A 1167250340 | SHACKLE | |
| LEFT | ||
| 228 | A 1167250440 | SHACKLE |
| RIGHT | ||
| 230 | A 1167200042 | SLIDING JAW |
| 232 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 232 | N 304017006016 | SCREW |
| 234 | N 912004006102 | LOCK WASHER |
| 236 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 236 | N 009021006208 | WASHER |
| 238 | A 1167250025 | WINDOW RUN |
| Repalced by: A 1167250125 | ||
| A 1167250125 | WINDOW RUN | |
| 1910 MM | ||
| 240 | A 1167250065 | SEALING RAIL |
| 242 | A 1169880078 | CLIP |
| 244 | A 1167250065 | SEALING RAIL |
| 246 | A 1079880778 | CLIP |

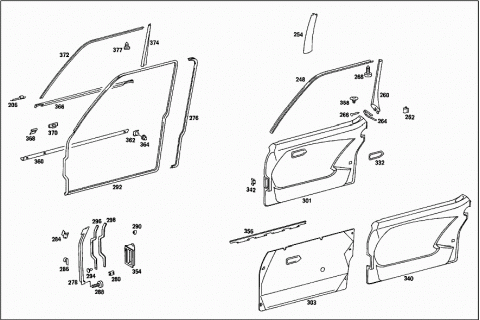

| A 1167250351 | PANELLING | |
| Repalced by: A 1167350651 | ||
| A 1167350651 | PANELLING | |
| FRONT TOP LEFT | ||
| A 1167350651 | PANELLING | |
| FRONT TOP LEFT | ||
| A 1167250451 | PANELLING | |
| Repalced by: A 1167350551 | ||
| 248 | A 1167350551 | PANELLING |
| FRONT TOP RIGHT | ||
| 248 | A 1167350551 | PANELLING |
| FRONT TOP RIGHT | ||
| A 1167200351 | PANELLING | |
| Repalced by: A 1167201751 | ||
| 254 | A 1167201751 | PANELLING |
| REAR LEFT | ||
| 254 | A 1167201751 | PANELLING |
| REAR LEFT | ||
| A 1167200451 | PANELLING | |
| Repalced by: A 1167201851 | ||
| 260 | A 1167201851 | PANELLING |
| REAR RIGHT | ||
| 260 | A 1167201851 | PANELLING |
| REAR RIGHT | ||
| 262 | A 1169881178 | CLIP |
| A 1167250138 | RAIL | |
| LEFT | ||
| 264 | A 1167250238 | RAIL |
| RIGHT | ||
| 266 | N 900046018401 | NAIL |
| 268 | N 007981002223 | SHEET METAL SCREW |
| A 1167270151 | EDGE GUARD SECTION | |
| Repalced by: A 1167270951 | ||
| A 1167270251 | EDGE GUARD SECTION | |
| Repalced by: A 1167270951 | ||
| 276 | A 1167270951 | EDGE GUARD SECTION |
| FRONT | ||
| 276 | A 1167270951 | EDGE GUARD SECTION |
| FRONT | ||
| A 1167270351 | EDGE GUARD SECTION | |
| FRONT BOTTOM LEFT | ||
| A 1167270351 | EDGE GUARD SECTION | |
| FRONT BOTTOM LEFT | ||
| 278 | A 1167270651 | EDGE GUARD SECTION |
| FRONT BOTTOM RIGHT | ||
| 278 | A 1167270651 | EDGE GUARD SECTION |
| FRONT BOTTOM RIGHT | ||
| 280 | A 0039881378 | CLIP |
| A 1159880878 | CLIP | |
| Repalced by: A 1079881878 | ||
| 284 | A 1079881878 | CLIP |
| 286 | A 1169881878 | CLIP |
| 288 | N 007983002205 | SHEET METAL SCREW |
| 290 | A 0009850562 | WASHER |
| A 1167200378 | WEATHERSTRIP | |
| LEFT | ||
| 292 | A 1167200478 | WEATHERSTRIP |
| RIGHT | ||
| 294 | A 0009871015 | PLUG |
| A 1167270136 | RAIL | |
| LEFT | ||
| 296 | A 1167270236 | RAIL |
| RIGHT | ||
| 298 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 298 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 298 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 298 | A 2106820008 | INSULATION |
| 300 | A 1167270030 | SEAL |
| A 1167200970 | PANELLING | |
| LEFT | ||
| A 1167200970 | PANELLING | |
| LEFT | ||
| 301 | A 1167201070 | PANELLING |
| RIGHT | ||
| 301 | A 1167201070 | PANELLING |
| RIGHT | ||
| A 1167201570 | PANELLING | |
| INSIDE LEFT | ||
| A 1167201570 | PANELLING | |
| INSIDE LEFT | ||
| 303 | A 1167201670 | PANELLING |
| INSIDE RIGHT | ||
| 303 | A 1167201670 | PANELLING |
| INSIDE RIGHT | ||
| A 1167200170 | PANELLING | |
| LEFT,VELOURS | ||
| A 1167200170 | PANELLING | |
| LEFT,VELOURS | ||
| A 1167200270 | PANELLING | |
| RIGHT,VELOURS | ||
| A 1167200270 | PANELLING | |
| RIGHT,VELOURS | ||
| A 1167201370 | PANELLING | |
| INSIDE LEFT,VELOURS | ||
| A 1167201370 | PANELLING | |
| INSIDE LEFT,VELOURS | ||
| A 1167201470 | PANELLING | |
| INSIDE RIGHT,VELOURS | ||
| A 1167201470 | PANELLING | |
| INSIDE RIGHT,VELOURS | ||
| A 1167270132 | FRAME | |
| LEFT | ||
| 332 | A 1167270232 | FRAME |
| RIGHT | ||
| A 1167200370 | PANELLING | |
| LEFT | ||
| A 1167200370 | PANELLING | |
| LEFT | ||
| 340 | A 1167200470 | PANELLING |
| RIGHT | ||
| 340 | A 1167200470 | PANELLING |
| RIGHT | ||
| 342 | A 1169880578 | CLIP |
| A 1167270188 | COVERING | |
| LEFT | ||
| 354 | A 1167270288 | COVERING |
| RIGHT | ||
| A 1167270182 | GARNISH MOULDING | |
| LEFT | ||
| 356 | A 1167270282 | GARNISH MOULDING |
| RIGHT | ||
| 358 | A 1169920010 | BUSHING |
| A 1167200180 | GARNISH MOULDING | |
| LEFT | ||
| 360 | A 1167200280 | GARNISH MOULDING |
| RIGHT | ||
| 362 | A 0009888181 | FASTENER BUTTON |
| 364 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 364 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 364 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 364 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 364 | A 0019887681 | FASTENER BUTTON |
| A 1167280130 | GARNISH MOULDING | |
| LEFT | ||
| 366 | A 1167280230 | GARNISH MOULDING |
| RIGHT | ||
| 368 | A 1087280297 | PAD |
| 370 | A 1159881078 | CLIP |
| A 1167280131 | GARNISH MOULDING | |
| TOP LEFT | ||
| 372 | A 1167280231 | GARNISH MOULDING |
| TOP RIGHT | ||
| A 1167280331 | GARNISH MOULDING | |
| REAR LEFT | ||
| 374 | A 1167280431 | GARNISH MOULDING |
| REAR RIGHT | ||
| A 0039882978 | CLIP | |
| Repalced by: N 007983002200 | ||
| 377 | N 007983002200 | SHEET METAL SCREW |
| TOP AND REAR GARNISH MOULDINGS TO WINDOW FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
