Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

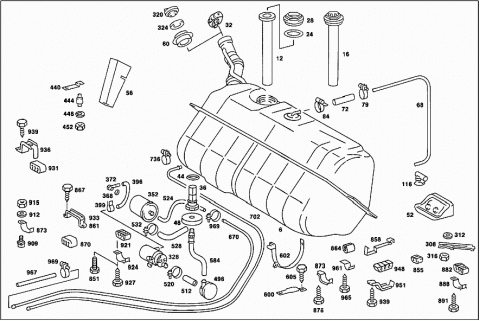

| A 1164700201 | FUEL TANK | |
| Repalced by: A 1164701201 | ||
| A 1164700801 | FUEL TANK | |
| Repalced by: A 1164701201 | ||
| A 1164701201 | FUEL TANK | |
| Repalced by: A 1164702601 | ||
| 006 | A 1164702601 | FUEL TANK |
| 006 | A 1164703301 | FUEL TANK |
| 012 | A 1165420304 | GAUGE SENDER UNIT |
| 016 | A 1165420504 | GAUGE SENDER UNIT |
| 016 | A 1165420604 | GAUGE SENDER UNIT |
| 024 | A 1079971345 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 028 | A 1164710121 | FLANGE |
| A 1164700029 | FILLER NECK | |
| Repalced by: A 1164700129 | ||
| 032 | A 1164700129 | FILLER NECK |
| A 1074700206 | FUEL STRAINER | |
| Repalced by: A 1164700106 | ||
| A 1164700106 | FUEL STRAINER | |
| Repalced by: A 1234700086 | ||
| A 1234700086 | SCREW PLUG | |
| Repalced by: A 1234700406 | ||
| 036 | A 1234700406 | FUEL STRAINER |
| Repalced by: A 2014700406 | ||
| 036 | A 2014700406 | FUEL STRAINER |
| A 1234700206 | FUEL STRAINER | |
| Repalced by: A 1234700186 | ||
| A 1234700186 | SCREW PLUG | |
| Repalced by: A 1234700506 | ||
| A 1234700506 | FUEL STRAINER | |
| Repalced by: A 1234700606 | ||
| 040 | A 1234700606 | FUEL STRAINER |
| Repalced by: A 1244700106 | ||
| 040 | A 1244700106 | FUEL STRAINER |
| 044 | A 1109970145 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 048 | A 1074710980 | GASKET |
| 052 | A 1164710380 | GASKET |
| 056 | A 1164750020 | PAD |
| A 1079972381 | GROMMET | |
| Repalced by: A 1079972481 | ||
| 060 | A 1079972481 | GROMMET |
| A 1164710915 | BREATHER PIPE | |
| Repalced by: A 1164713615 | ||
| 068 | A 1164713615 | BREATHER PIPE |
| 740 MM | ||
| A 1074761026 | HOSE | |
| Repalced by: A 1074762426 | ||
| 072 | A 1074762426 | HOSE |
| Repalced by: A 2019970852 | ||
| 072 | A 2019970852 | HOSE |
| 072 | A 1149971882 | HOSE |
| 180 MM | ||
| A 1074761026 | HOSE | |
| Repalced by: A 1074762426 | ||
| 072 | A 1074762426 | HOSE |
| Repalced by: A 2019970852 | ||
| 072 | A 2019970852 | HOSE |
| 80 MM | ||
| 079 | A 0019976990 | HOSE CLAMP |
| 084 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 084 | N 000000000665 | CLAMP |
| A 1074710615 | BREATHER PIPE | |
| Repalced by: A 1074711615 | ||
| 088 | A 1074711615 | BREATHER PIPE |
| A 1074700093 | VALVE | |
| Repalced by: A 1234700193 | ||
| A 1074700493 | VALVE | |
| Repalced by: A 1234700193 | ||
| 092 | A 1234700193 | VALVE |
| 092 | A 1074700693 | VALVE |
| A 1074700593 | VALVE | |
| Repalced by: A 1074700993 | ||
| 095 | A 1074700993 | VALVE |
| 104 | A 1074710042 | FILTER |
| 108 | A 1074710267 | COVER |
| 112 | N 007976004211 | SHEET METAL SCREW |
| A 1234700125 | BREATHER | |
| Repalced by: A 1234700225 | ||
| 116 | A 1234700225 | BREATHER |
| 120 | A 1164700259 | ACTIVATED CHARCOAL FILTER |
| 124 | A 1164700059 | ACTIVATED CHARCOAL FILTER |
| Repalced by: A 1234700259 | ||
| 124 | A 1234700259 | ACTIVATED CHARCOAL FILTER |
| A 1234700059 | ACTIVATED CHARCOAL FILTER | |
| Repalced by: A 1234700259 | ||
| 124 | A 1234700259 | ACTIVATED CHARCOAL FILTER |
| 129 | A 1164700981 | BRACKET |
| 136 | A 0029887778 | CLIP |
| BREATHER PIPE TO ACTIVATED CHARCOAL FILTER | ||
| 140 | A 0004700093 | VALVE |
| 140 | A 0004700093 | VALVE |
| 144 | A 1164710341 | BRACKET |
| 147 | N 000933005071 | SCREW |
| 152 | A 1074761026 | HOSE |
| Repalced by: A 1074762426 | ||
| 152 | A 1074762426 | HOSE |
| Repalced by: A 2019970852 | ||
| 152 | A 2019970852 | HOSE |
| 480 MM | ||
| 152 | A 2019970852 | HOSE |
| 480 MM | ||
| 152 | A 2019970852 | HOSE |
| 480 MM | ||
| 152 | A 2019970852 | HOSE |
| 480 MM | ||
| 156 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 156 | N 000000000665 | CLAMP |
| 160 | A 1149971882 | HOSE |
| 1100 MM | ||
| 163 | N 916033012100 | CLAMP |
| 167 | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 167 | A 0004760436 | BRACKET |
| ACTIVATED-CHARCOAL-FILTER FUEL HOSE | ||
| 169 | A 1109950365 | CLAMP |
| Repalced by: A 0004760436 | ||
| 169 | A 0004760436 | BRACKET |
| ACTIVATED-CHARCOAL-FILTER FUEL HOSE | ||
| A 1143280581 | BUFFER | |
| Repalced by: A 1269880011 | ||
| 176 | A 1269880011 | BUFFER |
| 180 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 180 | N 009021006208 | WASHER |
| 184 | N 912004005100 | LOCK WASHER |
| 188 | N 000934005008 | NUT |
| 192 | A 1149971882 | HOSE |
| 100 MM | ||
| A 1074710615 | BREATHER PIPE | |
| Repalced by: A 1074711615 | ||
| 196 | A 1074711615 | BREATHER PIPE |
| 204 | A 1164711015 | BREATHER PIPE |
| Repalced by: A 1164712515 | ||
| 204 | A 1164712515 | BREATHER PIPE |
| 204 | A 1164711215 | BREATHER PIPE |
| 204 | A 1164711115 | BREATHER PIPE |
| Repalced by: A 1164712515 | ||
| 204 | A 1164712515 | BREATHER PIPE |
| 204 | A 1164711315 | BREATHER PIPE |
| 204 | A 1164712115 | BREATHER PIPE |
| Repalced by: A 1164714115 | ||
| 204 | A 1164714115 | BREATHER PIPE |
| 1990 MM | ||
| 204 | A 1164714115 | BREATHER PIPE |
| 1990 MM | ||
| 204 | A 1164712215 | BREATHER PIPE |
| Repalced by: A 1164714115 | ||
| 204 | A 1164714115 | BREATHER PIPE |
| 2090 MM | ||
| 232 | A 1164712015 | BREATHER PIPE |
| 232 | A 1164712015 | BREATHER PIPE |
| 232 | A 1164712515 | BREATHER PIPE |
| 1185 MM FRONT | ||
| 232 | A 1164713715 | BREATHER PIPE |
| 1060 MM FRONT | ||
| 240 | A 1164712315 | BREATHER PIPE |
| Repalced by: A 1164714115 | ||
| 240 | A 1164714115 | BREATHER PIPE |
| 2165 MM CENTRAL | ||
| 240 | A 1164712415 | BREATHER PIPE |
| Repalced by: A 1164714115 | ||
| 240 | A 1164714115 | BREATHER PIPE |
| 2265 MM,CENTRAL | ||
| 240 | A 1164713315 | BREATHER PIPE |
| Repalced by: A 1164714115 | ||
| 240 | A 1164714115 | BREATHER PIPE |
| CENTRAL | ||
| A 1264760084 | DAMPING STRIP | |
| Repalced by: A 1094760384 | ||
| 244 | A 1099950022 | CLAMP |
| 248 | A 1164760284 | DAMPING STRIP |
| LINES TO SIDE MEMBER | ||
| 252 | A 1169950022 | CLAMP |
| LINES TO SIDE MEMBER | ||
| 256 | N 007976006203 | SHEET METAL SCREW |
| 261 | A 1204200227 | SCREW |
| 265 | A 0009873841 | RUBBER RING |
| 269 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 269 | N 304032006008 | NUT |
| 273 | N 073379008100 | HOSE |
| BREATHER LINE TO SIDE MEMBER,30 MM | ||
| 277 | A 1089950520 | CLAMP |
| BREATHER LINE TO SIDE MEMBER | ||
| 281 | N 007976006203 | SHEET METAL SCREW |
| 292 | A 1149971882 | HOSE |
| CENTRAL BREATHER PIPE TO FRONT BREATHER PIPE,80 MM | ||
| 292 | A 1149971882 | HOSE |
| CENTRAL BREATHER PIPE TO FRONT BREATHER PIPE,80 MM | ||
| 180 MM | ||
| 292 | A 1149971882 | HOSE |
| BREATHER PIPE TO VALVE,FRONT | ||
| 40 MM | ||
| 292 | A 1149971882 | HOSE |
| BREATHER PIPE TO VALVE,REAR | ||
| 100 MM | ||
| 292 | A 1149971882 | HOSE |
| CENTRAL BREATHER PIPE TO FRONT BREATHER PIPE,80 MM | ||
| 296 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 296 | N 000000000665 | CLAMP |
| 300 | A 0019976990 | HOSE CLAMP |
| 304 | N 916033012100 | CLAMP |
| 308 | A 1074710522 | REINFORCEMENT |
| FUEL TANK TO CONSOLE | ||
| 312 | A 1089900340 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 316 | N 000934008013 | NUT |
| FUEL TANK TO CONSOLE | ||
| A 1004700105 | FILLER CAP | |
| Repalced by: A 0004716330 | ||
| 320 | A 0004716330 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 320 | A 1244700005 | FILLER CAP |
| A 1104710280 | GASKET | |
| Repalced by: A 1154710079 | ||
| 324 | A 1154710079 | SEAL RING |
| 328 | A 0010917101 | FUEL PUMP |
| A 0020910901 | FUEL PUMP | |
| Repalced by: A 0020911301 | ||
| A 0020911301 | FUEL PUMP | |
| Repalced by: A 1160910201 | ||
| A 1160910201 | FUEL PUMP | |
| Repalced by: A 1160900050 | ||
| 336 | A 1160900050 | FUEL PUMP |
| Repalced by: A 0020919701 | ||
| 336 | A 0020919701 | FUEL PUMP |
| 340 | A 1230910082 | INSULATION |
| ABOVE FUEL PUMP | ||
| 343 | A 0000900110 | VALVE |
| 345 | N 007603012111 | SEAL RING |
| 347 | A 1239900053 | NUT |
| FUEL LINE TO FEED PUMP | ||
| 349 | N 007603012111 | SEAL RING |
| 352 | A 0000927601 | FILTER |
| A 0014775901 | FUEL FILTER | |
| Repalced by: A 0014778401 | ||
| A 0014778401 | FUEL FILTER | |
| Repalced by: A 0024770301 | ||
| A 0014778901 | FUEL FILTER | |
| Repalced by: A 0024770301 | ||
| A 0014778401 | FUEL FILTER | |
| Repalced by: A 0024770301 | ||
| 356 | A 0024770301 | FUEL FILTER |
| Repalced by: A 0024771901 | ||
| 356 | A 0024771901 | FUEL FILTER |
| Repalced by: A 0024774501 | ||
| 356 | A 0024774501 | FUEL FILTER |
| 356 | A 0024770601 | FUEL FILTER |
| Repalced by: A 0024774501 | ||
| 356 | A 0024774501 | FUEL FILTER |
| 361 | A 1230910182 | INSULATION |
| 368 | N 007603014100 | SEAL RING |
| 372 | A 1074700279 | INTERMEDIATE PIECE |
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| A 1164700481 | BRACKET | |
| Repalced by: A 1234700381 | ||
| 376 | A 1234700381 | BRACKET |
| FUEL PUMP AND FUEL FILTER | ||
| 381 | N 007985005165 | SCREW |
| 384 | N 912004005100 | LOCK WASHER |
| 387 | N 000934005008 | NUT |
| 396 | A 1149971882 | HOSE |
| 160 MM | ||
| 399 | A 0019976990 | HOSE CLAMP |
| 404 | A 1164702675 | FUEL HOSE |
| FROM FUEL PUMP TO FUEL FILTER | ||
| 408 | A 1234700675 | FUEL HOSE |
| FROM FUEL PUMP TO FUEL FILTER | ||
| 410 | A 1234702264 | LINE |
| FROM PUMP TO FILTER,ACCUMULATOR VALVE | ||
| 416 | N 007603010404 | SEAL RING |
| FUEL LINE LEADING TO FEED PUMP | ||
| 420 | N 007603012111 | SEAL RING |
| FUEL LINE LEADING TO FILTER | ||
| 420 | N 007603012111 | SEAL RING |
| FUEL LINE LEADING TO FEED PUMP | ||
| 420 | N 007603012111 | SEAL RING |
| FUEL LINE LEADING TO FEED PUMP | ||
| 424 | N 915036008202 | HOLLOW SCREW |
| FUEL LINE LEADING TO FILTER | ||
| 424 | N 915036008202 | HOLLOW SCREW |
| FUEL LINE LEADING TO FEED PUMP | ||
| 424 | N 915036008202 | HOLLOW SCREW |
| FUEL LINE LEADING TO FEED PUMP | ||
| 428 | N 000917010005 | NUT |
| FUEL LINE LEADING TO FEED PUMP | ||
| A 1074780140 | BRACKET | |
| Repalced by: A 1164780040 | ||
| A 1164780040 | BRACKET | |
| Repalced by: A 1234780340 | ||
| A 1234780340 | BRACKET | |
| Repalced by: A 1264780340 | ||
| 436 | A 1264780340 | BRACKET |
| 440 | A 1074760136 | BRACKET |
| FEED HOSE | ||
| A 1143280581 | BUFFER | |
| Repalced by: A 1269880011 | ||
| 444 | A 1269880011 | BUFFER |
| 444 | A 1269880011 | BUFFER |
| 448 | N 912004005100 | LOCK WASHER |
| 452 | N 000934005008 | NUT |
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 460 | A 1234700481 | BRACKET |
| FUEL ACCUMULATOR | ||
| 464 | A 1234700681 | BRACKET |
| FUEL ACCUMULATOR | ||
| 468 | A 0004760121 | ACCUMULATOR |
| A 0004760321 | ACCUMULATOR | |
| 472 | A 0004760421 | ACCUMULATOR |
| 476 | A 1169950301 | CLAMP |
| Repalced by: A 1239950001 | ||
| 476 | A 1239950001 | CLAMP |
| PRESSURE COMPENSATOR VALVE TO BRACKET | ||

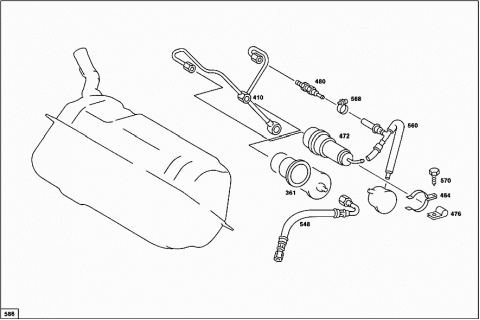

| 480 | A 1164700193 | VALVE |
| 484 | N 007985005142 | SCREW |
| 488 | N 007985005165 | SCREW |
| 492 | N 000934005008 | NUT |
| 496 | A 1074700216 | DAMPER CAGE |
| 504 | A 1164700216 | DAMPER CAGE |
| A 1164700316 | DAMPER CAGE | |
| Repalced by: A 1164700516 | ||
| A 1164700516 | DAMPER CAGE | |
| Repalced by: A 1264700116 | ||
| 504 | A 1264700116 | DAMPER CAGE |
| 512 | A 1124761226 | HOSE |
| 50 MM | ||
| 512 | A 1074760126 | HOSE |
| Repalced by: A 1234763026 | ||
| 512 | A 1234763026 | HOSE |
| 50 MM | ||
| 520 | N 916002017100 | CLAMP |
| 520 | N 916033021100 | CLAMP |
| A 1074700775 | FUEL HOSE | |
| Repalced by: A 1149971882 | ||
| 524 | A 1149971882 | HOSE |
| 460 MM | ||
| 528 | A 1239976382 | HOSE |
| Repalced by: A 1079971482 | ||
| 528 | A 1079971482 | HOSE |
| (PROTECTIVE HOSE) | ||
| 532 | A 0019976990 | HOSE CLAMP |
| 536 | A 1164702775 | FUEL HOSE |
| FROM FUEL FILTER TO FUEL ACCUMULATOR | ||
| 540 | A 1079971482 | HOSE |
| 240 MM | ||
| A 1164702875 | FUEL HOSE | |
| Repalced by: A 1164705275 | ||
| 544 | A 1164705275 | FUEL HOSE |
| FROM FUEL ACCUMULATOR TO FEED LINE | ||
| 548 | A 1234702075 | FUEL HOSE |
| FROM FUEL FILTER TO FEED LINE | ||
| A 1104761126 | HOSE | |
| Repalced by: A 0004763726 | ||
| A 0004763726 | HOSE | |
| Repalced by: A 1074763126 | ||
| 552 | A 1074763126 | HOSE |
| Repalced by: A 1074763726 | ||
| 552 | A 1074763726 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 360 MM | ||
| 552 | A 1074763726 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 340 MM | ||
| A 1169975882 | HOSE | |
| Repalced by: A 1239976382 | ||
| 556 | A 1239976382 | HOSE |
| Repalced by: A 1079971482 | ||
| 556 | A 1079971482 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 300 MM | ||
| 556 | A 1079971482 | HOSE |
| TANK-TO-DAMPER-CAGE LEAK LINE | ||
| 280 MM | ||
| 560 | A 1234702275 | FUEL HOSE |
| FROM ACCUMULATOR TO DAMPER CAGE & VALVE | ||
| 568 | N 916033011100 | CLAMP |
| ACCUMULATOR-TO-DAMPER-CAGE LEAK LINE | ||
| 568 | N 916033011100 | CLAMP |
| FROM ACCUMULATOR TO DAMPER CAGE & VALVE | ||
| 570 | N 007976006203 | SHEET METAL SCREW |
| A 1164700575 | FUEL HOSE | |
| Repalced by: A 1164703975 | ||
| A 1164703975 | FUEL HOSE | |
| Repalced by: A 1164701475 | ||
| 572 | A 1164701475 | FUEL HOSE |
| 580 | A 0019976990 | HOSE CLAMP |
| 580 | N 916033012100 | CLAMP |
| A 1164700275 | FUEL HOSE | |
| Repalced by: A 1164701575 | ||
| 584 | A 1164701575 | FUEL HOSE |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 568 | ||
| A 1164702375 | FUEL HOSE | |
| Repalced by: A 1234700875 | ||
| 588 | A 1234700875 | FUEL HOSE |
| 593 | N 916002017100 | CLAMP |
| 593 | N 916033021100 | CLAMP |
| 600 | A 1164760036 | BRACKET |
| 602 | A 1149970190 | LOOM TIE |
| 605 | N 007976006203 | SHEET METAL SCREW |
| A 1074760036 | BRACKET | |
| Repalced by: A 1164760336 | ||
| A 1164760336 | BRACKET | |
| Repalced by: A 1264760136 | ||
| A 1264760136 | BRACKET | |
| Repalced by: A 1264760536 | ||
| 612 | A 1264760536 | BRACKET |
| Repalced by: A 1264760636 | ||
| 612 | A 1264760636 | BRACKET |
| 620 | A 1009970881 | GROMMET |
| 620 | A 1169971581 | GROMMET |
| 627 | N 007976006203 | SHEET METAL SCREW |
| 634 | N 006797004132 | TOOTHED WASHER |
| 634 | N 006797005132 | TOOTHED WASHER |
| 641 | N 000934004004 | NUT |
| 641 | N 000934005008 | NUT |
| 643 | A 1149971882 | HOSE |
| 100 MM,FROM FUEL RETURN LINE TO FUEL TANK | ||
| 646 | A 0019976990 | HOSE CLAMP |
| A 1074780337 | PROTECTIVE COVER | |
| Repalced by: A 1264780137 | ||
| A 1074780537 | PROTECTIVE COVER | |
| Repalced by: A 1264780137 | ||
| A 1164780037 | PROTECTIVE COVER | |
| Repalced by: A 1264780137 | ||
| A 1264780037 | PROTECTIVE COVER | |
| Repalced by: A 1264780137 | ||
| 650 | A 1264780137 | PROTECTIVE COVER |
| 652 | N 007976006203 | SHEET METAL SCREW |

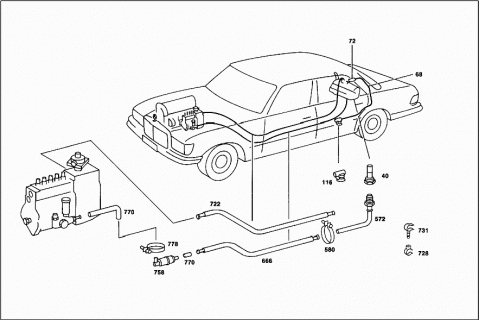

| 666 | A 1164765101 | LINE |
| FEED | ||
| A 1164760201 | LINE | |
| Repalced by: A 1164765101 | ||
| 670 | A 1164765101 | LINE |
| FEED | ||
| 670 | A 1164760001 | LINE |
| FEED | ||
| 670 | A 1164760301 | LINE |
| FEED | ||
| A 1164701064 | LINE | |
| Repalced by: A 1164703364 | ||
| 682 | A 1164703364 | LINE |
| Repalced by: A 1074700265 | ||
| 682 | A 1074700265 | LINE |
| FEED | ||
| A 1164700664 | LINE | |
| Repalced by: A 1164703264 | ||
| 682 | A 1164703264 | LINE |
| FEED | ||
| A 1164700364 | LINE | |
| Repalced by: A 1164703164 | ||
| 682 | A 1164703164 | LINE |
| FEED | ||
| A 1164700864 | LINE | |
| Repalced by: A 1164703964 | ||
| 682 | A 1164703964 | LINE |
| FEED | ||
| 690 | A 1809900066 | UNION SCREW |
| A 1164760801 | LINE | |
| Repalced by: A 1164765201 | ||
| 702 | A 1164765201 | LINE |
| RETURN | ||
| 702 | A 1164760101 | LINE |
| RETURN | ||
| 702 | A 1164760601 | LINE |
| RETURN | ||
| A 1164701464 | LINE | |
| Repalced by: A 1164703764 | ||
| 714 | A 1164703764 | LINE |
| Repalced by: A 1264705264 | ||
| 714 | A 1264705264 | LINE |
| RETURN | ||
| A 1164700764 | LINE | |
| Repalced by: A 1164703664 | ||
| 714 | A 1164703664 | LINE |
| RETURN | ||
| A 1164700564 | LINE | |
| Repalced by: A 1164703564 | ||
| 714 | A 1164703564 | LINE |
| RETURN | ||
| A 1164700964 | LINE | |
| Repalced by: A 1164704064 | ||
| 714 | A 1164704064 | LINE |
| Repalced by: A 1074709964 | ||
| 714 | A 1074709964 | LINE |
| RETURN | ||
| 722 | A 1164765301 | LINE |
| RETURN | ||
| 725 | A 1809900066 | UNION SCREW |
| 728 | A 1109950165 | CLAMP |
| 731 | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 731 | A 0004760436 | BRACKET |
| 736 | A 0019976990 | HOSE CLAMP |
| 736 | A 0019976990 | HOSE CLAMP |
| 736 | N 916033012100 | CLAMP |
| A 1164703775 | FUEL HOSE | |
| Repalced by: A 1164705775 | ||
| A 1164705175 | FUEL HOSE | |
| Repalced by: A 1164705775 | ||
| 750 | A 1164705775 | FUEL HOSE |
| FEED | ||
| A 1164704375 | FUEL HOSE | |
| Repalced by: A 1164704975 | ||
| 750 | A 1164704975 | FUEL HOSE |
| FEED | ||
| 758 | A 0014776301 | FUEL FILTER |
| A 0014776401 | FUEL FILTER | |
| Repalced by: A 0014777901 | ||
| 758 | A 0014777901 | FUEL FILTER |
| 758 | A 0014776601 | FUEL FILTER |
| A 1144762026 | HOSE | |
| Repalced by: A 1149971882 | ||
| 770 | A 1149971882 | HOSE |
| 40 MM | ||
| 770 | A 1149971882 | HOSE |
| 40 MM | ||
| 770 | A 1149971882 | HOSE |
| 425 MM | ||
| 778 | N 916033012100 | CLAMP |
| TO 114 476 20 26 | ||
| 778 | A 0019976990 | HOSE CLAMP |
| TO 114 997 18 82 | ||
| A 1164703675 | FUEL HOSE | |
| Repalced by: A 1164705075 | ||
| 786 | A 1164705075 | FUEL HOSE |
| RETURN | ||
| A 1164704275 | FUEL HOSE | |
| Repalced by: A 1164704875 | ||
| 786 | A 1164704875 | FUEL HOSE |
| RETURN | ||

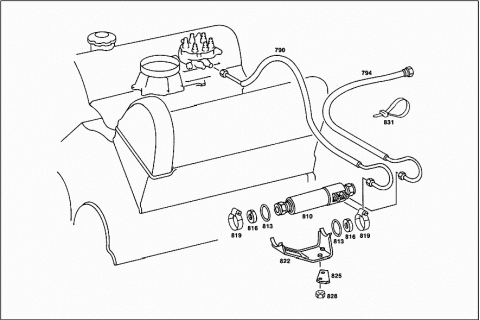

| 790 | A 1164705475 | FUEL HOSE |
| FROM FUEL DISTRIBUTOR TO FUEL COOLER | ||
| 794 | A 1164705675 | FUEL HOSE |
| FROM FUEL COOLER TO FUEL TANK | ||
| 798 | A 1079973082 | HOSE |

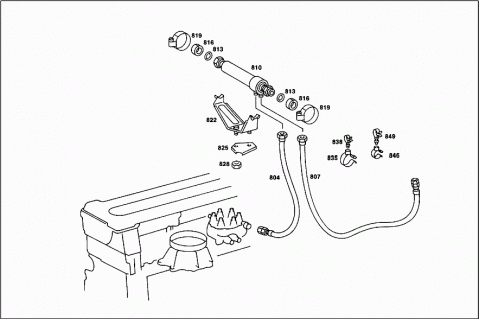

| 804 | A 1164705975 | FUEL HOSE |
| FROM FUEL DISTRIBUTOR TO FUEL COOLER | ||
| 807 | A 1164706075 | FUEL HOSE |
| Repalced by: A 1164706175 | ||
| 807 | A 1164706175 | FUEL HOSE |
| FROM FUEL COOLER TO FUEL TANK | ||
| 810 | A 1074760217 | COOLER |
| Repalced by: A 1264760017 | ||
| 810 | A 1264760017 | COOLER |
| (FUEL COOLER) | ||
| 813 | A 1239970940 | SEAL RING |
| Repalced by: A 1249970645 | ||
| 813 | A 1249970645 | SEAL RING |
| Repalced by: A 1409970945 | ||
| 813 | A 1409970945 | O-RING |
| 816 | A 1164760081 | RUBBER PAD |
| Repalced by: A 1164760181 | ||
| A 1164760181 | RUBBER PAD | |
| Repalced by: A 1164760281 | ||
| 816 | A 1164760281 | RUBBER PAD |
| FUEL COOLER | ||
| 819 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 819 | N 000000000668 | CLAMP |
| FUEL COOLER | ||
| 822 | A 1164701181 | BRACKET |
| FUEL COOLER | ||
| 825 | A 1164761036 | BRACKET |
| AT LEFT WHEEL ARCH PANEL | ||
| 828 | N 913013006000 | NUT |
| Repalced by: N 913019006000 | ||
| 828 | N 913019006000 | NUT |
| Repalced by: N 913012006001 | ||
| 828 | N 913012006001 | NUT |
| AT LEFT WHEEL ARCH PANEL | ||
| 831 | A 0019974390 | LOOM TIE |
| 835 | A 1109950365 | CLAMP |
| Repalced by: A 0004760436 | ||
| 835 | A 0004760436 | BRACKET |
| FUEL HOSE TO FUEL HOSE | ||
| 838 | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 838 | A 0004760436 | BRACKET |
| FUEL HOSE TO FUEL HOSE | ||
| A 1109950165 | CLAMP | |
| SERVO HOSE TO VACUUM LINE | ||
| A 1109950065 | CLAMP | |
| Repalced by: A 0004760436 | ||
| A 0004760436 | BRACKET | |
| SERVO HOSE TO VACUUM LINE | ||
| 846 | A 1109950365 | CLAMP |
| Repalced by: A 0004760436 | ||
| 846 | A 0004760436 | BRACKET |
| FUEL HOSE TO FUEL HOSE PIPE BEND | ||
| 849 | A 1159950365 | CLAMP |
| FUEL HOSE TO FUEL HOSE PIPE BEND | ||
| 851 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 851 | N 304017006034 | SCREW |
| 855 | A 1154760084 | DAMPING STRIP |
| 18 MM | ||
| A 0039885178 | CLIP | |
| Repalced by: A 0039889178 | ||
| 858 | A 0039889178 | CLIP |
| FUEL LINE TO BRAKE BOOSTER | ||
| 861 | A 1109950015 | CLAMP |
| SIDE MEMBER,TOP | ||
| 864 | A 1104280181 | RUBBER PAD |
| Repalced by: A 1263280181 | ||
| 864 | A 1263280181 | BUFFER |
| 867 | N 007976005203 | SHEET METAL SCREW |
| 870 | A 1094760084 | DAMPING STRIP |
| FUEL/BRAKE/BREATHER LINES TO LEFT SIDE MEMBER,BOTTOM | ||
| 873 | A 1099950022 | CLAMP |
| FUEL/BRAKE/BREATHER LINES TO LEFT SIDE MEMBER,BOTTOM | ||
| 876 | N 007976006203 | SHEET METAL SCREW |
| A 1264760084 | DAMPING STRIP | |
| Repalced by: A 1094760384 | ||
| A 1264760084 | DAMPING STRIP | |
| 882 | A 1104760084 | DAMPING STRIP |
| FUEL/BRAKE/BREATHER LINES TO MAIN FLOOR | ||
| 888 | A 1099950022 | CLAMP |
| FUEL/BRAKE/BREATHER LINES TO MAIN FLOOR | ||
| 888 | A 1099950022 | CLAMP |
| FUEL/BRAKE/BREATHER LINES TO MAIN FLOOR | ||
| 888 | A 1109950022 | CLAMP |
| FUEL/BRAKE/BREATHER LINES TO MAIN FLOOR | ||
| 891 | N 007976006203 | SHEET METAL SCREW |
| 894 | A 1163280284 | SHIM |
| Repalced by: A 1163280184 | ||
| 894 | A 1163280184 | SHIM |
| 897 | A 1129950222 | CLAMP |
| 900 | A 1163200543 | BRACKET |
| 903 | A 0009873841 | RUBBER RING |
| 906 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 906 | N 304032006008 | NUT |
| 909 | A 1204200227 | SCREW |
| 912 | A 0009873841 | RUBBER RING |
| 915 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 915 | N 304032006008 | NUT |
| 921 | A 1264760084 | DAMPING STRIP |
| Repalced by: A 1094760384 | ||
| 921 | A 1264760084 | DAMPING STRIP |
| LINES UNDER REAR SEAT FLOOR | ||
| 924 | A 1099950022 | CLAMP |
| 927 | N 007976006203 | SHEET METAL SCREW |
| 931 | A 1164760284 | DAMPING STRIP |
| 933 | A 1099950015 | CLAMP |
| 936 | A 1169950022 | CLAMP |
| 939 | N 007976006203 | SHEET METAL SCREW |
| 948 | A 1124760184 | DAMPING STRIP |
| 951 | A 1809950022 | CLAMP |
| 957 | A 0009950068 | CLAMP |
| 961 | N 072571001024 | CLAMP |
| 965 | N 007976005203 | SHEET METAL SCREW |
| 967 | A 1149971882 | HOSE |
| 425 MM | ||
| 969 | N 916033012100 | CLAMP |
| A 1074761026 | HOSE | |
| Repalced by: A 1074762426 | ||
| 972 | A 1074762426 | HOSE |
| Repalced by: A 2019970852 | ||
| 972 | A 2019970852 | HOSE |
| 190 MM | ||
| 976 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 976 | N 000000000665 | CLAMP |
| 978 | A 1124761226 | HOSE |
| 981 | N 916002017100 | CLAMP |
| 987 | A 1149971882 | HOSE |
| A 1144762026 | HOSE | |
| Repalced by: A 1149971882 | ||
| 987 | A 1149971882 | HOSE |
| 989 | N 916033012100 | CLAMP |
| 989 | A 0019976990 | HOSE CLAMP |
| TO 114 997 18 82 | ||
| 989 | A 1159950465 | CLAMP |
| 990 | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 990 | A 0004760436 | BRACKET |
| 991 | N 073379008100 | HOSE |
| BREATHER LINES TO STIFFENING AND TO FRONT SIDE MEMBER | ||
| 992 | A 1089950520 | CLAMP |
| BREATHER LINES TO STIFFENING AND TO FRONT SIDE MEMBER | ||
| 993 | N 007976006203 | SHEET METAL SCREW |
| 994 | A 0009870415 | PLUG |
| BELOW REAR SEAT BENCH FLOOR,RIGHT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
