Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|

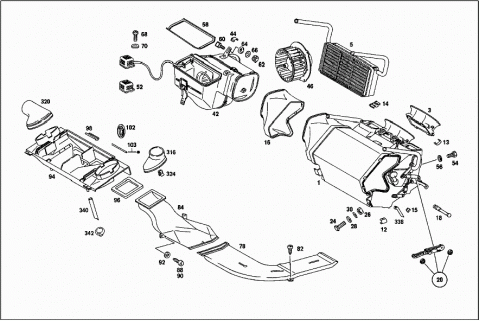

| A 1168300762 | HEATER CASE | |
| Repalced by: A 1168303062 | ||
| 001 | A 1168303062 | HEATER CASE |
| A 1168301662 | HEATER CASE | |
| Repalced by: A 1168303362 | ||
| A 1168303362 | HEATER CASE | |
| Repalced by: A 1168303762 | ||
| A 1168303762 | HEATER CASE | |
| 003 | A 1168300025 | PIPE SOCKET |
| A 1168300125 | PIPE SOCKET | |
| 005 | A 1168350001 | HEAT EXCHANGER |
| A 1168350101 | HEAT EXCHANGER | |
| A 1078350574 | EVAPORATOR | |
| Repalced by: A 1168350174 | ||
| A 1168350174 | EVAPORATOR | |
| Repalced by: A 1168300058 | ||
| 006 | A 1168300058 | EVAPORATOR |
| Repalced by: A 1078300058 | ||
| 006 | A 1078300058 | EVAPORATOR |
| Repalced by: A 0008304858 | ||
| 006 | A 0008304858 | EVAPORATOR |
| 008 | A 1158350072 | VALVE |
| 010 | A 1088350247 | FILTER |
| A 0008350434 | SPRING | |
| Repalced by: A 0008351334 | ||
| 012 | A 0008351334 | SPRING |
| 013 | A 0008351234 | SPRING |
| Repalced by: A 1238350034 | ||
| 013 | A 1238350034 | SPRING |
| 014 | A 0008351134 | SPRING |
| 015 | A 0008351034 | SPRING |
| 016 | A 1168310188 | HOSE |
| A 1168310788 | HOSE | |
| 018 | A 0008353115 | PIPE LINE |
| TEMPERATURE-FEELER CAPILLARY TUBE | ||
| 020 | A 1165860083 | REPAIR KIT |
| 024 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 024 | A 0009905233 | SCREW |
| 026 | N 000934006007 | NUT |
| 028 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 028 | N 009021006208 | WASHER |
| 030 | N 006797006145 | TOOTHED WASHER |
| 033 | A 1168351214 | BRACKET |
| A 1168351414 | BRACKET | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 007976004205 | SHEET METAL SCREW | |
| N 000137005203 | SPRING WASHER | |
| 038 | A 1079970181 | GROMMET |
| 040 | A 1169970481 | GROMMET |
| 041 | A 1169971681 | GROMMET |
| 042 | A 1168300562 | HEATER CASE |
| 044 | A 0008351334 | SPRING |
| 046 | A 0008358102 | MOTOR |
| 052 | A 1168350106 | RESISTOR |
| 054 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 054 | N 304017006018 | SCREW |
| 056 | N 006797006145 | TOOTHED WASHER |
| 058 | A 1168350098 | SEAL |
| A 1168301762 | HEATER CASE | |
| Repalced by: A 1168300108 | ||

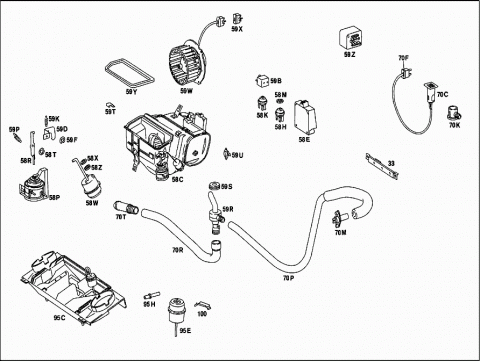

| 058C | A 1168300108 | BLOWER |
| A 0008350057 | AMPLIFIER | |
| Repalced by: A 0008350157 | ||
| 058E | A 0008350157 | AMPLIFIER |
| Repalced by: A 0008350057 | ||
| 058E | A 0008350057 | AMPLIFIER |
| N 007976004214 | TAPPING SCREW | |
| N 007981004330 | SHEET METAL SCREW | |
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| N 007981004356 | SHEET METAL SCREW | |
| A 1168350019 | COVERING | |
| 058H | A 0008000373 | SWITCH |
| Repalced by: A 0008000673 | ||
| 058H | A 0008000673 | SWITCH |
| COLOR,GREEN | ||
| A 0008000673 | SWITCH | |
| COLOR,GREEN | ||
| 058K | A 0008000273 | SWITCH |
| Repalced by: A 0008000573 | ||
| 058K | A 0008000573 | SWITCH |
| COLOR,YELLOW | ||
| A 0008000573 | SWITCH | |
| COLOR,YELLOW | ||
| A 1239870441 | RUBBER RING | |
| 058M | A 0009948945 | PIN LOCK |
| 058P | A 0008001775 | ELEMENT |
| N 007976005203 | SHEET METAL SCREW | |
| 058R | A 1168000380 | CONTROL ROD |
| 058T | N 006799003202 | LOCK PLATE |
| A 0008002275 | ELEMENT | |
| 058W | A 1168002175 | ELEMENT |
| 058X | A 0009949645 | LOCK |
| 058Z | A 1169870541 | RUBBER RING |
| 059B | A 0008210247 | RELAY |
| N 007981004318 | SHEET METAL SCREW | |
| 059D | A 1168331345 | LEVER |
| 059F | N 006799004001 | LOCK PLATE |
| 059K | A 1168330168 | SPRING |
| N 006799004001 | LOCK PLATE | |
| 059P | A 1168330268 | SPRING |
| 059R | A 1168050077 | NOZZLE |
| N 007976004212 | SHEET METAL SCREW | |
| 059S | A 1159970681 | GROMMET |
| 059U | A 0028211851 | SWITCH |
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| 059T | A 0008351334 | SPRING |
| 059W | A 0008359802 | MOTOR |
| 059X | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 059X | A 0095454028 | PLUG HOUSING |
| 2-PIN, BLOWER MOTOR | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| 059Y | A 1168350098 | SEAL |
| 059Z | A 1168350206 | RESISTOR |
| BLOWER MOTOR | ||
| 060 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 060 | A 0009905233 | SCREW |
| 062 | N 000934006007 | NUT |
| 064 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 064 | N 009021006208 | WASHER |
| 066 | N 006797006145 | TOOTHED WASHER |
| 068 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 068 | N 000000001933 | SCREW |
| BLOWER SERIES RESISTOR TO CENTRAL PART | ||
| 070 | N 000137004202 | SPRING WASHER |
| BLOWER SERIES RESISTOR TO CENTRAL PART | ||
| 070C | A 0008350979 | TEMPERATURE SENSOR |
| INBOARD TEMPERATURE; UPPER PART; AT TOP OF INSTRUMENT PANEL | ||
| 070F | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 070F | A 0095454028 | PLUG HOUSING |
| 2-PIN | ||
| 070K | A 0008351279 | HOUSING |
| INBOARD TEMPERATURE; LOWER PART; AT TOP OF INSTRUMENT PANEL | ||
| 070M | A 0008351079 | TEMPERATURE SENSOR |
| OUTDOOR TEMPERATURE;AT CENTRAL INSIDE PART BELOW WINDSHIELD | ||
| N 007976004207 | SHEET METAL SCREW | |
| 070P | A 1168301796 | HOSE |
| BETWEEN TEMPERATURE SENSOR AND AIR NOZZLE | ||
| 070R | A 1168310688 | HOSE |
| BETWEEN AIR-BLAST NOZZLE AND FRONT PANEL PILLAR | ||
| 070T | A 1168350168 | PIPE SOCKET |
| AT FRONT PANEL PILLAR,RIGHT | ||

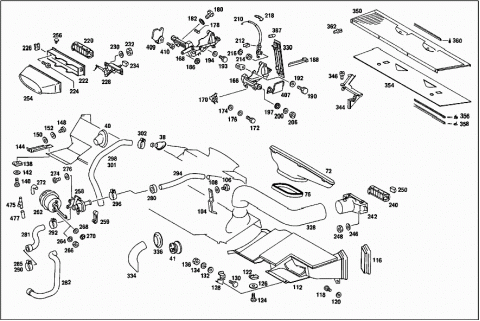

| 072 | A 1168300319 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1168300419 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 076 | A 1078310098 | SEAL |
| A 1168310346 | DUCT | |
| Repalced by: A 1168310946 | ||
| 078 | A 1168310946 | DUCT |
| LEFT | ||
| A 1168310446 | DUCT | |
| Repalced by: A 1168311046 | ||
| A 1168311046 | DUCT | |
| RIGHT | ||
| A 1168311446 | DUCT | |
| RIGHT | ||
| 082 | N 007981004331 | SHEET METAL SCREW |
| 084 | A 1168310146 | DUCT |
| LEFT | ||
| A 1168310246 | DUCT | |
| RIGHT | ||
| 088 | N 007981004331 | SHEET METAL SCREW |
| 090 | N 007981004270 | SHEET METAL SCREW |
| 092 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 092 | N 009021004207 | WASHER |
| 094 | A 1168300745 | AIR DUCT |
| 095C | A 1168300945 | AIR DUCT |
| 095E | A 1168001975 | ELEMENT |
| N 910001003102 | RIVET | |
| Repalced by: A 4609900197 | ||
| A 4609900197 | RIVET | |
| 095H | A 1168050003 | CONNECTOR |
| A 0009949645 | LOCK | |
| A 0009881878 | CLIP | |
| AT AIR DUCT, RIGHT FLAP | ||
| 096 | A 1078310142 | FRAME |
| 098 | A 1078310134 | SPRING |
| 098 | A 1078310134 | SPRING |
| 100 | A 1168310034 | SPRING |
| 102 | A 1169972281 | GROMMET |
| A 0009897085 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| 103 | A 0019875646 | SEALING CORD |
| 1200 MM; BETWEEN AIR CONDITIONER CASE AND CENTRAL AIR DUCT | ||
| 103 | A 0019875646 | SEALING CORD |
| 1200 MM; BETWEEN AIR CONDITIONER CASE AND CENTRAL AIR DUCT | ||
| 104 | A 1168310014 | BRACKET |
| 106 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 106 | N 304017006018 | SCREW |
| 108 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 108 | N 009021006208 | WASHER |
| 112 | A 1168300145 | AIR DUCT |
| LEFT | ||
| A 1168300245 | AIR DUCT | |
| RIGHT | ||
| 116 | A 1168310598 | SEAL |
| OUTSIDE LEFT | ||
| A 1168310698 | SEAL | |
| OUTSIDE RIGHT | ||
| 118 | N 007981004248 | SHEET METAL SCREW |
| 120 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 120 | N 000433005304 | WASHER |
| 122 | A 0009947145 | LOCK |
| 124 | N 007981004248 | SHEET METAL SCREW |
| 126 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 126 | N 009021005205 | WASHER |
| 128 | A 1168310112 | ANGLE |
| 130 | A 1204200227 | SCREW |
| 132 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 132 | N 000125006449 | WASHER |
| 134 | N 912004006102 | LOCK WASHER |
| 136 | N 000934006007 | NUT |
| A 0009943445 | LOCK | |
| Repalced by: A 0009940645 | ||
| 138 | A 0009940645 | LOCK |
| 140 | N 007981004248 | SHEET METAL SCREW |
| 142 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 142 | N 000433005304 | WASHER |
| 144 | A 1168310212 | ANGLE |
| 148 | N 007981004258 | SHEET METAL SCREW |
| 150 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 150 | N 000433005304 | WASHER |
| 152 | N 912004005100 | LOCK WASHER |
| A 1168300585 | OPERATING UNIT | |
| Repalced by: A 1168300785 | ||
| 166 | A 1168300785 | OPERATING UNIT |
| LEFT | ||
| A 1168300685 | OPERATING UNIT | |
| Repalced by: A 1168300885 | ||
| 168 | A 1168300885 | OPERATING UNIT |
| RIGHT | ||
| 170 | A 1168000073 | SWITCH |
| 172 | N 000933004016 | SCREW |
| 174 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 174 | N 000125004319 | WASHER |
| 176 | N 000137004202 | SPRING WASHER |
| 178 | N 001481003011 | CLAMPING SLEEVE |
| TO LOCK BEARING BRACKET WITH BASE PLATE | ||
| 180 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 180 | N 304017006016 | SCREW |
| 182 | N 006797006145 | TOOTHED WASHER |
| A 0009941860 | LOCK | |
| Repalced by: N 912003003000 | ||
| A 0009949145 | LOCK | |
| Repalced by: N 912003003000 | ||
| 186 | N 912003003000 | DUO CLIP |
| 188 | A 1168330140 | OPERATING HANDLE |
| 190 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 190 | N 304017006034 | SCREW |
| 192 | N 000137006204 | SPRING WASHER |
| 193 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 193 | N 304017006034 | SCREW |
| 194 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 194 | N 009021006208 | WASHER |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 197 | N 006797008120 | TOOTHED WASHER |
| 200 | N 000137006204 | SPRING WASHER |
| 206 | N 000934006007 | NUT |
| 210 | A 1168300131 | WIRE CABLE |
| A 0008330081 | CLIP | |
| 212 | A 1007100918 | PANELLING |
| 214 | N 000933005058 | SCREW |
| 216 | N 912004005100 | LOCK WASHER |
| 218 | A 0019886878 | CLIP |
| A 1168301285 | OPERATING UNIT | |
| Repalced by: A 1168301385 | ||
| A 1168301385 | OPERATING UNIT | |
| Repalced by: A 1168301485 | ||

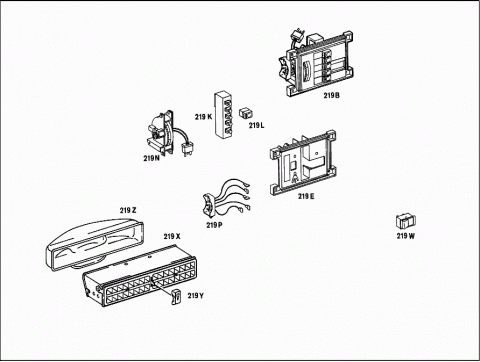

| 219B | A 1168301685 | OPERATING UNIT |
| 219E | A 1168330027 | PLATE |
| 219E | A 1168330027 | PLATE |
| 219K | A 1168200710 | SWITCH |
| 219L | A 1168210058 | KNOB |
| 219N | A 1168200610 | SWITCH |
| TEMPERATURE | ||
| A 0008211860 | RESISTOR | |
| 219P | A 1168207715 | ELECTRIC CABLE |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 68, FIG.NO.154 | ||
| 219P | A 1168207715 | ELECTRIC CABLE |
| A 1168330106 | FRAME | |
| N 072601012230 | BULB | |
| N 072601012230 | BULB | |
| OPERATING UNIT | ||
| A 0029884878 | CLIP | |
| TEMPERATURE SWITCH TWO-POLE CONNECTOR TO OPERATING UNIT | ||
| N 007982002205 | SHEET METAL SCREW | |
| OPERATING UNIT COVERING | ||
| N 007983002005 | SHEET METAL SCREW | |
| A 0028212051 | SWITCH | |
| Repalced by: A 0008207910 | ||
| 219W | A 0008207910 | SWITCH |
| COMPRESSOR; AT OPERATING UNIT COVERING | ||
| 219X | A 1168300065 | FRAME |
| 219Y | A 1168330740 | OPERATING HANDLE |
| 219Z | A 1168311588 | HOSE |
| A 1168300443 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301543 | ||
| 220 | A 1168301543 | AIR DISTRIBUTOR |
| 222 | A 1168310142 | FRAME |
| 224 | N 007982004318 | SHEET METAL SCREW |
| 226 | A 0009940445 | LOCK |
| Repalced by: A 1409941045 | ||
| 226 | A 1409941045 | LOCK |
| 228 | A 1168300085 | OPERATING UNIT |
| 230 | N 000137005203 | SPRING WASHER |
| 232 | N 000934005008 | NUT |
| 234 | A 1168330440 | OPERATING HANDLE |
| A 1168300143 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301743 | ||
| A 1168301743 | AIR DISTRIBUTOR | |
| LEFT | ||
| A 1168300174 | LOUVRE | |
| LEFT | ||
| A 1168300243 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301843 | ||
| A 1168301843 | AIR DISTRIBUTOR | |
| RIGHT | ||
| A 1168300274 | LOUVRE | |
| RIGHT | ||
| A 1168300443 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301543 | ||
| 240 | A 1168301543 | AIR DISTRIBUTOR |
| A 1168301143 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301343 | ||
| 242 | A 1168301343 | AIR DISTRIBUTOR |
| Repalced by: A 1168301743 | ||
| A 1168301243 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301443 | ||
| A 1168301443 | AIR DISTRIBUTOR | |
| Repalced by: A 1168301843 | ||
| 246 | N 000137005203 | SPRING WASHER |
| 248 | N 000934005008 | NUT |
| 250 | A 1168330340 | OPERATING HANDLE |
| LEFT | ||
| A 1168330440 | OPERATING HANDLE | |
| RIGHT | ||
| 254 | A 1168310088 | HOSE |
| 256 | A 0009900892 | RIVET |
| 258 | A 1168350020 | CONTROL VALVE |
| MAKE BEHR | ||
| 259 | A 1168331045 | LEVER |
| A 1168300684 | VALVE | |
| MAKE MECANO-BUNDY | ||
| 262 | A 1168000975 | ELEMENT |
| Repalced by: A 1168001775 | ||
| 264 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 264 | N 912004004102 | LOCK WASHER |
| 266 | N 000934004004 | NUT |
| 268 | A 1169870541 | RUBBER RING |
| 270 | A 0009949645 | LOCK |
| 272 | A 1078330197 | HOSE |
| Repalced by: A 1170780581 | ||
| 272 | A 1170780581 | HOSE |
| 274 | N 007981004248 | SHEET METAL SCREW |
| 276 | N 000137005203 | SPRING WASHER |
| A 1078350098 | SEAL | |
| Repalced by: A 1168350198 | ||
| 280 | A 1168350198 | SEAL |
| A 0008300084 | VALVE | |
| Repalced by: A 0008300384 | ||
| 280C | A 0008300384 | VALVE |
| AUTOMATIC | ||
| A 0008300198 | REPAIR KIT | |
| 280D | A 0008203510 | SWITCH |
| A 1168350081 | INSULATION | |
| A 1168350081 | INSULATION | |
| A 1168351514 | BRACKET | |
| A 1168351514 | BRACKET | |
| N 007976006203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| 280E | A 1169901701 | SCREW |
| CONTROL VALVE TO BRACKET | ||
| 280H | A 1168300014 | BRACKET |

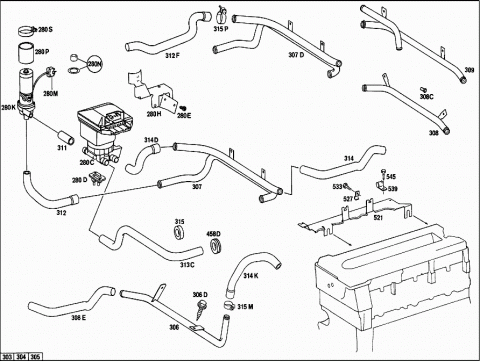

| 280K | A 0008352564 | PUMP |
| Repalced by: A 0008356964 | ||
| 280K | A 0008356964 | PUMP |
| 280M | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 280M | A 0095454028 | PLUG HOUSING |
| 280N | A 0005860583 | REPAIR KIT |
| WATER PUMP | ||
| 280P | A 1168350296 | PAD |
| 280S | N 916002049100 | CLAMP |
| N 007976006204 | SHEET METAL SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000934006007 | NUT | |
| A 1168310094 | HOSE | |
| Repalced by: A 1168310394 | ||
| 281 | A 1168310394 | HOSE |
| 282 | A 1168310494 | HOSE |
| A 1168311694 | HOSE | |
| 285 | N 916026023001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 285 | N 000000000667 | CLAMP |
| 290 | N 916026020001 | CLAMP |
| 292 | N 916026020001 | CLAMP |
| 294 | A 1078310194 | HOSE |
| A 1168311494 | HOSE | |
| 296 | N 916026020001 | CLAMP |
| 298 | A 1168310294 | HOSE |
| 301 | A 1168311994 | HOSE |
| A 1168311894 | HOSE | |
| Repalced by: A 4615012382 | ||
| A 4615012382 | HOSE | |
| 302 | N 916026020001 | CLAMP |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 521 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 527 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 533 | ||
| A 1168301215 | PIPE LINE | |
| RETURN | ||
| A 1168302215 | PIPE LINE | |
| RETURN | ||
| A 1168302615 | PIPE LINE | |
| RETURN | ||
| 306 | A 1168303515 | PIPE LINE |
| RETURN; BETWEEN WATER PUMP & CONTROL VALVE | ||
| N 000933006026 | SCREW | |
| 306D | N 914031004203 | COMBINATION BOLT |
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000934006007 | NUT | |
| 307 | A 1168302115 | PIPE LINE |
| FROM ENGINE TO CONTROL VALVE AND RETURN CONTROL VALVE TO ENGINE | ||
| 307D | A 1168303415 | PIPE LINE |
| FROM ENGINE TO CONTROL VALVE AND RETURN CONTROL VALVE TO ENGINE | ||
| 308 | A 1168300715 | PIPE LINE |
| FEED,BETWEEN ENGINE AND SERVO-UNIT WATER PUMP | ||
| N 007976004205 | SHEET METAL SCREW | |
| 308C | A 0009880527 | GROMMET |
| 308E | A 1158311094 | HOSE |
| BETWEEN RETURN LINE AND WATER PUMP | ||
| 309 | A 1168300815 | PIPE LINE |
| RETURN; BETWEEN CONTROL VALVE & HEAT EXCHANGER OR ENGINE,RESP. | ||
| N 007976004205 | SHEET METAL SCREW | |
| FEED & RETURN LINES TO CENTRAL PART BELOW WINDSHIELD,INSIDE | ||
| 311 | A 1168310694 | HOSE |
| BETWEEN WATER PUMP AND CONTROL VALVE | ||
| 312 | A 1168310794 | HOSE |
| BETWEEN FEED LINE AND WATER PUMP | ||
| A 1168310894 | HOSE | |
| BETWEEN ENGINE AND FEED LINE | ||
| A 1168313194 | HOSE | |
| BETWEEN ENGINE AND FEED LINE | ||
| A 1078311294 | HOSE | |
| BETWEEN ENGINE AND FEED LINE | ||
| 312F | A 1168313294 | HOSE |
| BETWEEN ENGINE AND FEED LINE | ||
| 313C | A 1168312894 | HOSE |
| Repalced by: A 1168310994 | ||
| 313C | A 1168310994 | HOSE |
| BETWEEN CONTROL VALVE AND HEAT EXCHANGER | ||
| A 1168310994 | HOSE | |
| BETWEEN CONTROL VALVE AND HEAT EXCHANGER | ||
| A 1168310994 | HOSE | |
| Repalced by: A 1168313594 | ||
| A 1168313594 | HOSE | |
| Repalced by: A 1168312894 | ||
| A 1168312894 | HOSE | |
| BETWEEN CONTROL VALVE AND HEAT EXCHANGER | ||
| 314 | A 1168311094 | HOSE |
| BETWEEN HEAT EXCHANGER AND RETURN LINE | ||
| 314D | A 1168311194 | HOSE |
| BETWEEN RETURN LINE AND CONTROL VALVE | ||
| A 1168312994 | HOSE | |
| BETWEEN CONTROL VALVE AND RETURN LINE TO ENGINE | ||
| A 1168311294 | HOSE | |
| BETWEEN CONTROL VALVE AND RETURN LINE TO ENGINE | ||
| 314K | A 1168313394 | HOSE |
| BETWEEN RETURN LINE AND CONTROL VALVE | ||
| A 1168311394 | HOSE | |
| BETWEEN RETURN LINE AND ENGINE RETURN PIPE | ||
| 315 | A 1109870541 | RUBBER RING |
| BETWEEN CONTROL VALVE AND HEAT EXCHANGER | ||
| 315 | A 1109870541 | RUBBER RING |
| BETWEEN FEED LINE AND WATER PUMP | ||
| 315 | A 1109870541 | RUBBER RING |
| BETWEEN RETURN LINE AND CONTROL VALVE | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | HOSE CLAMP | |
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | HOSE CLAMP | |
| A 0059970190 | HOSE CLAMP | |
| 315M | N 916026020001 | CLAMP |
| 315P | N 916026023001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 315P | N 000000000667 | CLAMP |
| 315P | N 000000000667 | CLAMP |
| 315P | N 000000000667 | CLAMP |
| 316 | A 1168310025 | PIPE SOCKET |
| LEFT | ||
| 320 | A 1168310125 | PIPE SOCKET |
| RIGHT | ||
| A 0019886678 | CLIP | |
| Repalced by: A 1079881878 | ||
| 324 | A 1079881878 | CLIP |
| A 0119972282 | HOSE | |
| Repalced by: A 1168310488 | ||
| 328 | A 1168310488 | HOSE |
| Repalced by: A 1168311088 | ||
| 328 | A 1168311088 | HOSE |
| 330 | A 1168350121 | ESCUTCHEON |
| LEFT | ||
| A 1168300189 | ESCUTCHEON | |
| LEFT | ||
| A 1168350221 | ESCUTCHEON | |
| RIGHT | ||
| A 1168300289 | ESCUTCHEON | |
| RIGHT | ||
| A 1168350397 | HOSE | |
| Repalced by: A 1168350597 | ||
| 334 | A 1168350597 | HOSE |
| 336 | A 1169970081 | GROMMET |
| A 1168350797 | HOSE | |
| DRAIN PIPE AT CENTRAL PART BELOW WINDSHIELD,INSIDE | ||
| 338 | A 1168350297 | HOSE |
| 340 | A 1168350197 | HOSE |
| 342 | A 1079970281 | GROMMET |
| N 040621013200 | INSULATING HOSE | |
| 343 | A 1169970081 | GROMMET |
| AT FIRE WALL | ||
| 344 | A 1168300128 | WATER BAFFLE |
| RIGHT | ||
| 346 | N 007981003203 | SHEET METAL SCREW |
| 350 | A 1168360165 | GRILLE |
| AT FIRE WALL | ||
| 354 | A 1168360118 | SCREEN |
| AT FIRE WALL | ||
| 356 | A 0019872451 | RUBBER SEAL |
| 700 MM | ||
| 358 | A 0019874651 | RUBBER SEAL |
| 160 MM | ||
| 358 | A 0019874651 | RUBBER SEAL |
| 160 MM | ||
| A 0009871126 | PLASTIC PAD | |
| Repalced by: A 1086980497 | ||
| 360 | A 1086980497 | PAD |
| 40 MM | ||
| 362 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 362 | A 0009902292 | RIVET |
| 364 | A 0008001175 | ELEMENT |

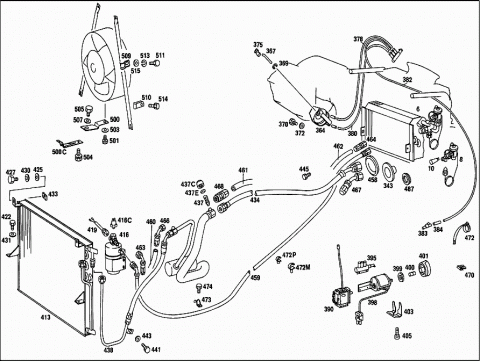

| 367 | A 1078050374 | ROD |
| 369 | N 006799003202 | LOCK PLATE |
| 370 | N 007976005203 | SHEET METAL SCREW |
| 372 | N 000137006204 | SPRING WASHER |
| 375 | A 0009941960 | LOCK |
| A 0089978382 | HOSE | |
| LIGHT GREEN | ||
| 700 MM | ||
| 378 | A 0009976552 | HOSE |
| 850 MM MEDIUM LIGHT GREEN-LIGHT BLUE | ||
| A 0089978582 | HOSE | |
| DARK GREEN | ||
| 700 MM | ||
| 380 | A 0009976452 | HOSE |
| 850 MM MEDIUM GREEN-ORANGE | ||
| A 0119974182 | HOSE | |
| Repalced by: A 0009970752 | ||
| A 0009970752 | HOSE | |
| Repalced by: A 0009976552 | ||
| A 0009976552 | HOSE | |
| MEDIUM GREEN/YELLOW | ||
| 1100 MM | ||
| 382 | A 0009970752 | HOSE |
| Repalced by: A 0009976552 | ||
| 382 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| 1220 MM | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 383 | A 1170780145 | BRANCH-OFF FITTING |
| 384 | A 0079976182 | HOSE |
| 30 MM AT DISTRIBUTOR | ||
| 384 | A 0079976182 | HOSE |
| 30 MM AT DISTRIBUTOR | ||
| 384 | A 0079976182 | HOSE |
| 30 MM AT DISTRIBUTOR | ||
| 387 | A 0015440194 | BULB |
| Repalced by: A 0008250094 | ||
| 387 | A 0008250094 | BULB |
| Repalced by: N 000000001061 | ||
| 387 | N 000000001061 | BULB |
| 390 | A 1168210151 | SWITCH |
| 395 | A 0018352906 | SWITCH |
| A 1078050714 | BRACKET | |
| 398 | A 1168210065 | CASE |
| 399 | A 1075450072 | NUT |
| 400 | A 0015440194 | BULB |
| Repalced by: A 0008250094 | ||
| 400 | A 0008250094 | BULB |
| Repalced by: N 000000001061 | ||
| 400 | N 000000001061 | BULB |
| 401 | A 1168200192 | KNOB |
| A 1168200292 | KNOB | |
| 403 | A 1168330514 | BRACKET |
| 405 | N 007981003257 | SHEET METAL SCREW |
| A 1078310941 | COVERING | |
| Repalced by: A 1168310541 | ||
| 407 | A 1168310541 | COVERING |
| LEFT | ||
| A 1168310441 | COVERING | |
| Repalced by: A 1168310641 | ||
| 409 | A 1168310641 | COVERING |
| RIGHT | ||
| 410 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 410 | N 000000000459 | SHEET METAL SCREW |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 1168350270 | CONDENSER | |
| Repalced by: A 1168300870 | ||
| 413 | A 1168300870 | CONDENSER |
| A 1168350870 | CONDENSER | |
| Repalced by: A 1168301470 | ||
| A 1168301470 | CONDENSER | |
| A 1168302970 | CONDENSER | |
| A 1168301670 | CONDENSER | |
| 415 | A 1168350770 | CONDENSER |
| Repalced by: A 1168301670 | ||
| A 1168301670 | CONDENSER | |
| Repalced by: A 1168302770 | ||
| A 1168302770 | CONDENSER | |
| A 1169950201 | CLAMP | |
| A 1168350071 | TANK | |
| A 1168300283 | TANK | |
| Repalced by: A 1168300483 | ||
| 416 | A 1168300483 | TANK |
| A 0008202110 | SWITCH | |
| Repalced by: A 0008202710 | ||
| A 0008202710 | SWITCH | |
| 416C | A 0008204310 | SWITCH |
| Repalced by: A 1248205910 | ||
| 416C | A 1248205910 | SWITCH |
| Repalced by: A 1248213651 | ||
| 416C | A 1248213651 | SWITCH |
| Repalced by: A 1248208310 | ||
| 416C | A 1248208310 | SWITCH |
| A 1239970740 | SEAL RING | |
| Repalced by: A 1409971145 | ||
| A 1409971145 | SEAL RING | |
| 417 | A 0018219251 | REGULATOR |
| Repalced by: A 0008208010 | ||
| 419 | A 0008200710 | SWITCH |
| Repalced by: A 0008208010 | ||
| 419 | A 0008208010 | SWITCH |
| AT LIQUID TANK | ||
| A 0018201710 | SWITCH | |
| Repalced by: A 0018201810 | ||
| A 0018201810 | SWITCH | |
| Repalced by: A 0008208010 | ||
| A 0008208010 | SWITCH | |
| AT LIQUID TANK | ||
| A 1168300083 | TANK | |
| AT CONDENSER | ||
| N 914031004201 | COMBINATION BOLT | |
| LIQUID TANK TO CONDENSER | ||
| A 0009940645 | LOCK | |
| LIQUID TANK TO CONDENSER | ||
| A 0008350298 | SEAL | |
| Repalced by: A 0008356598 | ||
| A 0008356598 | SEAL | |
| LIQUID TANK TO CONDENSER | ||
| 422 | N 007976005202 | SHEET METAL SCREW |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| 425 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 425 | N 009021006208 | WASHER |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| 427 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 427 | N 304017006018 | SCREW |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| 430 | N 912004006102 | LOCK WASHER |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| 431 | N 000125006421 | WASHER |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| Repalced by: N 000125006449 | ||
| 431 | N 000125006449 | WASHER |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| 433 | A 1159840022 | SHEET METAL NUT |
| Repalced by: N 913008006300 | ||
| 433 | N 913008006300 | SHEET METAL NUT |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| N 914031005207 | COMBINATION BOLT | |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| A 1168304215 | PIPE LINE | |
| FROM EVAPORATOR TO FUEL COOLER | ||
| A 1168304015 | PIPE LINE | |
| FROM EVAPORATOR TO FUEL COOLER | ||
| A 1168304315 | PIPE LINE | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| A 1168304115 | PIPE LINE | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| N 914001006010 | COMBINATION BOLT | |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| A 1158320085 | VALVE INSERT | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| A 0009973181 | GROMMET | |
| CONDENSER TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| A 1159971540 | SEAL RING | |
| Repalced by: A 1238320033 | ||
| A 1238320033 | CAP | |
| Repalced by: A 2019880635 | ||
| A 2019880635 | CAP | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| A 1158320098 | SEAL | |
| Repalced by: A 1238320033 | ||
| A 1238320033 | CAP | |
| Repalced by: A 2019880635 | ||
| A 2019880635 | CAP | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| A 1164660882 | RUBBER RING | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| A 1164660882 | RUBBER RING | |
| FROM FUEL COOLER TO COMPRESSOR | ||
| A 1239950820 | CLAMP | |
| N 914031006201 | COMBINATION BOLT | |
| N 914007006000 | COMBINATION BOLT | |
| N 913013006000 | NUT | |
| Repalced by: N 913019006000 | ||
| N 913019006000 | NUT | |
| Repalced by: N 913012006001 | ||
| N 913012006001 | NUT | |
| 434 | A 1168300496 | HOSE |
| 436 | A 1168301315 | PIPE LINE |
| A 1168300896 | HOSE | |
| Repalced by: A 0009972352 | ||
| A 1078301396 | HOSE | |
| FOR COMPRESSOR TO EVAPORATOR | ||
| 437 | A 1158320085 | VALVE INSERT |
| 437C | A 1158320098 | SEAL |
| Repalced by: A 1238320033 | ||
| 437C | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 437C | A 2019880635 | CAP |
| 437E | A 1159971540 | SEAL RING |
| Repalced by: A 1238320033 | ||
| 437E | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 437E | A 2019880635 | CAP |
| A 1109870541 | RUBBER RING | |
| A 1009970881 | GROMMET | |
| A 1168303815 | PIPE LINE | |
| FROM COMPRESSOR TO EVAPORATOR | ||
| A 1239970440 | SEAL RING | |
| Repalced by: A 1249970545 | ||
| A 1249970545 | SEAL RING | |
| Repalced by: A 1409970845 | ||
| A 1409970845 | SEAL RING | |
| A 1168300115 | PIPE LINE | |
| FROM COMPRESSOR TO CONDENSER | ||
| A 1168301015 | PIPE LINE | |
| FROM COMPRESSOR TO CONDENSER | ||
| 438 | A 1168301415 | PIPE LINE |
| A 1168302015 | PIPE LINE | |
| FROM COMPRESSOR TO CONDENSER | ||
| A 1168300415 | PIPE LINE | |
| Repalced by: A 1168303315 | ||
| 440 | A 1168301715 | PIPE LINE |
| Repalced by: A 1168303315 | ||
| A 1168303315 | PIPE LINE | |
| FROM COMPRESSOR TO CONDENSER | ||
| A 1168303715 | PIPE LINE | |
| FROM COMPRESSOR TO CONDENSER | ||
| A 1239970340 | SEAL RING | |
| A 1149950020 | CLAMP | |
| A 0019951101 | CLAMP | |
| N 914128004200 | SHEET METAL SCREW | |
| N 007976004215 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| N 914031004209 | COMBINATION BOLT | |
| A 0009920305 | BUSHING | |
| A 0009920305 | BUSHING | |
| N 000933006175 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 440C | A 1158320085 | VALVE INSERT |
| A 0001311356 | SCREW PLUG | |
| Repalced by: A 1158320098 | ||
| 440F | A 1158320098 | SEAL |
| Repalced by: A 1238320033 | ||
| 440F | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 440F | A 2019880635 | CAP |
| 440K | A 1159971540 | SEAL RING |
| Repalced by: A 1238320033 | ||
| 440K | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 440K | A 2019880635 | CAP |
| 441 | N 007976004215 | SHEET METAL SCREW |
| 443 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 443 | N 009021005205 | WASHER |
| 445 | N 007976005203 | SHEET METAL SCREW |
| A 1169972481 | GROMMET | |
| Repalced by: A 1119971381 | ||
| A 1119971381 | GROMMET | |
| 458 | A 1169970281 | GROMMET |
| 458D | A 3229971481 | GROMMET |
| A 0009973181 | GROMMET | |
| A 0009973181 | GROMMET | |
| 459 | A 1168300196 | HOSE |
| Repalced by: A 0009971952 | ||
| 460 | A 0009972152 | HOSE |
| NW 10 6000 MM LONG | ||
| 461 | A 0009972352 | HOSE |
| NW 13 6000 MM LONG | ||
| 462 | A 0009971952 | HOSE |
| Repalced by: A 0189970582 | ||
| 462 | A 0189970582 | HOSE |
| Repalced by: A 0189975882 | ||
| 462 | A 0189975882 | HOSE |
| Repalced by: A 0009971752 | ||
| 462 | A 0009971752 | HOSE |
| BLACK-3500 MM LONG | ||
| 463 | A 0009979768 | CONNECTOR |
| NW 8 5/8" W 90 GR. | ||
| 464 | A 0009979868 | CONNECTOR |
| NW 8 5/8" W 180 GR. | ||
| 466 | A 0009971068 | CONNECTOR |
| NW 10 3/4" W 90 GR. | ||
| 467 | A 0009972368 | CONNECTOR |
| NW 13 7/8" W 135 GR. | ||
| 468 | A 0009975668 | CONNECTOR |
| NW 13 7/8" W 180 GR. | ||
| A 0019886578 | CLIP | |
| Repalced by: A 0039888178 | ||
| A 0039888178 | CLIP | |
| 470 | A 0039880878 | CLIP |
| 472 | A 0019974190 | LOOM TIE |
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| 140 MM | ||
| A 1169970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 1149970490 | LOOM TIE | |
| Repalced by: A 1149970290 | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 160 MM | ||
| 472M | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 472M | A 0004760436 | BRACKET |
| 472P | A 1109950365 | CLAMP |
| Repalced by: A 0004760436 | ||
| 472P | A 0004760436 | BRACKET |
| A 1109950165 | CLAMP | |
| A 6171870190 | CLAMP | |
| 473 | A 1879950037 | CLAMP |
| A 0019951101 | CLAMP | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 474 | N 007976004205 | SHEET METAL SCREW |
| A 1164330140 | BRACKET | |
| EVAPORATOR-TO-COMPRESSOR LINE TO WHEEL ARCH PANEL | ||
| N 007976004215 | SHEET METAL SCREW | |
| A 1539950120 | CLAMP | |
| Repalced by: A 1149950020 | ||
| A 1149950020 | CLAMP | |
| N 007976004215 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 475 | A 1170780145 | BRANCH-OFF FITTING |
| IN ENGINE COMPARTMENT, LEFT; FOR WATER FAUCET, AIR CONDITIONER, AND CENTRAL LOCKING MECHANISM | ||
| 475 | A 1170780145 | BRANCH-OFF FITTING |
| IN ENGINE COMPARTMENT, LEFT; FOR WATER FAUCET, AIR CONDITIONER, AND CENTRAL LOCKING MECHANISM | ||
| 477 | A 0079976182 | HOSE |
| 30 MM AT Y-SHAPE DISTRIBUTOR;FOR WATER FAUCET,AIR CONTITIONER,AND CENTRAL LOCKING MECHANISM | ||
| 477 | A 0079976182 | HOSE |
| 30 MM AT Y-SHAPE DISTRIBUTOR;FOR WATER FAUCET,AIR CONTITIONER,AND CENTRAL LOCKING MECHANISM | ||
| N 000933006175 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 000934006007 | NUT | |
| 478 | A 1879950037 | CLAMP |
| LIQUID-TANK-TO-EVAPORATOR HOSE AND COMPRESSOR-TO-CONDENSER LINE TO COMPRESSOR RETAINING ANGLE | ||
| 479 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 479 | N 304017006018 | SCREW |
| LIQUID-TANK-TO-EVAPORATOR HOSE AND COMPRESSOR-TO-CONDENSER LINE TO CCOMPRESSOR RETAINING ANGLE | ||
| 484 | N 912004006102 | LOCK WASHER |
| LIQUID-TANK-TO-EVAPORATOR HOSE AND COMPRESSOR-TO-CONDESER LINE TO COMPRESSOR RETAINING ANGLE | ||
| 485 | N 000934006007 | NUT |
| LIQUID-TANK-TO-EVAPORATOR HOSE AND COMPRESSOR-TO-CONDENSER LINE TO COMPRESSOR RETAINING ANGLE | ||
| 487 | A 1109870744 | EXPANSION PLUG |
| TO PLUG THE HOLE FOR AIR CONDITIONER CABLE HARNESS | ||
| 489 | A 1148350614 | BRACKET |
| 490 | A 1159903101 | SCREW |
| Repalced by: A 0049903001 | ||
| 490 | A 0049903001 | SCREW |
| 493 | N 000137010201 | SPRING WASHER |
| 500 | A 1168350014 | BRACKET |
| 500C | A 1168351314 | BRACKET |
| A 1168351614 | BRACKET | |
| 501 | N 000933006026 | SCREW |
| 503 | N 912004006102 | LOCK WASHER |
| 504 | N 914004005001 | COMBINATION BOLT |
| 505 | N 007976005202 | SHEET METAL SCREW |
| AUXILIARY FAN WITH BRACKET TO FRONT CROSS MEMBER | ||
| N 007976004215 | SHEET METAL SCREW | |
| AUXILIARY FAN WITH BRACKET TO FRONT CROSS MEMBER | ||
| 507 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 507 | N 009021006208 | WASHER |
| AUXILIARY FAN WITH BRACKET TO FRONT CROSS MEMBER | ||
| N 000933005037 | SCREW | |
| BRACKET TO AUXILIARY FAN | ||
| N 912004005100 | LOCK WASHER | |
| BRACKET TO AUXILIARY FAN | ||
| 509 | A 1149950220 | CLAMP |
| BLOWER CASE TO STRUT | ||
| 510 | A 1239950001 | CLAMP |
| BLOWER CASE TO STRUT | ||
| 511 | N 000933006026 | SCREW |
| BLOWER CASE TO STRUT | ||
| 513 | N 912004006102 | LOCK WASHER |
| BLOWER CASE TO STRUT | ||
| 514 | N 914004005001 | COMBINATION BOLT |
| 515 | N 000125006421 | WASHER |
| BLOWER CASE TO STRUT | ||
| Repalced by: N 000125006449 | ||
| 515 | N 000125006449 | WASHER |
| BLOWER CASE TO STRUT | ||
| 521 | A 1168310841 | COVERING |
| 521 | A 1168310841 | COVERING |
| ENGINE,RIGHT;FOR RETURN LINE | ||
| 527 | A 1279950020 | CLAMP |
| 527 | A 1279950020 | CLAMP |
| BACK PRESSURE LINE TO COVERING | ||
| 533 | N 007976004217 | SHEET METAL SCREW |
| 533 | N 007976004217 | SHEET METAL SCREW |
| BACK PRESSURE LINE TO COVERING | ||
| 539 | A 1009950001 | CLAMP |
| Repalced by: A 1169950001 | ||
| 539 | A 1169950001 | CLAMP |
| 539 | A 1169950001 | CLAMP |
| AIR POLLUTION CONTROL VACUUM LINE TO COVERING | ||
| 545 | N 007976004217 | SHEET METAL SCREW |
| 545 | N 007976004217 | SHEET METAL SCREW |
| AIR POLLUTION CONTROL VACUUM LINE TO COVERING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
