Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM

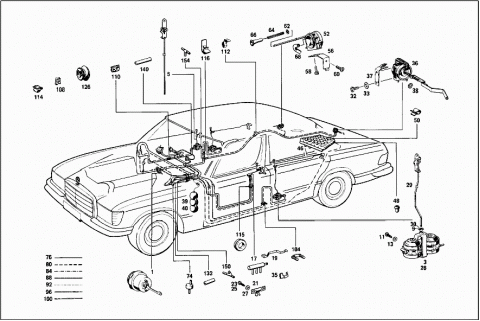

106533

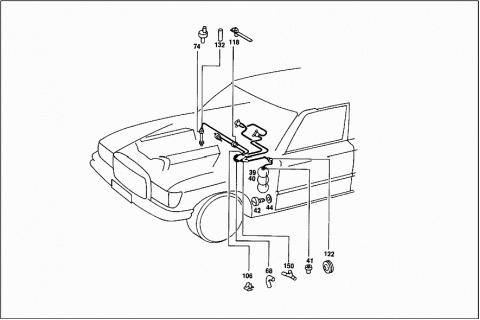

106534

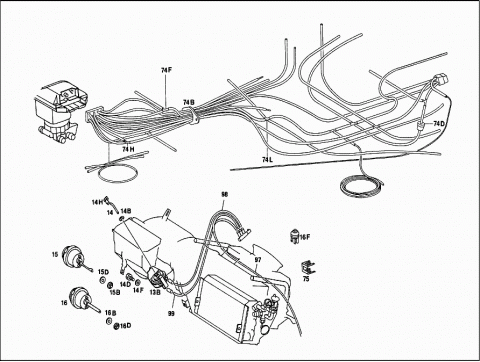

106535
# Kodas Pavadinimas
A 1168001775 ELEMENT
Repalced by: A 1168001875
001 A 1168001875 ELEMENT
WATER FAUCET
A 1168000175 ELEMENT
Repalced by: A 0008000675
003 A 0008000675 ELEMENT
FRONT DOOR
005 A 1168000080 CONTROL ROD
009 N 006799003202 LOCK PLATE
011 N 007981004258 SHEET METAL SCREW
013 N 000125005317 WASHER
Repalced by: N 000433005304
013 N 000433005304 WASHER
A 1078002375 ELEMENT
Repalced by: A 0008001175
013B A 0008001175 ELEMENT
CIRCULATING AIR FLAP
014 A 1078050374 ROD
014B N 006799003202 LOCK PLATE
014D N 007976005203 SHEET METAL SCREW
014F N 000137006204 SPRING WASHER
014H A 0009941960 LOCK
Repalced by: N 918002004000
014H N 918002004000 CLAMPING SPRING
015 A 1168001175 ELEMENT
FRESH-AIR PIPE-SOCKET FLAP
015B A 0009949645 LOCK
015D A 1169870541 RUBBER RING
016 A 1168001275 ELEMENT
DEFROSTER NOZZLE
016B A 1168350196 PAD
016D A 0009949645 LOCK
A 0008000273 SWITCH
Repalced by: A 0008000573
A 0008000573 SWITCH
AT AIR CONDITIONER CASE BRACKET
016F A 0008000273 SWITCH
Repalced by: A 0008000573
016F A 0008000573 SWITCH
AT AIR CONDITIONER CASE BRACKET
A 0008000573 SWITCH
AT AIR CONDITIONER CASE BRACKET
A 0009948945 PIN LOCK
A 1128000173 SWITCH
Repalced by: A 1168000273
A 1168000273 SWITCH
Repalced by: A 1168000473
017 A 1168000473 SWITCH
A 0039891585 ADHESIVE TAPE
4X9X45 MM
019 A 1168050232 CLAMP
021 A 1168050114 BRACKET
023 N 007981004219 SHEET METAL SCREW
Repalced by: N 000000000453
023 N 000000000453 TAPPING SCREW
025 N 007981004247 SHEET METAL SCREW
Repalced by: N 007981004208
025 N 007981004208 SHEET METAL SCREW
N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
N 000000002062 SCREW
027 N 000125004311 WASHER
Repalced by: N 000125004319
027 N 000125004319 WASHER
A 1168000175 ELEMENT
Repalced by: A 0008000675
028 A 0008000675 ELEMENT
REAR DOOR
029 A 1168000180 CONTROL ROD
030 N 006799003202 LOCK PLATE
032 N 007981004258 SHEET METAL SCREW
033 N 000125005317 WASHER
Repalced by: N 000433005304
033 N 000433005304 WASHER
035 A 1159940160 LOCK
035 A 1159940160 LOCK
036 A 1168000275 ELEMENT
037 A 1158050036 SPRING
N 007981004322 SHEET METAL SCREW
038 N 006799004001 LOCK PLATE
N 000125005317 WASHER
Repalced by: N 000433005304
N 000433005304 WASHER
039 A 1078000019 TANK
A 1158000219 TANK
Repalced by: A 1078000819
A 1078000019 TANK
Repalced by: A 1078000819
A 1078000519 TANK
Repalced by: A 1078000819
040 A 1078000619 TANK
Repalced by: A 1078000819
A 1078000819 TANK
041 A 1098050098 SEAL
Repalced by: A 1238050298
041 A 1238050298 SEAL
A 1078050198 SEAL
042 N 007976004203 SHEET METAL SCREW
044 N 000137004202 SPRING WASHER
046 A 1168000019 TANK
Repalced by: A 1168000219
046 A 1168000219 TANK
048 A 1098050098 SEAL
Repalced by: A 1238050298
048 A 1238050298 SEAL
050 A 0029885378 CLIP
052 A 1078001275 ELEMENT
056 A 1168050014 BRACKET
058 N 007981004322 SHEET METAL SCREW
060 N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
060 N 000000002062 SCREW
062 N 000125004311 WASHER
Repalced by: N 000125004319
062 N 000125004319 WASHER
064 A 1128050036 SPRING
066 A 1078050017 BUSHING
068 A 1078330197 HOSE
Repalced by: A 1170780581
068 A 1170780581 HOSE
A 1158000078 VALVE
Repalced by: A 1168000378
A 1078000778 VALVE
Repalced by: A 1168000378
074 A 1168000378 VALVE
074 A 1168000378 VALVE
074B A 1168000883 LINE
VACUUM
A 1168001483 LINE
Repalced by: A 1168001583
A 1168001583 LINE
VACUUM
074D A 1168000378 VALVE
074D A 1168000378 VALVE
A 1238000078 VALVE
BELOW INSTRUMENT PANEL
074F A 1168050022 DISTRIBUTOR
T-SHAPE
074F A 1168050022 DISTRIBUTOR
T-SHAPE
074H A 1168050122 DISTRIBUTOR
Y-SHAPE
074H A 1168050122 DISTRIBUTOR
Y-SHAPE
074L A 1168050322 DISTRIBUTOR
CRUCIFORM
A 0019974290 LOOM TIE
Repalced by: A 0019974390
A 0019974390 LOOM TIE
140 MM
075 A 1169882578 CLIP
N 007976004207 SHEET METAL SCREW
N 007981004254 TAPPING SCREW
N 009021004108 WASHER
Repalced by: N 009021004207
N 009021004207 WASHER
A 0019974390 LOOM TIE
A 1149970490 LOOM TIE
Repalced by: A 1149970290
A 1149970290 LOOM TIE
Repalced by: A 1149970590
A 1149970590 LOOM TIE
A 0019974190 LOOM TIE
A 1169970690 LOOM TIE
Repalced by: A 1169970890
A 1169970790 LOOM TIE
Repalced by: A 0019974190
A 0019974190 LOOM TIE
A 1169970890 LOOM TIE
N 916002008100 CLAMP
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
1450 MM
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
076 A 0059973482 HOSE
BLACK
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
1600 MM
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
A 0009977152 HOSE
YELLOW-GREEN
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
1450 MM
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
080 A 0059975982 HOSE
WHITE
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
1600 MM
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009977052 HOSE
YELLOW-RED
A 0009976852 HOSE
Repalced by: A 0001581435
A 0001581435 PIPE LINE
GREY
A 0001581435 PIPE LINE
FROM CHECK VALVE AT ENGINE TO CONNECTOR AT Y-SHAPE DISTRIBUTOR
A 0001581435 PIPE LINE
FROM CHECK VALVE AT ENGINE TO CONNECTOR AT Y-SHAPE DISTRIBUTOR
570 MM
A 0001581435 PIPE LINE
FROM CHECK VALVE AT ENGINE TO CONNECTOR AT Y-SHAPE DISTRIBUTOR
960 MM
A 0001581435 PIPE LINE
GREY
A 0001581435 PIPE LINE
FROM CHECK VALVE AT ENGINE TO CONNECTOR AT Y-SHAPE DISTRIBUTOR
630 MM
A 0001581435 PIPE LINE
FROM CHECK VALVE AT ENGINE TO CONNECTOR AT Y-SHAPE DISTRIBUTOR
960 MM
A 0001581435 PIPE LINE
AT DISTRIBUTOR
25 MM
A 0001581435 PIPE LINE
FROM ENGINE TO DISTRIBUTOR IN ENGINE COMPARTMENT
084 A 0059977182 HOSE
Repalced by: A 0001581435
084 A 0001581435 PIPE LINE
YELLOW
084 A 0001581435 PIPE LINE
YELLOW
084 A 0001581435 PIPE LINE
YELLOW
084 A 0001581435 PIPE LINE
YELLOW
084 A 0001581435 PIPE LINE
YELLOW
084 A 0001581435 PIPE LINE
YELLOW
088 A 0119976382 HOSE
Repalced by: A 0059977182
A 0009977252 HOSE
Repalced by: A 0019973952
A 0019973952 HOSE
GREEN-YELLOW,DISTRIBUTOR IN ENGINE COMPARTMENT TO SUPPLY TANK IN REAR PANEL TAIL
A 0019973952 HOSE
GREEN-YELLOW,DISTRIBUTOR IN ENGINE COMPARTMENT TO SUPPLY TANK IN REAR PANEL TAIL
4200 MM
A 0019973952 HOSE
GREEN-YELLOW,DISTRIBUTOR IN ENGINE COMPARTMENT TO SUPPLY TANK IN REAR PANEL TAIL
4300 MM
A 0119973982 HOSE
Repalced by: A 0009970752
092 A 0009976652 HOSE
GREY/LIGHT BLUE
850 MM
A 0119974082 HOSE
MEDIUM GREEN-RED 1100 MM
096 A 0009977452 HOSE
DARK RED/GREEN
1200 MM
A 0119974182 HOSE
Repalced by: A 0009970752
A 0009970752 HOSE
Repalced by: A 0009976552
A 0009976552 HOSE
YELLOW/GREEN
1100 MM
097 A 0009970752 HOSE
Repalced by: A 0009976552
097 A 0009976552 HOSE
MEDIUM GREEN/YELLOW
1220 MM
097 A 0009976552 HOSE
MEDIUM GREEN/YELLOW
1220 MM
097 A 0009976552 HOSE
MEDIUM GREEN/YELLOW
1220 MM
A 0089978382 HOSE
LIGHT GREEN
700 MM
098 A 0009976552 HOSE
MEDIUM GREEN/LIGHT BLUE
850 MM
A 0089978582 HOSE
DARK GREEN
700 MM
099 A 0009976452 HOSE
MEDIUM GREEN/ORANGE
850 MM
A 0089979782 HOSE
Repalced by: A 0009977352
A 0009977352 HOSE
RED
A 0009977352 HOSE
RED
A 0009977352 HOSE
RED
100 A 0009977352 HOSE
Repalced by: A 0001581435
100 A 0001581435 PIPE LINE
DARK RED
100 A 0001581435 PIPE LINE
DARK RED
100 A 0001581435 PIPE LINE
DARK RED
104 A 0039884578 CLIP
106 A 0029884978 CLIP
108 A 1169940445 LOCK
110 A 1169881278 CLIP
Repalced by: A 1269882078
110 A 1269882078 CLIP
112 A 1149880278 CLIP
114 A 1089880878 CLIP
Repalced by: A 1149880178
114 A 1149880178 CLIP
115 A 1169970181 GROMMET
116 A 1169881978 CLIP
118 A 1149970190 LOOM TIE
122 A 1869970681 GROMMET
122 A 1869970681 GROMMET
A 1169971681 GROMMET
Repalced by: A 1169973281
126 A 1169973281 GROMMET
A 1109950065 CLAMP
Repalced by: A 0004760436
A 0004760436 BRACKET
A 0009951765 CLAMP
A 0029974890 LOOM TIE
A 0029974890 LOOM TIE
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
132 A 0079976182 HOSE
30 MM LONG
140 A 0079976182 HOSE
CENTRAL LOCKING MECH.; AT VACUUM ELEMENT AT FRONT DOOR
140 A 0079976182 HOSE
CENTRAL LOCKING MECH.; AT VACUUM ELEMENT AT FRONT DOOR
140 A 0079976182 HOSE
CENTRAL LOCKING MECH.; AT VACUUM ELEMENT AT FRONT DOOR
140 A 0079976182 HOSE
CENTRAL LOCKING MECH.; AT VACUUM ELEMENT AT FRONT DOOR
140 A 0079976182 HOSE
ENGINE CONNECTION
140 A 0079976182 HOSE
ENGINE CONNECTION
A 0079976182 HOSE
70 MM
A 0079976182 HOSE
90 MM LONG
A 0079976182 HOSE
90 MM LONG
A 0079976182 HOSE
90 MM LONG
A 0079976182 HOSE
VACUUM LINE
A 0079976182 HOSE
150 MM LONG
A 0079976182 HOSE
150 MM LONG
A 0079976182 HOSE
150 MM LONG
A 0079976182 HOSE
150 MM LONG
A 0079976182 HOSE
ENGINE CONNECTION
A 0079976182 HOSE
220 MM LONG; FROM VACUUM ELEMENT TO CONNECTOR
A 0089973882 HOSE
A 0089973882 HOSE
AT CONTROL VALVE
50 MM
A 1158050322 DISTRIBUTOR
Repalced by: A 1170780145
150 A 1170780145 BRANCH-OFF FITTING
CENTRAL LOCKING MECH.AND CRUISE CONTROL;ON THE LEFT IN ENGINE COMPARTMENT
150 A 1170780145 BRANCH-OFF FITTING
CENTRAL LOCKING MECH.AND CRUISE CONTROL;ON THE LEFT IN ENGINE COMPARTMENT
150 A 1170780145 BRANCH-OFF FITTING
CENTRAL LOCKING MECH.AND CRUISE CONTROL;ON THE LEFT IN ENGINE COMPARTMENT
150 A 1170780145 BRANCH-OFF FITTING
ENGINE,INJECTION PUMP,AND DIESEL KEY STARTING SYSTEM
150 A 1170780145 BRANCH-OFF FITTING
AIR CONDITIONER TEMPERATURE SWITCH, AIR-CONDITIONER/HEATER SUPPLY TANK
150 A 1170780145 BRANCH-OFF FITTING
FRONT DOOR VACUUM SWITCH,CENTRAL LOCKING MECHANISM SUPPLY TANK
A 1158050422 DISTRIBUTOR
Repalced by: A 1170780145
154 A 1170780145 BRANCH-OFF FITTING
CENTRAL LOCKING MECH.; VACUUM ELEMENT AT RIGHT REAR DOOR
154 A 1170780145 BRANCH-OFF FITTING
CENTRAL LOCKING MECH.; VACUUM ELEMENT AT RIGHT REAR DOOR
A 1238050022 DISTRIBUTOR
Repalced by: A 1170780145
A 1170780145 BRANCH-OFF FITTING
A 1170780145 BRANCH-OFF FITTING
A 1170780145 BRANCH-OFF FITTING
A 1238050122 DISTRIBUTOR
Repalced by: A 1170780045
A 1170780045 BRANCH-OFF FITTING
A 1170780045 BRANCH-OFF FITTING
TEMPOMAT (CRUISE CONTROL) VACUUM SUPPLY TANK
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
