Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

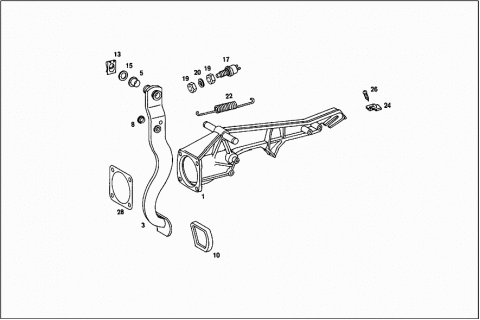

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1072901231 | BEARING | |
| Repalced by: A 1072901631 | ||
| A 1072901631 | BEARING | |
| Repalced by: A 1072900119 | ||
| 001 | A 1072900119 | BEARING BRACKET |
| N 000471016001 | LOCK RING | |
| 003 | A 1072900418 | PEDAL |
| Repalced by: A 1072902218 | ||
| 003 | A 1072902218 | PEDAL |
| 005 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 005 | A 1242920050 | BUSHING |
| 008 | A 1102920150 | BUSHING |
| A 1262920050 | BUSHING | |
| A 1002920282 | PAD | |
| Repalced by: A 1232910082 | ||
| 010 | A 1232910082 | PAD |
| 013 | A 0009941151 | LOCK |
| N 000471016001 | LOCK RING | |
| 015 | A 1152910076 | WASHER |
| 017 | A 0005453509 | SWITCH |
| STOP LIGHT SWITCH | ||
| 019 | A 0009909251 | NUT |
| 020 | N 006797012250 | TOOTHED WASHER |
| A 1809931010 | SPRING | |
| Repalced by: A 1079930410 | ||
| 022 | A 1079930410 | SPRING |
| 024 | A 1162910040 | BRACKET |
| 026 | N 007976004205 | SHEET METAL SCREW |
| 028 | A 1154310180 | GASKET |
