Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

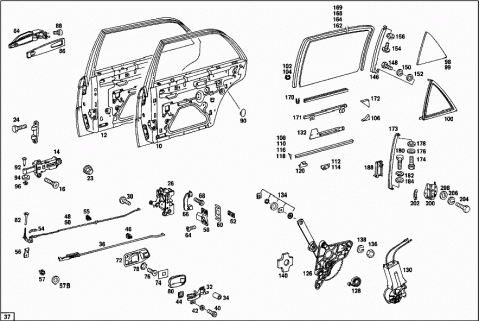

Grupė: 73 REAR DOORS - 001 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1167300905 | DOOR SHELL | |
| Repalced by: A 1167302105 | ||
| A 1167302105 | DOOR SHELL | |
| LEFT | ||
| A 1167301105 | DOOR SHELL | |
| Repalced by: A 1167302305 | ||
| A 1167302305 | DOOR SHELL | |
| LEFT | ||
| A 1167301005 | DOOR SHELL | |
| Repalced by: A 1167302205 | ||
| 010 | A 1167302205 | DOOR SHELL |
| RIGHT | ||
| A 1167301205 | DOOR SHELL | |
| Repalced by: A 1167302405 | ||
| 012 | A 1167302405 | DOOR SHELL |
| RIGHT | ||
| A 1165860172 | REPAIR KIT | |
| Repalced by: A 1165860073 | ||
| A 1165860073 | REPAIR KIT | |
| Repalced by: A 1267300114 | ||
| A 1267300114 | REPAIR KIT | |
| Repalced by: A 1167300014 | ||
| A 1167300014 | REPAIR KIT | |
| CONVERSION OF REAR DOOR | ||
| 014 | A 1167200016 | DOOR CHECK |
| A 0009903330 | SCREW | |
| Repalced by: A 0009904830 | ||
| 016 | A 0009904830 | SCREW |
| 023 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 023 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 023 | N 913023006001 | NUT |
| 024 | A 1169900017 | SCREW |
| A 1167300335 | DOOR LOCK | |
| LEFT | ||
| A 1167300535 | DOOR LOCK | |
| LEFT | ||
| A 1167300435 | DOOR LOCK | |
| RIGHT | ||
| 026 | A 1167300635 | DOOR LOCK |
| RIGHT | ||
| 030 | A 0009903631 | SCREW |
| Repalced by: A 1409843029 | ||
| 030 | A 1409843029 | SCREW |
| A 1157600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| 032 | A 1157600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| 034 | A 1159920125 | SLEEVE |
| A 1167300392 | PULL ROD | |
| LEFT | ||
| 036 | A 1167300492 | PULL ROD |
| RIGHT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 34 | ||
| 040 | N 007985006132 | SCREW |
| 042 | A 0009940510 | LOCK |
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 044 | A 0009907191 | NUT RETAINER |
| 046 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 046 | A 0069886378 | CLIP |
| A 1167300193 | DOOR LOCKING DEVICE | |
| Repalced by: A 1167301193 | ||
| A 1167300593 | DOOR LOCKING DEVICE | |
| Repalced by: A 1167301193 | ||
| A 1167301193 | DOOR LOCKING DEVICE | |
| LEFT | ||
| A 1167301193 | DOOR LOCKING DEVICE | |
| RIGHT | ||
| 048 | A 1167300293 | DOOR LOCKING DEVICE |
| Repalced by: A 1167301293 | ||
| 050 | A 1167300693 | DOOR LOCKING DEVICE |
| Repalced by: A 1167301293 | ||
| 050 | A 1167301293 | DOOR LOCKING DEVICE |
| Repalced by: A 1167301193 | ||
| A 1167330370 | LINK | |
| LEFT | ||
| A 1167330570 | LINK | |
| LEFT | ||
| A 1167330470 | LINK | |
| RIGHT | ||
| A 1167330670 | LINK | |
| RIGHT | ||
| A 0029888378 | CLIP | |
| Repalced by: A 0069886378 | ||
| A 0069886378 | CLIP | |
| 054 | A 1009940160 | LOCK |
| 055 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 055 | A 0069886378 | CLIP |
| 056 | A 0009903991 | NUT RETAINER |
| 057 | A 1149900192 | RIVET |
| Repalced by: A 0009906092 | ||
| 057 | A 0009906092 | RIVET |
| UPPER PART | ||
| 057B | A 1149900292 | RIVET |
| Repalced by: A 0009905548 | ||
| 057B | A 0009905548 | WASHER |
| LOWER PART | ||
| A 1167200104 | LOCKING EYE | |
| LEFT | ||
| 058 | A 1167200204 | LOCKING EYE |
| RIGHT | ||
| 060 | A 1167230111 | PLATE |
| A 1167230211 | PLATE | |
| Repalced by: A 1167230111 | ||
| A 1167230111 | PLATE | |
| 062 | A 1166370011 | PLATE |
| 064 | A 1169900031 | SCREW |
| A 1167230124 | EDGING | |
| LEFT | ||
| 066 | A 1167230224 | EDGING |
| RIGHT | ||
| 068 | N 000966005010 | SCREW |
| A 1167660111 | ESCUTCHEON | |
| LEFT | ||
| 072 | A 1167660211 | ESCUTCHEON |
| RIGHT | ||
| 074 | A 1157660098 | SEAL |
| 076 | N 007987004119 | SCREW |
| 078 | N 006797004333 | TOOTHED WASHER |
| A 1087660390 | INSERT | |
| LEFT | ||
| 080 | A 1087660490 | INSERT |
| RIGHT | ||
| A 1167600065 | KNOB | |
| Repalced by: A 1107600565 | ||
| 082 | A 1107600565 | KNOB |
| 084 | A 1167600059 | DOOR HANDLE |
| OUTSIDE | ||
| 086 | A 1077660105 | PAD |
| 088 | N 914020006012 | COMBINATION BOLT |
| Repalced by: N 000000001144 | ||
| 088 | N 000000001144 | SCREW |
| 090 | A 1169870444 | EXPANSION PLUG |
| 092 | A 1089910007 | PIN |
| 094 | A 1089900140 | WASHER |
| A 1089900240 | WASHER | |
| 096 | N 912001006001 | LOCK |
| 098 | A 1167350309 | GLASS PANE |
| LEFT; HEAT-ABSORBING GLASS | ||
| 099 | A 1167350409 | GLASS PANE |
| RIGHT; HEAT-ABSORBING GLASS | ||
| A 1167350124 | SEAL | |
| LEFT | ||
| 100 | A 1167350224 | SEAL |
| RIGHT | ||
| 102 | A 1167350025 | WINDOW RUN |
| Repalced by: A 1167350225 | ||
| A 1167350225 | WINDOW RUN | |
| 1475 MM | ||
| 104 | A 1167350125 | WINDOW RUN |
| Repalced by: A 1167350325 | ||
| A 1167350325 | WINDOW RUN | |
| 1575 MM | ||
| 106 | A 1237350098 | SEAL |
| Repalced by: A 1167250198 | ||
| 106 | A 1167250198 | SEAL |
| 108 | A 1167350065 | SEALING RAIL |
| Repalced by: A 1167250065 | ||
| 110 | A 1167350165 | SEALING RAIL |
| Repalced by: A 1167250065 | ||
| A 1167250065 | SEALING RAIL | |
| INSIDE | ||
| 112 | A 1169880078 | CLIP |
| 114 | A 1169882178 | CLIP |
| 116 | A 1167350065 | SEALING RAIL |
| Repalced by: A 1167250065 | ||
| 118 | A 1167350165 | SEALING RAIL |
| Repalced by: A 1167250065 | ||
| A 1167250065 | SEALING RAIL | |
| OUTSIDE | ||
| 120 | A 1079880778 | CLIP |
| A 1167300346 | WINDOW REGULATOR | |
| Repalced by: A 1167302146 | ||
| A 1167302146 | WINDOW REGULATOR | |
| LEFT | ||
| 126 | A 1167300446 | WINDOW REGULATOR |
| Repalced by: A 1167302246 | ||
| 126 | A 1167302246 | WINDOW REGULATOR |
| RIGHT | ||
| 128 | A 0007681005 | SPRING |
| A 0008201842 | ELECTRIC MOTOR | |
| Repalced by: A 0008207242 | ||
| A 0008207242 | ELECTRIC MOTOR | |
| Repalced by: A 0018204542 | ||
| A 0018204542 | ELECTRIC MOTOR | |
| Repalced by: A 0018207742 | ||
| A 0018207742 | ELECTRIC MOTOR | |
| LEFT | ||
| A 0008201942 | ELECTRIC MOTOR | |
| Repalced by: A 0008207342 | ||
| 130 | A 0008207342 | ELECTRIC MOTOR |
| Repalced by: A 0018204442 | ||
| 130 | A 0018204442 | ELECTRIC MOTOR |
| Repalced by: A 0018207842 | ||
| 130 | A 0018207842 | ELECTRIC MOTOR |
| RIGHT | ||
| A 0009907822 | SCREW | |
| Repalced by: N 914114006007 | ||
| N 914114006007 | SCREW | |
| A 1167200145 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 132 | A 1167200245 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| 134 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 134 | A 1237200114 | REPAIR KIT |
| 136 | N 000934006007 | NUT |
| ELECTRICALLY OPERATED WINDOW REGULATOR TO INTERIOR PLATE | ||
| N 000933006175 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| 138 | N 912004006102 | LOCK WASHER |
| ELECTRICALLY OPERATED WINDOW REGULATOR TO INTERIOR PLATE | ||
| 140 | A 1167350098 | SEAL |
| A 1167300319 | WINDOW STAYBAR | |
| LEFT | ||
| 146 | A 1167300419 | WINDOW STAYBAR |
| RIGHT | ||
| 148 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 148 | N 304017006034 | SCREW |
| WINDOW STAYBAR TO INTERIOR PLATE | ||
| 150 | N 912004006102 | LOCK WASHER |
| WINDOW STAYBAR TO INTERIOR PLATE | ||
| 152 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 152 | N 009021006208 | WASHER |
| WINDOW STAYBAR TO INTERIOR PLATE | ||
| 154 | N 007981004318 | SHEET METAL SCREW |
| WINDOW STAYBAR TO WINDOW FRAME | ||
| 156 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 156 | N 000125004319 | WASHER |
| WINDOW STAYBAR TO WINDOW FRAME | ||
| A 1167300118 | CRANK OPERATED WINDOW | |
| LEFT | ||
| A 1167300218 | CRANK OPERATED WINDOW | |
| RIGHT | ||
| A 1167300518 | CRANK OPERATED WINDOW | |
| LEFT HEAT-ABSORBING GLASS | ||
| A 1167300718 | CRANK OPERATED WINDOW | |
| LEFT HEAT-ABSORBING GLASS | ||
| A 1167300618 | CRANK OPERATED WINDOW | |
| RIGHT HEAT-ABSORBING GLASS | ||
| A 1167300818 | CRANK OPERATED WINDOW | |
| RIGHT HEAT-ABSORBING GLASS | ||
| A 1167350110 | GLASS PANE | |
| Repalced by: A 1167300118 | ||
| A 1167350510 | GLASS PANE | |
| Repalced by: A 1167300318 | ||
| 162 | A 1167350210 | GLASS PANE |
| Repalced by: A 1167300218 | ||
| 164 | A 1167350610 | GLASS PANE |
| Repalced by: A 1167300418 | ||
| A 1167350310 | GLASS PANE | |
| Repalced by: A 1167300518 | ||
| A 1167300518 | CRANK OPERATED WINDOW | |
| LEFT HEAT-ABSORBING GLASS | ||
| A 1167350710 | GLASS PANE | |
| Repalced by: A 1167300718 | ||
| A 1167300718 | CRANK OPERATED WINDOW | |
| LEFT HEAT-ABSORBING GLASS | ||
| 168 | A 1167350410 | GLASS PANE |
| Repalced by: A 1167300618 | ||
| 168 | A 1167300618 | CRANK OPERATED WINDOW |
| RIGHT HEAT-ABSORBING GLASS | ||
| 169 | A 1167350810 | GLASS PANE |
| Repalced by: A 1167300818 | ||
| 169 | A 1167300818 | CRANK OPERATED WINDOW |
| RIGHT HEAT-ABSORBING GLASS | ||
| 170 | A 0009876657 | RUBBER MOULDING |
| 385 MM | ||
| A 1167200147 | RETAINING RAIL | |
| LEFT | ||
| 171 | A 1167200247 | RETAINING RAIL |
| RIGHT | ||
| A 1087250098 | SEAL | |
| Repalced by: A 1167250198 | ||
| 172 | A 1167250198 | SEAL |
| 173 | A 1167250330 | WINDOW GUIDE |
| CENTRAL | ||
| 174 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 174 | N 304017006016 | SCREW |
| 176 | N 912004006102 | LOCK WASHER |
| 178 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 178 | N 009021006208 | WASHER |
| 180 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 180 | N 304017006016 | SCREW |
| 182 | N 912004006102 | LOCK WASHER |
| 184 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 184 | N 009021006208 | WASHER |
| A 1167350134 | SLIDE | |
| Repalced by: A 1167300142 | ||
| A 1167300142 | SLIDING JAW | |
| Repalced by: A 1167200242 | ||
| A 1167200242 | SLIDING JAW | |
| LEFT | ||
| A 1167350234 | SLIDE | |
| Repalced by: A 1167300242 | ||
| 188 | A 1167300242 | SLIDING JAW |
| Repalced by: A 1167200142 | ||
| 188 | A 1167200142 | SLIDING JAW |
| 200 | A 1167250140 | SHACKLE |
| 202 | A 1167200042 | SLIDING JAW |
| 204 | N 000933006175 | SCREW |
| Repalced by: N 304017006016 | ||
| 204 | N 304017006016 | SCREW |
| 206 | N 912004006102 | LOCK WASHER |
| 208 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 208 | N 009021006208 | WASHER |
| A 1167300551 | PANELLING | |
| FRONT LEFT | ||
| A 1167300551 | PANELLING | |
| FRONT LEFT | ||
| 212 | A 1167300651 | PANELLING |
| FRONT RIGHT | ||
| 212 | A 1167300651 | PANELLING |
| FRONT RIGHT | ||
| 214 | A 1169881178 | CLIP |
| A 1167350551 | PANELLING | |
| Repalced by: A 1167250451 | ||
| A 1167250451 | PANELLING | |
| TOP REAR LEFT | ||
| A 1167250451 | PANELLING | |
| TOP REAR LEFT | ||
| 216 | A 1167350651 | PANELLING |
| TOP REAR RIGHT | ||
| 216 | A 1167350651 | PANELLING |
| TOP REAR RIGHT | ||
| 218 | A 1167350951 | PANELLING |
| Repalced by: A 1167351051 | ||

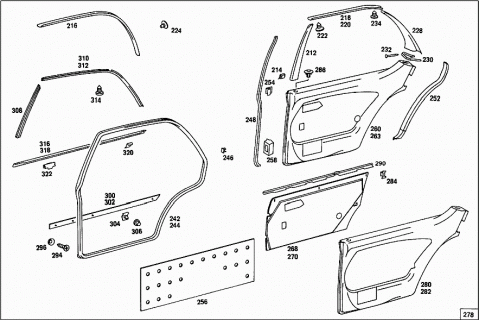

| 218 | A 1167351051 | PANELLING |
| Repalced by: A 1167350651 | ||
| 218 | A 1167350651 | PANELLING |
| TOP | ||
| 218 | A 1167350651 | PANELLING |
| TOP | ||
| 220 | A 1167351051 | PANELLING |
| Repalced by: A 1167350651 | ||
| 220 | A 1167350651 | PANELLING |
| TOP | ||
| 220 | A 1167350651 | PANELLING |
| TOP | ||
| 222 | N 007981002223 | SHEET METAL SCREW |
| 224 | A 0009973886 | PLUG |
| Repalced by: A 1249970886 | ||
| 224 | A 1249970886 | PLUG |
| A 1167300351 | PANELLING | |
| Repalced by: A 1167301751 | ||
| A 1167300451 | PANELLING | |
| Repalced by: A 1167301851 | ||
| A 1167301751 | PANELLING | |
| REAR LEFT | ||
| A 1167301751 | PANELLING | |
| REAR LEFT | ||
| 228 | A 1167301851 | PANELLING |
| REAR RIGHT | ||
| 228 | A 1167301851 | PANELLING |
| REAR RIGHT | ||
| A 1167350138 | BINDING RAIL | |
| REAR LEFT | ||
| 230 | A 1167350238 | BINDING RAIL |
| REAR RIGHT | ||
| 232 | N 900046018401 | NAIL |
| EDGING TO WINDOW INNER MOULDING | ||
| 234 | N 007983002208 | SHEET METAL SCREW |
| A 1167300178 | WEATHERSTRIP | |
| LEFT | ||
| A 1167300378 | WEATHERSTRIP | |
| LEFT | ||
| 242 | A 1167300278 | WEATHERSTRIP |
| RIGHT | ||
| 244 | A 1167300478 | WEATHERSTRIP |
| RIGHT | ||
| 246 | A 0019882478 | CLIP |
| A 1167370151 | LEDGE | |
| Repalced by: A 1167270951 | ||
| A 1167370251 | LEDGE | |
| Repalced by: A 1167270951 | ||
| 248 | A 1167270951 | EDGE GUARD SECTION |
| REAR, CENTRAL PILLAR | ||
| 248 | A 1167270951 | EDGE GUARD SECTION |
| REAR, CENTRAL PILLAR | ||
| A 1167300197 | EDGE GUARD SECTION | |
| Repalced by: A 1167300397 | ||
| A 1167300397 | EDGE GUARD SECTION | |
| LEFT WHEELHOUSE | ||
| A 1167300397 | EDGE GUARD SECTION | |
| LEFT WHEELHOUSE | ||
| A 1167300297 | EDGE GUARD SECTION | |
| Repalced by: A 1167300497 | ||
| 252 | A 1167300497 | EDGE GUARD SECTION |
| RIGHT WHEELHOUSE | ||
| 252 | A 1167300497 | EDGE GUARD SECTION |
| RIGHT WHEELHOUSE | ||
| 254 | A 1169882278 | CLIP |
| 256 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 256 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 256 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 256 | A 2106820008 | INSULATION |
| 258 | A 1167370030 | SEAL |
| A 1167301370 | PANELLING | |
| LEFT | ||
| A 1167301370 | PANELLING | |
| LEFT | ||
| A 1167303970 | PANELLING | |
| LEFT USED WITH VELOURS | ||
| A 1167303970 | PANELLING | |
| LEFT USED WITH VELOURS | ||
| A 1167300970 | PANELLING | |
| LEFT,ELECTRICALLY OPERATED WINDOW REGULATOR,VELOURS | ||
| A 1167301070 | PANELLING | |
| RIGHT,ELECTRICALLY OPERATED WINDOW REGULATOR,VELOURS | ||
| A 1167301570 | PANELLING | |
| LEFT | ||
| A 1167301570 | PANELLING | |
| LEFT | ||
| A 1167301170 | PANELLING | |
| LEFT USED WITH VELOURS | ||
| A 1167301170 | PANELLING | |
| LEFT USED WITH VELOURS | ||
| 260 | A 1167301470 | PANELLING |
| RIGHT | ||
| 260 | A 1167301470 | PANELLING |
| RIGHT | ||
| A 1167304070 | PANELLING | |
| RIGHT USED WITH VELOURS | ||
| A 1167304070 | PANELLING | |
| RIGHT USED WITH VELOURS | ||
| A 1167301270 | PANELLING | |
| RIGHT USED WITH VELOURS | ||
| A 1167301270 | PANELLING | |
| RIGHT USED WITH VELOURS | ||
| 263 | A 1167301670 | PANELLING |
| RIGHT | ||
| 263 | A 1167301670 | PANELLING |
| RIGHT | ||
| A 1167302370 | PANELLING | |
| INSIDE LEFT | ||
| A 1167302370 | PANELLING | |
| INSIDE LEFT | ||
| A 1167304170 | PANELLING | |
| INSIDE LEFT,VELOURS | ||
| A 1167304170 | PANELLING | |
| INSIDE LEFT,VELOURS | ||
| A 1167302170 | PANELLING | |
| INSIDE LEFT,ELECTRICALLY OPERATED WINDOW REGULATOR,VELOURS | ||
| A 1167302770 | PANELLING | |
| INSIDE LEFT | ||
| A 1167302770 | PANELLING | |
| INSIDE LEFT | ||
| A 1167302570 | PANELLING | |
| INSIDE LEFT,VELOURS | ||
| A 1167302570 | PANELLING | |
| INSIDE LEFT,VELOURS | ||
| 268 | A 1167302470 | PANELLING |
| INSIDE RIGHT | ||
| 268 | A 1167302470 | PANELLING |
| INSIDE RIGHT | ||
| A 1167304270 | PANELLING | |
| INSIDE RIGHT,VELOURS | ||
| A 1167304270 | PANELLING | |
| INSIDE RIGHT,VELOURS | ||
| A 1167302270 | PANELLING | |
| INSIDE RIGHT,ELECTRICALLY OPERATED WINDOW REGULATOR,VELOURS | ||
| 270 | A 1167302870 | PANELLING |
| INSIDE RIGHT | ||
| 270 | A 1167302870 | PANELLING |
| INSIDE RIGHT | ||
| A 1167302670 | PANELLING | |
| INSIDE RIGHT,VELOURS | ||
| A 1167302670 | PANELLING | |
| INSIDE RIGHT,VELOURS | ||
| A 1167300370 | PANELLING | |
| LEFT | ||
| A 1167300370 | PANELLING | |
| LEFT | ||
| A 1167300770 | PANELLING | |
| LEFT | ||
| A 1167300770 | PANELLING | |
| LEFT | ||
| 280 | A 1167300470 | PANELLING |
| RIGHT | ||
| 280 | A 1167300470 | PANELLING |
| RIGHT | ||
| 282 | A 1167300870 | PANELLING |
| RIGHT | ||
| 282 | A 1167300870 | PANELLING |
| RIGHT | ||
| 284 | A 1169880578 | CLIP |
| 286 | A 1169920010 | BUSHING |
| A 1167370182 | GARNISH MOULDING | |
| LEFT | ||
| A 1167370382 | GARNISH MOULDING | |
| LEFT | ||
| 290 | A 1167370282 | GARNISH MOULDING |
| RIGHT | ||
| 290 | A 1167370482 | GARNISH MOULDING |
| RIGHT | ||
| 294 | N 007983002205 | SHEET METAL SCREW |
| PANELLING TO INTERIOR PLATE | ||
| 296 | A 0009850962 | WASHER |
| PANELLING TO INTERIOR PLATE | ||
| A 1167300180 | GARNISH MOULDING | |
| LEFT | ||
| A 1167300380 | GARNISH MOULDING | |
| LEFT | ||
| 300 | A 1167300280 | GARNISH MOULDING |
| RIGHT | ||
| 302 | A 1167300480 | GARNISH MOULDING |
| RIGHT | ||
| 304 | A 0009888181 | FASTENER BUTTON |
| 306 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 306 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 306 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 306 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 306 | A 0019887681 | FASTENER BUTTON |
| A 1167380131 | GARNISH MOULDING | |
| FRONT LEFT | ||
| 308 | A 1167380231 | GARNISH MOULDING |
| FRONT RIGHT | ||
| A 1167380331 | GARNISH MOULDING | |
| TOP LEFT | ||
| A 1167380531 | GARNISH MOULDING | |
| TOP LEFT | ||
| 310 | A 1167380431 | GARNISH MOULDING |
| TOP RIGHT | ||
| 312 | A 1167380631 | GARNISH MOULDING |
| TOP RIGHT | ||
| 314 | N 007983002200 | SHEET METAL SCREW |
| GARNISH MOULDING TO WINDOW FRAME | ||
| A 1167380130 | GARNISH MOULDING | |
| LEFT | ||
| A 1167380330 | GARNISH MOULDING | |
| LEFT | ||
| 316 | A 1167380230 | GARNISH MOULDING |
| RIGHT | ||
| 318 | A 1167380430 | GARNISH MOULDING |
| RIGHT | ||
| 320 | A 1087280297 | PAD |
| 322 | A 1159881078 | CLIP |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
