Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

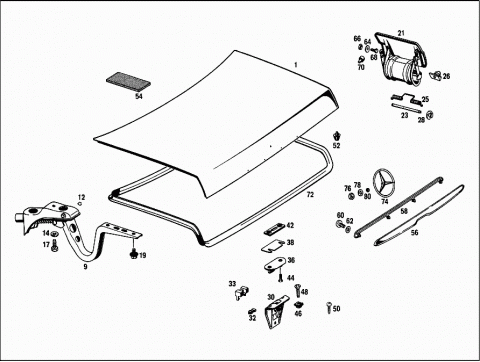

Grupė: 75 REAR LID - 001 OUTSIDE FLAPS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1167500875 | REAR LID | |
| Repalced by: A 1167500575 | ||
| A 1167500575 | REAR LID | |
| STEEL | ||
| A 1167500075 | REAR LID | |
| Repalced by: A 1167500575 | ||
| 001 | A 1167500575 | REAR LID |
| STEEL | ||
| 009 | A 1167501187 | HINGE |
| A 1167501687 | HINGE | |
| 012 | N 912010008001 | LOCK PLATE |
| Repalced by: A 0009948945 | ||
| A 0009948945 | PIN LOCK | |
| 014 | N 009021008213 | WASHER |
| 017 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 017 | N 304017008021 | SCREW |
| 019 | A 0009902322 | SCREW |
| Repalced by: N 914114006006 | ||
| 019 | N 914114006006 | SCREW |
| 021 | A 1167500106 | FLAP |
| 023 | A 1077570115 | PIN |
| 025 | A 1077580736 | SPRING |
| 026 | A 1169870639 | RUBBER BUFFER |
| 028 | N 006799003202 | LOCK PLATE |
| 030 | A 1137500285 | LOCK |
| 032 | A 1137580072 | BUFFER |
| Repalced by: A 1169870539 | ||
| 032 | A 1169870539 | RUBBER BUFFER |
| 033 | A 1169870539 | RUBBER BUFFER |
| 036 | A 1137500185 | LOCK |
| 038 | A 1117585010 | BASE PLATE |
| A 1117585111 | PLATE | |
| Repalced by: A 1167500011 | ||
| 042 | A 1167500011 | PLATE |
| 044 | A 0009903330 | SCREW |
| 046 | A 0009909991 | NUT RETAINER |
| 048 | A 0009903330 | SCREW |
| 050 | N 007985006196 | SCREW |
| Repalced by: N 007985006193 | ||
| 050 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 050 | N 000000001146 | SCREW |
| A 1169870339 | RUBBER BUFFER | |
| Repalced by: A 1119871540 | ||
| 052 | A 1119871540 | RUBBER BUFFER |
| A 1169870040 | RUBBER BUFFER | |
| Repalced by: A 1119871540 | ||
| A 1119871540 | RUBBER BUFFER | |
| 054 | A 1157580997 | INTERMEDIATE LAYER |
| Repalced by: A 1237580397 | ||
| 054 | A 1237580397 | INTERMEDIATE LAYER |
| A 1167580002 | HANDLE | |
| Repalced by: A 1167580102 | ||
| 056 | A 1167580102 | HANDLE |
| A 1167580005 | PAD | |
| Repalced by: A 1167580105 | ||
| 058 | A 1167580105 | PAD |
| 060 | N 000933004016 | SCREW |
| 062 | N 000137004202 | SPRING WASHER |
| 064 | A 1009901640 | WASHER |
| 066 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 066 | N 009021006208 | WASHER |
| 068 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 068 | N 304017006018 | SCREW |
| A 1079870340 | RUBBER BUFFER | |
| Repalced by: A 0009879040 | ||
| 070 | A 0009879040 | RUBBER BUFFER |
| 072 | A 1167580098 | SEAL |
| A 1167500098 | SEAL | |
| 074 | A 1167580058 | MERCEDES STAR |
| 076 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 076 | N 304032008006 | NUT |
| 078 | N 000125008418 | WASHER |
| 080 | A 1109870741 | RUBBER RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR WARNING TRIANGLE MOUNTINGS, SEE GROUP 89 | ||
