Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

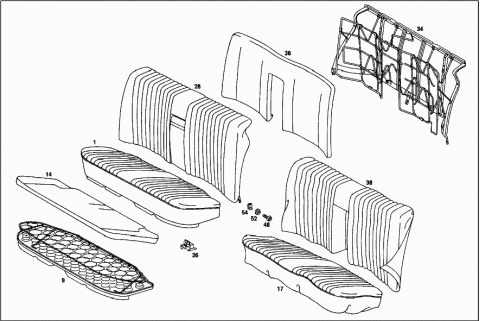

Grupė: 92 REAR SEAT BENCH - 001 REAR SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1169200720 | REAR SEAT CUSHION |
| LEATHER | ||
| 001 | A 1169200720 | REAR SEAT CUSHION |
| LEATHER | ||
| A 1169201420 | REAR SEAT CUSHION | |
| LEATHER | ||
| A 1169200620 | REAR SEAT CUSHION | |
| IMITATION LEATHER | ||
| A 1169200620 | REAR SEAT CUSHION | |
| IMITATION LEATHER | ||
| A 1169201320 | REAR SEAT CUSHION | |
| VELOURS | ||
| A 1169201120 | REAR SEAT CUSHION | |
| VELOURS | ||
| A 1169201120 | REAR SEAT CUSHION | |
| VELOURS | ||
| A 1169201120 | REAR SEAT CUSHION | |
| VELOURS | ||
| A 1169201520 | REAR SEAT CUSHION | |
| VELOURS | ||
| 009 | A 1169200022 | CUSHION FRAME |
| 009 | A 1169200122 | CUSHION FRAME |
| 014 | A 1169240114 | PAD |
| A 1169200250 | PAD | |
| Repalced by: A 1169240114 | ||
| 017 | A 1169200246 | COVER |
| LEATHER | ||
| 017 | A 1169200246 | COVER |
| LEATHER | ||
| A 1169200546 | COVER | |
| IMITATION LEATHER | ||
| A 1169200546 | COVER | |
| IMITATION LEATHER | ||
| A 1169200446 | COVER | |
| VELOURS | ||
| A 1169201846 | COVER | |
| VELOURS | ||
| A 0019870230 | WELT | |
| A 0019870230 | WELT | |
| A 0009870281 | SEALING CORD | |
| 2020 MM | ||
| A 0019879425 | PLASTIC SECTION | |
| 2020 MM | ||
| A 0019873030 | WELT | |
| Repalced by: A 0019870230 | ||
| A 0019870230 | WELT | |
| VELOURS | ||
| 2020 MM | ||
| A 1169200002 | SEAT CUSHION LESS COVER | |
| 026 | A 1079200014 | BRACKET |
| 028 | A 1169200830 | BACKREST |
| LEATHER | ||
| 028 | A 1169200830 | BACKREST |
| LEATHER | ||
| A 1169201530 | BACKREST | |
| LEATHER | ||
| A 1169201230 | BACKREST | |
| VELOURS | ||
| A 1169201230 | BACKREST | |
| VELOURS | ||
| A 1169201230 | BACKREST | |
| VELOURS | ||
| A 1169201630 | BACKREST | |
| VELOURS | ||
| A 1169200730 | BACKREST | |
| IMITATION LEATHER | ||
| A 1169200730 | BACKREST | |
| IMITATION LEATHER | ||
| A 1169200032 | BACKREST FRAME | |
| Repalced by: A 1169200232 | ||
| 034 | A 1169200232 | BACKREST FRAME |
| A 1169200832 | BACKREST FRAME | |
| 036 | A 1169240216 | PAD |
| USED WITH IMITATION LEATHER AND LEATHER TRIM | ||
| A 1169200516 | PAD | |
| USED WITH IMITATION LEATHER AND LEATHER TRIM | ||
| A 1169200416 | PAD | |
| USED WITH VELOURS TRIM | ||
| A 1169200316 | PAD | |
| USED WITH VELOURS TRIM | ||
| 038 | A 1169200247 | COVER |
| LEATHER | ||
| 038 | A 1169200247 | COVER |
| LEATHER | ||
| A 1169201647 | COVER | |
| LEATHER | ||
| A 1169200547 | COVER | |
| IMITATION LEATHER | ||
| A 1169200547 | COVER | |
| IMITATION LEATHER | ||
| A 1169200447 | COVER | |
| VELOURS | ||
| A 1169201347 | COVER | |
| VELOURS | ||
| A 1169201547 | COVER | |
| VELOURS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR CENTRAL ARMREST,SEE GROUP 97 | ||
| 048 | N 007981005209 | SHEET METAL SCREW |
| REAR BACKREST TO REAR BODY PANEL | ||
| 052 | N 912004006102 | LOCK WASHER |
| REAR BACKREST TO REAR BODY PANEL | ||
| 054 | A 0009944745 | LOCK |
| REAR BACKREST TO REAR BODY PANEL | ||
| N 914031004206 | COMBINATION BOLT | |
| REAR BACKREST TO REAR BODY PANEL | ||
| A 1239940645 | LOCK | |
| Repalced by: A 1239941845 | ||
| A 1239941845 | LOCK | |
| REAR BACKREST TO REAR BODY PANEL | ||
| A 1169200004 | BACKREST LESS COVER | |
| WITH CENTRAL FOLDING ARMREST; COMPLETE,BUT LESS COVER | ||
