Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 97 SEAT ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1169700101 | ARMREST | |
| LEFT FRONT DOOR | ||
| A 1169700101 | ARMREST | |
| LEFT FRONT DOOR | ||
| 015 | A 1169700201 | ARMREST |
| Repalced by: A 1269701001 | ||
| 015 | A 1269701001 | ARMREST |
| RIGHT FRONT DOOR | ||
| 015 | A 1269701001 | ARMREST |
| RIGHT FRONT DOOR | ||
| A 1169710543 | ORNAMENTAL COVER | |
| LEFT | ||
| 029 | A 1169710643 | ORNAMENTAL COVER |
| RIGHT | ||
| N 007985006132 | SCREW | |
| Repalced by: A 0009905921 | ||
| 038 | A 0009905921 | SCREW |
| N 000127006203 | LOCK WASHER | |
| Repalced by: A 0009905921 | ||
| N 007985006196 | SCREW | |
| Repalced by: A 0009906421 | ||
| A 0009906421 | SCREW | |
| Repalced by: N 007981006204 | ||
| 043 | N 007981006204 | SHEET METAL SCREW |
| Repalced by: N 007981006215 | ||
| 043 | N 007981006215 | SHEET METAL SCREW |
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0019944945 | ||
| 045 | A 0019944945 | LOCK |
| Repalced by: A 0019946045 | ||
| 045 | A 0019946045 | LOCK |
| Repalced by: A 0029945545 | ||
| 045 | A 0029945545 | LOCK |
| A 1169700301 | ARMREST | |
| LEFT REAR DOOR | ||
| A 1169700301 | ARMREST | |
| LEFT REAR DOOR | ||
| 049 | A 1169700401 | ARMREST |
| RIGHT REAR DOOR | ||
| 049 | A 1169700401 | ARMREST |
| RIGHT REAR DOOR | ||
| A 1169710743 | ORNAMENTAL COVER | |
| LEFT | ||
| 065 | A 1169710843 | ORNAMENTAL COVER |
| RIGHT | ||
| N 007985006132 | SCREW | |
| Repalced by: A 0009905921 | ||
| 067 | A 0009905921 | SCREW |
| N 000127006203 | LOCK WASHER | |
| Repalced by: A 0009905921 | ||
| N 007985006196 | SCREW | |
| Repalced by: A 0009906421 | ||
| A 0009906421 | SCREW | |
| Repalced by: N 007981006204 | ||
| 071 | N 007981006204 | SHEET METAL SCREW |
| Repalced by: N 007981006215 | ||
| 071 | N 007981006215 | SHEET METAL SCREW |
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0019944945 | ||
| 073 | A 0019944945 | LOCK |
| Repalced by: A 0019946045 | ||
| 073 | A 0019946045 | LOCK |
| Repalced by: A 0029945545 | ||
| 073 | A 0029945545 | LOCK |

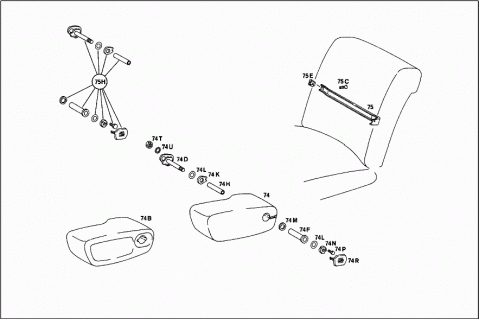

| 074 | A 1169700730 | FOLDING ARMREST |
| FRONT SEAT,CENTRAL; LEATHER | ||

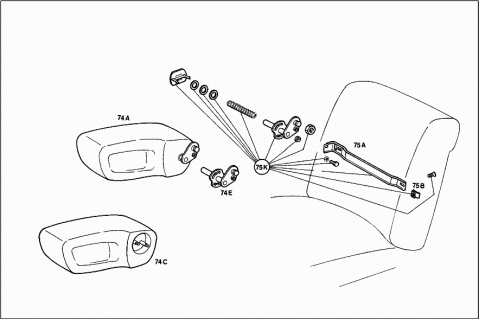

| 074A | A 1169705630 | FOLDING ARMREST |
| FRONT SEAT,CENTRAL; LEATHER | ||
| A 1169700830 | FOLDING ARMREST | |
| FRONT SEAT,CENTRAL; IMITATION LEATHER | ||
| A 1169705230 | FOLDING ARMREST | |
| FRONT SEAT,CENTRAL; IMITATION LEATHER | ||
| A 1169700630 | FOLDING ARMREST | |
| FRONT SEAT,CENTRAL,VELOURS | ||
| A 1169705830 | FOLDING ARMREST | |
| FRONT SEAT,CENTRAL,VELOURS | ||
| 074B | A 1169700220 | SUPPORT |
| 074C | A 1169700920 | SUPPORT |
| A 1169700747 | COVER | |
| LEATHER | ||
| A 1169703947 | COVER | |
| LEATHER | ||
| A 1169700847 | COVER | |
| IMITATION LEATHER | ||
| A 1169703747 | COVER | |
| IMITATION LEATHER | ||
| A 1169700647 | COVER | |
| VELOURS | ||
| A 1169704047 | COVER | |
| VELOURS | ||
| A 0009870281 | SEALING CORD | |
| 1965 MM | ||
| A 0019870230 | WELT | |
| 1965 MM | ||
| 074D | A 1169700620 | SUPPORT |
| 074E | A 1169700720 | SUPPORT |
| 074F | A 1169730037 | SPACER |
| 074H | N 040621018209 | INSULATING HOSE |
| 074K | A 1099900040 | WASHER |
| Repalced by: A 1169840156 | ||
| 074K | A 1169840156 | WASHER |
| 074L | A 1099900140 | WASHER |
| A 1239870141 | RUBBER RING | |
| 074M | A 1099870041 | RUBBER RING |
| A 1239730034 | SPRING | |
| Repalced by: A 1239730134 | ||
| A 1239730134 | SPRING | |
| 074N | A 1099900160 | NUT |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| 074P | A 1099900001 | SCREW |
| Repalced by: N 000933005036 | ||
| 074P | N 000933005036 | SCREW |
| N 000934006007 | NUT | |
| 074R | A 1169730411 | PLATE |
| 074T | N 000439018200 | NUT |
| 074U | N 006797019101 | TOOTHED WASHER |
| A 1169700315 | RAIL | |
| Repalced by: A 1169730127 | ||
| 075 | A 1169730127 | RAIL |
| AT RIGHT FRONT SEAT BACKREST | ||
| 075A | A 1239730027 | RAIL |
| AT LEFT FRONT SEAT BACKREST | ||
| 075B | N 914114006000 | SCREW |
| 075C | N 000965006001 | SCREW |
| 075E | A 0009908891 | NUT RETAINER |
| 075H | A 1169701330 | MOUNTING MATERIAL |
| 075K | A 1169700000 | MOUNTING MATERIAL |

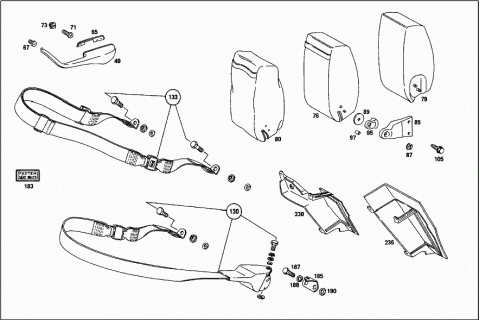

| 076 | A 1169700230 | FOLDING ARMREST |
| REAR SEAT BENCH,CENTRAL,LEATHER TRIM | ||
| 076 | A 1169700230 | FOLDING ARMREST |
| REAR SEAT BENCH,CENTRAL,LEATHER TRIM | ||
| A 1169700330 | FOLDING ARMREST | |
| REAR SEAT BENCH,CENTRAL,IMITATION LEATHER TRIM | ||
| A 1169700330 | FOLDING ARMREST | |
| REAR SEAT BENCH,CENTRAL,IMITATION LEATHER TRIM | ||
| A 1169700430 | FOLDING ARMREST | |
| REAR SEAT BENCH,CENTRAL,VELOURS | ||
| A 1169700430 | FOLDING ARMREST | |
| REAR SEAT BENCH,CENTRAL,VELOURS | ||
| 079 | A 1169700051 | UPHOLSTERY PANEL |
| 080 | A 1169700247 | COVER |
| LEATHER | ||
| 080 | A 1169700247 | COVER |
| LEATHER | ||
| A 1169700447 | COVER | |
| VELOURS | ||
| A 1169700447 | COVER | |
| VELOURS | ||
| A 1169700347 | COVER | |
| IMITATION LEATHER | ||
| A 1169700347 | COVER | |
| IMITATION LEATHER | ||
| A 1079700020 | SUPPORT | |
| Repalced by: A 1079730020 | ||
| 085 | A 1079730020 | SUPPORT |
| 087 | N 006799007007 | LOCK PLATE |
| 089 | A 1079900540 | WASHER |
| 095 | A 1079730126 | STOP |
| 097 | A 1079730117 | BUSHING |
| N 000933006016 | SCREW | |
| Repalced by: A 0009902322 | ||
| N 000127006203 | LOCK WASHER | |
| Repalced by: A 0009902322 | ||
| 105 | A 0009902322 | SCREW |
| Repalced by: N 914114006006 | ||
| 105 | N 914114006006 | SCREW |

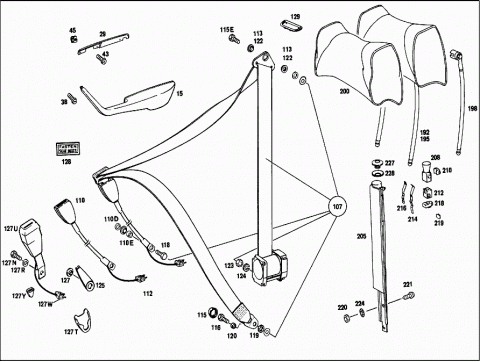

| A 1168600085 | SAFETY BELT | |
| Repalced by: A 1168603385 | ||
| A 1168602085 | SAFETY BELT | |
| Repalced by: A 1168603385 | ||
| 107 | A 1168603385 | SAFETY BELT |
| FRONT SEAT | ||
| A 0008681869 | FASTENER | |
| Repalced by: A 1168600169 | ||
| 110 | A 1168600169 | FASTENER |
| 110D | A 0019924001 | WASHER |
| A 1169840356 | WASHER | |
| 110E | A 0019924201 | BUSHING |
| 112 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 112 | A 0095454028 | PLUG HOUSING |
| 2-POLES | ||
| 113 | A 0009921405 | BUSHING |
| 115 | A 0009871445 | LOCKING CAP |
| 115E | A 1169840133 | SCREW |
| 116 | A 0039903701 | SCREW |
| 118 | A 0039903601 | SCREW |
| 119 | A 1159906640 | WASHER |
| 120 | A 0019923001 | BUSHING |
| A 1159920301 | BUSHING | |
| 122 | A 0009921405 | BUSHING |
| 123 | A 1169900151 | NUT |
| Repalced by: A 0009901650 | ||
| 123 | A 0009901650 | NUT |
| 124 | N 000127012201 | LOCK WASHER |
| 125 | A 0008680830 | CAP |
| 127 | A 1169840356 | WASHER |

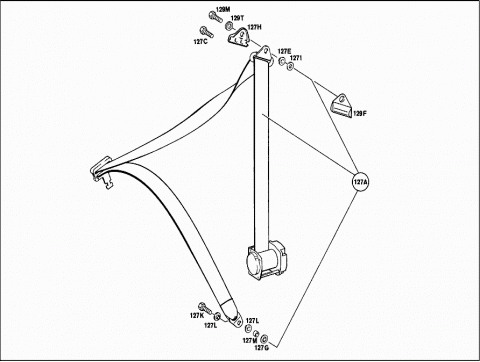

| 127A | A 1238600385 | SAFETY BELT |
| LESS LOCK; FRONT SEAT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO. 127U | ||
| 127C | A 1159840233 | SCREW |
| Repalced by: A 1239840333 | ||
| 127C | A 1239840333 | SCREW |
| GUIDE BRACKET TO TOP OF CENTRAL PILLAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO. 127W | ||
| 127E | A 1239920305 | BUSHING |
| GUIDE BRACKET TO TOP OF CENTRAL PILLAR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO. 127Y | ||
| 127H | A 1238680030 | CAP |
| GUIDE BRACKET TO TOP OF CENTRAL PILLAR | ||
| 127G | A 0019947045 | LOCK |
| SAFETY BELT TO FLOOR | ||
| 127I | A 1159906640 | WASHER |
| 127K | A 1239840033 | SCREW |
| SAFETY BELT TO FLOOR | ||
| 127L | A 1239920205 | BUSHING |
| SAFETY BELT TO FLOOR | ||
| 127M | A 1239910140 | SPACER TUBE |
| SAFETY BELT TO FLOOR | ||
| 127N | A 1239901201 | SCREW |
| Repalced by: A 1079900101 | ||
| 127N | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 127N | A 2029901301 | SCREW |
| SELF-REELING DEVICE TO CENTRAL PILLAR | ||
| 127R | N 000127012201 | LOCK WASHER |
| SELF-REELING DEVICE TO CENTRAL PILLAR | ||
| 127T | A 0008680430 | CAP |
| SAFETY BELT TO FLOOR | ||
| A 1159906640 | WASHER | |
| SAFETY BELT TO FLOOR | ||
| 127U | A 1238601569 | FASTENER |
| LEFT FRONT SEAT | ||
| A 1168600969 | FASTENER | |
| LEFT FRONT SEAT | ||
| 127W | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 127W | A 0095454028 | PLUG HOUSING |
| 2-PIN | ||
| 127Y | A 1239884178 | CLIP |
| A 1238601669 | FASTENER | |
| RIGHT FRONT SEAT | ||
| 128 | A 1158680088 | PLATE |
| A 1166920059 | ESCUTCHEON | |
| REAR END PILLAR PANELLING | ||
| 129 | A 1166920359 | ESCUTCHEON |
| Repalced by: A 1266920059 | ||
| 129 | A 1266920059 | ESCUTCHEON |
| REAR END PILLAR PANELLING | ||
| 129F | A 1168680022 | GUIDE |
| (PROTECTION AGAINST TWIST),SAFETY BELT | ||
| 129M | A 0039903701 | SCREW |
| 129T | A 1159906640 | WASHER |
| 130 | A 1168600985 | SAFETY BELT |
| Repalced by: A 1168601685 | ||

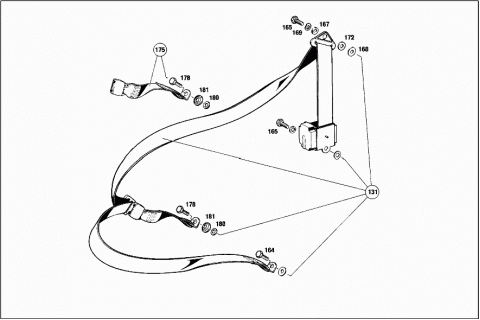

| 131 | A 1168601685 | SAFETY BELT |
| REAR SEAT BENCH,OUTSIDE | ||
| A 1168601485 | SAFETY BELT | |
| Repalced by: A 1168602185 | ||
| 133 | A 1168602185 | SAFETY BELT |
| REAR SEAT BENCH,CENTRAL | ||
| 164 | A 0039903701 | SCREW |
| A 1159904001 | SCREW | |
| Repalced by: A 1079900101 | ||
| 165 | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 165 | A 2029901301 | SCREW |
| 167 | A 1159906640 | WASHER |
| 168 | A 0019923601 | BUSHING |
| 169 | A 0009903348 | WASHER |
| 172 | A 1169840356 | WASHER |
| 175 | A 1078600369 | FASTENER |
| 178 | A 0039903701 | SCREW |
| 180 | A 0019924001 | WASHER |
| 181 | A 1169840356 | WASHER |

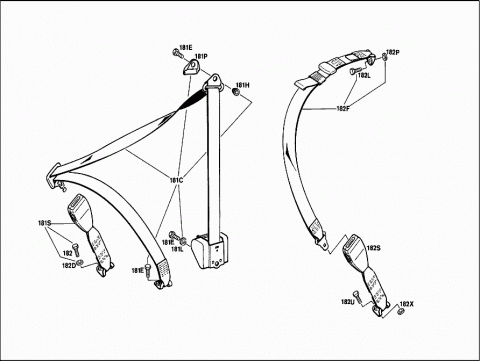

| 181C | A 1238601085 | SAFETY BELT |
| REAR SEAT BENCH,OUTSIDE | ||
| 181E | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 181E | A 2029901301 | SCREW |
| GUIDE BRACKET TO REAR PILLAR,TOP | ||
| 181E | A 2029901301 | SCREW |
| SAFETY BELT TO FLOOR | ||
| 181E | A 2029901301 | SCREW |
| SELF-REELING DEVICE TO REAR PILLAR | ||
| 181H | A 1239920405 | BUSHING |
| GUIDE BRACKET TO REAR PILLAR,TOP | ||
| 181L | N 000127012201 | LOCK WASHER |
| SELF-REELING DEVICE TO REAR PILLAR | ||
| 181P | A 1238680030 | CAP |
| GUIDE BRACKET TO REAR PILLAR,TOP | ||
| 181S | A 1238600469 | FASTENER |
| REAR SEAT BENCH,OUTSIDE | ||
| 182 | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 182 | A 2029901301 | SCREW |
| BELT LOCK TO FLOOR BELOW REAR SEAT | ||
| 182D | A 0019924001 | WASHER |
| BELT LOCK TO FLOOR BELOW REAR SEAT | ||
| 182F | A 1238602085 | SAFETY BELT |
| REAR SEAT BENCH,CENTRAL | ||
| 182L | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 182L | A 2029901301 | SCREW |
| CENTRAL BELT TO FLOOR BELOW REAR SEAT BENCH | ||
| 182P | A 0019924001 | WASHER |
| CENTRAL BELT TO FLOOR BELOW REAR SEAT BENCH | ||
| 182S | A 1238600469 | FASTENER |
| REAR SEAT BENCH,CENTRAL | ||
| 182U | A 1079900101 | SCREW |
| Repalced by: A 2029901301 | ||
| 182U | A 2029901301 | SCREW |
| BELT LOCK TO FLOOR BELOW REAR SEAT | ||
| 182X | A 0019924001 | WASHER |
| BELT LOCK TO FLOOR BELOW REAR SEAT | ||
| 183 | A 1158680088 | PLATE |
| 185 | A 1168600014 | BRACKET |
| 187 | A 1169900901 | SCREW |
| Repalced by: A 1249901501 | ||
| 187 | A 1249901501 | SCREW |
| 188 | N 000127012201 | LOCK WASHER |
| 190 | A 1119870041 | RUBBER RING |
| Repalced by: A 1159970940 | ||
| 190 | A 1159970940 | SEAL RING |
| A 1159704450 | HEADREST | |
| Repalced by: A 1169701450 | ||
| 192 | A 1169701450 | HEADREST |
| LEATHER | ||
| 192 | A 1169701450 | HEADREST |
| LEATHER | ||
| 195 | A 1159704350 | HEADREST |
| Repalced by: A 1089705750 | ||
| 195 | A 1089705750 | HEADREST |
| IMITATION LEATHER | ||
| 195 | A 1089705750 | HEADREST |
| IMITATION LEATHER | ||
| A 1149700850 | HEADREST | |
| Repalced by: A 1089705550 | ||
| A 1089705550 | HEADREST | |
| VELOURS | ||
| A 1169701250 | HEADREST | |
| VELOURS | ||
| A 1169701150 | HEADREST | |
| REAR SEAT BENCH;VELOURS | ||
| A 1239700650 | HEADREST | |
| REAR SEAT BENCH; LEATHER | ||
| 198 | A 1159702773 | CLAMP |
| LEFT | ||
| A 1159702873 | CLAMP | |
| RIGHT | ||
| 200 | A 1159702156 | COVER |
| IMITATION LEATHER | ||
| 200 | A 1159702156 | COVER |
| IMITATION LEATHER | ||
| A 1159702256 | COVER | |
| Repalced by: A 1239700956 | ||
| A 1239700956 | COVER | |
| LEATHER | ||
| A 1239700956 | COVER | |
| LEATHER | ||
| A 1149700856 | COVER | |
| VELOURS | ||
| A 1079701156 | COVER | |
| VELOURS | ||
| A 0019870230 | WELT | |
| A 0019870230 | WELT | |
| A 1159704850 | HEADREST | |
| COMPLETE,BUT LESS COVER | ||
| A 1159703950 | MOUNTING MATERIAL | |
| Repalced by: A 1159705450 | ||
| A 1159705450 | MOUNTING MATERIAL | |
| A 1159700915 | RAIL | |
| Repalced by: A 1079700115 | ||
| 205 | A 1079700115 | RAIL |
| LEFT | ||
| A 1159701015 | RAIL | |
| Repalced by: A 1079700215 | ||
| A 1079700215 | RAIL | |
| RIGHT | ||
| 208 | A 1159750022 | GUIDE |
| TOP | ||
| 210 | A 1159750023 | FRICTION PIECE |
| 212 | A 1159750322 | GUIDE |
| BOTTOM | ||
| 214 | A 1159750237 | SPRING |
| Repalced by: A 1249750137 | ||
| 214 | A 1249750137 | SPRING |
| LEFT | ||
| 216 | A 1159750137 | SPRING |
| Repalced by: A 1249750137 | ||
| 216 | A 1249750137 | SPRING |
| RIGHT | ||
| 218 | A 1159750024 | SLIDE |
| 219 | A 1159880478 | CLIP |
| 220 | N 000934004004 | NUT |
| 221 | N 007987004130 | SCREW |
| 224 | N 006797004333 | TOOTHED WASHER |
| A 1159880282 | EYE | |
| Repalced by: A 1169880082 | ||
| 227 | A 1169880082 | EYE |
| Repalced by: A 1269880082 | ||
| 227 | A 1269880082 | EYE |
| 228 | A 1159880382 | EYE |
| Repalced by: A 1269901240 | ||
| 228 | A 1269901240 | WASHER |
| 230 | A 1169760060 | FOOTREST |
| 235 | A 1169760460 | FOOTREST |
| N 914031004200 | COMBINATION BOLT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
