Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

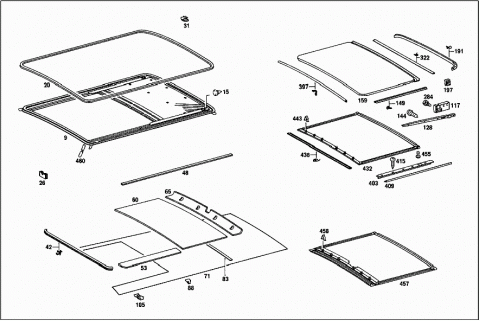

Grupė: 78 SILIDING ROOF - 001 SLIDING ROOF
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 1167800029 | FRAME |
| A 1167802229 | FRAME | |
| 015 | A 0009871840 | RUBBER BUFFER |
| A 1089870240 | RUBBER BUFFER | |
| A 1237800244 | DRAFT DEFLECTOR | |
| Repalced by: A 1267800044 | ||
| A 1267800044 | DRAFT DEFLECTOR | |
| Repalced by: A 1267800544 | ||
| A 1267800544 | DRAFT DEFLECTOR | |
| A 1237840121 | MOUNTING | |
| Repalced by: A 1237840721 | ||
| A 1237840721 | MOUNTING | |
| Repalced by: A 1247840121 | ||
| A 1247840121 | MOUNTING | |
| LEFT | ||
| A 1237840221 | MOUNTING | |
| Repalced by: A 1237840821 | ||
| A 1237840821 | MOUNTING | |
| Repalced by: A 1247840221 | ||
| A 1247840221 | MOUNTING | |
| RIGHT | ||
| A 1237840021 | MOUNTING | |
| LATERAL | ||
| A 1237800038 | LEVER | |
| Repalced by: A 2017800138 | ||
| A 2017800138 | LEVER | |
| LEFT | ||
| A 2017800238 | LEVER | |
| RIGHT | ||
| A 1237840135 | SPRING | |
| Repalced by: A 1247820535 | ||
| A 1247820535 | SPRING | |
| LEFT | ||
| A 1237840235 | SPRING | |
| Repalced by: A 1247820635 | ||
| A 1247820635 | SPRING | |
| RIGHT | ||
| A 1247820046 | STAY | |
| A 1237840521 | MOUNTING | |
| CENTRAL | ||
| 020 | A 1157820098 | SEAL |
| 026 | A 1107820507 | SEAL |
| 031 | A 1159880278 | CLIP |
| A 1167820297 | PAD | |
| Repalced by: A 1167820197 | ||
| A 1167820197 | PAD | |
| 042 | A 1087820098 | SEAL |
| 048 | A 1167820197 | PAD |
| 053 | A 1167870097 | PAD |
| 060 | A 1167870197 | PAD |
| 065 | A 1167870297 | PAD |
| A 1167870085 | PART NAME MISSING | |
| Repalced by: A 1167870080 | ||
| A 1167870080 | INSULATION | |
| Repalced by: A 1167870197 | ||
| A 1167870197 | PAD | |
| 071 | A 1167800240 | HEADLINER |
| 071 | A 1167800240 | HEADLINER |
| A 1167800840 | HEADLINER | |
| Repalced by: A 1167800640 | ||
| A 1167800640 | HEADLINER | |
| A 1167800340 | HEADLINER | |
| A 1167800340 | HEADLINER | |
| A 1167800940 | HEADLINER | |
| Repalced by: A 1167800740 | ||
| A 1167800740 | HEADLINER | |
| 083 | A 1167810028 | BOW |
| 088 | A 0019884878 | CLIP |
| N 007976006303 | SHEET METAL SCREW | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| 105 | A 0009946145 | LOCK |
| A 0009943845 | LOCK | |
| 117 | A 1157820138 | STOP |
| LEFT | ||
| A 1237820338 | STOP | |
| LEFT | ||
| A 1157820238 | STOP | |
| RIGHT | ||
| A 1237820438 | STOP | |
| RIGHT | ||
| 128 | A 1157820124 | RAIL |
| LEFT | ||
| A 1157820224 | RAIL | |
| RIGHT | ||
| N 000661003013 | RIVET | |
| 144 | A 0009901136 | SCREW |
| 149 | A 1087820198 | SEAL |
| 515 MM LONG | ||
| 159 | A 1157800121 | SLIDING ROOF PLATE |
| Repalced by: A 1237801821 | ||
| 159 | A 1237801821 | SLIDING ROOF PLATE |
| A 1237800221 | SLIDING ROOF PLATE | |
| Repalced by: A 1237801221 | ||
| A 1237801221 | SLIDING ROOF PLATE | |
| Repalced by: A 1237801321 | ||
| A 1237801321 | SLIDING ROOF PLATE | |
| A 0009905133 | SCREW | |
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 635 X 320 MM | ||
| A 1157800083 | SLIDING JAW | |
| Repalced by: A 1157821912 | ||
| A 1157801112 | ANGLE | |
| Repalced by: A 1157821912 | ||
| A 1157802712 | ANGLE | |
| Repalced by: A 1157821912 | ||
| A 1157820012 | ANGLE | |
| Repalced by: A 1157821912 | ||
| 173 | A 1157821912 | ANGLE |
| FRONT | ||
| A 1237820512 | ANGLE | |
| FRONT LEFT | ||
| A 1237820712 | ANGLE | |
| FRONT LEFT | ||
| A 1237820612 | ANGLE | |
| FRONT RIGHT | ||
| A 1237820812 | ANGLE | |
| FRONT RIGHT | ||
| A 1237820130 | SLIDING JAW | |
| Repalced by: A 1237820530 | ||
| A 1237820530 | SLIDING JAW | |
| LEFT | ||
| A 1237820630 | SLIDING JAW | |
| RIGHT | ||
| A 1157820130 | SLIDING JAW | |
| Repalced by: A 1157800083 | ||
| A 1157800083 | SLIDING JAW | |
| FRONT AND REAR | ||
| A 1237820230 | SLIDING JAW | |
| Repalced by: A 1237820330 | ||
| A 1237820330 | SLIDING JAW | |
| FRONT AND REAR | ||
| 185 | A 1157800912 | ANGLE |
| REAR LEFT | ||
| A 1237820312 | ANGLE | |
| Repalced by: A 1237820912 | ||
| A 1237820912 | ANGLE | |
| REAR LEFT | ||
| A 1237820912 | ANGLE | |
| REAR LEFT | ||
| A 1157801012 | ANGLE | |
| REAR RIGHT | ||
| A 1237820412 | ANGLE | |
| Repalced by: A 1237821012 | ||
| A 1237821012 | ANGLE | |
| REAR RIGHT | ||
| A 1237821012 | ANGLE | |
| REAR RIGHT | ||
| N 000933005036 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| N 006797005132 | TOOTHED WASHER | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 0029900601 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| 191 | A 1157820198 | SEAL |
| 197 | A 0009909791 | NUT RETAINER |
| Repalced by: A 0009909191 | ||
| 197 | A 0009909191 | NUT RETAINER |
| A 1079900291 | NUT RETAINER | |
| 203 | A 1157800011 | PLATE |
| A 1237800011 | PLATE | |
| Repalced by: A 1237800211 | ||
| 203 | A 1237800211 | PLATE |
| 209 | A 0009945545 | LOCK |
| N 007976004205 | SHEET METAL SCREW | |
| 215 | A 0009833092 | FELT |
| 60 X 20 MM | ||
| 221 | A 1157800135 | BRIDGE |
| A 1237800135 | BRIDGE | |
| 227 | A 1157800712 | ANGLE |
| LEFT | ||
| A 1157800812 | ANGLE | |
| RIGHT | ||
| 232 | A 1157800083 | SLIDING JAW |
| 238 | A 1087800183 | SLIDING JAW |
| 243 | A 1157820020 | MOUNTING |
| 249 | A 1157820132 | ROLLER |
| 254 | A 1157801512 | ANGLE |
| 260 | A 1157820135 | SPRING |
| 265 | A 1157800017 | TUBE |
| A 1237800477 | TUBE | |
| 271 | A 1157820597 | PAD |
| LEFT | ||
| A 1157820697 | PAD | |
| RIGHT | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| AT ANGLE | ||
| N 912004005100 | LOCK WASHER | |
| AT ANGLE | ||
| N 000934005008 | NUT | |
| AT ANGLE | ||
| N 000933005037 | SCREW | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 0029905101 | SCREW | |
| Repalced by: A 0049908601 | ||
| A 0049908601 | SCREW | |
| N 006797005132 | TOOTHED WASHER | |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| 280 | A 0009909191 | NUT RETAINER |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| A 1239940045 | LOCK | |
| Repalced by: A 0009940645 | ||
| A 0009940645 | LOCK | |
| TUBE TO COVERING | ||
| 284 | A 0009901522 | SCREW |
| TO SECURE SLIDING ROOF PLATE | ||
| A 1089900222 | SCREW | |
| TO SECURE SLIDING ROOF PLATE | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| TO SECURE SLIDING ROOF PLATE | ||
| 287 | A 1167800077 | TUBE |
| A 1167800677 | TUBE | |
| A 1167800177 | TUBE | |
| A 1167800777 | TUBE | |
| 299 | A 1157800389 | CABLE |
| A 1167800089 | CABLE | |
| 311 | A 0029881578 | CLIP |
| N 007976004212 | SHEET METAL SCREW | |
| TUBE TO REINFORCEMENT FRAME | ||
| N 007976004217 | SHEET METAL SCREW | |
| TUBE TO REINFORCEMENT FRAME | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| TUBE TO REINFORCEMENT FRAME | ||
| 317 | A 1116370068 | CLAMP |
| TUBE TO REAR PILLAR | ||
| N 007976004217 | SHEET METAL SCREW | |
| TUBE TO REAR PILLAR | ||
| 322 | A 1157840497 | PAD |
| 328 | A 1167800214 | BRACKET |
| WITH MOTOR AND GEARING | ||
| A 1167800114 | BRACKET | |
| FOR MOTOR AND GEARING | ||
| 334 | A 0008202442 | ELECTRIC MOTOR |
| 340 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 340 | A 0095454028 | PLUG HOUSING |
| 345 | A 0008203207 | GEARING |
| 351 | A 1089880978 | CLIP |
| 358 | A 0019971081 | GROMMET |
| 363 | A 0009920305 | BUSHING |
| N 000933006026 | SCREW | |
| GEARING TO BRACKET | ||
| N 000934006007 | NUT | |
| GEARING TO BRACKET | ||
| 369 | A 0008210026 | CONNECTOR |
| 375 | A 1117830143 | LINK |
| EMERGENCY CRANK | ||
| 377 | A 1087820314 | BRACKET |
| CONNECTOR | ||
| 378 | A 0029885178 | CLIP |
| CONNECTOR | ||
| 380 | A 0039882878 | CLIP |
| A 0019971081 | GROMMET | |
| MOTOR TO BRACKET | ||
| A 0009920305 | BUSHING | |
| MOTOR TO BRACKET | ||
| N 000933006026 | SCREW | |
| MOTOR TO BRACKET | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| BRACKET WITH MOTOR AND GEARING TO CONSOLE AT REAR FLOOR | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET WITH MOTOR AND GEARING TO CONSOLE AT REAR FLOOR | ||
| A 1087820013 | COVER RAIL | |
| A 1237820013 | COVER RAIL | |
| 397 | A 1237820213 | COVER RAIL |
| N 007983002203 | SHEET METAL SCREW | |
| 403 | A 1157821526 | SLIDING RAIL |
| Repalced by: A 1237822526 | ||
| 403 | A 1237822526 | SLIDING RAIL |
| LEFT,AT FRAME,LATERAL FRONT | ||
| A 1237821926 | SLIDING RAIL | |
| Repalced by: A 1157821526 | ||
| A 1157821626 | SLIDING RAIL | |
| Repalced by: A 1237822626 | ||
| A 1237822626 | SLIDING RAIL | |
| RIGHT,AT FRAME,LATERAL FRONT | ||
| A 1237822026 | SLIDING RAIL | |
| Repalced by: A 1157821626 | ||
| 409 | A 1107821326 | SLIDING RAIL |
| LEFT,HEADLINER FRAME | ||
| A 1107821426 | SLIDING RAIL | |
| RIGHT,HEADLINER FRAME | ||
| N 000965004024 | SCREW | |
| SLIDING RAIL TO BOTTOM FRAME | ||
| 415 | A 1089900036 | SCREW |
| Repalced by: A 1409900436 | ||
| 415 | A 1409900436 | SCREW |
| SLIDING RAIL TO BOTTOM FRAME | ||
| 420 | A 1167820117 | TUBE |
| IN TRUNK,ON THE RIGHT | ||
| 426 | A 1107820134 | CAP |
| A 1169881378 | CLIP | |
| Repalced by: A 0009888978 | ||
| A 0009888978 | CLIP | |
| 432 | A 1157800309 | FRAME |
| WITH HEADLINER | ||
| 432 | A 1157800309 | FRAME |
| WITH HEADLINER | ||
| 438 | A 0019876052 | RUBBER SEAL |
| 837 MM LONG | ||
| 443 | A 0019883278 | CLIP |
| A 1157822357 | SLIDING SHOE | |
| 455 | A 0009887381 | FASTENER BUTTON |
| 457 | A 1237800040 | HEADLINER |
| SLIDING ROOF PLATE | ||
| 458 | A 0019883278 | CLIP |
| 460 | A 0039976382 | HOSE |
| WATER DRAIN, FRONT, 1070 MM LONG | ||
| 460 | A 0039976382 | HOSE |
| WATER DRAIN, FRONT, 1070 MM LONG | ||
| 460 | A 0039976382 | HOSE |
| WATER DRAIN, FRONT, 1070 MM LONG | ||
