Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| STEERING FOR 024,036,120 SEE SPARE PARTS LIST 765.7 | ||

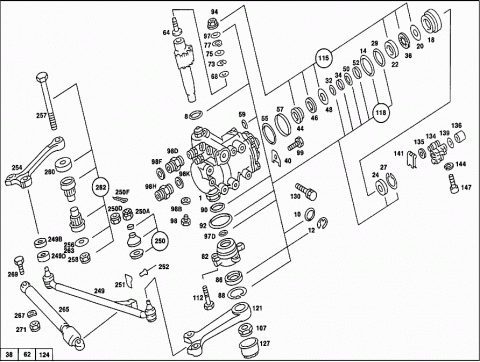

| A 1164600801 | STEERING BOX ASSEMBLY | |
| Repalced by: A 1164601001 | ||
| 001 | A 1164601001 | STEERING BOX ASSEMBLY |
| 008 | A 0049974545 | SEAL RING |
| Repalced by: A 0139973748 | ||
| 008 | A 0139973748 | SEAL RING |
| 010 | A 0099974445 | SEAL RING |
| 012 | A 0019948441 | LOCK |
| 014 | A 0099974845 | SEAL RING |
| 018 | A 1074600286 | THREADED INSERT |
| 020 | A 0019905540 | WASHER |
| 022 | A 0049811010 | NEEDLE BEARING |
| A 0069978146 | SEAL RING | |
| Repalced by: A 0129978047 | ||
| 024 | A 0129978047 | SEAL RING |
| Repalced by: A 0119976746 | ||
| 024 | A 0119976746 | SEAL RING |
| 027 | A 0019942541 | LOCK |
| 029 | A 0099974645 | SEAL RING |
| 032 | A 0099974345 | SEAL RING |
| 034 | A 1074660060 | SEAL RING |
| 036 | A 0009814818 | ROLLER BEARING |
| 038 | A 1074660583 | PISTON |
| 040 | A 1079940005 | LOCK |
| Repalced by: A 1239940005 | ||
| 040 | A 1239940005 | LOCK |
| 044 | A 0009815427 | ANGULAR CONTACT BEARING |
| 046 | A 0009814918 | ROLLER BEARING |
| 048 | A 0019905540 | WASHER |
| 050 | A 0099974545 | SEAL RING |
| 052 | A 1074660160 | SEAL RING |
| 055 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 055 | A 0149976148 | SEAL RING |
| 057 | A 1074660260 | SEAL RING |
| 059 | A 0099974245 | SEAL RING |
| A 1074620212 | STEERG. WORM SECTOR SHAFT | |
| Repalced by: A 1074600211 | ||
| 062 | A 1074600211 | STEERG. WORM SECTOR SHAFT |
| A 1074620071 | SCREW | |
| Repalced by: A 1234620071 | ||
| 064 | A 1234620071 | SCREW |
| 068 | A 1074620862 | THRUST WASHER |
| 2.65 MM | ||
| 068 | A 1074620962 | THRUST WASHER |
| 2.70 MM | ||
| 068 | A 1074621062 | THRUST WASHER |
| 2.75 MM | ||
| 068 | A 1074621162 | THRUST WASHER |
| Repalced by: A 1074620262 | ||
| 068 | A 1074620262 | THRUST WASHER |
| 2.80 MM | ||
| 068 | A 1074620162 | THRUST WASHER |
| 2.85 MM | ||
| 068 | A 1074620262 | THRUST WASHER |
| 2.90 MM | ||
| 068 | A 1074620362 | THRUST WASHER |
| 2.95 MM | ||
| 068 | A 1074620462 | THRUST WASHER |
| 3.00 MM | ||
| 068 | A 1074620562 | THRUST WASHER |
| 3.05 MM | ||
| 068 | A 1074620662 | THRUST WASHER |
| 3.10 MM | ||
| 073 | A 0049949242 | LOCK |
| 075 | A 1074620762 | THRUST WASHER |
| 077 | N 000471012001 | LOCK RING |
| 082 | A 1144600015 | STEERING BOX COVER |
| 086 | A 0069978246 | SEAL RING |
| Repalced by: A 0119976846 | ||
| 086 | A 0119976846 | SEAL RING |
| Repalced by: A 0199975047 | ||
| 086 | A 0199975047 | SEAL RING |
| 088 | A 0009949841 | LOCK |
| 090 | A 0049974545 | SEAL RING |
| Repalced by: A 0139973748 | ||
| 090 | A 0139973748 | SEAL RING |
| 092 | A 0099974745 | SEAL RING |
| A 0019906251 | NUT | |
| Repalced by: A 0019907051 | ||
| 094 | A 0019907051 | NUT |
| Repalced by: A 0009904050 | ||
| 094 | A 0009904050 | NUT |
| 097 | N 007603012110 | SEAL RING |
| 097D | A 0099974245 | SEAL RING |
| 098 | A 1159970630 | SCREW PLUG |
| 098B | N 007603008109 | SEAL RING |
| 098D | N 915013010001 | SCREW FITTING |
| 098F | N 007603016401 | SEAL RING |
| 098H | N 915013006002 | SCREW FITTING |
| 098K | N 007603012111 | SEAL RING |
| 099 | N 000933010244 | SCREW |
| 107 | A 0019905451 | NUT |
| 112 | A 1149900001 | SCREW |
| A 1075860046 | REPAIR KIT | |
| Repalced by: A 1074600037 | ||
| 115 | A 1074600037 | REPAIR KIT |
| A 1075860146 | REPAIR KIT | |
| Repalced by: A 1075860246 | ||
| A 1075860246 | REPAIR KIT | |
| Repalced by: A 1074600061 | ||
| 118 | A 1074600061 | GASKET KIT |
| 121 | A 1164631001 | PITMAN ARM |
| 121 | A 1164631201 | PITMAN ARM |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 107 | ||
| 127 | A 1164630190 | PROTECTIVE PLATE |
| 130 | A 1169900601 | SCREW |
| Repalced by: A 1299901101 | ||
| 130 | A 1299901101 | SCREW |
| A 1169900701 | SCREW | |
| Repalced by: A 1169900601 | ||
| A 1169900601 | SCREW | |
| Repalced by: A 1299901101 | ||
| A 1299901101 | SCREW | |
| 130 | A 1169901801 | SCREW |
| 110 MM | ||
| A 1154600310 | STEERING COUPLING | |
| Repalced by: A 1154600510 | ||
| 134 | A 1154600510 | STEERING COUPLING |
| 135 | A 1369909540 | WASHER |
| 136 | A 1114620165 | RING |
| 139 | A 1119903040 | WASHER |
| 141 | N 912002010001 | LOCK |
| 144 | N 007980008001 | LOCK WASHER |
| 147 | A 1119900420 | SCREW |

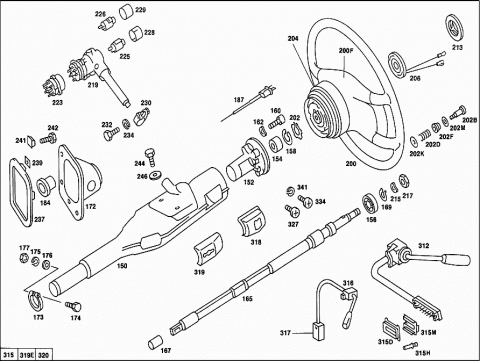

| A 1164601716 | STEER. COLUMN JACKET TUBE | |
| Repalced by: A 1164602116 | ||
| A 1164602116 | STEER. COLUMN JACKET TUBE | |
| Repalced by: A 1164603316 | ||
| A 1164603316 | STEER. COLUMN JACKET TUBE | |
| Repalced by: A 1164603816 | ||
| 150 | A 1164603816 | STEER. COLUMN JACKET TUBE |
| 152 | A 1154621835 | BEARING BODY |
| 154 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 154 | A 0189816110 | NEEDLE BEARING |
| 156 | N 000625006004 | GROOVED BALL BEARING |
| 156 | A 0029818625 | BALL BEARING |
| 158 | N 000472042001 | LOCK RING |
| 160 | N 000912006039 | SCREW |
| Repalced by: N 000912006064 | ||
| 160 | N 000912006064 | SCREW |
| 162 | N 000137006204 | SPRING WASHER |
| A 1164600409 | STEERING SHAFT | |
| Repalced by: A 1164601109 | ||
| 165 | A 1164601109 | STEERING SHAFT |
| 165 | A 1164602909 | STEERING SHAFT |
| A 1084620450 | BUSHING | |
| Repalced by: A 1164620060 | ||
| 167 | A 1164620060 | SEAL RING |
| 169 | N 000471020000 | LOCK RING |
| 169 | N 000471025002 | LOCK RING |
| 172 | A 1164600595 | COVERING |
| 172 | A 1164600895 | COVERING |
| 173 | A 1079950035 | CLAMP |
| 174 | N 000931006159 | SCREW |
| 175 | N 912004006102 | LOCK WASHER |
| 176 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 176 | N 000125006449 | WASHER |
| 177 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 177 | N 304032006008 | NUT |
| 184 | A 1164620096 | BOOT |
| A 0004640643 | CONTACT PIECE | |
| Repalced by: A 1074640143 | ||
| 187 | A 1074640143 | CONTACT PIECE |
| 200 | A 1164600003 | STEERING WHEEL |
| 200 | A 1234600203 | STEERING WHEEL |
| 200F | A 1164640087 | PAD |
| 202 | N 900055032200 | LOCK RING |
| 202B | A 1169900121 | SCREW |
| 202D | A 1169935501 | SPRING |
| 202D | A 1169935101 | SPRING |
| 202F | A 1164640050 | BUSHING |
| 202K | A 1164640177 | PROTECTIVE RING |
| Repalced by: A 6019900540 | ||
| 202K | A 6019900540 | WASHER |
| 202K | A 1164640077 | PROTECTIVE RING |
| 202M | A 1169901040 | WASHER |
| 204 | A 1164640025 | PANELLING |
| 206 | A 1164640017 | CONTACT PLATE |
| A 0004640332 | BADGE | |
| Repalced by: A 0004640432 | ||
| 213 | A 0004640432 | BADGE |
| 215 | N 000137014201 | SPRING WASHER |
| 217 | N 000936014010 | NUT |
| 217 | N 000439018200 | NUT |
| A 0004628030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620430 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| 219 | A 1164620830 | STEERING LOCK |
| Repalced by: A 1164621030 | ||
| 219 | A 1164621030 | STEERING LOCK |
| A 1164620230 | STEERING LOCK | |
| Repalced by: A 1164621030 | ||
| A 1164620630 | STEERING LOCK | |
| Repalced by: A 1164621030 | ||
| 220 | A 1164621030 | STEERING LOCK |
| A 0004621793 | IGNITION SWITCH | |
| Repalced by: A 1164620093 | ||
| 223 | A 1164620093 | IGNITION SWITCH |
| 224 | A 0004600284 | VALVE |
| DIESEL KEY STARTING | ||
| 225 | A 1154624130 | TUMBLER |
| Repalced by: A 6014600304 | ||
| 225 | A 6014600304 | TUMBLER |
| WITH LOCK DEFINED | ||
| 226 | A 0004627930 | TUMBLER |
| WITH LOCK DEFINED | ||
| 226 | A 1164620179 | TUMBLER |
| WITH LOCK DEFINED | ||
| 226 | A 1164600804 | STEERING LOCK |
| Repalced by: A 1164600604 | ||
| 226 | A 1164600604 | TUMBLER |
| WITH LOCK DEFINED | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| 226 | A 1164620079 | TUMBLER |
| WITH LOCK UNDEFINED | ||
| 226 | A 0004629330 | TUMBLER |
| WITH LOCK UNDEFINED | ||
| A 1164600704 | TUMBLER | |
| Repalced by: A 1164620279 | ||
| 226 | A 1164620279 | TUMBLER |
| WITH LOCK UNDEFINED | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR MASTER KEY,SEE GROUP 72 | ||
| 228 | A 1154620423 | COVER |
| Repalced by: A 1234620523 | ||
| 228 | A 1234620523 | COVER |
| 229 | A 0004621323 | COVER |
| 229 | A 1164620023 | COVER |
| 229 | A 1264621723 | COVER |
| A 1154600022 | CLAMPING PIECE | |
| Repalced by: A 1154600322 | ||
| 230 | A 1154600322 | CLAMPING PIECE |
| 232 | N 000931006118 | SCREW |
| 234 | N 000127006203 | LOCK WASHER |
| Repalced by: N 912004006102 | ||
| 234 | N 912004006102 | LOCK WASHER |

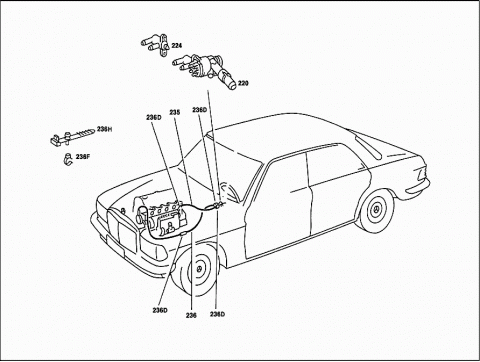

| 235 | A 0009974152 | HOSE |
| Repalced by: A 0001581435 | ||
| 235 | A 0001581435 | PIPE LINE |
| VACUUM LINE FROM STEERING LOCK TO INJECTION PUMP | ||
| 1350 MM | ||
| 236 | A 0009973952 | HOSE |
| FROM STEERING LOCK TO VACUUM PUMP LINE | ||
| 800 MM | ||
| 236D | A 0079976182 | HOSE |
| VACUUM LINE FROM STEERING LOCK TO INJECTION PUMP | ||
| 30 MM | ||
| 236D | A 0079976182 | HOSE |
| FROM STEERING LOCK TO VACUUM PUMP LINE | ||
| 30 MM | ||
| 236F | A 1109950165 | CLAMP |
| 236H | A 1169970790 | LOOM TIE |
| Repalced by: A 0019974190 | ||
| 236H | A 0019974190 | LOOM TIE |
| A 1164600061 | GASKET | |
| Repalced by: A 1164620280 | ||
| 237 | A 1164620280 | GASKET |
| A 1164600261 | GASKET | |
| Repalced by: A 1164620480 | ||
| 237 | A 1164620480 | GASKET |
| 239 | A 1114620175 | WASHER |
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| 241 | A 0009902291 | NUT RETAINER |
| 242 | N 914007006004 | COMBINATION BOLT |
| A 1089900701 | SCREW | |
| Repalced by: N 000931008046 | ||
| 244 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 244 | N 304017008018 | SCREW |
| 246 | N 009021008213 | WASHER |
| A 1164600605 | DRAG LINK | |
| Repalced by: A 1164600905 | ||
| A 1164600905 | DRAG LINK | |
| Repalced by: A 1234601505 | ||
| 249 | A 1234601505 | DRAG LINK |
| A 1164600705 | DRAG LINK | |
| Repalced by: A 1164601005 | ||
| 249 | A 1164601005 | DRAG LINK |
| Repalced by: A 1164601205 | ||
| 249 | A 1164601205 | DRAG LINK |
| 249B | A 0004630496 | BOOT |
| TO 116 460 06 05,116 460 07 05 | ||
| 249D | A 0004630097 | WASHER |
| TO 116 460 06 05,116 460 07 05 | ||
| A 1145860133 | REPAIR KIT | |
| Repalced by: A 1143300085 | ||
| A 1143300085 | BOOT | |
| Repalced by: A 0003300485 | ||
| 250 | A 0003300485 | REPAIR KIT |
| TO 116 460 09 05/10 05,123 460 15 05 | ||
| 250A | A 1209900155 | NUT |
| TO 116 460 06 05/09 05 | ||
| 250D | N 913002010010 | NUT |
| TO 123 460 15 05 | ||
| 250F | N 000094002077 | COTTER PIN |
| A 1164630552 | SPACER WASHER | |
| Repalced by: A 1164630452 | ||
| 251 | A 1164630452 | SPACER WASHER |
| 252 | N 910003004132 | RIVET |
| AS REQUIRED | ||
| 7.50 MM | ||
| 252 | N 910003004133 | RIVET |
| AS REQUIRED | ||
| 9.50 MM | ||
| 254 | A 1164630910 | STEERING INTERMEDIATE ARM |
| 254 | A 1164631110 | STEERING INTERMEDIATE ARM |
| 256 | A 1114630052 | SPACER WASHER |
| Repalced by: A 1244630077 | ||
| 256 | A 1244630077 | WASHER |
| 257 | N 000960016287 | SCREW |
| 258 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 258 | N 910113016002 | NUT |
| 260 | A 1114631056 | DUST CAP |
| A 1145860046 | REPAIR KIT | |
| Repalced by: A 1235860246 | ||
| A 1145860146 | REPAIR KIT | |
| Repalced by: A 1235860246 | ||
| A 1165860046 | REPAIR KIT | |
| Repalced by: A 1235860246 | ||
| A 1235860246 | REPAIR KIT | |
| Repalced by: A 1234600050 | ||
| 262 | A 1234600050 | REPAIR KIT |
| Repalced by: A 1244600150 | ||
| 262 | A 1244600150 | REPAIR KIT |
| Repalced by: A 1244600019 | ||
| 262 | A 1244600019 | REPAIR KIT |
| Repalced by: A 1264600819 | ||
| 262 | A 1264600819 | INTERMEDIATE LEVER |
| REPAIR KIT | ||
| 263 | A 1154630152 | SPACER WASHER |
| A 0004634332 | SHOCK ABSORBER | |
| Repalced by: A 0004635132 | ||
| A 0004634832 | SHOCK ABSORBER | |
| Repalced by: A 0004635132 | ||
| 265 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 267 | N 000137010201 | SPRING WASHER |
| 269 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 269 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 269 | N 308676010023 | SCREW |
| 271 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 271 | N 910113010002 | HEXAGON NUT |
| A 1164600324 | COOLING PIPE | |
| Repalced by: A 1164601124 | ||

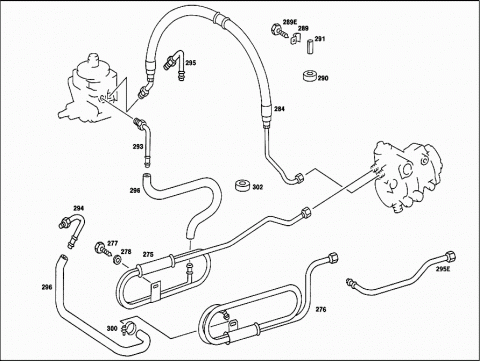

| 275 | A 1164601124 | LINE |
| COOLING PIPE | ||
| 275 | A 1164601224 | LINE |
| COOLING PIPE | ||
| 276 | A 1164602824 | LINE |
| COOLING PIPE | ||
| 277 | N 007976005203 | SHEET METAL SCREW |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006421 | ||
| 278 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 278 | N 000125006449 | WASHER |
| A 1169970252 | HOSE | |
| 279 | A 1239978782 | HOSE |
| FROM PUMP TO STEERING | ||
| 279 | A 1169972582 | HOSE |
| FROM PUMP TO STEERING | ||
| 279 | A 1169974582 | HOSE |
| FROM PUMP TO STEERING | ||
| 279 | A 1149974182 | HOSE |
| FROM PUMP TO STEERING | ||
| 284 | A 1169976982 | HOSE |
| FROM PUMP TO STEERING | ||
| 284 | A 1009974682 | HOSE |
| FROM PUMP TO STEERING | ||
| A 1239970282 | HOSE | |
| Repalced by: A 1239970482 | ||
| 284 | A 1239970482 | HOSE |
| FROM PUMP TO STEERING | ||
| 289 | A 1089950520 | CLAMP |
| 289E | N 007976005203 | SHEET METAL SCREW |
| 290 | A 1109870541 | RUBBER RING |
| A 1109970782 | HOSE | |
| Repalced by: N 073379008100 | ||
| 291 | N 073379008100 | HOSE |
| 30 MM | ||
| 291B | A 1164660082 | RUBBER RING |
| 292 | A 1154600724 | LINE |
| RETURN | ||
| 292B | A 1104600624 | LINE |
| RETURN | ||
| A 0039977782 | HOSE | |
| Repalced by: A 0069970982 | ||
| 292E | A 0069970982 | HOSE |
| FROM OIL TANK TO COOLING PIPE | ||
| 380 MM | ||
| 292E | A 0069970982 | HOSE |
| FROM RETURN LINE TO OIL TANK | ||
| 110 MM | ||
| 293 | A 1074601224 | LINE |
| FROM PUMP TO COOLING PIPE | ||
| 293 | A 1164602724 | LINE |
| FROM PUMP TO COOLING PIPE | ||
| 294 | A 1164603524 | LINE |
| FROM PUMP TO COOLING PIPE | ||
| 295 | A 1164603624 | LINE |
| FROM STEERING TO COOLING PIPE | ||
| 295E | A 1104600524 | LINE |
| Repalced by: A 1074604224 | ||
| 295E | A 1074604224 | LINE |
| FROM PUMP TO RETURN LINE | ||
| 296 | A 0009974752 | HOSE |
| FROM PUMP TO COOLING PIPE | ||
| 400 MM | ||
| 296 | A 0009974752 | HOSE |
| FROM PUMP TO COOLING PIPE | ||
| 270 MM | ||
| 296 | A 0009974752 | HOSE |
| FROM PUMP TO COOLING PIPE | ||
| 170 MM | ||
| 296 | A 0009974752 | HOSE |
| FROM STEERING TO COOLING PIPE | ||
| 240 MM | ||
| 296 | A 0009974752 | HOSE |
| FROM PUMP TO RETURN LINE | ||
| 250 MM | ||
| 296 | A 0009974752 | HOSE |
| FROM PUMP TO RETURN LINE | ||
| 430 MM | ||
| 300 | N 916026020001 | CLAMP |
| 300 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 300 | A 0059970190 | HOSE CLAMP |
| 302 | A 1164660082 | RUBBER RING |

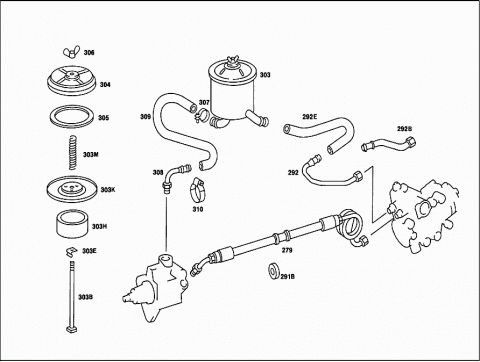

| 303 | A 1154600283 | OIL TANK |
| 303B | A 1892360171 | SCREW |
| 303E | A 0004660373 | LOCK |
| 303H | A 0002360055 | FILTER |
| 303K | A 0002360076 | WASHER |
| 303M | A 0019931401 | SPRING |
| 304 | A 0004601182 | COVER |
| 305 | A 0002360080 | GASKET |
| 306 | N 000315006004 | NUT |
| 307 | N 900288094102 | CLAMP |
| 308 | A 1154600024 | LINE |
| FROM OIL TANK TO PUMP | ||
| 309 | A 0069970982 | HOSE |
| 220 MM | ||
| 310 | N 916026020001 | CLAMP |
| 312 | A 0045450824 | SWITCH,AUTOMATIC |
| 312 | A 0045453224 | SWITCH,AUTOMATIC |
| A 0045457024 | SWITCH,AUTOMATIC | |
| Repalced by: A 0045456724 | ||
| A 0045456724 | SWITCH,AUTOMATIC | |
| Repalced by: A 0065453224 | ||
| 312 | A 0065453224 | SWITCH,AUTOMATIC |
| Repalced by: A 0055454124 | ||
| 312 | A 0055454124 | SWITCH,AUTOMATIC |
| A 0055454324 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055454124 | ||
| 312 | A 0055454124 | SWITCH,AUTOMATIC |
| 315 | A 0035453728 | PLUG |
| Repalced by: A 0095455628 | ||
| 315D | A 0095455628 | PLUG HOUSING |
| (PLUG HOUSING),14-POLE | ||
| 315H | A 0015453826 | PLUG PIN |
| 315M | A 0095455728 | COVER |
| TO 009 545 56 28 | ||
| 316 | A 0045458724 | SWITCH,AUTOMATIC |
| TEMPOMAT (CRUISE CONTROL) | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| 317 | A 0065457828 | PLUG HOUSING |
| SIXFOLD | ||
| 318 | A 1154621396 | BOOT |
| A 1164620196 | BOOT | |
| Repalced by: A 1164620396 | ||
| 319 | A 1164620396 | BOOT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 319 | ||
| 320 | A 1084620496 | BOOT |
| 327 | N 914025004103 | COMBINATION BOLT |
| 334 | N 007985004179 | SCREW |
| 341 | N 912004004100 | LOCK WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
