Transporto priemonė: 450 SEL USA; VIN numerio dalis: 116033

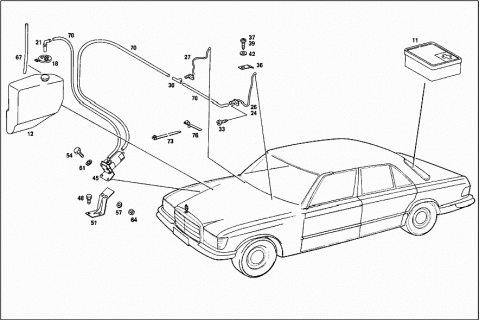

Grupė: 86 WINDSHIELD WASHER - 001 PANE WASHER,EMERGENCY EQUIPMENT
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 91 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 92 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 69,FIG.NO.: | ||
| 92E | ||
| 011 | A 0008650850 | FIRST AID BOX |
| Repalced by: A 0008600250 | ||
| 011 | A 0008600250 | FIRST AID BAG |
| 012 | A 1168690020 | RESERVOIR |
| 012 | A 1168690320 | RESERVOIR |
| 018 | A 0008691119 | FILLER CAP |
| 021 | A 0008690224 | CONNECTOR |
| A 1078690024 | CONNECTOR | |
| A 1168690314 | HOLDER | |
| N 007976006303 | SHEET METAL SCREW | |
| 024 | A 1168600147 | NOZZLE |
| Repalced by: A 1168600347 | ||
| 026 | A 1168600347 | NOZZLE |
| LEFT | ||
| 027 | A 1168600247 | NOZZLE |
| RIGHT | ||
| 030 | A 1158690024 | CONNECTOR |
| 033 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 033 | N 000000002062 | SCREW |
| 036 | A 1168690114 | HOLDER |
| 037 | N 007981004219 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 037 | N 000000000453 | TAPPING SCREW |
| 039 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 039 | N 000000002062 | SCREW |
| 042 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 042 | N 000125004319 | WASHER |
| A 1088690121 | PUMP | |
| 045 | A 1158690221 | PUMP |
| Repalced by: A 0008693021 | ||
| 045 | A 0008693021 | PUMP |
| 048 | N 914031005207 | COMBINATION BOLT |
| 051 | A 1168690214 | HOLDER |
| A 1168690614 | HOLDER | |
| Repalced by: A 1168691014 | ||
| A 1168691014 | HOLDER | |
| 054 | N 000933005031 | SCREW |
| PUMP TO BRACKET | ||
| N 000933005037 | SCREW | |
| PUMP TO BRACKET | ||
| 057 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 057 | N 009021005205 | WASHER |
| PUMP TO BRACKET | ||
| 057 | N 009021005205 | WASHER |
| PUMP TO BRACKET | ||
| 061 | N 000137005203 | SPRING WASHER |
| PUMP TO BRACKET | ||
| 061 | N 000137005203 | SPRING WASHER |
| PUMP TO BRACKET | ||
| 064 | N 000934005008 | NUT |
| PUMP TO BRACKET | ||
| 064 | N 000934005008 | NUT |
| PUMP TO BRACKET | ||
| 067 | A 0029975982 | HOSE |
| 250 MM | ||
| 070 | A 0109978982 | HOSE |
| LEFT NOZZLE TO RIGHT NOZZLE, 500 MM | ||
| 070 | A 0109978982 | HOSE |
| LEFT NOZZLE TO RIGHT NOZZLE, 500 MM | ||
| 070 | A 0109978982 | HOSE |
| LEFT NOZZLE TO RIGHT NOZZLE, 500 MM | ||
| 070 | A 0109978982 | HOSE |
| LEFT NOZZLE TO RIGHT NOZZLE, 500 MM | ||
| 073 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 073 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 076 | A 1149970190 | LOOM TIE |
| ON FIRE WALL | ||
