Transporto priemonė: 450 SE; VIN numerio dalis: 116032

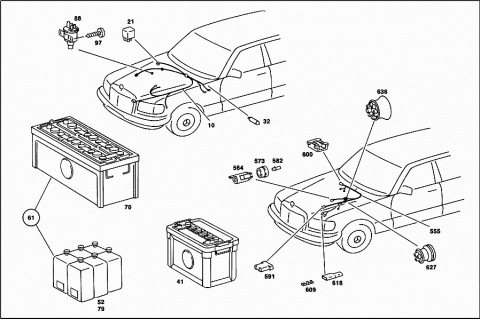

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ELECTRICAL PARTS USED FOR ADDITIONAL FAN | ||
| 010 | A 1165401808 | CABLE HARNESS |
| AUXILIARY FAN | ||
| 021 | A 0015422219 | RELAY |
| AUXILIARY FAN | ||
| 032 | A 0005458334 | FUSE |
| 16A | ||
| Q 000000000001 | . | |
| BATTERY | ||
| 12 V 88 AH | ||
| 041 | A 0015411001 | BATTERY |
| Repalced by: A 0035413201 | ||
| 041 | A 0035413201 | BATTERY |
| Repalced by: A 0015418001 | ||
| 041 | A 0015418001 | BATTERY |
| Repalced by: A 0035419201 | ||
| 041 | A 0035419201 | BATTERY |
| Repalced by: A 0045414601 | ||
| 041 | A 0045414601 | BATTERY |
| 052 | A 0009890615 | BATTERY ACID BOTTLE SET |
| 061 | A 1235400201 | BATTERY |
| Repalced by: A 1405400101 | ||
| 061 | A 1405400101 | BATTERY |
| Repalced by: A 0035419201 | ||
| 061 | A 0035419201 | BATTERY |
| Repalced by: A 0045414601 | ||
| 061 | A 0045414601 | BATTERY |
| PARTS KIT | ||
| 070 | A 0015414501 | BATTERY |
| Repalced by: A 0015418001 | ||
| 070 | A 0015418001 | BATTERY |
| Repalced by: A 0035419201 | ||
| 070 | A 0035419201 | BATTERY |
| Repalced by: A 0045414601 | ||
| 070 | A 0045414601 | BATTERY |
| 12V-88AH | ||
| 079 | A 0009890815 | BATTERY ACID BOTTLE SET |
| Repalced by: A 0009891415 | ||
| 079 | A 0009891415 | BATTERY ACID BOTTLE SET |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ELECTRICAL PARTS USED FOR AIR CONDITIONER | ||
| 088 | A 0015402097 | VALVE |
| Repalced by: A 0015406897 | ||
| 088 | A 0015406897 | VALVE |
| Repalced by: A 0015407097 | ||
| 088 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 088 | A 0015408697 | VALVE |
| RETARD IGNITION | ||
| 088 | A 0015408697 | VALVE |
| RETARD IGNITION | ||
| 097 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 097 | N 000000000460 | SHEET METAL SCREW |
| X XXXXXXXXXXXX | PART NAME MISSING | |

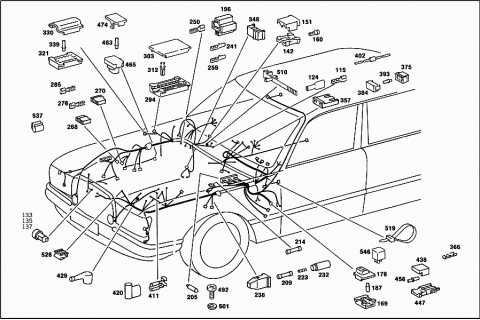

| ELECTRICAL PARTS USED FOR AIR CONDITIONING AUTOMATICS | ||
| 106 | A 1165406605 | CABLE HARNESS |
| Repalced by: A 1165407505 | ||
| 106 | A 1165406605 | CABLE HARNESS |
| Repalced by: A 1165407505 | ||
| 106 | A 1165407505 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 115 | A 0005464340 | PIN BUSHING |
| 124 | A 0005460045 | INSULATING SLEEVE |
| Repalced by: A 0005460845 | ||
| 124 | A 0005460845 | INSULATING SLEEVE |
| 133 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 133 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 135 | A 0095451428 | COVER |
| TO 008 545 20 28 | ||
| 137 | A 0015454426 | ROUND PIN BUSHING |
| TO 008 545 20 28 | ||
| 142 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 142 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 151 | A 0085453828 | COVER |
| TO 008 545 37 28 | ||
| 160 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 160 | A 0035452626 | ROUND PIN BUSHING |
| TO 008 545 37 28 | ||
| 169 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 169 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 178 | A 0095453028 | COVER |
| TO 006 545 80 28 | ||
| 187 | A 0015453726 | PIN BUSHING |
| Repalced by: A 0015453526 | ||
| 187 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 187 | A 0035452626 | ROUND PIN BUSHING |
| TO 006 545 80 28 | ||
| 196 | A 0045454028 | PIN BUSHING HOUSING |
| DOUBLE CONTACT RELAY,5-POLE | ||
| 205 | A 0005458334 | FUSE |
| 16 A | ||
| 209 | A 0015450534 | FUSE |
| 5 A | ||
| 214 | A 0015450434 | FUSE |
| ADDITIONAL FUSE FOR AMPLIFIER | ||
| 2 A | ||
| 223 | A 1238270234 | SPRING |
| Repalced by: A 0008270337 | ||
| 223 | A 0008270337 | FUSE BOX |
| ADDITIONAL FUSE FOR AMPLIFIER | ||
| 232 | A 1238270037 | FUSE BOX |
| Repalced by: A 0008270337 | ||
| 232 | A 0008270337 | FUSE BOX |
| ADDITIONAL FUSE FOR AMPLIFIER | ||
| 236 | A 1238270137 | FUSE BOX |
| Repalced by: A 0008270337 | ||
| 236 | A 0008270337 | FUSE BOX |
| ADDITIONAL FUSE FOR AMPLIFIER | ||
| 241 | A 0085454028 | PLUG |
| TO 004 545 40 28 | ||
| 250 | A 0075456928 | FLAT PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 250 | A 0075458426 | PIN BUSHING |
| TO 004 545 40 28 | ||
| 259 | A 0085454628 | PLUG |
| TO 004 545 40 28 | ||
| 268 | A 0085453428 | PLUG |
| 5-POLE | ||
| 270 | A 0085453528 | PLUG |
| 5-POLE | ||
| 276 | A 0085454428 | PLUG |
| Repalced by: A 0075456928 | ||
| 276 | A 0075456928 | FLAT PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 276 | A 0075458426 | PIN BUSHING |
| TO 008 545 34 28,008 545 35 28 | ||
| 285 | A 0085454528 | PLUG |
| TO 008 545 35 28,008 545 36 28 | ||
| 294 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 294 | A 0095452628 | PIN BUSHING HOUSING |
| TEST INSTRUMENT CONNECTION; 12-POLE | ||
| 303 | A 0095452428 | COVER |
| TO 009 545 26 28 | ||
| 312 | A 0015453726 | PIN BUSHING |
| Repalced by: A 0015453526 | ||
| 312 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 312 | A 0035452626 | ROUND PIN BUSHING |
| TO 009 545 26 28 | ||
| 321 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 321 | A 0095455428 | PLUG HOUSING |
| TEST INSTRUMENT CONNECTION; 12-POLE | ||
| 330 | A 0095455528 | PLUG |
| Repalced by: A 0095452428 | ||
| 330 | A 0095452428 | COVER |
| TO 009 545 54 28 | ||
| 339 | A 0015453826 | PLUG PIN |
| TO 009 545 54 28 | ||
| 348 | A 0085453628 | PLUG |
| 8-POLE | ||
| 357 | A 0055451728 | PLUG |
| Repalced by: A 0115455928 | ||
| 357 | A 0115455928 | PIN BUSHING HOUSING |
| BIPOLAR; MAIN SWITCH,COMPRESSOR SWITCH & BI-LEVEL SWITCH | ||
| 366 | A 0055451828 | PIN BUSHING |
| TO 005 545 17 28 | ||
| 375 | A 0008210426 | CONNECTOR |
| Repalced by: A 0008212426 | ||
| 375 | A 0008212426 | CONNECTOR |
| 4-POLE | ||
| 384 | A 0105456628 | COVER |
| TO 000 821 24 26 | ||
| 393 | A 0015454426 | ROUND PIN BUSHING |
| TO 000 821 24 26 | ||
| 402 | A 0008210077 | DIODE |
| 411 | A 0005468340 | CABLE SHOE |
| 420 | A 0005460445 | INSULATING SLEEVE |
| 429 | A 0005450745 | BOOT |
| 438 | A 0085451128 | COVER |
| TO 008 545 08 28 | ||
| 447 | A 0085450828 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 456 | A 0015452626 | PIN BUSHING |
| Repalced by: A 0015454426 | ||
| 456 | A 0015454426 | ROUND PIN BUSHING |
| TO 008 545 08 28 | ||
| 465 | A 0055455628 | PLUG |
| Repalced by: A 0095454428 | ||
| 465 | A 0095454428 | PIN BUSHING HOUSING |
| OUTBOARD TEMPERATURE FEELER | ||
| 474 | A 0095454528 | COVER |
| TO 009 545 44 28 | ||
| 483 | A 0015453726 | PIN BUSHING |
| Repalced by: A 0015453526 | ||
| 483 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 483 | A 0035452626 | ROUND PIN BUSHING |
| TO 009 545 44 28 | ||
| 492 | N 007985004107 | SCREW |
| CABLE TO FUSE BOX | ||
| 501 | N 912004004102 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 510 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 510 | A 1149970590 | LOOM TIE |
| 210 MM | ||
| 519 | A 0019974190 | LOOM TIE |
| 100 MM | ||
| 528 | A 0029884878 | CLIP |
| 537 | A 0009881878 | CLIP |
| 546 | A 0015420219 | RELAY |
| 546 | A 0015422219 | RELAY |
| 555 | A 1165401808 | CABLE HARNESS |
| FAN | ||
| 564 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 573 | A 0095451428 | COVER |
| TO 008 545 20 28 | ||
| 582 | A 0015452626 | PIN BUSHING |
| Repalced by: A 0015454426 | ||
| 582 | A 0015454426 | ROUND PIN BUSHING |
| TO 008 545 20 28 | ||
| 591 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 591 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 600 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 600 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 609 | A 0005464340 | PIN BUSHING |
| 618 | A 0005460045 | INSULATING SLEEVE |
| Repalced by: A 0005460845 | ||
| 618 | A 0005460845 | INSULATING SLEEVE |
| 627 | A 1169971481 | GROMMET |
| 636 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 636 | A 0089971781 | GROMMET |
