Transporto priemonė: 450 SE; VIN numerio dalis: 116032

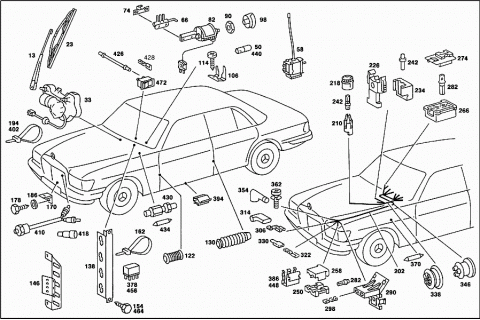

Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| Q 000000000001 | . | |
| PANE WIPER | ||
| 013 | A 1168202544 | WIPER ARM |
| 013 | A 1168202744 | WIPER ARM |
| 023 | A 1168200345 | WIPER BLADE |
| 033 | A 1168201642 | ELECTRIC MOTOR |
| PANE WIPER | ||
| Q 000000000001 | . | |
| AIR CONDITIONER | ||
| 050 | A 0015440194 | BULB |
| Repalced by: A 0008250094 | ||
| 050 | A 0008250094 | BULB |
| 050 | A 0008250094 | BULB |
| VACUUM SWITCH | ||
| 058 | A 1168210151 | SWITCH |
| TEMPERATURE SWITCH | ||
| 066 | A 0018352906 | SWITCH |
| 074 | A 1078050714 | BRACKET |
| 082 | A 1168210065 | CASE |
| (MASTER SWITCH),TEMPERATURE CONTROL | ||
| 090 | A 1075450072 | NUT |
| 098 | A 1168200192 | KNOB |
| VACUUM SWITCH | ||
| 098 | A 1168200292 | KNOB |
| VACUUM SWITCH | ||
| 106 | A 1168330514 | BRACKET |
| AIR-CONDITIONER TEMPERATURE/VACUUM SWITCH | ||
| 114 | N 007981003227 | SHEET METAL SCREW |
| AIR-CONDITIONER TEMPERATURE/VACUUM SWITCH | ||
| Q 000000000001 | . | |
| PROTECTIVE HOSE | ||
| 122 | A 1078210097 | HOSE |
| FRONT-PANEL-PILLAR-TO-FRONT-DOOR-CABLE PROTECTIVE HOSE | ||
| 130 | A 1168210097 | HOSE |
| CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE | ||
| Q 000000000001 | . | |
| RELAY BRACKET | ||
| 138 | A 1168210014 | BRACKET |
| 146 | A 1078200014 | BRACKET |
| 154 | N 007976004205 | SHEET METAL SCREW |
| 162 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 162 | A 1149970590 | LOOM TIE |
| Q 000000000001 | . | |
| ELECTRIC CABLE FIXTURE | ||
| 170 | A 1168210114 | BRACKET |
| ELECTRIC CABLE FIXTURE | ||
| 178 | N 007976005203 | SHEET METAL SCREW |
| BRACKET TO SIDE MEMBER | ||
| 186 | N 000125006421 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 194 | A 0019974190 | LOOM TIE |
| ELECTRIC CABLE TO BRACKET | ||
| 194 | A 1149970190 | LOOM TIE |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| Q 000000000001 | . | |
| ELECTRICAL PARTS USED FOR AIR CONDITIONER | ||
| 202 | A 1168205915 | ELECTRIC CABLE |
| TO AIR CONDITIONER AND AUXILIARY FAN | ||
| 202 | A 1168208515 | ELECTRIC CABLE |
| TO AIR CONDITIONER AND AUXILIARY FAN | ||
| 202 | A 1168205815 | ELECTRIC CABLE |
| TO AIR CONDITIONER AND AUXILIARY FAN | ||
| 202 | A 1168208415 | ELECTRIC CABLE |
| 210 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 210 | A 0085452028 | PIN BUSHING HOUSING |
| TEMPERATURE SWITCH,100 DEGS. | ||
| 218 | A 0095451428 | COVER |
| TO 008 545 20 28 | ||
| 226 | A 0035454728 | PLUG |
| Repalced by: A 0085450828 | ||
| 226 | A 0085450828 | PIN BUSHING HOUSING |
| ELECTRIC CHANGE-OVER VALVE | ||
| 234 | A 0085451128 | COVER |
| TO 008 545 08 28 | ||
| 242 | A 0015454426 | ROUND PIN BUSHING |
| TO 008 545 08 28,008 545 20 28 | ||
| 250 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 250 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR; ADDITIONAL FAN | ||
| 250 | A 0085453728 | PIN BUSHING HOUSING |
| RANCO SWITCH | ||
| 258 | A 0085453828 | COVER |
| TO 008 545 37 28 | ||
| 266 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 266 | A 0065458028 | PIN BUSHING HOUSING |
| RELAY; 6-POLE | ||
| 274 | A 0095453028 | COVER |
| TO 006 545 80 28 | ||
| 282 | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 282 | A 0035452626 | ROUND PIN BUSHING |
| TO 006 545 80 28,008 545 37 28 | ||
| 290 | A 0055451728 | PLUG |
| Repalced by: A 0115455928 | ||
| 290 | A 0115455928 | PIN BUSHING HOUSING |
| REFRIGERANT COMPRESSOR;2-POLE | ||
| 298 | A 0055451828 | PIN BUSHING |
| TO 011 545 59 28 | ||
| 306 | A 0005468340 | CABLE SHOE |
| LOW PRESSURE SWITCH | ||
| 314 | A 0005460445 | INSULATING SLEEVE |
| TO 000 546 83 40 | ||
| 322 | A 0005464740 | CABLE SHOE |
| Repalced by: A 0005464640 | ||
| 322 | A 0005464640 | CABLE SHOE |
| DEHYDRATOR SWITCH | ||
| 322 | A 0005464640 | CABLE SHOE |
| RANCO SWITCH | ||
| 330 | A 0005460845 | INSULATING SLEEVE |
| TO 000 546 47 40 | ||
| 338 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 338 | A 0089971781 | GROMMET |
| 346 | A 1169971481 | GROMMET |
| 354 | A 0005450745 | BOOT |
| LOW PRESSURE SWITCH | ||
| 362 | N 914025004103 | COMBINATION BOLT |
| 370 | A 0005458334 | FUSE |
| 16A | ||
| 378 | A 0015422219 | RELAY |
| 378 | A 0015420219 | RELAY |
| 386 | A 0029884878 | CLIP |
| 394 | A 0009888978 | CLIP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 402 | A 0019974190 | LOOM TIE |
| 410 | A 0008208010 | SWITCH |
| LIQUID TANK | ||
| 410 | A 0018201810 | SWITCH |
| Repalced by: A 0008208010 | ||
| 410 | A 0008208010 | SWITCH |
| LIQUID TANK | ||
| 418 | A 0005460645 | INSULATING SLEEVE |
| Q 000000000001 | . | |
| ROCKER SWITCH LIGHT GUIDE | ||
| 426 | A 1238200017 | LIGHT GUIDE |
| AUTOMATIC AIR CONDITIONER, ELECTRIC SLIDING ROOF,FANFARE | ||
| 428 | A 0005468440 | CABLE SHOE |
| Q 000000000001 | . | |
| AUTOMATIC AIR CONDITIONER | ||
| 430 | A 0008270037 | FUSE BOX |
| 434 | A 0015450134 | FUSE |
| 1A | ||
| 440 | N 072601012230 | BULB |
| TEMPERATURE SWITCH | ||
| 440 | N 072601012230 | BULB |
| OPERATING UNIT | ||
| 448 | A 0029884878 | CLIP |
| FROM TEMPERATURE SWITCH TO OPERATING UNIT,BIPOLAR | ||
| 456 | A 0015420219 | RELAY |
| 456 | A 0015422219 | RELAY |
| 464 | N 007983002216 | SHEET METAL SCREW |
| 472 | A 0028212051 | SWITCH |
| Repalced by: A 0008207910 | ||
| 472 | A 0008207910 | SWITCH |
