Transporto priemonė: 450 SE; VIN numerio dalis: 116032

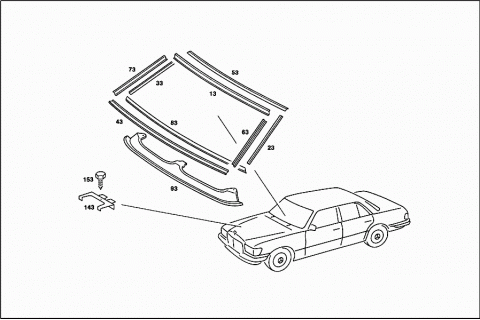

Grupė: 62 FRONT PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| WINDSHIELD RETAINING FRAME AND REINFORCEMENT | ||
| 013 | A 1166270414 | BRACKET |
| WINDSHIELD,TOP | ||
| 023 | A 1166270514 | BRACKET |
| WINDSHIELD,LEFT SIDE | ||
| 033 | A 1166270614 | BRACKET |
| WINDSHIELD,RIGHT SIDE | ||
| 043 | A 1166270714 | BRACKET |
| WINDSHIELD,BOTTOM | ||
| 053 | A 1166270416 | REINFORCEMENT |
| TOP | ||
| 063 | A 1166270516 | REINFORCEMENT |
| LATERAL LEFT | ||
| 073 | A 1166270616 | REINFORCEMENT |
| LATERAL RIGHT | ||
| 083 | A 1166270716 | REINFORCEMENT |
| BOTTOM | ||
| 093 | A 1166260158 | REST |
| INSTRUMENT PANEL | ||
| Q 000000000001 | . | |
| MOUNTING USED FOR BATTERY | ||
| 88 AH | ||
| 143 | A 1156260544 | INTERMEDIATE PIECE |
| BATTERY FRAME,LATERAL | ||
| 153 | N 007976004215 | SHEET METAL SCREW |
| INTERMEDIATE PIECE TO BATTERY FRAME |
