Transporto priemonė: 450 SE; VIN numerio dalis: 116032

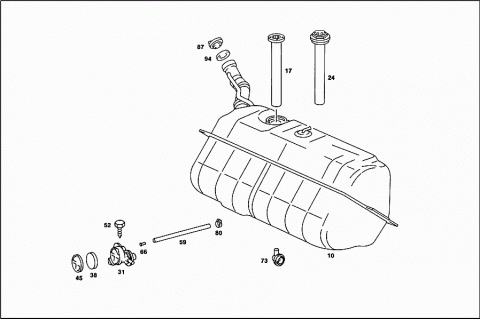

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| Q 000000000001 | . | |
| FUEL TANK | ||
| 010 | A 1164700901 | FUEL TANK |
| Repalced by: A 1164702701 | ||
| 010 | A 1164702701 | FUEL TANK |
| Repalced by: A 1164703901 | ||
| 010 | A 1164703901 | FUEL TANK |
| 017 | A 1165420404 | GAUGE SENDER UNIT |
| 024 | A 1165420604 | GAUGE SENDER UNIT |
| 031 | A 1074700493 | VALVE |
| Repalced by: A 1234700193 | ||
| 031 | A 1234700193 | VALVE |
| 038 | A 1074710042 | FILTER |
| 045 | A 1074710267 | COVER |
| 052 | N 007976004211 | SHEET METAL SCREW |
| VALVE TO FLOOR | ||
| 059 | A 1149971882 | HOSE |
| Repalced by: N 916030000527 | ||
| 059 | N 916030000527 | HOSE |
| REAR BREATHER LINE TO VENT VALVE | ||
| 180 MM | ||
| 066 | A 1074711615 | BREATHER PIPE |
| REAR BREATHER LINE TO VENT VALVE | ||
| 073 | A 1084710081 | BOOT |
| AT OUTLET PIPE SOCKET VENT VALVE | ||
| 080 | N 916033012100 | CLAMP |
| REAR BREATHER LINE TO VENT VALVE | ||
| 080 | N 916033012100 | CLAMP |
| AT OUTLET PIPE SOCKET VENT VALVE | ||
| Q 000000000001 | . | |
| FILLER CAP TO FILLER NECK | ||
| 087 | A 1104700805 | FILLER CAP |
| Repalced by: A 0004716330 | ||
| 087 | A 1004700105 | FILLER CAP |
| Repalced by: A 0004716330 | ||
| 087 | A 0004716330 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 087 | A 1244700005 | FILLER CAP |
| 087 | A 0004717430 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 087 | A 1244700005 | FILLER CAP |
| 094 | A 1104710280 | GASKET |
| Repalced by: A 1154710079 | ||
| 094 | A 1154710079 | SEAL RING |
