Transporto priemonė: 450 SE; VIN numerio dalis: 116032

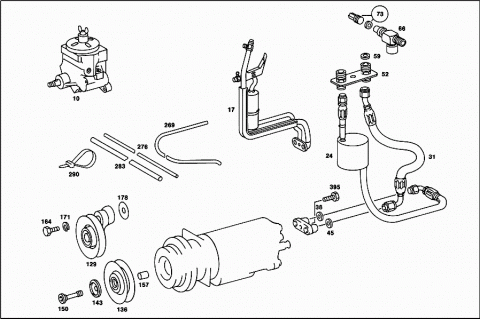

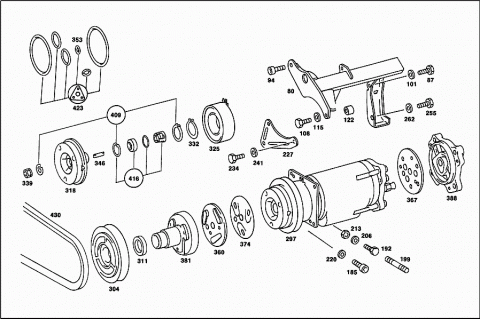

Grupė: 13 POWER STEERG.PUMP,REFRIG.COMPRESSOR - 001 AIR COMPRESSOR
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| POWER STEERING PUMP | ||
| 010 | A 1164603080 | HYDRAULIC PUMP |
| VICKERS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| AIR CONDITIONER ATTACHMENT PARTS | ||
| 017 | A 1161301157 | SUCTION LINE |
| 024 | A 0001340090 | DASHPOT |
| Repalced by: A 0001340190 | ||
| 024 | A 0001340190 | DASHPOT |
| REFRIGERANT HOSE WITH MUFFLER | ||
| A 0009972152 | HOSE | |
| 205 MM | ||
| 031 | A 0099978682 | HOSE |
| 038 | A 0008350498 | SEAL |
| Repalced by: A 0008356698 | ||
| 038 | A 0008356698 | SEAL |
| 045 | A 0008350398 | SEAL |
| Repalced by: A 0008356798 | ||
| 045 | A 0008356798 | SEAL |
| 052 | A 0001310109 | HOUSING |
| (DISTRIBUTOR PLATE) | ||
| 059 | N 007603017102 | SEAL RING |
| 066 | A 0001312204 | VALVE |
| (DISTRIBUTOR PLATE) | ||
| 073 | A 0001311821 | CAP |
| RANGE OF DELIVERY | ||
| 080 | A 1171300335 | SUPPORT |
| REFRIGERANT COMPRESSOR | ||
| 087 | A 1169900220 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 094 | N 000912010077 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 101 | N 000125010518 | WASHER |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 108 | A 0049900001 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 108 | N 000933008131 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 115 | N 000125008418 | WASHER |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 122 | A 1804661051 | SPACER RING |
| AS REQUIRED | ||
| 11.25 MM | ||
| 122 | A 1804660951 | SPACER RING |
| AS REQUIRED | ||
| 11.50 MM | ||
| 122 | A 1804660851 | SPACER RING |
| AS REQUIRED | ||
| 11.75 MM | ||
| 122 | A 1804660751 | SPACER RING |
| AS REQUIRED | ||
| 12.00 MM | ||
| 122 | A 1804660651 | SPACER RING |
| AS REQUIRED | ||
| 12.25 MM | ||
| 122 | A 1804660151 | SPACER RING |
| AS REQUIRED | ||
| 12.50 MM | ||
| 122 | A 1804660251 | SPACER RING |
| AS REQUIRED | ||
| 12.75 MM | ||
| 122 | A 1804660351 | SPACER RING |
| AS REQUIRED | ||
| 13.00 MM | ||
| 122 | A 1804660451 | SPACER RING |
| Repalced by: A 1804660851 | ||
| 122 | A 1804660851 | SPACER RING |
| AS REQUIRED | ||
| 13.25 MM | ||
| 122 | A 1804660551 | SPACER RING |
| AS REQUIRED | ||
| 13.50 MM | ||
| 129 | A 1161300360 | PULLEY |
| BELT TENSION READJUSTMENT | ||
| A 1161300160 | PULLEY | |
| Repalced by: A 1161300460 | ||
| 136 | A 1161300460 | PULLEY |
| 143 | A 0039976640 | SEAL RING |
| A 1159900119 | SCREW | |
| Repalced by: A 1159900219 | ||
| 150 | A 1159900219 | SCREW |
| 157 | A 1151320053 | SPACER TUBE |
| 164 | N 000960012189 | SCREW |
| 171 | N 912004012100 | LOCK WASHER |
| 178 | A 1161310152 | SPACER WASHER |
| AS REQUIRED | ||
| 4 MM | ||
| 178 | A 1161310252 | SPACER WASHER |
| AS REQUIRED | ||
| 5 MM | ||
| 178 | A 1161310352 | SPACER WASHER |
| AS REQUIRED | ||
| 6 MM | ||
| 178 | A 1161310452 | SPACER WASHER |
| AS REQUIRED | ||
| 7 MM | ||
| 185 | N 006912008020 | SCREW |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 192 | N 000933008152 | SCREW |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 192 | N 000933008147 | SCREW |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 199 | N 000939008083 | STUD BOLT |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 206 | N 000125008418 | WASHER |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 213 | N 000934008013 | NUT |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 220 | A 1169901440 | WASHER |
| Repalced by: A 6039900840 | ||
| 220 | A 6039900840 | WASHER |
| REFRIGERANT COMPRESSOR TO CRANKCASE | ||
| 227 | A 1161310541 | BRACKET |
| BRACKET TO REFRIGERANT COMPRESSOR WITH SUPPORT | ||
| 234 | A 0049900001 | SCREW |
| BRACKET TO REFRIGERANT COMPRESSOR WITH SUPPORT | ||
| 234 | N 000933008131 | SCREW |
| BRACKET TO REFRIGERANT COMPRESSOR WITH SUPPORT | ||
| 241 | N 000125008418 | WASHER |
| BRACKET TO REFRIGERANT COMPRESSOR WITH SUPPORT | ||
| 255 | N 000933008154 | SCREW |
| REFRIGERANT COMPRESSOR WITH SUPPORT TO OIL PAN | ||
| 262 | N 000125008418 | WASHER |
| REFRIGERANT COMPRESSOR WITH SUPPORT TO OIL PAN | ||
| 269 | A 0001589835 | PIPE LINE |
| FROM IGNIT.DISTRIBUTOR TO ELEC.CHANGEOVER VALVE; TRANSPARENT/VIOLET/YELLOW | ||
| 810 MM | ||
| 269 | A 0001589835 | PIPE LINE |
| FROM IGNIT.DISTRIBUTOR TO ELEC.CHANGEOVER VALVE; TRANSPARENT/VIOLET/YELLOW | ||
| 970 MM | ||
| 276 | A 0001589035 | PIPE LINE |
| FROM THROTTLE VALVE HOUSING TO CHANGEOVER VALVE; TRANSPARENT/VIOLET/YELLOW | ||
| 740 MM | ||
| 276 | A 0001589035 | PIPE LINE |
| FROM ELECTRIC CHANGE-OVER VALVE TO ADDITIONAL AIR SLIDE MOLDED HOSE | ||
| 840 MM | ||
| 283 | A 1179970982 | HOSE |
| 40 MM | ||
| 290 | A 0019974390 | LOOM TIE |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REFRIGERANT COMPRESSOR | ||
| A 0011318501 | COMPRESSOR | |
| Repalced by: A 0021314701 | ||
| A 0021314701 | COMPRESSOR | |
| Repalced by: A 0031312501 | ||
| 297 | A 0031312501 | COMPRESSOR |
| Repalced by: A 0002304911 | ||
| 297 | A 0002304911 | COMPRESSOR |
| WITH COUPLING | ||
| 304 | A 0001323108 | COUPLING |
| "5" | ||
| 311 | A 0009818727 | ANGULAR CONTACT BEARING |
| 318 | A 0001320410 | FOLLOWER |
| 325 | A 0001570801 | SOLENOID |
| 332 | A 0029941941 | LOCK |
| 339 | A 0029908051 | NUT |
| 346 | A 0009930507 | SPRING |
| 353 | A 0109973445 | SEAL RING |
| 360 | A 0001312031 | VALVE DISC |
| FRONT | ||
| 367 | A 0001312131 | VALVE DISC |
| REAR | ||
| 374 | A 0001312304 | VALVE |
| SUCTION SIDE, FRONT AND REAR | ||
| 381 | A 0001301119 | CYLINDER HEAD |
| FRONT | ||
| A 0001301219 | CYLINDER HEAD | |
| Repalced by: A 0001303619 | ||
| 388 | A 0001303619 | CYLINDER HEAD |
| REAR | ||
| 395 | A 0039900701 | SCREW |
| PIPE LINE | ||
| 395 | N 070614010021 | SCREW |
| PIPE LINE | ||
| 409 | A 0005861413 | REPAIR KIT |
| (LOCK RING KIT) | ||
| 416 | A 0005861513 | REPAIR KIT |
| (LOCK RING KIT) | ||
| 423 | A 0005861613 | REPAIR KIT |
| VALVE PLATE | ||
| 430 | A 0059978292 | V-BELT |
| 12.5X868 MM | ||
| 430 | A 0069973692 | V-BELT |
| 12.5X825 MM | ||
| 430 | A 0059978192 | V-BELT |
| 12.5X838 MM | ||
