Transporto priemonė: 450 SE; VIN numerio dalis: 116032
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| Q 000000000001 | . | |

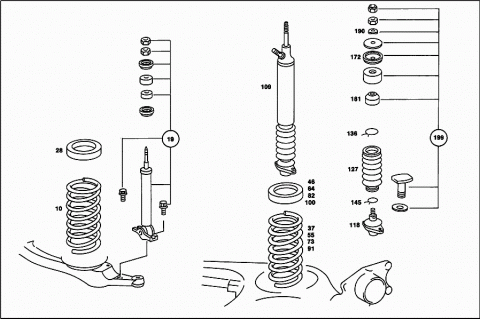

| FRONT SPRINGS | ||
| 010 | A 1163214404 | FRONT SPRING |
| 019 | A 1163200130 | SHOCK ABSORBER |
| FRONT | ||
| Q 000000000001 | . | |
| FRONT AXLE PRESSURE | ||
| 1086-1120 KG | ||
| 028 | A 1233211384 | SHIM |
| WITH SPRING COLOR CODE IN BLUE | ||
| 8 MM | ||
| 028 | A 1233211484 | SHIM |
| WITH SPRING COLOR CODE IN RED | ||
| 13 MM | ||
| Q 000000000001 | . | |
| FRONT AXLE PRESSURE | ||
| 1120-1152 KG | ||
| 028 | A 1233211484 | SHIM |
| WITH SPRING COLOR CODE IN BLUE | ||
| 13 MM | ||
| 028 | A 1233211584 | SHIM |
| WITH SPRING COLOR CODE IN RED | ||
| 18 MM | ||
| Q 000000000001 | . | |
| FRONT AXLE PRESSURE | ||
| 1152-1184 KG | ||
| 028 | A 1233211584 | SHIM |
| WITH SPRING COLOR CODE IN BLUE | ||
| 18 MM | ||
| 028 | A 1233211684 | SHIM |
| WITH SPRING COLOR CODE IN RED | ||
| 23 MM | ||
| Q 000000000001 | . | |
| FRONT AXLE PRESSURE | ||
| 1184-1216 KG | ||
| 028 | A 1233211684 | SHIM |
| WITH SPRING COLOR CODE IN BLUE | ||
| 23 MM | ||
| Q 000000000001 | . | |
| REAR SPRINGS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE PRESSURE | ||
| 1035-1065 KG | ||
| 037 | A 1163240904 | REAR SPRING |
| 046 | A 1153252444 | RUBBER BUFFER |
| WITH SPRING COLOR CODE IN BLUE | ||
| 19 MM | ||
| Q 000000000001 | . | |
| REAR AXLE PRESSURE | ||
| 1065-1100 KG | ||
| 055 | A 1163241604 | REAR SPRING |
| 064 | A 1153252244 | RUBBER BUFFER |
| WITH SPRING COLOR CODE IN BLUE | ||
| 9.5 MM | ||
| 064 | A 1153252344 | RUBBER BUFFER |
| WITH SPRING COLOR CODE IN RED | ||
| 14 MM | ||
| Q 000000000001 | . | |
| REAR AXLE PRESSURE | ||
| 1100-1130 KG | ||
| 073 | A 1163241604 | REAR SPRING |
| 082 | A 1153252344 | RUBBER BUFFER |
| WITH SPRING COLOR CODE IN BLUE | ||
| 14 MM | ||
| 082 | A 1153252444 | RUBBER BUFFER |
| WITH SPRING COLOR CODE IN RED | ||
| 19 MM | ||
| Q 000000000001 | . | |
| REAR AXLE PRESSURE | ||
| 1130-1160 KG | ||
| 091 | A 1163241604 | REAR SPRING |
| 100 | A 1153252444 | RUBBER BUFFER |
| WITH SPRING COLOR CODE IN BLUE | ||
| 19 MM | ||
| Q 000000000001 | . | |
| SELF-LEVELLING DEVICE | ||
| 109 | A 1163204613 | HYDROPN. SPRING LEG |
| REAR | ||
| 118 | A 1163201328 | JOINT |
| 127 | A 1153280392 | BOOT |
| 136 | A 1149940039 | WIRE RING |
| TOP | ||
| 145 | A 1149940139 | WIRE RING |
| BOTTOM | ||
| 154 | A 1109950065 | CLAMP |
| Repalced by: A 0004760436 | ||
| 154 | A 0004760436 | BRACKET |
| HIGH PRESSURE EXPANSION HOSE TO OIL CONNECTING HOSE | ||
| 159 | A 1109950165 | CLAMP |
| HIGH PRESSURE EXPANSION HOSE TO OIL CONNECTING HOSE | ||
| Q 000000000001 | . | |
| SEE FIG. NO.: | ||
| 037,055,073,091 | ||
| A 1153260667 | RETAINER | |
| Repalced by: A 1163260067 | ||
| 172 | A 1163260067 | RETAINER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 181 | A 1143260068 | RUBBER BUFFER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 190 | N 000137010201 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 199 | A 1143200444 | REPAIR KIT |
| Repalced by: A 1263200044 | ||
| 199 | A 1263200044 | REPAIR KIT |
| HYDROPNEUMATIC SPRING LEG MOUNTING | ||
| 199 | A 1075860532 | REPAIR KIT |
| Repalced by: A 1263200144 | ||
| 199 | A 1263200144 | REPAIR KIT |
| HYDROPNEUMATIC SPRING LEG MOUNTING | ||

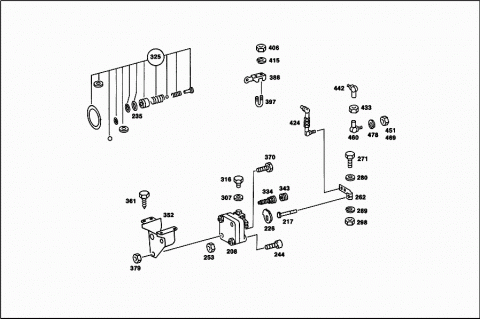

| 208 | A 1153200258 | VALVE |
| Repalced by: A 1233200158 | ||
| 208 | A 1233200158 | VALVE |
| HEIGHT CONTROL VALVE | ||
| 217 | A 1153280014 | SHAFT |
| 226 | A 1153280532 | VALVE PART |
| 235 | A 0069976945 | SEAL RING |
| 244 | N 000912010078 | SCREW |
| 244 | N 000912010077 | SCREW |
| 253 | N 913004010011 | NUT |
| 262 | A 1073280027 | LEVER |
| 271 | N 000933006127 | SCREW |
| 280 | N 000433006405 | WASHER |
| 289 | N 912004006102 | LOCK WASHER |
| 298 | N 000934006013 | NUT |
| 307 | N 007603008109 | SEAL RING |
| 316 | A 1239970230 | SCREW PLUG |
| 325 | A 0005860032 | REPAIR KIT |
| HEIGHT CONTROL VALVE | ||
| 334 | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| 343 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 343 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 343 | A 0004210887 | PROTECTIVE CAP |
| 352 | A 1163280140 | BRACKET |
| HEIGHT CONTROL VALVE TO FRAME | ||
| 361 | N 007976006203 | SHEET METAL SCREW |
| BRACKET TO FRAME | ||
| 370 | N 000931010306 | SCREW |
| HEIGHT CONTROL VALVE TO BRACKET | ||
| 379 | N 913004010011 | NUT |
| HEIGHT CONTROL VALVE TO BRACKET | ||
| 388 | A 1163260469 | LEVER |
| 397 | A 1163260226 | CLAMP |
| 406 | N 000934005008 | NUT |
| LEVER TO TORSION BAR | ||
| 415 | N 912004005103 | LOCK WASHER |
| LEVER TO TORSION BAR | ||
| 424 | A 1143200089 | ROD |
| Repalced by: A 1233201489 | ||
| 424 | A 1233201489 | ROD |
| FROM TORSION BAR TO SELF-LEVELLING UNIT | ||
| 433 | N 000934006013 | NUT |
| 442 | A 1233280263 | JOINT |
| Repalced by: A 1233280063 | ||
| 442 | A 1233280063 | JOINT |
| R.H. THREAD | ||
| 451 | N 000934006012 | NUT |
| L.H. THREAD | ||
| 460 | A 1143280163 | JOINT |
| Repalced by: A 1233280163 | ||
| 460 | A 1233280163 | JOINT |
| L.H. THREAD | ||
| 469 | N 000934006013 | NUT |
| 478 | N 912004006102 | LOCK WASHER |

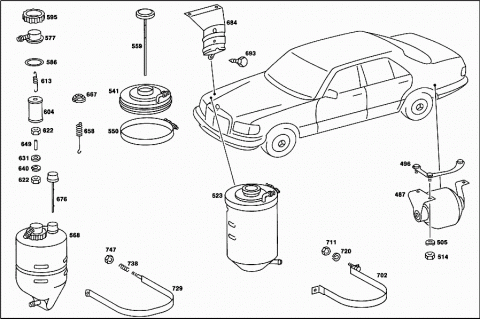

| 487 | A 1233200015 | AIR CELL |
| Repalced by: A 1233200215 | ||
| 487 | A 1233200215 | AIR CELL |
| (SPRING LOAD ACCUMULATOR) | ||
| 496 | A 1263200243 | BRACKET |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 505 | N 000137008204 | SPRING WASHER |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 514 | N 000934008013 | NUT |
| SPRING LOAD ACCUMULATOR TO FRAME | ||
| 523 | A 1143200114 | RESERVOIR |
| (OIL RESERVOIR) | ||
| 541 | A 0003280091 | CLEANER |
| 550 | A 0003280068 | STRAP |
| 559 | A 0003280021 | COVER |
| OIL DIPSTICK | ||
| 568 | A 1233200014 | RESERVOIR |
| Repalced by: A 1163200514 | ||
| 568 | A 1163200514 | RESERVOIR |
| (OIL RESERVOIR) | ||
| 577 | A 1233200184 | COVER |
| 586 | A 1233270060 | SEAL RING |
| 595 | A 1233270172 | NUT |
| 604 | A 0021845501 | OIL FILTER |
| 613 | A 1239930010 | SPRING |
| 622 | N 000934006013 | NUT |
| 631 | N 000440006162 | WASHER |
| 640 | N 912004006102 | LOCK WASHER |
| 649 | A 1169970019 | THREADED PIN |
| 658 | A 1239931101 | SPRING |
| 667 | A 1233270160 | SEAL RING |
| 676 | A 1233200059 | OIL DIPSTICK |
| 684 | A 1163270241 | SUPPORT |
| 693 | N 007976006203 | SHEET METAL SCREW |
| 702 | A 1153200343 | BRACKET |
| 711 | N 000934006013 | NUT |
| 720 | N 912004006102 | LOCK WASHER |
| 729 | A 1233200045 | STRAP |
| 738 | A 1239930301 | SPRING |
| 747 | N 913002006001 | NUT |

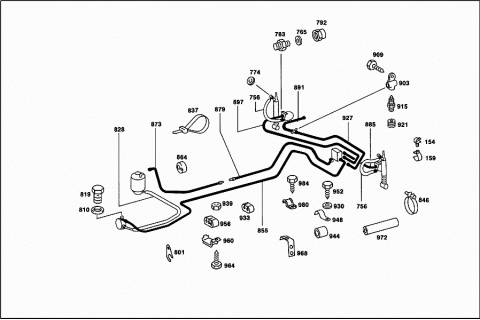

| 756 | A 2019970882 | HOSE |
| FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG | ||
| 765 | N 007603012405 | SEAL RING |
| 774 | N 007603012110 | SEAL RING |
| 783 | N 915013006002 | SCREW FITTING |
| 792 | A 1153260072 | NUT |
| Repalced by: A 1239900053 | ||
| 792 | A 1239900053 | NUT |
| 801 | A 1162360740 | BRACKET |
| HIGH PRESSURE EXPANSION HOSE TO BATTERY FRAME | ||
| 810 | N 007603012405 | SEAL RING |
| 819 | N 915036008105 | HOLLOW SCREW |
| 828 | A 1149970482 | HOSE |
| FROM OIL RESERVOIR TO OIL PIPE AT OIL PUMP | ||
| 837 | A 0019974390 | LOOM TIE |
| 846 | N 916026010000 | CLAMP |
| 855 | A 1163200372 | LINE |
| Repalced by: A 1163201253 | ||
| 855 | A 1163201253 | LINE |
| FROM OIL PUMP TO CONTROL VALVE | ||
| 855 | A 1163200472 | LINE |
| Repalced by: A 1163201353 | ||
| 855 | A 1163201353 | LINE |
| FROM OIL PUMP TO CONTROL VALVE | ||
| 864 | A 1143281181 | BUFFER |
| 873 | A 1163207572 | LINE |
| OIL RETURN LINE,FRONT | ||
| 873 | A 1163208072 | LINE |
| Repalced by: A 1163201653 | ||
| 873 | A 1163208072 | LINE |
| Repalced by: A 1163201653 | ||
| 873 | A 1163201653 | LINE |
| OIL RETURN LINE,FRONT | ||
| 879 | A 1163200772 | LINE |
| Repalced by: A 1163201453 | ||
| 879 | A 1163201453 | LINE |
| OIL RETURN LINE,REAR | ||
| 879 | A 1163202553 | LINE |
| OIL RETURN LINE,REAR | ||
| 879 | A 1163200672 | LINE |
| Repalced by: A 1163201553 | ||
| 879 | A 1163201553 | LINE |
| OIL RETURN LINE,REAR | ||
| 879 | A 1163202653 | LINE |
| OIL RETURN LINE,REAR | ||
| 885 | A 1163200853 | LINE |
| FROM LEFT SPRING LOAD ACCUMULATOR TO SELF-LEVELLING UNIT | ||
| 891 | A 1163201472 | LINE |
| Repalced by: A 1234205628 | ||
| 891 | A 1234205628 | LINE |
| FROM SPRING LOAD ACCUMULATOR TO RIGHT DISTRIBUTOR | ||
| 897 | A 1163200953 | LINE |
| FROM RIGHT SPRING LOAD ACCUMULATOR TO SELF-LEVELLING UNIT | ||
| 903 | A 0004284124 | DISTRIBUTOR |
| 909 | N 007976006204 | SHEET METAL SCREW |
| 915 | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| 921 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 921 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 921 | A 0004210887 | PROTECTIVE CAP |
| 927 | A 1163201753 | LINE |
| FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE | ||
| 930 | A 0009873841 | RUBBER RING |
| 933 | A 0009877770 | RUBBER SECTION |
| 40 MM | ||
| 939 | N 000934006007 | NUT |
| 944 | A 1149970982 | HOSE |
| 948 | A 1149950020 | CLAMP |
| 952 | N 007976005203 | SHEET METAL SCREW |
| 956 | A 1104760084 | DAMPING STRIP |
| 960 | A 1109950022 | CLAMP |
| 964 | N 007976006203 | SHEET METAL SCREW |
| 968 | A 1104280041 | CLAMP |
| Repalced by: A 2014280040 | ||
| 968 | A 2014280040 | BRACKET |
| 972 | A 1159973282 | HOSE |
| Repalced by: N 073379006101 | ||
| 972 | N 073379006101 | HOSE |
| 30 MM | ||
| 972 | A 0009978682 | HOSE |
| 18 MM | ||
| 980 | A 1089950520 | CLAMP |
| 984 | N 007976005203 | SHEET METAL SCREW |
